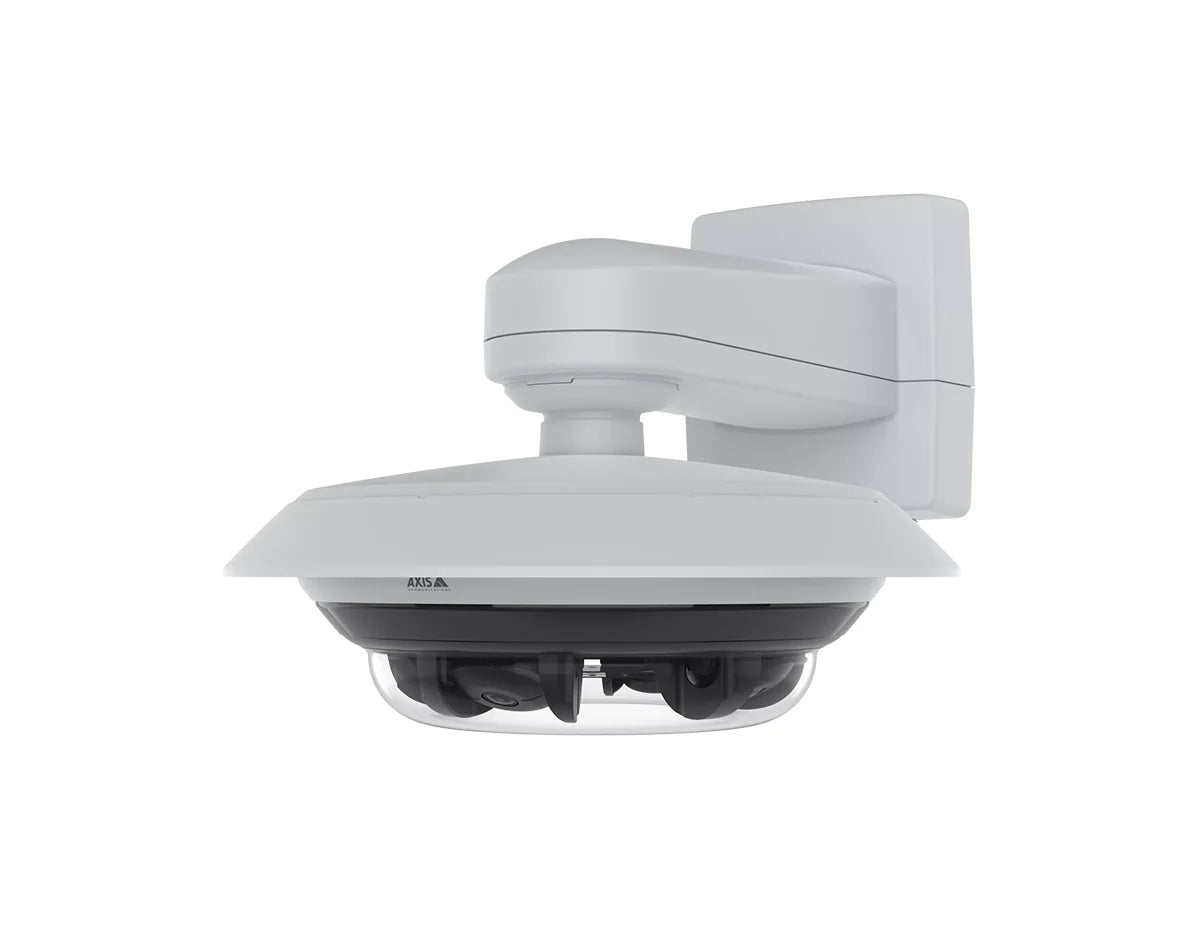

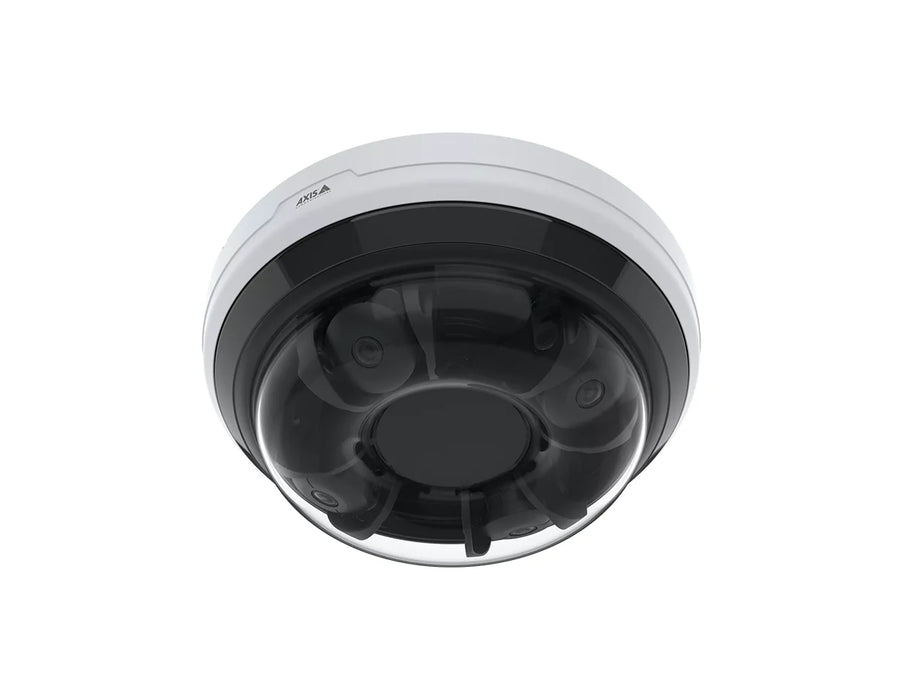

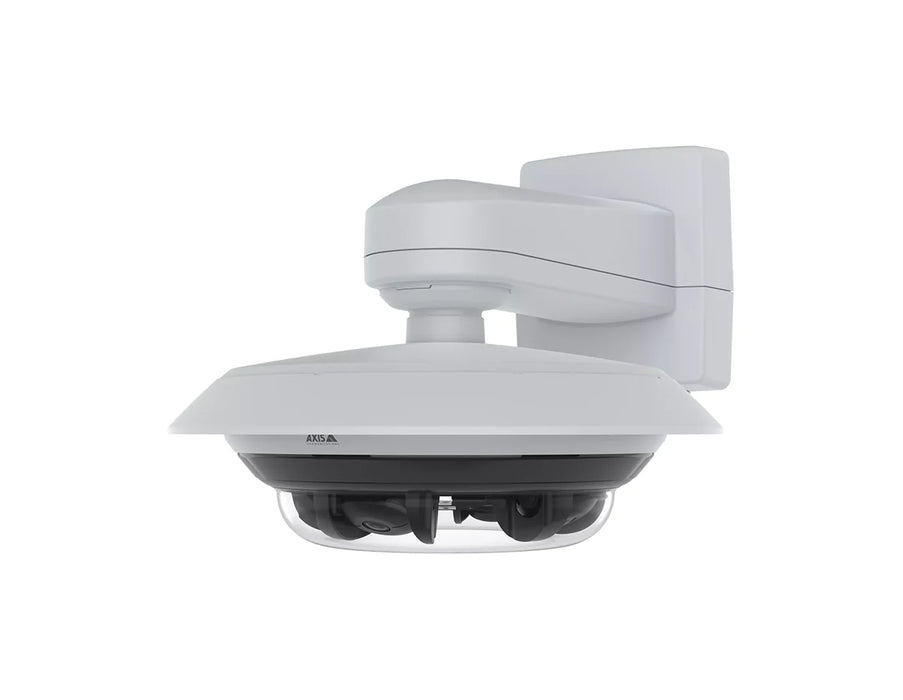

AXIS P3747-PLVE Panoramic Camera (02897-001)
Clique ou role para ampliar
Toque ou belisque para ampliar
AXIS P3747-PLVE Panoramic Camera (02897-001)
AXIS P3747-PLVE Panoramic Camera (02897-001)

AXIS P3747-PLVE Panoramic Camera (02897-001)

por Axis
R$ 30.660,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]4×5 MP multidirectional panoramic camera with 360° IR illumination, remote PTRZ, advanced AI analytics, and hardware-based cybersecurity for professional wide-area surveillance.[/shortdesc]

[properties]

Model AXIS P3747-PLVE Panoramic Camera (02897-001)
Product Type Panoramic Camera
Image Sensors 4× 1/2.78" progressive scan RGB CMOS; 2.0 µm pixels
Lens Varifocal 3.18–7.42 mm, F1.6–2.7; IR-corrected; remote zoom & focus
Field of View Horizontal 360° (90°–40° per sensor); Vertical 71.5°–30°
Minimum Illumination Color: 0.15 lux at 50 IRE, F1.6; B/W: 0 lux at 50 IRE, F1.6 (with IR on)
IR Illumination OptimizedIR 850 nm LEDs; 20 m (65.6 ft) at 0 lux, 30 m at 0.1 lux
SoC ARTPEC-8 with Deep Learning Processing Unit (DLPU)
Memory 4096 MB RAM; 8192 MB Flash
Video Compression H.264/H.265/Motion JPEG with Zipstream
Frame Rate 5 MP: Up to 20/20 fps (50/60 Hz) in all resolutions
Quad HD: Up to 25/30 fps (50/60 Hz) in all resolutions
Audio Audio I/O via portcast technology accessories or edge-to-edge speaker pairing
Network IPv4/IPv6, HTTPS, QoS, SNMP, RTSP, SRTP, MQTT, 802.1X, MACsec
Power PoE IEEE 802.3af/at Type 2 (Class 4); Typical 10.8 W; Max 23.7 W
Operating Conditions -40°C to 50°C (-40 °F to 122 °F) ; 10–100% RH (condensing)
Storage Conditions -40°C to 65°C (-40 °F to 149 °F) ; 5–95% RH (non-condensing)
Casing IP66, IK10, NEMA 4X-rated aluminum & PC dome (white NCS S 1002-B)
Dimensions See datasheet drawing; EPA: 0.030862 m²
Weight 3 kg (6.6 lb)
Storage microSD/microSDHC/microSDXC with AES-XTS encryption; NAS support

[/properties]

[specifications]

Camera Performance Lightfinder; Forensic WDR up to 120 dB; 2D/3D noise reduction
Shutter 5 MP: 1/19500–1 s (WDR on), 1/16000–1 s (WDR off); Quad HD: 1/18000–1 s (WDR on), 1/15000–1 s (WDR off)
Camera Adjustment Pan ±180°; Tilt –23° to –150°; Roll +5° to –95°
Video Streaming Multiple H.264/H.265/MJPEG streams; Zipstream; VBR/ABR/MBR; low latency
Analytics AXIS Object Analytics, Scene Metadata, VMD, tampering alarm
System Integration VAPIX, ACAP, ONVIF G/M/S/T; one-click cloud connection
Event Triggers Temperature, IP changes, casing open, shock, day/night, tampering, MQTT
Event Actions Recording, notifications, overlays, IR/LED control, SNMP traps
Cybersecurity Axis Edge Vault, TPM 2.0, secure boot, signed OS, encrypted filesystem, signed video
Connectors RJ45 10/100/1000 PoE; Audio/I/O via portcast interface
Approvals UL/cUL, CE, FCC, ICES, KC, VCCI, RCM, BSMI; IP66; IK10; MIL-STD-810H; NEMA 4X
DORI Detect 60.5–147.9 m; Observe 24–58.7 m; Recognize 12.1–29.6 m; Identify 6.1–14.8 m

[/specifications]

[accesories]

Included Camera, installation guide, connector guard, cable gasket, mounting plate, dome casing
Optional Accessories AXIS TP3107 Pendant Kit, AXIS TP3108-E Pendant Kit, AXIS TP3840-E Dome Casing Black, AXIS TP3841-E Dome Smoked, AXIS T90D Illuminators, AXIS T8415 Wireless Installation Tool, AXIS T6112 Mk II Audio and I/O Interface, AXIS Surveillance Cards

[/accesories]

The AXIS P3747-PLVE delivers four fully motorized 5 MP imaging channels, allowing complete 360° coverage or flexible, independently aimed views. Equipped with 360° IR illumination, remote PTRZ adjustment, and advanced AI-powered analytics, it enables high-precision monitoring in wide or complex environments. Powered by ARTPEC-8 with a deep learning unit, it supports on-edge object classification and metadata generation, ensuring efficient incident detection and forensic value.

Its rugged IP66/IK10/NEMA 4X-rated design withstands harsh outdoor conditions, while Axis Edge Vault and TPM 2.0 provide market-leading cybersecurity and data integrity. Ideal for city surveillance, large facilities, and any location needing multi-view high-performance coverage from a single camera.

  • Four 5 MP channels with independent motorized lenses for full 360° situational awareness
  • OptimizedIR with up to 30 m reach provides reliable night performance at 0 lux
  • Advanced AI analytics including human/vehicle detection, zone monitoring, and crossline counting
  • Remote PTRZ enables rapid deployment, simplified adjustments, and minimal maintenance
  • ARTPEC-8 with DLPU ensures powerful edge intelligence and efficient video processing
  • Robust IP66/IK10/NEMA 4X-rated casing for demanding outdoor environments
  • Axis Edge Vault and TPM 2.0 deliver industry-leading hardware-based cybersecurity
  • City intersections, public squares, transit hubs
  • Large outdoor facilities, campuses, industrial sites
  • Building perimeters and multi-directional coverage zones
  • Parking lots and vehicle monitoring areas
  • Critical infrastructure requiring tamper-resistant design
  • Image sensors: 4× 1/2.78" RGB CMOS
  • Lens: 3.18–7.42 mm varifocal; 360° H-FOV (90°–40° per sensor)
  • Video: 4× 5 MP at 20 fps; Quad HD at 30 fps; H.264/H.265/MJPEG
  • IR: 850 nm, 20–30 m range
  • Analytics: AXIS Object Analytics, Scene Metadata, tampering alarm
  • Cybersecurity: Edge Vault, TPM 2.0, secure boot, signed OS/video
  • Environmental: IP66, IK10, NEMA 4X, –40°C to 50°C
  • Power: PoE (802.3af/at), typical 10.8 W
  • Storage: microSD/microSDHC/microSDXC with encryption

Enhance your surveillance coverage and operational efficiency with this advanced multidirectional panoramic camera.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]4×5 MP multidirectional panoramic camera with 360° IR illumination, remote PTRZ, advanced AI analytics, and hardware-based cybersecurity for professional wide-area surveillance.[/shortdesc]

[properties]

Model AXIS P3747-PLVE Panoramic Camera (02897-001)
Product Type Panoramic Camera
Image Sensors 4× 1/2.78" progressive scan RGB CMOS; 2.0 µm pixels
Lens Varifocal 3.18–7.42 mm, F1.6–2.7; IR-corrected; remote zoom & focus
Field of View Horizontal 360° (90°–40° per sensor); Vertical 71.5°–30°
Minimum Illumination Color: 0.15 lux at 50 IRE, F1.6; B/W: 0 lux at 50 IRE, F1.6 (with IR on)
IR Illumination OptimizedIR 850 nm LEDs; 20 m (65.6 ft) at 0 lux, 30 m at 0.1 lux
SoC ARTPEC-8 with Deep Learning Processing Unit (DLPU)
Memory 4096 MB RAM; 8192 MB Flash
Video Compression H.264/H.265/Motion JPEG with Zipstream
Frame Rate 5 MP: Up to 20/20 fps (50/60 Hz) in all resolutions
Quad HD: Up to 25/30 fps (50/60 Hz) in all resolutions
Audio Audio I/O via portcast technology accessories or edge-to-edge speaker pairing
Network IPv4/IPv6, HTTPS, QoS, SNMP, RTSP, SRTP, MQTT, 802.1X, MACsec
Power PoE IEEE 802.3af/at Type 2 (Class 4); Typical 10.8 W; Max 23.7 W
Operating Conditions -40°C to 50°C (-40 °F to 122 °F) ; 10–100% RH (condensing)
Storage Conditions -40°C to 65°C (-40 °F to 149 °F) ; 5–95% RH (non-condensing)
Casing IP66, IK10, NEMA 4X-rated aluminum & PC dome (white NCS S 1002-B)
Dimensions See datasheet drawing; EPA: 0.030862 m²
Weight 3 kg (6.6 lb)
Storage microSD/microSDHC/microSDXC with AES-XTS encryption; NAS support

[/properties]

[specifications]

Camera Performance Lightfinder; Forensic WDR up to 120 dB; 2D/3D noise reduction
Shutter 5 MP: 1/19500–1 s (WDR on), 1/16000–1 s (WDR off); Quad HD: 1/18000–1 s (WDR on), 1/15000–1 s (WDR off)
Camera Adjustment Pan ±180°; Tilt –23° to –150°; Roll +5° to –95°
Video Streaming Multiple H.264/H.265/MJPEG streams; Zipstream; VBR/ABR/MBR; low latency
Analytics AXIS Object Analytics, Scene Metadata, VMD, tampering alarm
System Integration VAPIX, ACAP, ONVIF G/M/S/T; one-click cloud connection
Event Triggers Temperature, IP changes, casing open, shock, day/night, tampering, MQTT
Event Actions Recording, notifications, overlays, IR/LED control, SNMP traps
Cybersecurity Axis Edge Vault, TPM 2.0, secure boot, signed OS, encrypted filesystem, signed video
Connectors RJ45 10/100/1000 PoE; Audio/I/O via portcast interface
Approvals UL/cUL, CE, FCC, ICES, KC, VCCI, RCM, BSMI; IP66; IK10; MIL-STD-810H; NEMA 4X
DORI Detect 60.5–147.9 m; Observe 24–58.7 m; Recognize 12.1–29.6 m; Identify 6.1–14.8 m

[/specifications]

[accesories]

Included Camera, installation guide, connector guard, cable gasket, mounting plate, dome casing
Optional Accessories AXIS TP3107 Pendant Kit, AXIS TP3108-E Pendant Kit, AXIS TP3840-E Dome Casing Black, AXIS TP3841-E Dome Smoked, AXIS T90D Illuminators, AXIS T8415 Wireless Installation Tool, AXIS T6112 Mk II Audio and I/O Interface, AXIS Surveillance Cards

[/accesories]

Comprehensive 360° Multidirectional Surveillance with Advanced AI

The AXIS P3747-PLVE delivers four fully motorized 5 MP imaging channels, allowing complete 360° coverage or flexible, independently aimed views. Equipped with 360° IR illumination, remote PTRZ adjustment, and advanced AI-powered analytics, it enables high-precision monitoring in wide or complex environments. Powered by ARTPEC-8 with a deep learning unit, it supports on-edge object classification and metadata generation, ensuring efficient incident detection and forensic value.

Its rugged IP66/IK10/NEMA 4X-rated design withstands harsh outdoor conditions, while Axis Edge Vault and TPM 2.0 provide market-leading cybersecurity and data integrity. Ideal for city surveillance, large facilities, and any location needing multi-view high-performance coverage from a single camera.

Key Benefits
  • Four 5 MP channels with independent motorized lenses for full 360° situational awareness
  • OptimizedIR with up to 30 m reach provides reliable night performance at 0 lux
  • Advanced AI analytics including human/vehicle detection, zone monitoring, and crossline counting
  • Remote PTRZ enables rapid deployment, simplified adjustments, and minimal maintenance
  • ARTPEC-8 with DLPU ensures powerful edge intelligence and efficient video processing
  • Robust IP66/IK10/NEMA 4X-rated casing for demanding outdoor environments
  • Axis Edge Vault and TPM 2.0 deliver industry-leading hardware-based cybersecurity
Ideal Use Cases
  • City intersections, public squares, transit hubs
  • Large outdoor facilities, campuses, industrial sites
  • Building perimeters and multi-directional coverage zones
  • Parking lots and vehicle monitoring areas
  • Critical infrastructure requiring tamper-resistant design
Technical Specifications Summary
  • Image sensors: 4× 1/2.78" RGB CMOS
  • Lens: 3.18–7.42 mm varifocal; 360° H-FOV (90°–40° per sensor)
  • Video: 4× 5 MP at 20 fps; Quad HD at 30 fps; H.264/H.265/MJPEG
  • IR: 850 nm, 20–30 m range
  • Analytics: AXIS Object Analytics, Scene Metadata, tampering alarm
  • Cybersecurity: Edge Vault, TPM 2.0, secure boot, signed OS/video
  • Environmental: IP66, IK10, NEMA 4X, –40°C to 50°C
  • Power: PoE (802.3af/at), typical 10.8 W
  • Storage: microSD/microSDHC/microSDXC with encryption
Upgrade Your Operations

Enhance your surveillance coverage and operational efficiency with this advanced multidirectional panoramic camera.
