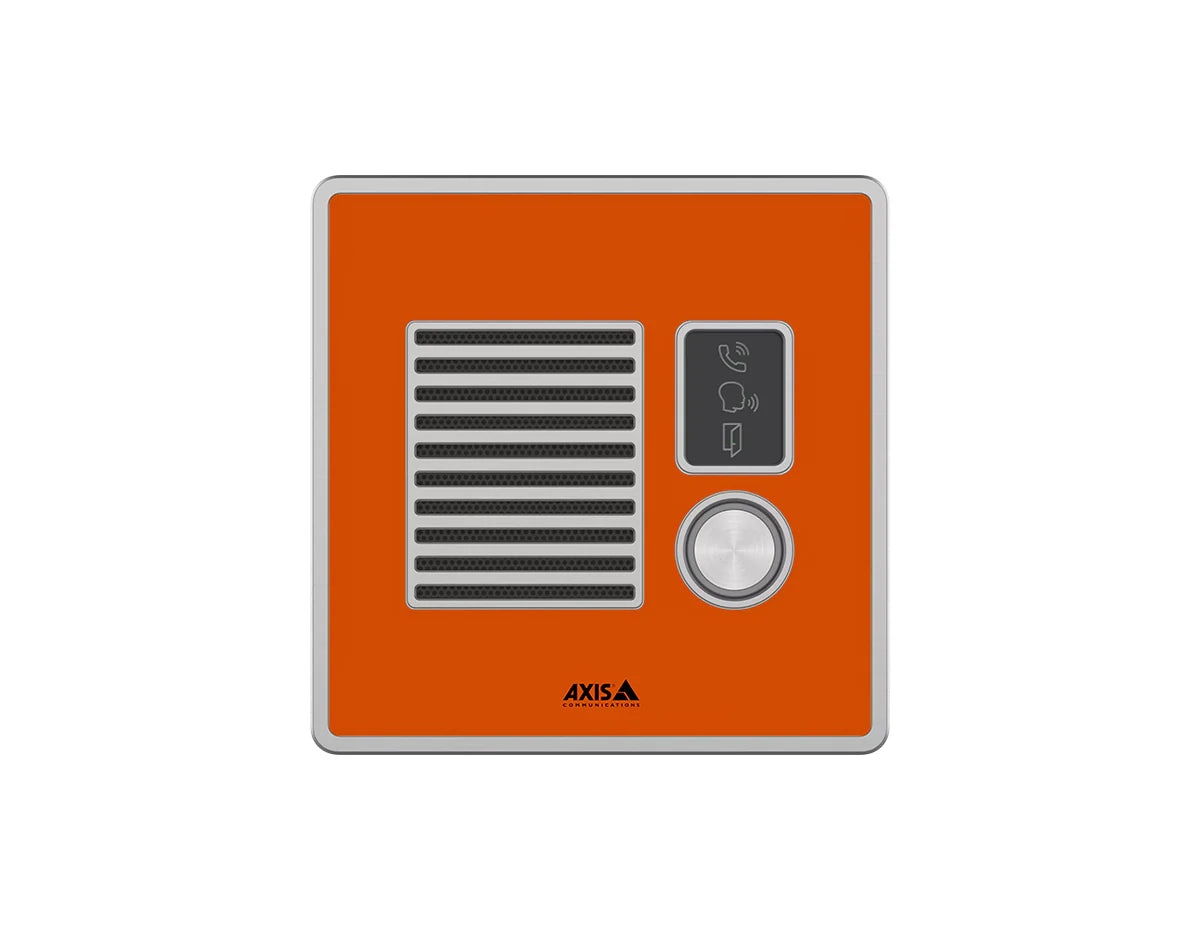

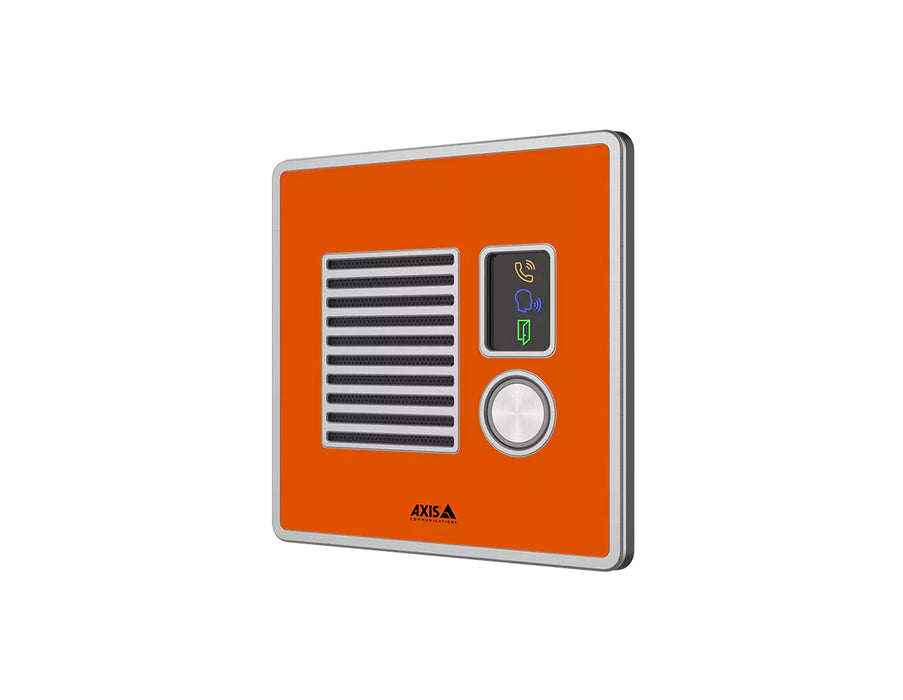

AXIS I7010-VE Safety Network Intercom (03109-001)
Clique ou role para ampliar
Toque ou belisque para ampliar
AXIS I7010-VE Safety Network Intercom (03109-001)
AXIS I7010-VE Safety Network Intercom (03109-001)

AXIS I7010-VE Safety Network Intercom (03109-001)

por Axis
R$ 14.496,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] 92 dB audio, RGB call button, IP66/IP69 rating, IK10 protection, PoE-powered, SIP integration [/shortdesc]

[properties]

Model AXIS I7010-VE (03109-001)
Product Type Safety Network Intercom
Color Orange RAL 2004
Audio Output Built-in speaker, max 92 dB SPL @ 1 m
Audio Input 2x built-in microphones; line input
Audio Features Echo cancellation, noise reduction, wind reduction, beamforming
PoE PoE IEEE 802.3at Type 2 Class 4 (max 25.5 W) / PoE Class 3 (max 12.7 W)
Casing IP66/IP69, NEMA 4X, IK10; Stainless steel & zinc
Mounting Recessed & wall mounting options (Compatible with T18202, T18602, T18603)
Operating Temperature -40 °C to 60 °C
Storage Temperature -40 °C to 65 °C
Operating Humidity 10–100% RH (condensing)
Weight 890 g (2.0 lb)
Dimensions 123.9 mm x 123.9 mm (See datasheet for depth profiles)

[/properties]

[specifications]

System on Chip CV25
Memory 2 GB RAM, 1 GB Flash
Audio Encoding LPCM 16 kHz; AAC 8/16 kHz; G.711 A-law/u-law; G.722; G.726 ADPCM; Opus 8/16/48 kHz
VoIP / SIP Support SIP, SRTP, SIPS, TLS, DTMF, NAT (ICE/STUN/TURN), parallel & sequential call forking
Supported SIP Codecs PCMU, PCMA, Opus, L16/16000, L16/8000, Speex 8/16 kHz, G.726-32, G.722
Network Protocols IPv4/IPv6, HTTP/HTTPS, TLS, FTP/SFTP, SNMP, DHCP, RTP/SRTP, RTSP, MQTT, LLDP, CDP, NTP/PTP, IEEE 802.1X
I/O Ports 2x supervised inputs/outputs (12 V DC, 50 mA max); 1 relay (30 V, 0.7 A)
Connectors RJ45 (10/100/1000BASE-T PoE), Terminal block (I/O), RS485, 4-pin audio terminal
Storage Options microSD/microSDHC/microSDXC with encryption; NAS recording
Security Axis Edge Vault, Secure Boot, Encrypted filesystem, Secure keystore, IEEE 802.1AE MACsec
Certifications CE, UL/cUL, RCM, VCCI, FCC Class A, IK10, IP66/IP69, NEMA 4X
Languages English, German, French, Spanish, Italian, Russian, Chinese (S/T), Japanese, Korean, Portuguese, Polish, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese

[/specifications]

[accesories]

Included in the Box Intercom, Installation guide, RESISTORX L-key, Terminal block connector, Owner authentication key
Optional Accessories AXIS T18202 Recessed Mount; AXIS T18602 Wall Mount; AXIS T18603 Conduit Adapter; AXIS T18906 Glass Replacement Kit; AXIS T18908 Safety Face Plate; AXIS A9801 Security Relay; AXIS T18904 Induction Loop

[/accesories]

The AXIS I7010-VE Safety Network Intercom delivers exceptional clarity with 92 dB SPL output, advanced echo cancellation, and noise reduction for communication in harsh and loud environments. Its bright RAL 2004 orange finish and illuminated RGB call button maximize visibility even in darkness, fog, or smoke. Built with IP66/IP69 and IK10-certified protection, it operates reliably in extreme outdoor conditions while Axis Edge Vault strengthens cybersecurity across your deployment.

  • 92 dB Clear Audio Output: Powerful built-in speaker ensures audible communication in hazardous or high-noise areas, supported by echo and noise reduction for clarity.
  • Industrial-Grade Durability: IP66/IP69 and IK10 ratings provide resistance against dust, water, impacts, and vandalism, ensuring long-term reliability in extreme conditions.
  • Enhanced Visibility: Bright orange enclosure and illuminated RGB call button improve detection in low-visibility environments, essential for emergency and safety zones.
  • SIP & VMS Integration: Full SIP support makes it compatible with VoIP systems, PBX platforms, and major VMS solutions including AXIS Camera Station and third-party options.
  • Cybersecurity with Axis Edge Vault: Hardware-based secure boot, encrypted storage, and device identity protection prevent unauthorized access and tampering.
  • Industrial safety stations and hazardous work zones
  • Public transit platforms and emergency call points
  • Warehouses, manufacturing plants, and logistics hubs
  • Outdoor perimeters and secured facility entrances
  • Any SIP-based emergency communication and alerting system
  • Audio Output: 92 dB SPL at 1 m with echo and noise reduction
  • Microphones: Dual built-in microphones with beamforming
  • Ingress Protection: IP66 / IP69, NEMA 4X-certified enclosure
  • Impact Resistance: IK10 vandal-resistant front plate
  • Network: RJ45 10/100/1000BASE-T with PoE (IEEE 802.3at Type 2)
  • Power Consumption: Typical 3 W, max 25.5 W
  • Operating Temperatures: -40°C to 60°C (-40°F to 140°F)
  • Protocols: SIP, SRTP, HTTPS, TLS, MQTT, IPv4/IPv6, 802.1X
  • Storage: microSD/microSDHC/microSDXC with encryption
  • Dimensions: 123.9 x 123.9 x 36.2 mm (including wall mount protrusion)

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] 92 dB audio, RGB call button, IP66/IP69 rating, IK10 protection, PoE-powered, SIP integration [/shortdesc]

[properties]

Model AXIS I7010-VE (03109-001)
Product Type Safety Network Intercom
Color Orange RAL 2004
Audio Output Built-in speaker, max 92 dB SPL @ 1 m
Audio Input 2x built-in microphones; line input
Audio Features Echo cancellation, noise reduction, wind reduction, beamforming
PoE PoE IEEE 802.3at Type 2 Class 4 (max 25.5 W) / PoE Class 3 (max 12.7 W)
Casing IP66/IP69, NEMA 4X, IK10; Stainless steel & zinc
Mounting Recessed & wall mounting options (Compatible with T18202, T18602, T18603)
Operating Temperature -40 °C to 60 °C
Storage Temperature -40 °C to 65 °C
Operating Humidity 10–100% RH (condensing)
Weight 890 g (2.0 lb)
Dimensions 123.9 mm x 123.9 mm (See datasheet for depth profiles)

[/properties]

[specifications]

System on Chip CV25
Memory 2 GB RAM, 1 GB Flash
Audio Encoding LPCM 16 kHz; AAC 8/16 kHz; G.711 A-law/u-law; G.722; G.726 ADPCM; Opus 8/16/48 kHz
VoIP / SIP Support SIP, SRTP, SIPS, TLS, DTMF, NAT (ICE/STUN/TURN), parallel & sequential call forking
Supported SIP Codecs PCMU, PCMA, Opus, L16/16000, L16/8000, Speex 8/16 kHz, G.726-32, G.722
Network Protocols IPv4/IPv6, HTTP/HTTPS, TLS, FTP/SFTP, SNMP, DHCP, RTP/SRTP, RTSP, MQTT, LLDP, CDP, NTP/PTP, IEEE 802.1X
I/O Ports 2x supervised inputs/outputs (12 V DC, 50 mA max); 1 relay (30 V, 0.7 A)
Connectors RJ45 (10/100/1000BASE-T PoE), Terminal block (I/O), RS485, 4-pin audio terminal
Storage Options microSD/microSDHC/microSDXC with encryption; NAS recording
Security Axis Edge Vault, Secure Boot, Encrypted filesystem, Secure keystore, IEEE 802.1AE MACsec
Certifications CE, UL/cUL, RCM, VCCI, FCC Class A, IK10, IP66/IP69, NEMA 4X
Languages English, German, French, Spanish, Italian, Russian, Chinese (S/T), Japanese, Korean, Portuguese, Polish, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese

[/specifications]

[accesories]

Included in the Box Intercom, Installation guide, RESISTORX L-key, Terminal block connector, Owner authentication key
Optional Accessories AXIS T18202 Recessed Mount; AXIS T18602 Wall Mount; AXIS T18603 Conduit Adapter; AXIS T18906 Glass Replacement Kit; AXIS T18908 Safety Face Plate; AXIS A9801 Security Relay; AXIS T18904 Induction Loop

[/accesories]

High-Visibility Intercom for Demanding Safety Environments

The AXIS I7010-VE Safety Network Intercom delivers exceptional clarity with 92 dB SPL output, advanced echo cancellation, and noise reduction for communication in harsh and loud environments. Its bright RAL 2004 orange finish and illuminated RGB call button maximize visibility even in darkness, fog, or smoke. Built with IP66/IP69 and IK10-certified protection, it operates reliably in extreme outdoor conditions while Axis Edge Vault strengthens cybersecurity across your deployment.

Key Benefits & Features
  • 92 dB Clear Audio Output: Powerful built-in speaker ensures audible communication in hazardous or high-noise areas, supported by echo and noise reduction for clarity.
  • Industrial-Grade Durability: IP66/IP69 and IK10 ratings provide resistance against dust, water, impacts, and vandalism, ensuring long-term reliability in extreme conditions.
  • Enhanced Visibility: Bright orange enclosure and illuminated RGB call button improve detection in low-visibility environments, essential for emergency and safety zones.
  • SIP & VMS Integration: Full SIP support makes it compatible with VoIP systems, PBX platforms, and major VMS solutions including AXIS Camera Station and third-party options.
  • Cybersecurity with Axis Edge Vault: Hardware-based secure boot, encrypted storage, and device identity protection prevent unauthorized access and tampering.
Ideal Use Cases
  • Industrial safety stations and hazardous work zones
  • Public transit platforms and emergency call points
  • Warehouses, manufacturing plants, and logistics hubs
  • Outdoor perimeters and secured facility entrances
  • Any SIP-based emergency communication and alerting system
Technical Specifications
  • Audio Output: 92 dB SPL at 1 m with echo and noise reduction
  • Microphones: Dual built-in microphones with beamforming
  • Ingress Protection: IP66 / IP69, NEMA 4X-certified enclosure
  • Impact Resistance: IK10 vandal-resistant front plate
  • Network: RJ45 10/100/1000BASE-T with PoE (IEEE 802.3at Type 2)
  • Power Consumption: Typical 3 W, max 25.5 W
  • Operating Temperatures: -40°C to 60°C (-40°F to 140°F)
  • Protocols: SIP, SRTP, HTTPS, TLS, MQTT, IPv4/IPv6, 802.1X
  • Storage: microSD/microSDHC/microSDXC with encryption
  • Dimensions: 123.9 x 123.9 x 36.2 mm (including wall mount protrusion)
