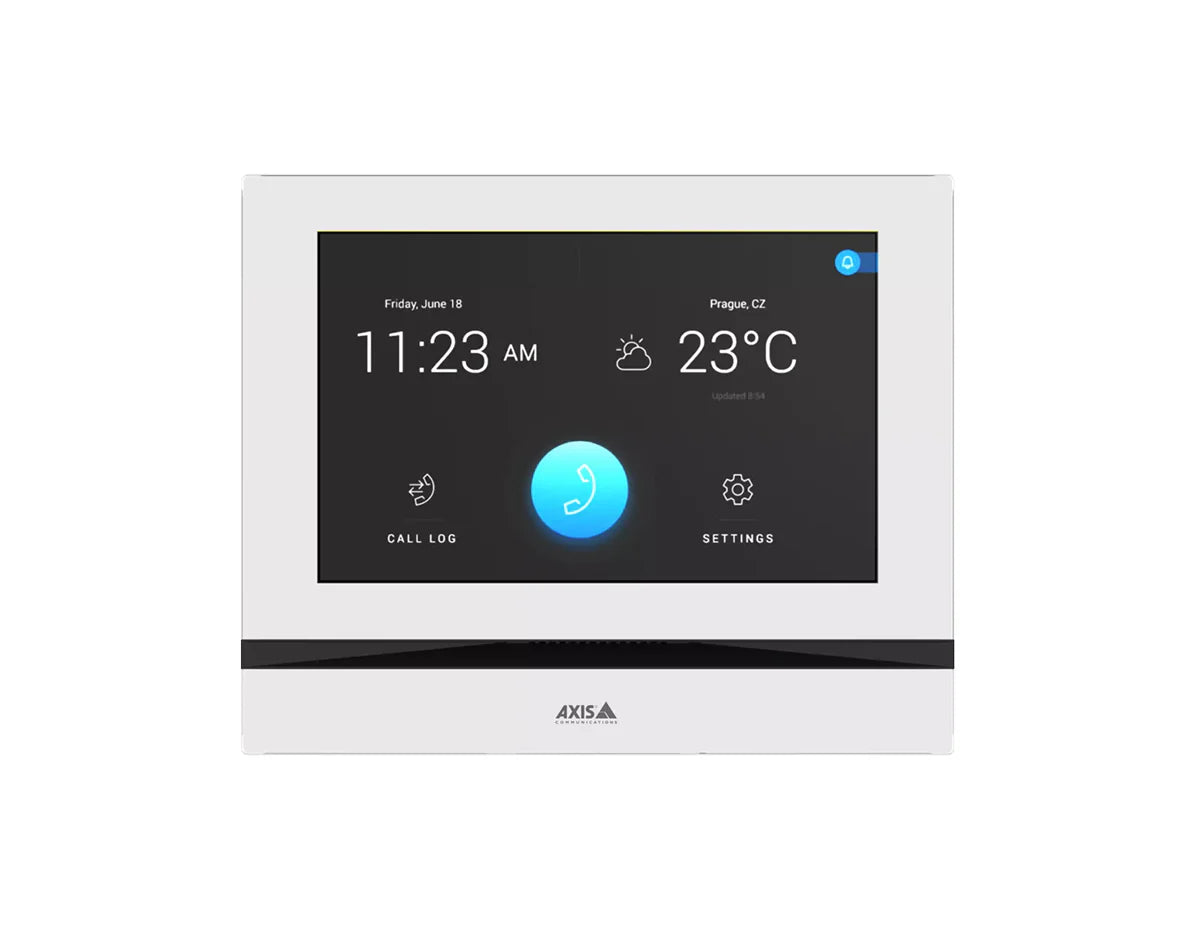

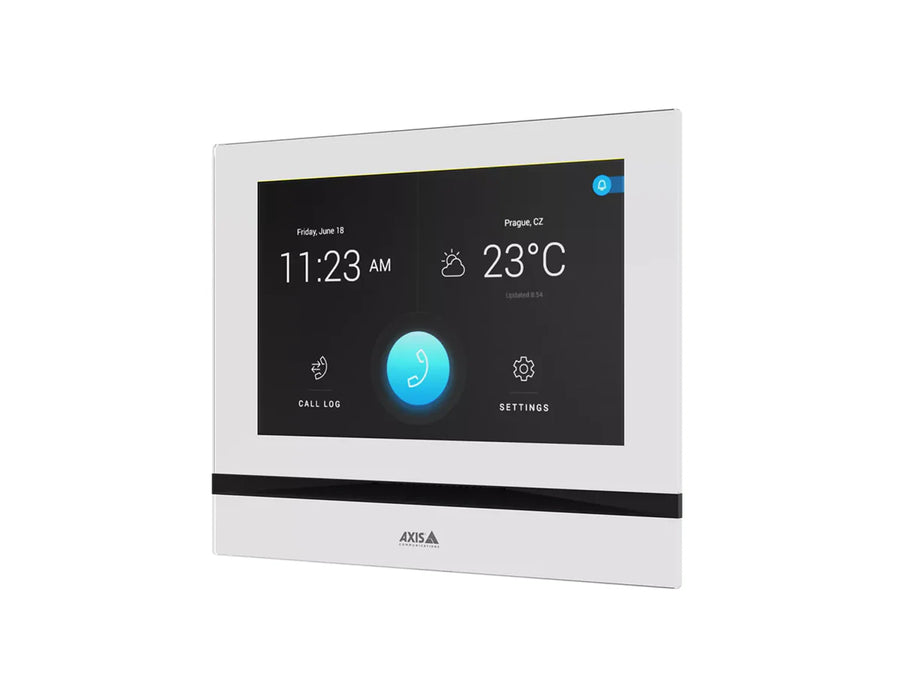

AXIS I5304 White Network Answering Unit (03238-001)
Clique ou role para ampliar
Toque ou belisque para ampliar
AXIS I5304 White Network Answering Unit (03238-001)
AXIS I5304 White Network Answering Unit (03238-001)

AXIS I5304 White Network Answering Unit (03238-001)

por Axis
R$ 10.044,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] 7" color LCD touch display, HD video streaming, two-way audio, SIP support, PoE powered, flexible mounting options [/shortdesc]

[properties]

Model AXIS I5304 White (03238-001)
Product Type Network Answering Unit
Display 7" Color LCD, Capacitive Touch
Display Resolution 1024 × 600
Audio Two-way full duplex; built-in mic and speaker; echo cancellation
Audio Output 84 dBC @ 1m (1 kHz); Line out 600 mV RMS
Audio Codecs G.711, G.722, G.729, L16/16 kHz
Video Compression H.264, Motion JPEG
Video Resolution Up to 1280 × 720
Video Frame Rate Up to 30 fps
Network Protocols IPv4, HTTP, HTTPS, SIP 2.0, SIPS, TLS, RTP, SRTP, RTSP, DHCP, NTP, TCP, IGMP, UDP, DNS, Syslog, FTP, SMTP, RTCP, ICMP
VoIP Integration SIP (peer-to-peer or SIP/PBX); DTMF (audio, RFC2833, RFC2976)
Certifications CSA, UL/cUL, CE, VCCI, RCM
Cybersecurity IEEE 802.1X, HTTPS, TLS 1.2, X.509 certificates
Casing Tempered glass surface; plastic casing; White RAL 9016
Power PoE IEEE 802.3af Class 3 (2.9 W typical, 12 W max) / 12 VDC 1 A
Connectors RJ45 10/100 PoE; Doorbell input (NO)
Operating Temperature 0 °C to 50 °C (32 °F to 122 °F)
Operating Humidity 10–90% RH (non-condensing)
Storage Temperature -20 °C to 70 °C (-4 °F to 158 °F)
Altitude 0–2000 m (0–6500 ft)
Weight 555 g (1.2 lb)

[/properties]

[specifications]

Display Technology 7" capacitive touch, color LCD; 1024 × 600 resolution
Supported Functions Receive calls; initiate outgoing calls; view video from network intercoms/cameras; send HTTP commands; unlock doors
Audio Performance Built-in mic & speaker; full duplex; echo cancellation; 84 dBC @ 1m (1 kHz)
Audio Encodings G.711, G.722, G.729, L16/16 kHz
Video Encoding H.264, Motion JPEG
Max Video Resolution 1280 × 720 up to 30 fps
Network Security IEEE 802.1X, HTTPS, TLS 1.2, X.509 Certificate PKI
EMC Compliance EN 55035, EN 55032 Class B; ICES(B)/NMB(B); VCCI Class B; FCC Part 15 Class B
Safety Standards IEC/EN/UL 62368-1 ed. 3; CAN/CSA C22.2 No. 62368-1 ed. 3
Power Requirements PoE IEEE 802.3af Type 1 Class 3 (2.9 W typical, 12 W max); 12 VDC 1 A
Mounting Options Recessed mount (AXIS T15201), surface wall mount (AXIS T15601), desk stand (AXIS T15602)
Included Tools AXIS Site Designer, Product selector, accessory selector
Supported Languages EN, DE, FR, ES, IT, JP, NL, CZ

[/specifications]

[accesories]

Included in the Box Answering unit; installation guide; certificate of ownership; 2.5 mm hex key; terminal block connectors (power & doorbell)
Optional Accessories AXIS T15201 Recessed Mount; AXIS T15601 Wall Mount; AXIS T15602 Desk Stand

[/accesories]

The AXIS I5304 White Network Answering Unit delivers clear two-way communication, high-resolution video, and fast door control for professional environments that require secure and responsive visitor handling. Powered by PoE and designed for reception desks or wall-mounted installations, it integrates seamlessly with IP intercoms for improved operational efficiency.

  • 7-inch Color LCD Touch Display: Provides crisp video at 1024x600 resolution for fast and accurate visitor identification using a capacitive touch panel.
  • High-Quality Video Streaming: Supports H.264 and Motion JPEG compression up to 1280x720 resolution for smooth real-time viewing of visitors.
  • Clear, Full-Duplex Audio: Features a built-in microphone and speaker with advanced echo cancellation to ensure noise-free communication.
  • SIP and VoIP Compatibility: Fully supports SIP 2.0 and PBX integration (peer-to-peer or server-based) for unified communication environments.
  • Versatile Installation: Supports Power over Ethernet (PoE) for single-cable deployment and offers flexible mounting options including desk, wall, and recessed mounts.
  • Corporate and commercial reception areas needing secure visitor verification.
  • Concierge desks in residential complexes or hospitality environments.
  • Multi-building facilities using SIP-based VoIP communication networks.
  • Locations requiring sleek, wall-mounted, or recessed answering units.
  • Access-controlled entry points managed via IP network intercoms.
  • Display: 7" Color LCD, 1024x600 resolution
  • Touch Interface: Capacitive multi-touch panel
  • Video Performance: H.264, Motion JPEG; up to 1280x720 at 30 fps
  • Audio Protocols: G.711, G.722, G.729, L16/16 kHz
  • Network Security: IPv4, HTTPS, TLS 1.2, IEEE 802.1X, SIPS
  • Power Input: PoE IEEE 802.3af Class 3 or 12 VDC
  • Operating Range: 0°C to 50°C (32°F to 122°F)
  • Dimensions & Weight: 555 g (1.2 lb); Tempered glass front with plastic casing

Enhance your access control with reliable communication, cybersecurity features, and seamless system integration. Order the AXIS I5304 today for superior premise security.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] 7" color LCD touch display, HD video streaming, two-way audio, SIP support, PoE powered, flexible mounting options [/shortdesc]

[properties]

Model AXIS I5304 White (03238-001)
Product Type Network Answering Unit
Display 7" Color LCD, Capacitive Touch
Display Resolution 1024 × 600
Audio Two-way full duplex; built-in mic and speaker; echo cancellation
Audio Output 84 dBC @ 1m (1 kHz); Line out 600 mV RMS
Audio Codecs G.711, G.722, G.729, L16/16 kHz
Video Compression H.264, Motion JPEG
Video Resolution Up to 1280 × 720
Video Frame Rate Up to 30 fps
Network Protocols IPv4, HTTP, HTTPS, SIP 2.0, SIPS, TLS, RTP, SRTP, RTSP, DHCP, NTP, TCP, IGMP, UDP, DNS, Syslog, FTP, SMTP, RTCP, ICMP
VoIP Integration SIP (peer-to-peer or SIP/PBX); DTMF (audio, RFC2833, RFC2976)
Certifications CSA, UL/cUL, CE, VCCI, RCM
Cybersecurity IEEE 802.1X, HTTPS, TLS 1.2, X.509 certificates
Casing Tempered glass surface; plastic casing; White RAL 9016
Power PoE IEEE 802.3af Class 3 (2.9 W typical, 12 W max) / 12 VDC 1 A
Connectors RJ45 10/100 PoE; Doorbell input (NO)
Operating Temperature 0 °C to 50 °C (32 °F to 122 °F)
Operating Humidity 10–90% RH (non-condensing)
Storage Temperature -20 °C to 70 °C (-4 °F to 158 °F)
Altitude 0–2000 m (0–6500 ft)
Weight 555 g (1.2 lb)

[/properties]

[specifications]

Display Technology 7" capacitive touch, color LCD; 1024 × 600 resolution
Supported Functions Receive calls; initiate outgoing calls; view video from network intercoms/cameras; send HTTP commands; unlock doors
Audio Performance Built-in mic & speaker; full duplex; echo cancellation; 84 dBC @ 1m (1 kHz)
Audio Encodings G.711, G.722, G.729, L16/16 kHz
Video Encoding H.264, Motion JPEG
Max Video Resolution 1280 × 720 up to 30 fps
Network Security IEEE 802.1X, HTTPS, TLS 1.2, X.509 Certificate PKI
EMC Compliance EN 55035, EN 55032 Class B; ICES(B)/NMB(B); VCCI Class B; FCC Part 15 Class B
Safety Standards IEC/EN/UL 62368-1 ed. 3; CAN/CSA C22.2 No. 62368-1 ed. 3
Power Requirements PoE IEEE 802.3af Type 1 Class 3 (2.9 W typical, 12 W max); 12 VDC 1 A
Mounting Options Recessed mount (AXIS T15201), surface wall mount (AXIS T15601), desk stand (AXIS T15602)
Included Tools AXIS Site Designer, Product selector, accessory selector
Supported Languages EN, DE, FR, ES, IT, JP, NL, CZ

[/specifications]

[accesories]

Included in the Box Answering unit; installation guide; certificate of ownership; 2.5 mm hex key; terminal block connectors (power & doorbell)
Optional Accessories AXIS T15201 Recessed Mount; AXIS T15601 Wall Mount; AXIS T15602 Desk Stand

[/accesories]

Enhanced IP Intercom Response with Smart Visual Verification

The AXIS I5304 White Network Answering Unit delivers clear two-way communication, high-resolution video, and fast door control for professional environments that require secure and responsive visitor handling. Powered by PoE and designed for reception desks or wall-mounted installations, it integrates seamlessly with IP intercoms for improved operational efficiency.

Key Benefits & Features
  • 7-inch Color LCD Touch Display: Provides crisp video at 1024x600 resolution for fast and accurate visitor identification using a capacitive touch panel.
  • High-Quality Video Streaming: Supports H.264 and Motion JPEG compression up to 1280x720 resolution for smooth real-time viewing of visitors.
  • Clear, Full-Duplex Audio: Features a built-in microphone and speaker with advanced echo cancellation to ensure noise-free communication.
  • SIP and VoIP Compatibility: Fully supports SIP 2.0 and PBX integration (peer-to-peer or server-based) for unified communication environments.
  • Versatile Installation: Supports Power over Ethernet (PoE) for single-cable deployment and offers flexible mounting options including desk, wall, and recessed mounts.
Ideal Use Cases
  • Corporate and commercial reception areas needing secure visitor verification.
  • Concierge desks in residential complexes or hospitality environments.
  • Multi-building facilities using SIP-based VoIP communication networks.
  • Locations requiring sleek, wall-mounted, or recessed answering units.
  • Access-controlled entry points managed via IP network intercoms.
Technical Specifications Highlights
  • Display: 7" Color LCD, 1024x600 resolution
  • Touch Interface: Capacitive multi-touch panel
  • Video Performance: H.264, Motion JPEG; up to 1280x720 at 30 fps
  • Audio Protocols: G.711, G.722, G.729, L16/16 kHz
  • Network Security: IPv4, HTTPS, TLS 1.2, IEEE 802.1X, SIPS
  • Power Input: PoE IEEE 802.3af Class 3 or 12 VDC
  • Operating Range: 0°C to 50°C (32°F to 122°F)
  • Dimensions & Weight: 555 g (1.2 lb); Tempered glass front with plastic casing
Upgrade to a Smarter Visitor Management Workflow

Enhance your access control with reliable communication, cybersecurity features, and seamless system integration. Order the AXIS I5304 today for superior premise security.
