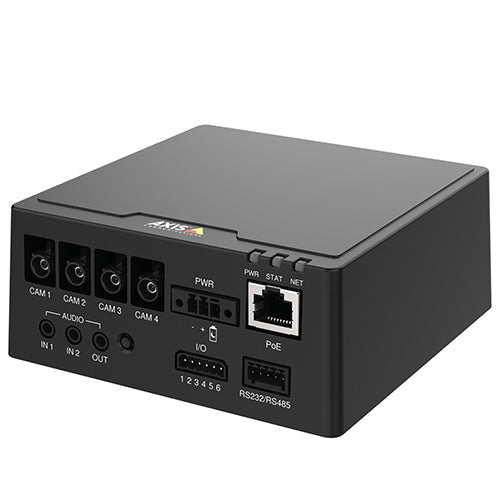

AXIS F9114 Main Unit (01991-001)
AXIS F9114 Main Unit (01991-001)

AXIS F9114 Main Unit (01991-001)

por Axis
R$ 8.268,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

  • 2nd generation: 4-channel main unit with audio and I/O, Only compatible with 2nd generation sensors and cables, 1080p at 30 fps on all 4-channels, Rugged design and connectors, Multiple sensor and cable options, Zipstream, Lightfinder, Forensic WDR, 2nd gen cable is required

[/shortdesc]

[properties]

Properties AXIS F9114
Description AXIS F9114 Main Unit is designed for use with 2nd generation sensors and cables from AXIS F Series. With SMA-FAKRA connectors it withstands vibrations and ensures a ruggedized installation. It supports 1080p at 30 fps or 720p at 60 fps.
Product Family Axis Cameras
Product Type Main Unit
Image sensor –
Wide dynamic range Forensic WDR
PoE Class IEEE 802.3at Type 2 Class 4
Connectors  RJ45 for 10BASE-T/100BASE-TX/1000BASE-T PoE
4x FAKRA for sensor units
6-pin terminal block for 4x configurable I/Os (12 V DC output), max load 50 mA
3.5 mm mic/line in, 3.5 mm line out
5-pin terminal block RS232/RS485
3-pin terminal block for 10-48 V DC input
HTTPS encryption Yes
IEEE 802.1X Yes
Built-in IR –
Local storage (memory card slot) Yes
Outdoor Ready –
Vandal rating –
IP rating IP3X
Dimensions  51 x 120 x 120 mm (2 x 4.7 x 4.7 in)
Weight 675 g (1.5 lb)
Operating Temperature -40 °C to 60 °C (-40 °F to 140 °F)
Sustainability PVC free

[/properties][specifications]

Specifications AXIS F9114
System on chip (SoC) Model  ARTPEC-7
Memory  2x 1024 MB RAM, 512 MB Flash
Min illumination/ light sensitivity (Color)  -
Max video resolution 1920x1080
Max frames per second 60
Day and Night functionality –
Electronic image stabilization –
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes
Audio streaming  Two-way, full-duplex
Audio input/output  2x external microphone input or line input, 1x line output, ring power, digital audio input
Event actions  Play audio clip, toggle I/O, send images, MQTT publish, send notifications, overlay text, power saving mode, recordings, SNMP trap messages, status LED, video clips
Applications  AXIS Video Motion Guard, audio detection
Supported  Tampering alarm
Support for AXIS Camera Application Platform enabling installation of third-party applications
Cybersecurity Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption
Hardware: Axis Edge Vault cybersecurity platform Secure element (CC EAL 6+), Axis device ID, secure keystore, signed video, secure boot
Network security: IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AR, HTTPS/HSTSa, TLS v1.2/v1.3a, Network Time Security (NTS), X.509, Certificate PKI, IP address filtering

[/specifications][accesories]

Optional accessories
AXIS TU6001  Connector 3-Pin 3.81
AXIS TU6004-E 2nd generation Indoor and outdoor rated cable for AXIS F Series modular cameras
AXIS TU6005  2nd generation Plenum Cable
AXIS TU6007 2nd generation Indoor and outdoor rated cable for AXIS F Series modular cameras
AXIS TU6008 Conn 5-PIN Extended connector for RS232 / RS485
AXIS TU6009 Conn 6-PIN Extended I/O connector
AXIS TF9902  Surface Mount
AXIS TF9903  DIN Rail Clip
AXIS 30 W Midspan For indoor use, 240 V AC
AXIS T8007 PS24 Versatile 24 V DC power supply
AXIS T8415  Wireless Installation Tool

[/accesories]

The Axis F9114 4-channel central unit is precisely engineered to be compatible with 2nd generation sensors and cables from the Axis F series. Equipped with SMA-FAKRA connectors, this product is designed to withstand vibrations and facilitate a robust installation. The F9114 can accommodate four HDTV 1080p video streams at 30fps or 720p video streams at up to 60fps. Additionally, the device is equipped with Axis Zipstream technology, which supports H.264 and H.265, efficiently reducing storage and bandwidth requirements while maintaining high image quality.

Quick Specs:

  • Only compatible with 2nd generation sensors and cables
  • 1080p at 30fps on all 4-channels
  • Multiple sensor and cable options
  • Zipstream, Lightfinder, Forensic WDR

Please see the related tabs for the 01991-001 datasheet and compatible accessories.

Feature AXIS F9104-B Main Unit AXIS F9111 Main Unit AXIS F9114 Main Unit AXIS F9114-B Main Unit
Max video resolution 1920x1080 1920x1080 1920x1080 1920x1080
Zipstream ✔ ✔ ✔ ✔
Ruggedized – – – –
Two-way audio – ✔ ✔ –
Alarm inputs/outputs 4 4 4 4



This product has been discontinued.



Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

  • 2nd generation: 4-channel main unit with audio and I/O, Only compatible with 2nd generation sensors and cables, 1080p at 30 fps on all 4-channels, Rugged design and connectors, Multiple sensor and cable options, Zipstream, Lightfinder, Forensic WDR, 2nd gen cable is required

[/shortdesc]

[properties]

Properties AXIS F9114
Description AXIS F9114 Main Unit is designed for use with 2nd generation sensors and cables from AXIS F Series. With SMA-FAKRA connectors it withstands vibrations and ensures a ruggedized installation. It supports 1080p at 30 fps or 720p at 60 fps.
Product Family Axis Cameras
Product Type Main Unit
Image sensor –
Wide dynamic range Forensic WDR
PoE Class IEEE 802.3at Type 2 Class 4
Connectors  RJ45 for 10BASE-T/100BASE-TX/1000BASE-T PoE
4x FAKRA for sensor units
6-pin terminal block for 4x configurable I/Os (12 V DC output), max load 50 mA
3.5 mm mic/line in, 3.5 mm line out
5-pin terminal block RS232/RS485
3-pin terminal block for 10-48 V DC input
HTTPS encryption Yes
IEEE 802.1X Yes
Built-in IR –
Local storage (memory card slot) Yes
Outdoor Ready –
Vandal rating –
IP rating IP3X
Dimensions  51 x 120 x 120 mm (2 x 4.7 x 4.7 in)
Weight 675 g (1.5 lb)
Operating Temperature -40 °C to 60 °C (-40 °F to 140 °F)
Sustainability PVC free

[/properties][specifications]

Specifications AXIS F9114
System on chip (SoC) Model  ARTPEC-7
Memory  2x 1024 MB RAM, 512 MB Flash
Min illumination/ light sensitivity (Color)  -
Max video resolution 1920x1080
Max frames per second 60
Day and Night functionality –
Electronic image stabilization –
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes
Audio streaming  Two-way, full-duplex
Audio input/output  2x external microphone input or line input, 1x line output, ring power, digital audio input
Event actions  Play audio clip, toggle I/O, send images, MQTT publish, send notifications, overlay text, power saving mode, recordings, SNMP trap messages, status LED, video clips
Applications  AXIS Video Motion Guard, audio detection
Supported  Tampering alarm
Support for AXIS Camera Application Platform enabling installation of third-party applications
Cybersecurity Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption
Hardware: Axis Edge Vault cybersecurity platform Secure element (CC EAL 6+), Axis device ID, secure keystore, signed video, secure boot
Network security: IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AR, HTTPS/HSTSa, TLS v1.2/v1.3a, Network Time Security (NTS), X.509, Certificate PKI, IP address filtering

[/specifications][accesories]

Optional accessories
AXIS TU6001  Connector 3-Pin 3.81
AXIS TU6004-E 2nd generation Indoor and outdoor rated cable for AXIS F Series modular cameras
AXIS TU6005  2nd generation Plenum Cable
AXIS TU6007 2nd generation Indoor and outdoor rated cable for AXIS F Series modular cameras
AXIS TU6008 Conn 5-PIN Extended connector for RS232 / RS485
AXIS TU6009 Conn 6-PIN Extended I/O connector
AXIS TF9902  Surface Mount
AXIS TF9903  DIN Rail Clip
AXIS 30 W Midspan For indoor use, 240 V AC
AXIS T8007 PS24 Versatile 24 V DC power supply
AXIS T8415  Wireless Installation Tool

[/accesories]

AXIS F9114 Main Unit (01991-001)

The Axis F9114 4-channel central unit is precisely engineered to be compatible with 2nd generation sensors and cables from the Axis F series. Equipped with SMA-FAKRA connectors, this product is designed to withstand vibrations and facilitate a robust installation. The F9114 can accommodate four HDTV 1080p video streams at 30fps or 720p video streams at up to 60fps. Additionally, the device is equipped with Axis Zipstream technology, which supports H.264 and H.265, efficiently reducing storage and bandwidth requirements while maintaining high image quality.

Quick Specs:

  • Only compatible with 2nd generation sensors and cables
  • 1080p at 30fps on all 4-channels
  • Multiple sensor and cable options
  • Zipstream, Lightfinder, Forensic WDR

Please see the related tabs for the 01991-001 datasheet and compatible accessories.

Feature AXIS F9104-B Main Unit AXIS F9111 Main Unit AXIS F9114 Main Unit AXIS F9114-B Main Unit
Max video resolution 1920x1080 1920x1080 1920x1080 1920x1080
Zipstream ✔ ✔ ✔ ✔
Ruggedized – – – –
Two-way audio – ✔ ✔ –
Alarm inputs/outputs 4 4 4 4



This product has been discontinued.
