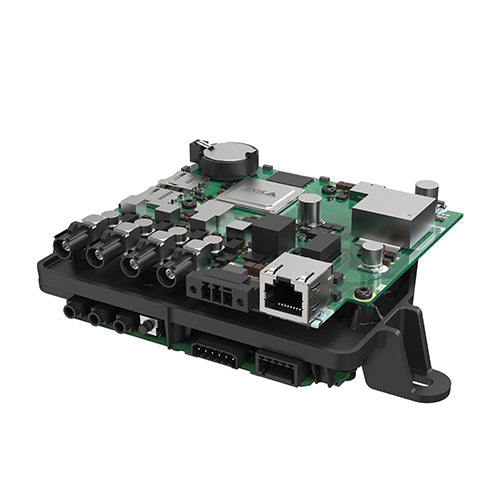

AXIS F9114-B Main Unit (01991-031)
AXIS F9114-B Main Unit (01991-031)

AXIS F9114-B Main Unit (01991-031)

por Axis
R$ 8.364,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

  • 2nd generation: 4-channel modular barebone unit with audio and I/O, Only compatible with 2nd generation sensors and cables, Compact barebone main unit, UL recognized component, Multiple sensor and cable options, 1080p at 30 fps on 4-channels, 2nd gen cable is required

[/shortdesc]

[properties]

Properties AXIS F9114-B
Description AXIS F9114-B Main Unit is a 4-channel modular barebone unit with audio and I/O. It is designed for use with 2nd generation sensors and cables from AXIS F Series. With SMA-FAKRA connectors it withstands vibrations and ensures a ruggedized installation. It supports 1080p at 30 fps or 720p at 60 fps.
Product Family Axis Cameras
Product Type Main Unit
Image sensor –
Wide dynamic range Forensic WDR
PoE Class IEEE 802.3at Type 2 Class 4
Connectors RJ45 for 10BASE-T/100BASE-TX/1000BASE-T PoE
4x FAKRA for sensor units
6-pin terminal block for 4x configurable I/Os (12 V DC output), max load 50 mA
3.5 mm mic/line in, 3.5 mm line out
5-pin terminal block RS232/RS485
3-pin terminal block for 10-48 V DC input
HTTPS encryption Yes
IEEE 802.1X Yes
Built-in IR –
Local storage (memory card slot) Yes
Outdoor Ready –
Vandal rating –
IP rating IP3X
Dimensions 43 × 123 × 160 mm (1.7 × 4.8 × 6.3 in)
Weight 190 g (0.4 lb)
Operating Temperature -40 °C to 60 °C (-40 °F to 140 °F)
Sustainability PVC free

[/properties][specifications]

Specifications AXIS F9114-B
System on chip (SoC) Model ARTPEC-7
Memory 2x 1024 MB RAM, 512 MB Flash
Min illumination/ light sensitivity (Color) -
Max video resolution 1920x1080
Max frames per second Up to 30 fps in 1080p and up to 60 fps in 720p
Day and Night functionality –
Electronic image stabilization –
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes
Audio streaming Two-way, full-duplex
Audio input/output 2x external microphone input or line input, 1x line output, ring power, digital audio input
Event actions Play audio clip, toggle I/O, send images, MQTT publish, send notifications, overlay text, power saving mode, recordings, SNMP trap messages, status LED, video clips
Applications AXIS Video Motion Guard, audio detection
Supported Tampering alarm
Support for AXIS Camera Application Platform enabling installation of third-party applications
Cybersecurity Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption
Hardware: Axis Edge Vault cybersecurity platform Secure element (CC EAL 6+), Axis device ID, secure keystore, signed video, secure boot
Network security: IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AR, HTTPS/HSTSa, TLS v1.2/v1.3a, Network Time Security (NTS), X.509, Certificate PKI, IP address filtering

[/specifications][accesories]

Optional accessories
AXIS TU6001 Connector 3-Pin 3.81
AXIS TU6004-E 2nd generation Indoor and outdoor rated cable for AXIS F Series modular cameras
AXIS TU6005 2nd generation Plenum Cable
AXIS TU6007 2nd generation Indoor and outdoor rated cable for AXIS F Series modular cameras
AXIS TU6008 Conn 5-PIN Extended connector for RS232 / RS485
AXIS TU6009 Conn 6-PIN Extended I/O connector
AXIS TF9902 Surface Mount
AXIS TF9903 DIN Rail Clip
AXIS 30 W Midspan For indoor use, 240 V AC
AXIS T8007 PS24 Versatile 24 V DC power supply
AXIS T8415 Wireless Installation Tool

[/accesories]

The AXIS F9114-B Main Unit is precisely engineered to be compatible with 2nd generation sensors and cables within the AXIS F Series. This component is well-suited for constructing tailored video solutions and has been recognized by UL for its compliance with safety standards. It is intended for seamless integration into UL-certified final products and is compatible with sensor units and cables featuring SMA-FAKRA connectors provided by Axis.

Quick Specs:

  • Only compatible with 2nd generation sensors and cables
  • Compact barebone main unit
  • UL recognized component
  • Multiple sensor and cable options

Please see the related tabs for the 01991-031 datasheet and compatible accessories.

Feature AXIS F9104-B Main Unit AXIS F9111 Main Unit AXIS F9114 Main Unit AXIS F9114-B Main Unit
Max video resolution 1920x1080 1920x1080 1920x1080 1920x1080
Zipstream ✔ ✔ ✔ ✔
Ruggedized – – – –
Two-way audio – ✔ ✔ –
Alarm inputs/outputs 4 4 4 4
