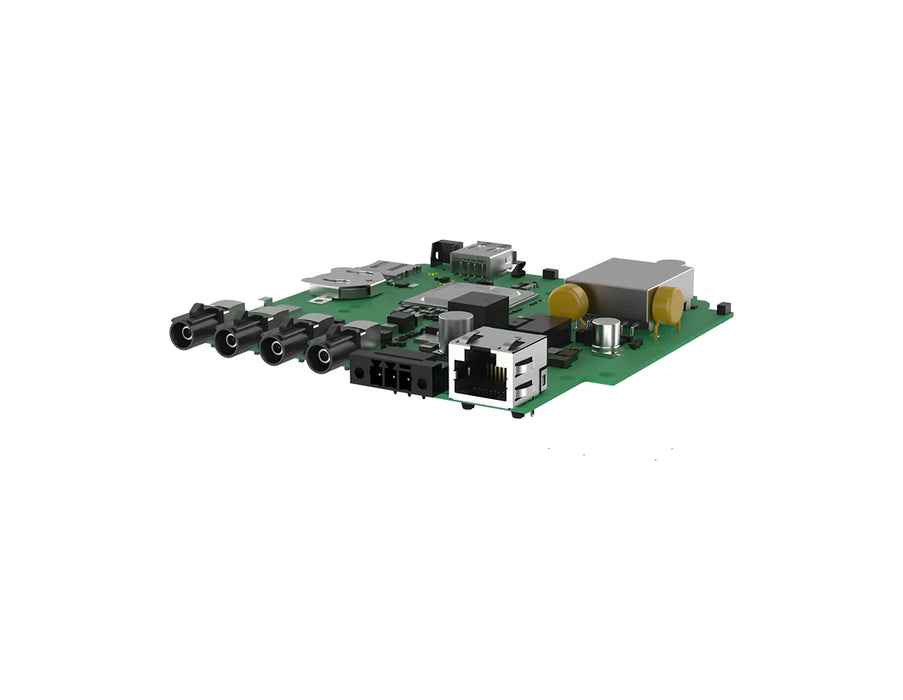

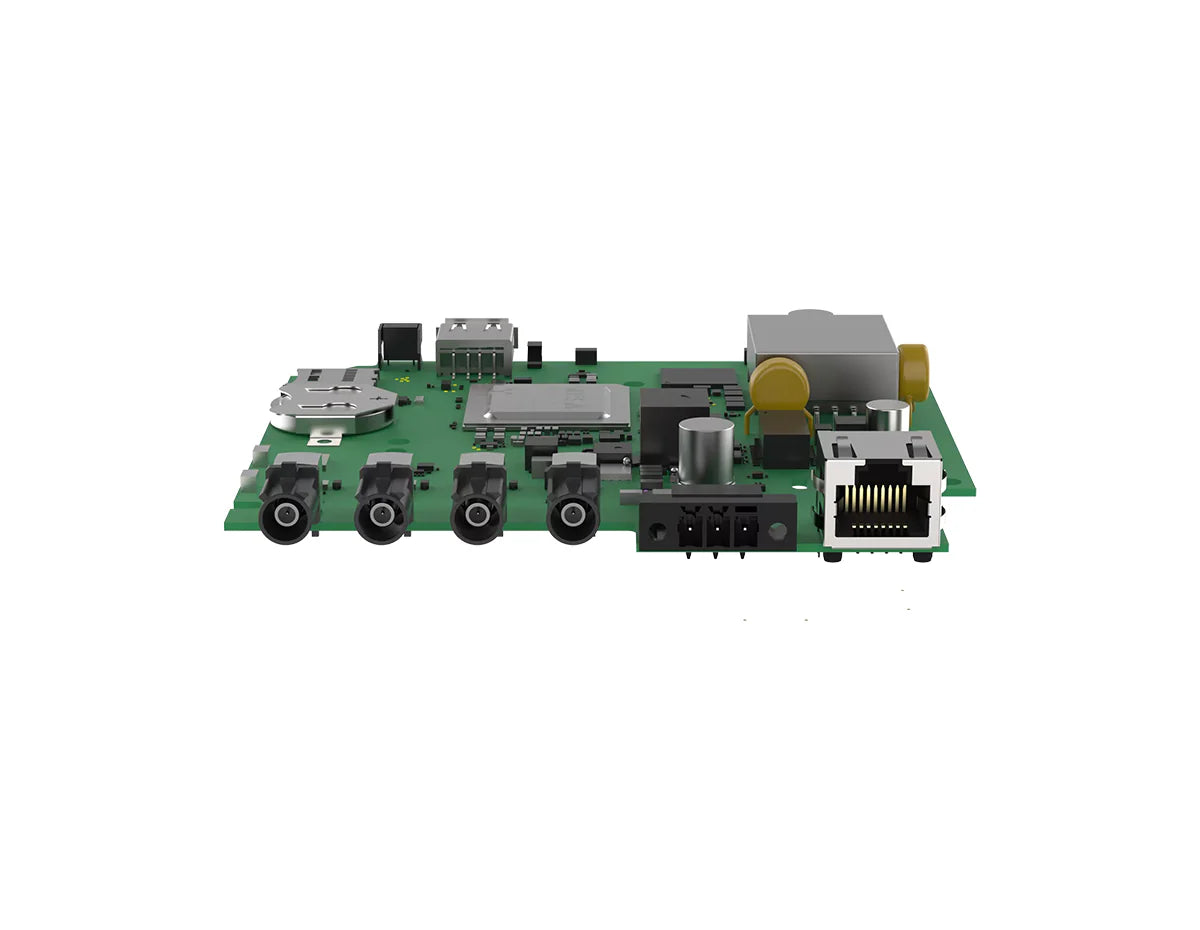

AXIS F9104-B Mk II 4-Channel Barebone Main Unit (03000-001)
Clique ou role para ampliar
Toque ou belisque para ampliar
AXIS F9104-B Mk II 4-Channel Barebone Main Unit (03000-001)
AXIS F9104-B Mk II 4-Channel Barebone Main Unit (03000-001)

AXIS F9104-B Mk II 4-Channel Barebone Main Unit (03000-001)

por Axis
R$ 7.884,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] 4-channel barebone unit, up to 4K, DLPU analytics, FAKRA connectors, PoE, Axis Edge Vault [/shortdesc]

[properties]

Model AXIS F9104-B Mk II Main Unit
SKU 03000-001
Product Type 4-channel Barebone Main Unit
System on Chip ARTPEC-8 (with Deep Learning Processing Unit)
Maximum Resolution Up to 3840 x 2160 8 MP
Maximum Frame Rate Up to 60/50 fps depending on sensor unit and capture mode
Video Compression H.264, H.265, Motion JPEG
Sensor Connections 4x FAKRA connectors
Network Connector RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE
Power PoE IEEE 802.3af/802.3at Type 2 Class 4; 10-48 V DC
Power Consumption Typical 11.5 W, max 25.5 W
Storage Support microSD/microSDHC/microSDXC card; network-attached storage (NAS)
Operating Temperature -40 deg C to 60 deg C (-40 deg F to 140 deg F)
Weight 115 g (0.25 lb)

[/properties]

[specifications]

Video Streaming Multiple individually configurable streams in H.264, H.265 and Motion JPEG; Axis Zipstream technology; controllable frame rate and bandwidth; VBR/ABR/MBR; low latency mode
Resolution Support Up to 3840 x 2160 8 MP; up to 2592 x 1944 5 MP; up to 1920 x 1080 HDTV 2 MP
Analytics AXIS Object Analytics, AXIS Scene Metadata, AXIS Video Motion Detection
AXIS Object Analytics Humans and vehicles detection; line crossing, object in area, time in area, crossline counting, occupancy in area, tailgating detection, PPE monitoring BETA and motion scenarios
AXIS Scene Metadata Object classes include humans, faces, vehicles and license plates; attributes include vehicle color, clothing color, confidence and position
System Integration Open API including VAPIX and AXIS Camera Application Platform; ONVIF Profile G, M, S and T
Video Management Compatible with AXIS Camera Station Edge, AXIS Camera Station Pro, AXIS Camera Station 5 and Axis partner video management software
Cybersecurity Axis Edge Vault, secure boot, signed OS, Axis device ID, signed video, encrypted filesystem and secure keystore (TPM 2.0)
Sustainability PVC free, BFR/CFR free, RoHS compliant, REACH compliant

[/specifications]

[accesories]

Included Main unit; installation guide
Required Hardware Compatible AXIS TU6007-E, TU6004-E, or TU6005 Plenum Cables; AXIS F21, F41, or F7225-RE Pinhole Sensor Units
Optional Accessories TU6001 Connector 3-pin; Connector A 2-pin; TU6009 Connector 6-PIN; TF9902 Surface Mount; AXIS Surveillance Cards

[/accesories]

The AXIS F9104-B Mk II Main Unit is a compact 4-channel barebone video main unit built for advanced integration into security, transportation, industrial, and OEM systems. Designed for use with up to four compatible Axis sensor units, it combines high-resolution video, edge-based AI analytics, and hardware-backed cybersecurity in a board-level form factor.

Powered by the ARTPEC-8 system-on-chip and a deep learning processing unit, this Axis main unit supports intelligent event detection, efficient streaming, and secure device operation directly at the edge.

Integration-Ready Video Platform

  • 4-channel architecture: Connect up to four compatible sensor units for flexible multi-view surveillance from one main unit.
  • AI-based edge analytics: Built-in DLPU supports AXIS Object Analytics for detecting, classifying, tracking, and counting people and vehicles.
  • Secure FAKRA connections: Four FAKRA sensor connectors help support stable and secure installation in embedded applications.
  • Advanced video performance: Supports H.264, H.265, Motion JPEG, Axis Zipstream, multiple streams, and controllable bitrate options.
  • Hardware-backed cybersecurity: Axis Edge Vault, secure boot, signed OS, signed video, encrypted filesystem, and TPM-based key storage protect device integrity.
  • OEM security products requiring a UL-recognized barebone video component.
  • Transportation, kiosk, ATM, and embedded surveillance installations.
  • Multi-sensor monitoring where discreet camera placement is required.
  • Edge analytics deployments for people, vehicle, occupancy, and line-crossing events.
  • Enterprise video systems using Axis Camera Station or compatible VMS platforms.
  • Product Type: 4-channel barebone main unit
  • System-on-Chip: ARTPEC-8
  • Compute Capability: Deep learning processing unit
  • Memory: 4096 MB RAM, 8192 MB flash
  • Video Compression: H.264, H.265, Motion JPEG
  • Maximum Resolution: Up to 3840 x 2160 8 MP, sensor dependent
  • Sensor Connectors: 4 x FAKRA for compatible Axis sensor units
  • Network Interface: RJ45 10BASE-T, 100BASE-TX, 1000BASE-T with PoE
  • Power: PoE IEEE 802.3af/802.3at Type 2 Class 4 or 10-48 VDC
  • Storage: microSD, microSDHC, microSDXC, and NAS recording support
  • Operating Temperature: -40 deg C to 60 deg C
  • Weight: 115 g

Choose the AXIS F9104-B Mk II Main Unit for secure, AI-ready multi-sensor video integration. Order today.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] 4-channel barebone unit, up to 4K, DLPU analytics, FAKRA connectors, PoE, Axis Edge Vault [/shortdesc]

[properties]

Model AXIS F9104-B Mk II Main Unit
SKU 03000-001
Product Type 4-channel Barebone Main Unit
System on Chip ARTPEC-8 (with Deep Learning Processing Unit)
Maximum Resolution Up to 3840 x 2160 8 MP
Maximum Frame Rate Up to 60/50 fps depending on sensor unit and capture mode
Video Compression H.264, H.265, Motion JPEG
Sensor Connections 4x FAKRA connectors
Network Connector RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE
Power PoE IEEE 802.3af/802.3at Type 2 Class 4; 10-48 V DC
Power Consumption Typical 11.5 W, max 25.5 W
Storage Support microSD/microSDHC/microSDXC card; network-attached storage (NAS)
Operating Temperature -40 deg C to 60 deg C (-40 deg F to 140 deg F)
Weight 115 g (0.25 lb)

[/properties]

[specifications]

Video Streaming Multiple individually configurable streams in H.264, H.265 and Motion JPEG; Axis Zipstream technology; controllable frame rate and bandwidth; VBR/ABR/MBR; low latency mode
Resolution Support Up to 3840 x 2160 8 MP; up to 2592 x 1944 5 MP; up to 1920 x 1080 HDTV 2 MP
Analytics AXIS Object Analytics, AXIS Scene Metadata, AXIS Video Motion Detection
AXIS Object Analytics Humans and vehicles detection; line crossing, object in area, time in area, crossline counting, occupancy in area, tailgating detection, PPE monitoring BETA and motion scenarios
AXIS Scene Metadata Object classes include humans, faces, vehicles and license plates; attributes include vehicle color, clothing color, confidence and position
System Integration Open API including VAPIX and AXIS Camera Application Platform; ONVIF Profile G, M, S and T
Video Management Compatible with AXIS Camera Station Edge, AXIS Camera Station Pro, AXIS Camera Station 5 and Axis partner video management software
Cybersecurity Axis Edge Vault, secure boot, signed OS, Axis device ID, signed video, encrypted filesystem and secure keystore (TPM 2.0)
Sustainability PVC free, BFR/CFR free, RoHS compliant, REACH compliant

[/specifications]

[accesories]

Included Main unit; installation guide
Required Hardware Compatible AXIS TU6007-E, TU6004-E, or TU6005 Plenum Cables; AXIS F21, F41, or F7225-RE Pinhole Sensor Units
Optional Accessories TU6001 Connector 3-pin; Connector A 2-pin; TU6009 Connector 6-PIN; TF9902 Surface Mount; AXIS Surveillance Cards

[/accesories]

Build Smarter Embedded Surveillance with Edge AI

The AXIS F9104-B Mk II Main Unit is a compact 4-channel barebone video main unit built for advanced integration into security, transportation, industrial, and OEM systems. Designed for use with up to four compatible Axis sensor units, it combines high-resolution video, edge-based AI analytics, and hardware-backed cybersecurity in a board-level form factor.

Powered by the ARTPEC-8 system-on-chip and a deep learning processing unit, this Axis main unit supports intelligent event detection, efficient streaming, and secure device operation directly at the edge.

Key Benefits & Features

Integration-Ready Video Platform

  • 4-channel architecture: Connect up to four compatible sensor units for flexible multi-view surveillance from one main unit.
  • AI-based edge analytics: Built-in DLPU supports AXIS Object Analytics for detecting, classifying, tracking, and counting people and vehicles.
  • Secure FAKRA connections: Four FAKRA sensor connectors help support stable and secure installation in embedded applications.
  • Advanced video performance: Supports H.264, H.265, Motion JPEG, Axis Zipstream, multiple streams, and controllable bitrate options.
  • Hardware-backed cybersecurity: Axis Edge Vault, secure boot, signed OS, signed video, encrypted filesystem, and TPM-based key storage protect device integrity.
Ideal Use Cases
  • OEM security products requiring a UL-recognized barebone video component.
  • Transportation, kiosk, ATM, and embedded surveillance installations.
  • Multi-sensor monitoring where discreet camera placement is required.
  • Edge analytics deployments for people, vehicle, occupancy, and line-crossing events.
  • Enterprise video systems using Axis Camera Station or compatible VMS platforms.
Technical Specifications
  • Product Type: 4-channel barebone main unit
  • System-on-Chip: ARTPEC-8
  • Compute Capability: Deep learning processing unit
  • Memory: 4096 MB RAM, 8192 MB flash
  • Video Compression: H.264, H.265, Motion JPEG
  • Maximum Resolution: Up to 3840 x 2160 8 MP, sensor dependent
  • Sensor Connectors: 4 x FAKRA for compatible Axis sensor units
  • Network Interface: RJ45 10BASE-T, 100BASE-TX, 1000BASE-T with PoE
  • Power: PoE IEEE 802.3af/802.3at Type 2 Class 4 or 10-48 VDC
  • Storage: microSD, microSDHC, microSDXC, and NAS recording support
  • Operating Temperature: -40 deg C to 60 deg C
  • Weight: 115 g
Upgrade Embedded Video Intelligence

Choose the AXIS F9104-B Mk II Main Unit for secure, AI-ready multi-sensor video integration. Order today.
