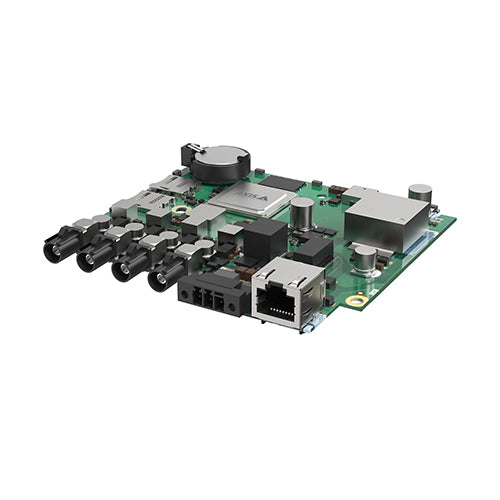

AXIS F9104-B Main Unit (02192-031)
AXIS F9104-B Main Unit (02192-031)

AXIS F9104-B Main Unit (02192-031)

por Axis
R$ 6.287,40
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

  • 2nd generation: 4-channel modular barebone unit, Only compatible with 2nd generation sensors and cables, Compact barebone main unit, UL recognized component, Multiple sensor and cable options, 1080p at 30 fps on 4-channels, 2nd gen cable is required

[/shortdesc]

[properties]

Properties AXIS F9104-B
Description AXIS F9104-B is compact barebone main unit. It is designed for use with 2nd generation sensors and cables from AXIS F Series. Ideal for building customized video solutions, this UL recognized component is designed for integration into a UL certified end-product.
Product Family Axis Cameras
Product Type Main Unit
Image sensor –
Wide dynamic range Forensic WDR
PoE Class IEEE 802.3at Type 2 Class 4
Connectors RJ45 for 10BASE-T/100BASE-TX/1000BASE-T PoE
4× FAKRA for sensor units
3-pin terminal block for 10–48 V DC input
HTTPS encryption Yes
IEEE 802.1X Yes
Built-in IR –
Local storage (memory card slot) Yes
Outdoor Ready –
Vandal rating –
IP rating –
Power (max) 25.5 W
Power (average) 9.0 W
DC input voltage 10–48 V
Dimensions 21 × 107 × 110 mm (0.8 × 4.2 × 4.3 in)
Weight 120 g (0.3 lb)
Operating Temperature -40 °C to 60 °C (-40 °F to 140 °F)
Sustainability PVC free

[/properties][specifications]

Properties AXIS F9104-B
Description AXIS F9104-B is compact barebone main unit. It is designed for use with 2nd generation sensors and cables from AXIS F Series. Ideal for building customized video solutions, this UL recognized component is designed for integration into a UL certified end-product.
Product Family Axis Cameras
Product Type Main Unit
Image sensor –
Wide dynamic range Forensic WDR
PoE Class IEEE 802.3at Type 2 Class 4
Connectors RJ45 for 10BASE-T/100BASE-TX/1000BASE-T PoE
4× FAKRA for sensor units
3-pin terminal block for 10–48 V DC input
HTTPS encryption Yes
IEEE 802.1X Yes
Built-in IR –
Local storage (memory card slot) Yes
Outdoor Ready –
Vandal rating –
IP rating –
Power (max) 25.5 W
Power (average) 9.0 W
DC input voltage 10–48 V
Dimensions 21 × 107 × 110 mm (0.8 × 4.2 × 4.3 in)
Weight 120 g (0.3 lb)
Operating Temperature -40 °C to 60 °C (-40 °F to 140 °F)
Sustainability PVC free

[/specifications][accesories]

Optional accessories
AXIS TU6001 Connector 3-Pin 3.81
AXIS TU6004-E 2nd generation Indoor and outdoor rated cable for AXIS F Series modular cameras
AXIS TU6005 2nd generation Plenum Cable
AXIS TU6007-E 2nd generation Indoor and outdoor rated cable for AXIS F Series modular cameras
AXIS 30 W Midspan For indoor use, 240 V AC
AXIS T8007 PS24 Versatile 24 V DC power supply
AXIS T8415 Wireless Installation Tool

[/accesories]

AXIS F9104-B is a 4-channel Barebone main unit part of the 2nd generation F-series. AXIS F9104-B has no casing. It is UL recognised and is meant to be integrated into a something else (ex: machine...). The final product has to be UL certified. Up to 4× F21, F7225-RE or F4105-LRE video sensors can be connected to it. It has a 10–48V DC and an Ethernet port. AXIS F9104-B is PoE Class 4. Max 25.5W. AXIS TU6001 Connector 3-in (for DC power) has to be purchased separately. AXIS F9104-B main unit is NOT compatible with the 1st generation of F-series sensors (F1005-E, F1015-E, F1025-E, F1025 F4005, F4005-E).

Feature AXIS F9104-B Main Unit AXIS F9111 Main Unit AXIS F9114 Main Unit AXIS F9114-B Main Unit
Max video resolution 1920x1080 1920x1080 1920x1080 1920x1080
Zipstream ✔ ✔ ✔ ✔
Ruggedized – – – –
Two-way audio – ✔ ✔ –
Alarm inputs/outputs 4 4 4 4

Product Lifecycle Notice: This product has reached End of Life (EOL) and is no longer recommended for new deployments. The suggested replacement product is AXIS F9104-B Mk II 4-Channel Barebone Main Unit (03000-001) .
