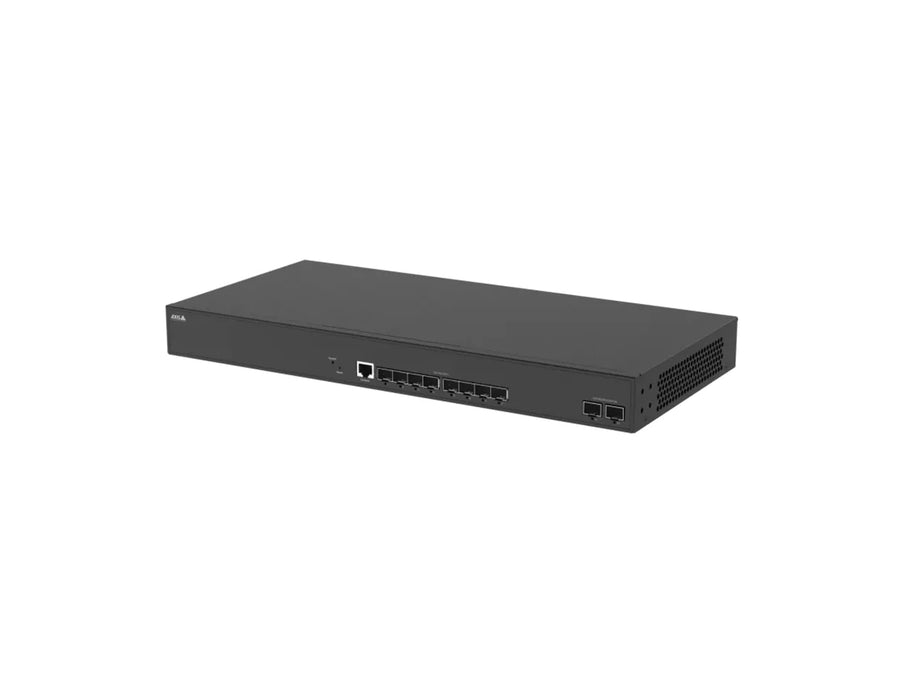

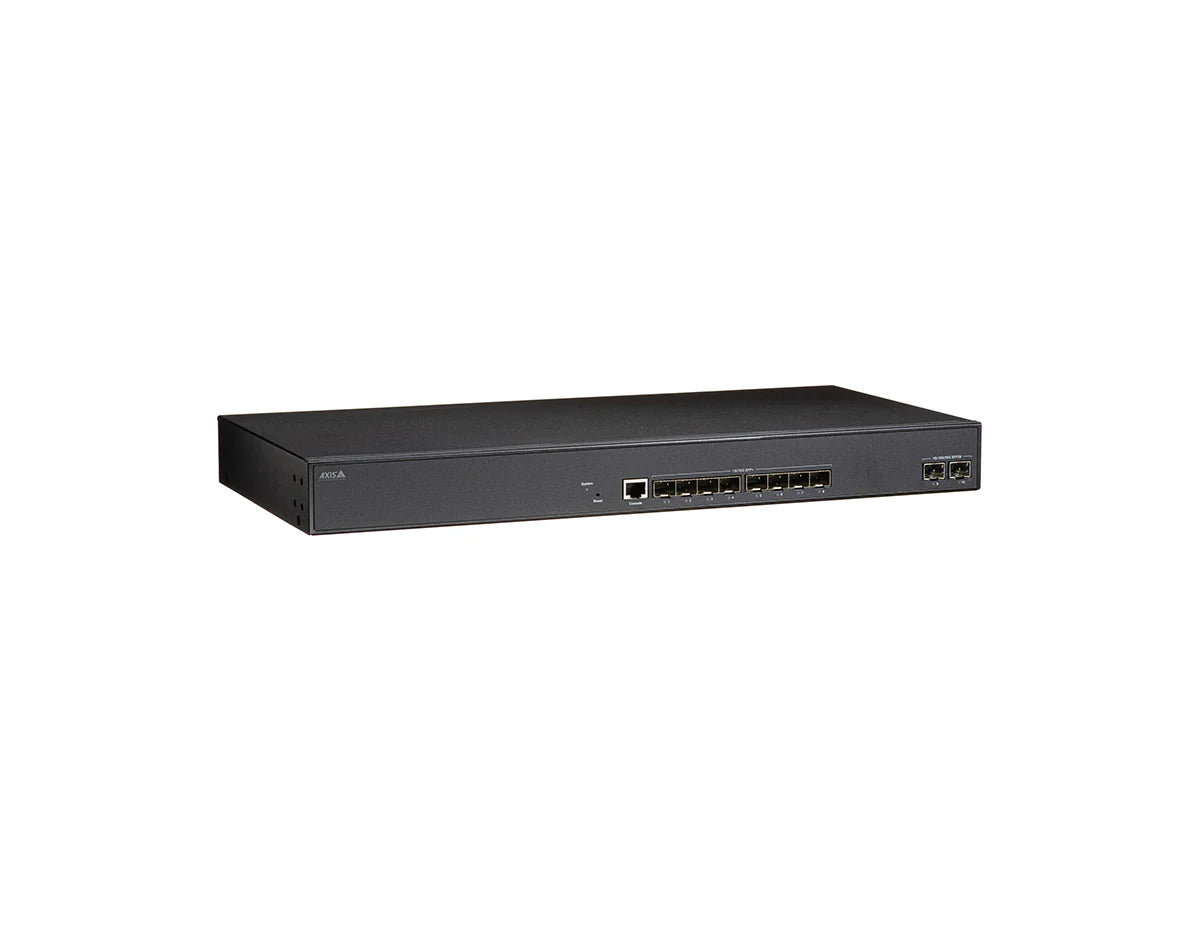

AXIS D8308 Fiber Aggregation Switch 8-Port (03063-004)
Clique ou role para ampliar
Toque ou belisque para ampliar
AXIS D8308 Fiber Aggregation Switch 8-Port (03063-004)
AXIS D8308 Fiber Aggregation Switch 8-Port (03063-004)

AXIS D8308 Fiber Aggregation Switch 8-Port (03063-004)

por Axis
R$ 21.624,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] 8x 10G SFP+ ports, 2x 25G SFP28 uplinks, 260 Gbps switching capacity, 193 Mpps throughput, L2/L3 surveillance optimization, TAA compliant. [/shortdesc]

[properties]

Model AXIS D8308 (03063-004)
Product Type Fiber Aggregation Switch
Ports 8 × SFP+ (10GBASE-LR/SR), 2 × SFP28 (25GBASE-LR/SR)
Switching Capacity 260 Gbps
Throughput 193.44 Mpps
MAC Table 32 K
Jumbo Frames 10240 bytes
Operating Temperature 0 to 50 °C (32 °F to 122 °F)
Storage Temperature -20 °C to 70 °C (-4 °F to 158 °F)
Humidity 0–95% RH operating; 5–95% RH storage (non-condensing)
Casing Steel; Color: Black
Power Input 100–250 V AC, 50/60 Hz
Surge Protection Network ports: 1 kV; AC lines: 2 kV
Connectors 1 × Power connector, 1 × RJ45 console
Size (Dimension Drawing) See datasheet dimension diagram
Weight 2580 g (5.67 lb)

[/properties]

[specifications]

Network Function Full L2 switching with L3 features including IPv4/IPv6 static route, RIP, OSPF
Supported Protocols IPv4, IPv6, HTTP/HTTPS, QoS Layer 3 DiffServ, mDNS, UPnP, SNMP v1/v2c/v3, DNS/DNSv6, NTP, TCP/UDP, IGMP v1/v2/v3, ICMP, DHCP, ARP, SSH, CDP, RADIUS, TACACS+, Syslog, IEEE 802.1X, 802.1Q VLAN, LLDP/LLDP-Med, STP/MSTP/RSTP, LACP, RIP v1/v2, OSPF v2/v3
Approvals / Markings CSA, UL/cUL, CE, VCCI, RCM, ICES, FCC
EMC CISPR 32 Class A, EN 55032 Class A, EN 61000-3-2/3-3/6-1/6-2/6-3/6-4; ICES(A); VCCI Class A; FCC Part 15 Class A
Safety Standards CAN/CSA C22.2 No. 62368-1 ed. 3; IEC/EN/UL 62368-1 ed. 3
Cybersecurity Features IEEE 802.1X, HTTPS, TLS 1.2, X.509 PKI, ACLs, port security, IP source guard, storm control, private VLAN, DHCP snooping, ARP inspection, loop protection
System Tools AXIS Site Designer, AXIS Device Manager, product/accessory selectors
Supply Chain TAA Compliant
Environmental Compliance PVC free, BFR/CFR free (JS709); RoHS; REACH; conflict minerals screened

[/specifications]

[accesories]

Included in the Box Switch, installation guide, 19” ear rack kit, rubber feet (x4), power cord
Optional Accessories AXIS TD8910 Console Cable; AXIS TD8911 SFP28 Module LC.LR.X; AXIS TD8912 SFP28 Module LC.SR.X

[/accesories]

The AXIS D8308 Fiber Aggregation Switch delivers powerful, scalable connectivity designed specifically for multi-site surveillance environments. Acting as a central aggregation point for Axis midspans and cameras, it provides high-speed 10G and 25G fiber performance coupled with advanced Layer 2 and Layer 3 capabilities. With Axis’ intuitive web-based graphical interface, the D8308 simplifies network configuration, offering clear topology views and real-time status updates for all connected devices.

  • High-capacity fiber aggregation: Equipped with eight 10G SFP+ ports and two 25G SFP28 uplinks to support high-bandwidth traffic and network expansion.
  • Optimized for surveillance: Engineered to handle the rigorous data demands of video surveillance over long-distance fiber connections.
  • Advanced network control: Offers full L2 switching along with L3 features, including IPv4/IPv6 static routing, RIP, and OSPF for versatile network architecture.
  • Secure architecture: Comprehensive security suite featuring IEEE 802.1X, ACLs, HTTPS encryption, TLS 1.2, DHCP snooping, IP source guard, and port security.
  • Easy installation and management: Features a unique web graphic user interface that provides a visual topology of the system for effortless maintenance and setup.
  • Large-scale surveillance deployments requiring central fiber aggregation
  • Campus environments connecting distributed Axis devices
  • Industrial or municipal security systems utilizing long-range fiber
  • Networks requiring secure, TAA-compliant hardware
  • System expansions needing seamless integration with existing Axis infrastructure
  • Fiber Ports: 8× SFP+ 10GBASE-LR/SR
  • Uplinks: 2× SFP28 25GBASE-LR/SR
  • Switching Capacity: 260 Gbps
  • Forwarding Rate: 193.44 Mpps
  • MAC Table Size: 32 K
  • Jumbo Frames: Up to 10240 bytes
  • Network Protocols: IPv4/IPv6, OSPF, RIP, VLAN, STP/MSTP/RSTP, LACP, LLDP, QoS
  • Security: 802.1X, ACLs, DHCP snooping, ARP inspection, port security, TLS 1.2
  • Operating Temperature: 0 °C to 50 °C
  • Power Input: 100–250 V AC, 50/60 Hz
  • Casing: Steel, Black

Enhance your surveillance infrastructure with powerful, secure, and scalable fiber aggregation—order the AXIS D8308 today.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] 8x 10G SFP+ ports, 2x 25G SFP28 uplinks, 260 Gbps switching capacity, 193 Mpps throughput, L2/L3 surveillance optimization, TAA compliant. [/shortdesc]

[properties]

Model AXIS D8308 (03063-004)
Product Type Fiber Aggregation Switch
Ports 8 × SFP+ (10GBASE-LR/SR), 2 × SFP28 (25GBASE-LR/SR)
Switching Capacity 260 Gbps
Throughput 193.44 Mpps
MAC Table 32 K
Jumbo Frames 10240 bytes
Operating Temperature 0 to 50 °C (32 °F to 122 °F)
Storage Temperature -20 °C to 70 °C (-4 °F to 158 °F)
Humidity 0–95% RH operating; 5–95% RH storage (non-condensing)
Casing Steel; Color: Black
Power Input 100–250 V AC, 50/60 Hz
Surge Protection Network ports: 1 kV; AC lines: 2 kV
Connectors 1 × Power connector, 1 × RJ45 console
Size (Dimension Drawing) See datasheet dimension diagram
Weight 2580 g (5.67 lb)

[/properties]

[specifications]

Network Function Full L2 switching with L3 features including IPv4/IPv6 static route, RIP, OSPF
Supported Protocols IPv4, IPv6, HTTP/HTTPS, QoS Layer 3 DiffServ, mDNS, UPnP, SNMP v1/v2c/v3, DNS/DNSv6, NTP, TCP/UDP, IGMP v1/v2/v3, ICMP, DHCP, ARP, SSH, CDP, RADIUS, TACACS+, Syslog, IEEE 802.1X, 802.1Q VLAN, LLDP/LLDP-Med, STP/MSTP/RSTP, LACP, RIP v1/v2, OSPF v2/v3
Approvals / Markings CSA, UL/cUL, CE, VCCI, RCM, ICES, FCC
EMC CISPR 32 Class A, EN 55032 Class A, EN 61000-3-2/3-3/6-1/6-2/6-3/6-4; ICES(A); VCCI Class A; FCC Part 15 Class A
Safety Standards CAN/CSA C22.2 No. 62368-1 ed. 3; IEC/EN/UL 62368-1 ed. 3
Cybersecurity Features IEEE 802.1X, HTTPS, TLS 1.2, X.509 PKI, ACLs, port security, IP source guard, storm control, private VLAN, DHCP snooping, ARP inspection, loop protection
System Tools AXIS Site Designer, AXIS Device Manager, product/accessory selectors
Supply Chain TAA Compliant
Environmental Compliance PVC free, BFR/CFR free (JS709); RoHS; REACH; conflict minerals screened

[/specifications]

[accesories]

Included in the Box Switch, installation guide, 19” ear rack kit, rubber feet (x4), power cord
Optional Accessories AXIS TD8910 Console Cable; AXIS TD8911 SFP28 Module LC.LR.X; AXIS TD8912 SFP28 Module LC.SR.X

[/accesories]

High-Performance Fiber Aggregation for Demanding Surveillance Networks

The AXIS D8308 Fiber Aggregation Switch delivers powerful, scalable connectivity designed specifically for multi-site surveillance environments. Acting as a central aggregation point for Axis midspans and cameras, it provides high-speed 10G and 25G fiber performance coupled with advanced Layer 2 and Layer 3 capabilities. With Axis’ intuitive web-based graphical interface, the D8308 simplifies network configuration, offering clear topology views and real-time status updates for all connected devices.

Key Benefits & Features
  • High-capacity fiber aggregation: Equipped with eight 10G SFP+ ports and two 25G SFP28 uplinks to support high-bandwidth traffic and network expansion.
  • Optimized for surveillance: Engineered to handle the rigorous data demands of video surveillance over long-distance fiber connections.
  • Advanced network control: Offers full L2 switching along with L3 features, including IPv4/IPv6 static routing, RIP, and OSPF for versatile network architecture.
  • Secure architecture: Comprehensive security suite featuring IEEE 802.1X, ACLs, HTTPS encryption, TLS 1.2, DHCP snooping, IP source guard, and port security.
  • Easy installation and management: Features a unique web graphic user interface that provides a visual topology of the system for effortless maintenance and setup.
Ideal Use Cases
  • Large-scale surveillance deployments requiring central fiber aggregation
  • Campus environments connecting distributed Axis devices
  • Industrial or municipal security systems utilizing long-range fiber
  • Networks requiring secure, TAA-compliant hardware
  • System expansions needing seamless integration with existing Axis infrastructure
Technical Specifications
  • Fiber Ports: 8× SFP+ 10GBASE-LR/SR
  • Uplinks: 2× SFP28 25GBASE-LR/SR
  • Switching Capacity: 260 Gbps
  • Forwarding Rate: 193.44 Mpps
  • MAC Table Size: 32 K
  • Jumbo Frames: Up to 10240 bytes
  • Network Protocols: IPv4/IPv6, OSPF, RIP, VLAN, STP/MSTP/RSTP, LACP, LLDP, QoS
  • Security: 802.1X, ACLs, DHCP snooping, ARP inspection, port security, TLS 1.2
  • Operating Temperature: 0 °C to 50 °C
  • Power Input: 100–250 V AC, 50/60 Hz
  • Casing: Steel, Black
Upgrade Your Network Performance Today

Enhance your surveillance infrastructure with powerful, secure, and scalable fiber aggregation—order the AXIS D8308 today.
