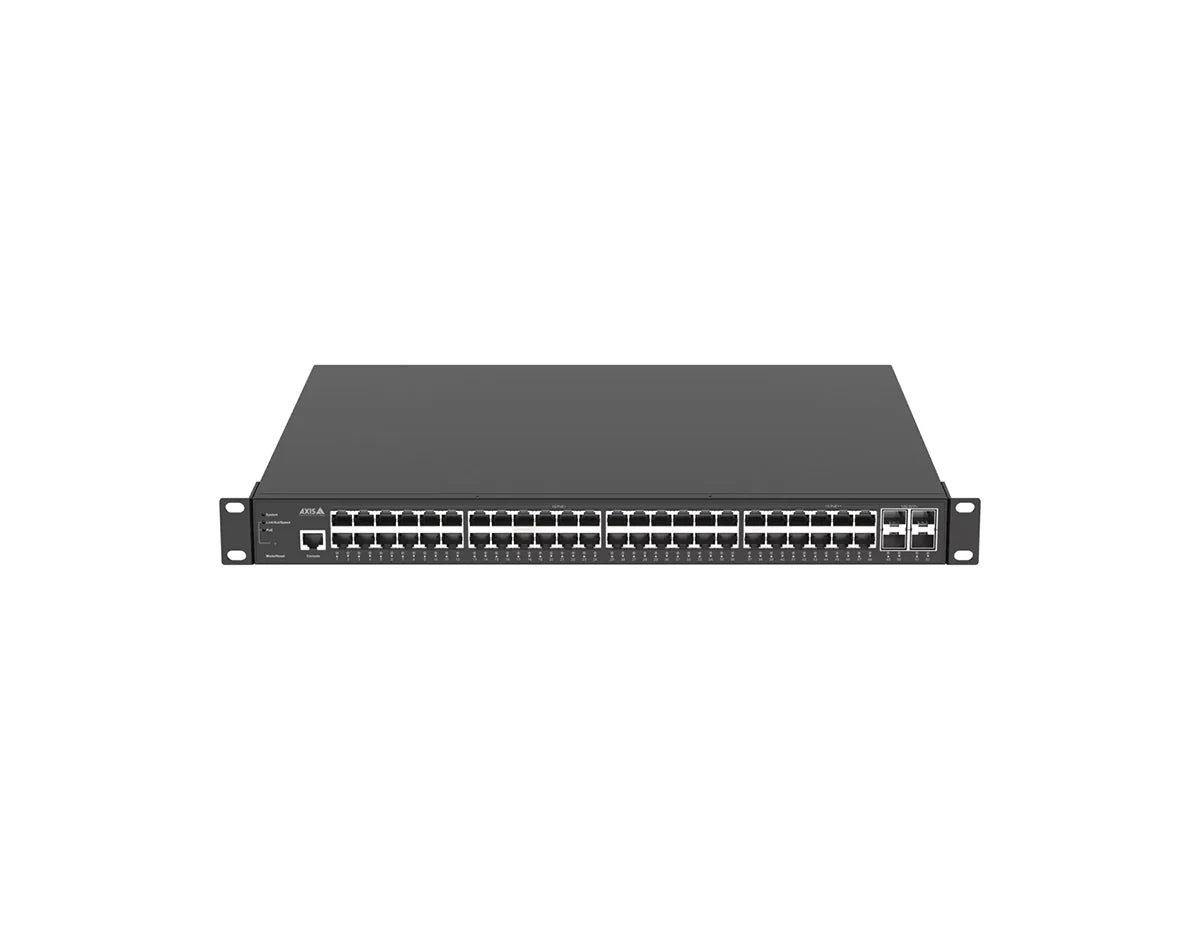

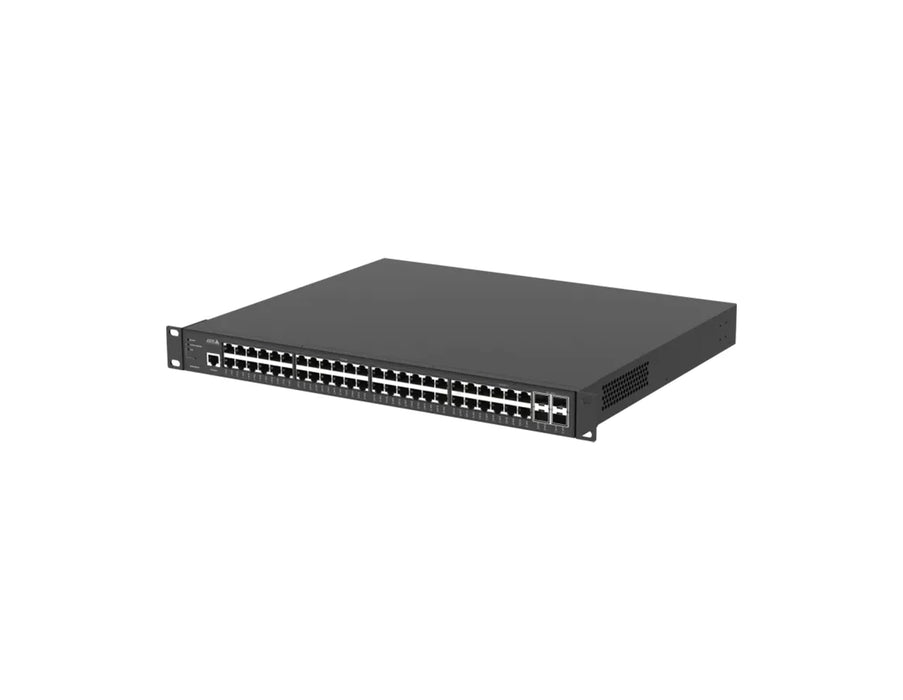

AXIS D8248 Managed Switch 48-Port PoE++ (02620-004)
Clique ou role para ampliar
Toque ou belisque para ampliar
AXIS D8248 Managed Switch 48-Port PoE++ (02620-004)
AXIS D8248 Managed Switch 48-Port PoE++ (02620-004)

AXIS D8248 Managed Switch 48-Port PoE++ (02620-004)

por Axis
R$ 27.612,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] 48x Gigabit PoE++, 740W PoE Budget, 4x 10G SFP+ Uplinks, DHCP Server, L3 Static Routing, IP20 Steel Chassis, Optimized for Surveillance [/shortdesc]

[properties]

Model AXIS D8248 (02620-004)
Product Type Managed PoE++ Switch
Ports 48 × RJ45 10/100/1000 Mbps
Uplink Ports 4 × 10G SFP+
PoE Standard IEEE 802.3at (30 W) on ports 1–40
IEEE 802.3bt (90 W) on ports 41–48
PoE Power Budget 740 W
Switching Capacity 176 Gbps
Throughput 130.944 Mpps
MAC Table 32K
Jumbo Frame Support 10240 bytes
Layer Support L2 switching + L3 features (IPv4/IPv6 static route, RIP, OSPF)
Casing Steel, Black
Power Input 100–240 V AC, 50/60 Hz
Operating Temperature 0 °C to 45 °C
Storage Temperature −20 °C to 70 °C
Operating Humidity 0–95% RH (non-condensing)
Surge Protection Network ports: 1 kV; AC lines: 2 kV
Dimensions Minimum rack depth: 18″
Weight 5620 g (12.4 lb)
IP Rating IP20
Certifications CSA, UL/cUL, CE, VCCI, FCC, RCM, ICES, MIC Telecom

[/properties]

[specifications]

Network Protocols IPv4, IPv6, HTTP(S), QoS (Layer 3 DiffServ), SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3, DNS/DNSv6, NTP, TCP/UDP, IGMPv1/v2/v3, ICMP, DHCP, ARP, SSH, CDP, RADIUS, TACACS+, Syslog, IEEE 802.1X, 802.1Q (VLAN), LLDP/LLDP-MED, STP/MSTP/RSTP, LACP
Security Features IEEE 802.1X, HTTPS encryption, TLS v1.2, X.509, Access Control List (ACL), port security, IP source guard, storm control, private VLAN, DHCP snooping, ARP inspection, password protection, loop protection
PoE Pin Assignment Ports 1–40: 3/6 (+), 1/2 (−)
Ports 41–48: 3/6, 4/5 (+); 1/2, 7/8 (−)
PoE Output Details Ports 1–40: 30 W max (Type 2 Class 4)
Ports 41–48: 90 W max (Type 4 Class 8)
System Tools AXIS Site Designer, AXIS Device Manager, Product selector
EMC Standards EN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, RCM AS/NZS CISPR 32 Class A, ICES(A)/NMB(A), VCCI Class A, FCC Part 15 Subpart B Class A
Safety Standards CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, AS/NZS 62368.1, J62368-1
Cybersecurity Support AXIS Network Switches Hardening Guide, Axis Vulnerability Management Policy, Security Development Model, SBOM

[/specifications]

[accesories]

Included in the Box AXIS D8248 Switch, Installation guide, 19″ rack ear kit, Rubber feet (4x), Power cord
Optional Accessories AXIS TD8901 SFP+ Module LC.LR.X
AXIS TD8902 SFP+ Module LC.SR.X

[/accesories]

The AXIS D8248 Managed PoE++ Switch is a high-performance network solution engineered specifically for demanding security and surveillance deployments. Featuring 48 Gigabit Ethernet ports and a massive 740 W power budget, this switch ensures uninterrupted operation for high-density camera installations. It simplifies network management with an integrated DHCP server for automatic IP assignment and a graphic topology interface that provides an instant visual overview of all connected Axis devices.

  • High-Power PoE++ (90W): Ports 41–48 support IEEE 802.3bt (up to 90 W), making them ideal for power-hungry devices like PTZ cameras, IR illuminators, and IP speakers. Ports 1–40 support standard 802.3at (30 W).
  • Surveillance Optimized: Designed to complement Axis recorders, the D8248 features "Zero Touch" provisioning tools and an integrated DHCP server for effortless device discovery and setup.
  • High-Speed 10G Uplinks: Equipped with four SFP+ ports, enabling 10 Gigabit fiber connectivity for high-bandwidth backbone connections and future-proof scalability.
  • Advanced L2/L3 Management: Includes comprehensive switching features such as IPv4/IPv6 static routing, OSPF, RIP, VLANs (802.1Q), QoS (DiffServ), and Link Aggregation (LACP).
  • Enhanced Security: Protects your network with IEEE 802.1X access control, HTTPS encryption, ACLs, IP source guard, and DHCP snooping.
  • Large Scale Surveillance: Perfect for shopping malls, airports, or city surveillance requiring dozens of cameras and sensors on a single switch stack.
  • Mixed Device Ecosystems: Capable of powering a mix of standard dome cameras and high-power PTZ units or Axis audio devices simultaneously.
  • Enterprise Networks: Suitable for core or distribution layers in corporate environments thanks to robust L3 routing and fiber uplinks.
  • Secure Facilities: Meets strict cybersecurity standards with downloadable hardening guides and SBOM availability.
  • Total PoE Budget: 740 W
  • Port Configuration: 48x 10/100/1000Base-T (RJ45), 4x 10G SFP+ slots
  • Switching Capacity: 176 Gbps
  • Forwarding Rate: 130.944 Mpps
  • Management Interface: Web GUI, CLI (Console), SNMP v1/v2c/v3
  • Dimensions: Rack-mountable (18-inch depth), 1U height
  • Power Supply: Internal, 100-240 V AC

Ensure maximum uptime and simplified management for your security infrastructure. Order the AXIS D8248 Managed PoE++ Switch today to build a robust, scalable, and high-power surveillance network.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] 48x Gigabit PoE++, 740W PoE Budget, 4x 10G SFP+ Uplinks, DHCP Server, L3 Static Routing, IP20 Steel Chassis, Optimized for Surveillance [/shortdesc]

[properties]

Model AXIS D8248 (02620-004)
Product Type Managed PoE++ Switch
Ports 48 × RJ45 10/100/1000 Mbps
Uplink Ports 4 × 10G SFP+
PoE Standard IEEE 802.3at (30 W) on ports 1–40
IEEE 802.3bt (90 W) on ports 41–48
PoE Power Budget 740 W
Switching Capacity 176 Gbps
Throughput 130.944 Mpps
MAC Table 32K
Jumbo Frame Support 10240 bytes
Layer Support L2 switching + L3 features (IPv4/IPv6 static route, RIP, OSPF)
Casing Steel, Black
Power Input 100–240 V AC, 50/60 Hz
Operating Temperature 0 °C to 45 °C
Storage Temperature −20 °C to 70 °C
Operating Humidity 0–95% RH (non-condensing)
Surge Protection Network ports: 1 kV; AC lines: 2 kV
Dimensions Minimum rack depth: 18″
Weight 5620 g (12.4 lb)
IP Rating IP20
Certifications CSA, UL/cUL, CE, VCCI, FCC, RCM, ICES, MIC Telecom

[/properties]

[specifications]

Network Protocols IPv4, IPv6, HTTP(S), QoS (Layer 3 DiffServ), SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3, DNS/DNSv6, NTP, TCP/UDP, IGMPv1/v2/v3, ICMP, DHCP, ARP, SSH, CDP, RADIUS, TACACS+, Syslog, IEEE 802.1X, 802.1Q (VLAN), LLDP/LLDP-MED, STP/MSTP/RSTP, LACP
Security Features IEEE 802.1X, HTTPS encryption, TLS v1.2, X.509, Access Control List (ACL), port security, IP source guard, storm control, private VLAN, DHCP snooping, ARP inspection, password protection, loop protection
PoE Pin Assignment Ports 1–40: 3/6 (+), 1/2 (−)
Ports 41–48: 3/6, 4/5 (+); 1/2, 7/8 (−)
PoE Output Details Ports 1–40: 30 W max (Type 2 Class 4)
Ports 41–48: 90 W max (Type 4 Class 8)
System Tools AXIS Site Designer, AXIS Device Manager, Product selector
EMC Standards EN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, RCM AS/NZS CISPR 32 Class A, ICES(A)/NMB(A), VCCI Class A, FCC Part 15 Subpart B Class A
Safety Standards CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, AS/NZS 62368.1, J62368-1
Cybersecurity Support AXIS Network Switches Hardening Guide, Axis Vulnerability Management Policy, Security Development Model, SBOM

[/specifications]

[accesories]

Included in the Box AXIS D8248 Switch, Installation guide, 19″ rack ear kit, Rubber feet (4x), Power cord
Optional Accessories AXIS TD8901 SFP+ Module LC.LR.X
AXIS TD8902 SFP+ Module LC.SR.X

[/accesories]

High-Power 48-Port Switching Optimized for Surveillance Networks

The AXIS D8248 Managed PoE++ Switch is a high-performance network solution engineered specifically for demanding security and surveillance deployments. Featuring 48 Gigabit Ethernet ports and a massive 740 W power budget, this switch ensures uninterrupted operation for high-density camera installations. It simplifies network management with an integrated DHCP server for automatic IP assignment and a graphic topology interface that provides an instant visual overview of all connected Axis devices.

Key Benefits & Features
  • High-Power PoE++ (90W): Ports 41–48 support IEEE 802.3bt (up to 90 W), making them ideal for power-hungry devices like PTZ cameras, IR illuminators, and IP speakers. Ports 1–40 support standard 802.3at (30 W).
  • Surveillance Optimized: Designed to complement Axis recorders, the D8248 features "Zero Touch" provisioning tools and an integrated DHCP server for effortless device discovery and setup.
  • High-Speed 10G Uplinks: Equipped with four SFP+ ports, enabling 10 Gigabit fiber connectivity for high-bandwidth backbone connections and future-proof scalability.
  • Advanced L2/L3 Management: Includes comprehensive switching features such as IPv4/IPv6 static routing, OSPF, RIP, VLANs (802.1Q), QoS (DiffServ), and Link Aggregation (LACP).
  • Enhanced Security: Protects your network with IEEE 802.1X access control, HTTPS encryption, ACLs, IP source guard, and DHCP snooping.
Ideal Use Cases
  • Large Scale Surveillance: Perfect for shopping malls, airports, or city surveillance requiring dozens of cameras and sensors on a single switch stack.
  • Mixed Device Ecosystems: Capable of powering a mix of standard dome cameras and high-power PTZ units or Axis audio devices simultaneously.
  • Enterprise Networks: Suitable for core or distribution layers in corporate environments thanks to robust L3 routing and fiber uplinks.
  • Secure Facilities: Meets strict cybersecurity standards with downloadable hardening guides and SBOM availability.
Technical Specifications Snapshot
  • Total PoE Budget: 740 W
  • Port Configuration: 48x 10/100/1000Base-T (RJ45), 4x 10G SFP+ slots
  • Switching Capacity: 176 Gbps
  • Forwarding Rate: 130.944 Mpps
  • Management Interface: Web GUI, CLI (Console), SNMP v1/v2c/v3
  • Dimensions: Rack-mountable (18-inch depth), 1U height
  • Power Supply: Internal, 100-240 V AC
Equip Your Network with the AXIS D8248

Ensure maximum uptime and simplified management for your security infrastructure. Order the AXIS D8248 Managed PoE++ Switch today to build a robust, scalable, and high-power surveillance network.
