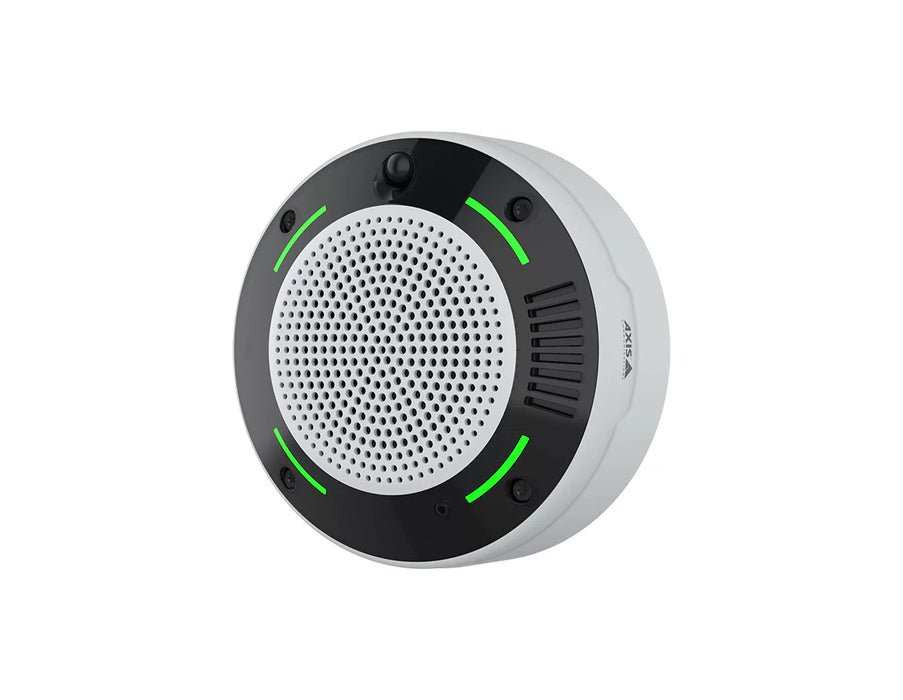

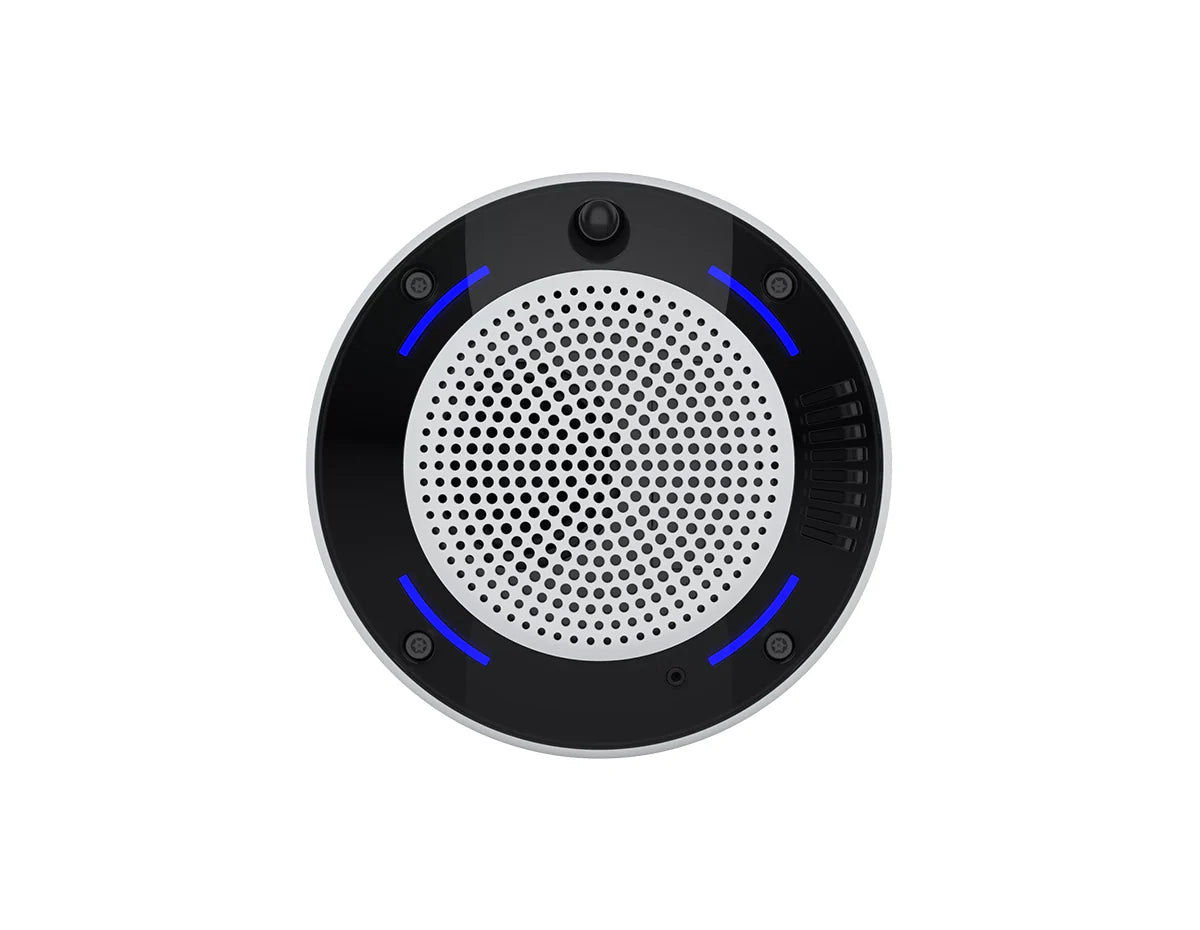

AXIS D6310 Air Quality Sensor (03202-001)
Clique ou role para ampliar
Toque ou belisque para ampliar
AXIS D6310 Air Quality Sensor (03202-001)
AXIS D6310 Air Quality Sensor (03202-001)

AXIS D6310 Air Quality Sensor (03202-001)

por Axis
R$ 13.356,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] Advanced vape and smoke detection, professional CO2 and PM monitoring, VOC and NOx tracking, AI audio analytics, and PIR presence sensing in a PoE-powered, vandal-resistant unit. [/shortdesc]

[properties]

Model AXIS D6310 (03202-001)
Product Type Air Quality Sensor / Environmental Monitor
Sensors Included PM1.0, PM2.5, PM4.0, PM10, CO2, Temperature, Humidity, VOC, NOx, Audio, PIR
Temperature Range -10 °C to 45 °C (14 °F to 113 °F)
Temperature Accuracy ± 1 °C
Humidity Range 0–100% RH
Humidity Accuracy ± 6% RH
CO2 Range 0 to 40,000 ppm
CO2 Accuracy ±(50 ppm + 2.5% to 5% m.v.) varies by range
Particulate Matter (PM) Range 0 to 1000 µg/m³ (PM1.0, PM2.5, PM4.0, PM10)
Sampling Frequency 1 sample/second
Processor S6L System-on-Chip (SoC)
Memory 1 GB RAM, 8 GB Flash
Audio Hardware Built-in microphone (switchable), 1.8" speaker (86 dB SPL)
PIR Motion Sensor Passive Infrared, Range up to 5 m (16.4 ft)
I/O Interface 1 digital/supervised input, 1 output (12 V DC, max 25 mA)
Connectors RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE, Terminal block for I/O and RS485/RS422
Power Power over Ethernet (PoE) IEEE 802.3af/at Type 1 Class 3; Max 6.9 W, Typical 2.8 W
Operating Conditions -10 °C to 45 °C (14 °F to 113 °F); 0–90% RH (non-condensing)
Dimensions & Weight 149.9 mm (5.9 in) diameter; 830 g (1.8 lb)

[/properties]

[specifications]

PM Accuracy PM1/PM2.5: ±5% (0–100 µg/m³), ±10% (101–1000 µg/m³); PM4/PM10: ±25% m.v.
VOC & NOx Index Range 0 to 500 (Accuracy ± 5-10% m.v.)
Video Visualization Virtual data stream (1280x720 resolution); H.264, H.265, Motion JPEG
Audio Encoding AAC-LC, G.711 PCM, G.726 ADPCM, Opus, LPCM
Audio Analytics Vaping/smoking detection, scream, shout, glass break, speech detection
Network Protocols IPv4/IPv6, HTTP/2, HTTPS, MQTT, SIP, RTSP, RTP, SNMP v1/v2c/v3, NTP, DHCP, SSH, TLS
Integration Open API (VAPIX, ACAP), ONVIF Profile G & Profile S, SIP (VoIP)
Event Triggers Air quality threshold, vaping/smoking, audio analytics, PIR motion, casing open, I/O input
Event Actions Play audio clip, flash LEDs, send MQTT, email notification, I/O toggle, SNMP trap
Cybersecurity Axis Edge Vault, FIPS 140-3 Level 3 (Secure Element), FIPS 140-2 Level 1 (OS), Signed OS, Secure Boot
Certifications (EMC & Safety) UL, CE, KC, VCCI, RCM, FCC Part 15 Subpart B Class A, IEC/EN/UL 62368-1
Environmental Rating IK08 (Vandal-resistant), PVC-free

[/specifications]

[accesories]

Included in Box AXIS D6310 Sensor, Installation guide, Terminal block connectors, Owner authentication key
Optional Mounting AXIS T94K01D Pendant Kit, AXIS TP3101 Pendant Wall Mount
Management Software AXIS Camera Station, AXIS Device Manager, AXIS Site Designer

[/accesories]

The AXIS D6310 Air Quality Sensor is a comprehensive environmental monitoring solution designed to safeguard indoor spaces. Going beyond simple detection, this standalone device combines high-precision sensors with the power of AXIS OS to deliver actionable insights. It continuously monitors key pollutants—including Carbon Dioxide (CO2), Particulate Matter (PM1.0, PM2.5, PM4.0, PM10), Volatile Organic Compounds (VOCs), and Nitrogen Oxides (NOx)—while simultaneously detecting aggressive behavior and vaping incidents.

Engineered for integration, the D6310 allows operators to visualize data via a virtual video stream, enabling instant verification of environmental alarms without the privacy concerns of a traditional camera. With its vandal-resistant IK08 rating and secure open-platform architecture, it is ideal for schools, healthcare facilities, public transport hubs, and corporate offices.

  • Vaping and Smoking Detection: Utilizing advanced chemical sensors and audio analytics, the D6310 rapidly identifies vaping and smoking signatures, triggering automated alerts to maintain compliance in restricted areas.
  • Comprehensive IAQ Monitoring: Measures a full spectrum of air quality metrics, including CO2 levels up to 40,000 ppm and various sizes of particulate matter, to ensure healthy building standards.
  • AI-Powered Audio Analytics: The integrated microphone is pre-configured to detect specific audio events such as glass breaking, screaming, and shouting, adding a layer of security situational awareness.
  • Automated Response: Features a built-in 86 dB speaker and four multicolored LEDs to provide immediate audio-visual warnings or instructions when thresholds are breached.
  • Privacy and Security: Includes a physical switch to disable the microphone for privacy-sensitive areas. Protected by Axis Edge Vault and FIPS 140-3 Level 3 certified hardware for robust cybersecurity.
  • Seamless Integration: Supports VAPIX, MQTT, and SIP for easy connection to Building Management Systems (BMS) and Video Management Systems (VMS).
  • Education: Detecting vaping in restrooms and locker rooms while monitoring classroom air quality.
  • Healthcare: Ensuring optimal environmental conditions and detecting aggressive behavior in waiting rooms.
  • Smart Buildings: Automating HVAC ventilation based on real-time CO2 and occupancy data via PIR.
  • Public Safety: Monitoring chemical levels and noise disturbances in transportation terminals.

Enhance your facility's environmental control with the AXIS D6310. Monitor invisible threats, automate safety responses, and leverage data-driven insights from a single, secure device. Order now to upgrade your smart building infrastructure.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] Advanced vape and smoke detection, professional CO2 and PM monitoring, VOC and NOx tracking, AI audio analytics, and PIR presence sensing in a PoE-powered, vandal-resistant unit. [/shortdesc]

[properties]

Model AXIS D6310 (03202-001)
Product Type Air Quality Sensor / Environmental Monitor
Sensors Included PM1.0, PM2.5, PM4.0, PM10, CO2, Temperature, Humidity, VOC, NOx, Audio, PIR
Temperature Range -10 °C to 45 °C (14 °F to 113 °F)
Temperature Accuracy ± 1 °C
Humidity Range 0–100% RH
Humidity Accuracy ± 6% RH
CO2 Range 0 to 40,000 ppm
CO2 Accuracy ±(50 ppm + 2.5% to 5% m.v.) varies by range
Particulate Matter (PM) Range 0 to 1000 µg/m³ (PM1.0, PM2.5, PM4.0, PM10)
Sampling Frequency 1 sample/second
Processor S6L System-on-Chip (SoC)
Memory 1 GB RAM, 8 GB Flash
Audio Hardware Built-in microphone (switchable), 1.8" speaker (86 dB SPL)
PIR Motion Sensor Passive Infrared, Range up to 5 m (16.4 ft)
I/O Interface 1 digital/supervised input, 1 output (12 V DC, max 25 mA)
Connectors RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE, Terminal block for I/O and RS485/RS422
Power Power over Ethernet (PoE) IEEE 802.3af/at Type 1 Class 3; Max 6.9 W, Typical 2.8 W
Operating Conditions -10 °C to 45 °C (14 °F to 113 °F); 0–90% RH (non-condensing)
Dimensions & Weight 149.9 mm (5.9 in) diameter; 830 g (1.8 lb)

[/properties]

[specifications]

PM Accuracy PM1/PM2.5: ±5% (0–100 µg/m³), ±10% (101–1000 µg/m³); PM4/PM10: ±25% m.v.
VOC & NOx Index Range 0 to 500 (Accuracy ± 5-10% m.v.)
Video Visualization Virtual data stream (1280x720 resolution); H.264, H.265, Motion JPEG
Audio Encoding AAC-LC, G.711 PCM, G.726 ADPCM, Opus, LPCM
Audio Analytics Vaping/smoking detection, scream, shout, glass break, speech detection
Network Protocols IPv4/IPv6, HTTP/2, HTTPS, MQTT, SIP, RTSP, RTP, SNMP v1/v2c/v3, NTP, DHCP, SSH, TLS
Integration Open API (VAPIX, ACAP), ONVIF Profile G & Profile S, SIP (VoIP)
Event Triggers Air quality threshold, vaping/smoking, audio analytics, PIR motion, casing open, I/O input
Event Actions Play audio clip, flash LEDs, send MQTT, email notification, I/O toggle, SNMP trap
Cybersecurity Axis Edge Vault, FIPS 140-3 Level 3 (Secure Element), FIPS 140-2 Level 1 (OS), Signed OS, Secure Boot
Certifications (EMC & Safety) UL, CE, KC, VCCI, RCM, FCC Part 15 Subpart B Class A, IEC/EN/UL 62368-1
Environmental Rating IK08 (Vandal-resistant), PVC-free

[/specifications]

[accesories]

Included in Box AXIS D6310 Sensor, Installation guide, Terminal block connectors, Owner authentication key
Optional Mounting AXIS T94K01D Pendant Kit, AXIS TP3101 Pendant Wall Mount
Management Software AXIS Camera Station, AXIS Device Manager, AXIS Site Designer

[/accesories]

Advanced Indoor Air Quality Intelligence for High-Security Environments

The AXIS D6310 Air Quality Sensor is a comprehensive environmental monitoring solution designed to safeguard indoor spaces. Going beyond simple detection, this standalone device combines high-precision sensors with the power of AXIS OS to deliver actionable insights. It continuously monitors key pollutants—including Carbon Dioxide (CO2), Particulate Matter (PM1.0, PM2.5, PM4.0, PM10), Volatile Organic Compounds (VOCs), and Nitrogen Oxides (NOx)—while simultaneously detecting aggressive behavior and vaping incidents.

Engineered for integration, the D6310 allows operators to visualize data via a virtual video stream, enabling instant verification of environmental alarms without the privacy concerns of a traditional camera. With its vandal-resistant IK08 rating and secure open-platform architecture, it is ideal for schools, healthcare facilities, public transport hubs, and corporate offices.

Key Benefits & Features
  • Vaping and Smoking Detection: Utilizing advanced chemical sensors and audio analytics, the D6310 rapidly identifies vaping and smoking signatures, triggering automated alerts to maintain compliance in restricted areas.
  • Comprehensive IAQ Monitoring: Measures a full spectrum of air quality metrics, including CO2 levels up to 40,000 ppm and various sizes of particulate matter, to ensure healthy building standards.
  • AI-Powered Audio Analytics: The integrated microphone is pre-configured to detect specific audio events such as glass breaking, screaming, and shouting, adding a layer of security situational awareness.
  • Automated Response: Features a built-in 86 dB speaker and four multicolored LEDs to provide immediate audio-visual warnings or instructions when thresholds are breached.
  • Privacy and Security: Includes a physical switch to disable the microphone for privacy-sensitive areas. Protected by Axis Edge Vault and FIPS 140-3 Level 3 certified hardware for robust cybersecurity.
  • Seamless Integration: Supports VAPIX, MQTT, and SIP for easy connection to Building Management Systems (BMS) and Video Management Systems (VMS).
Ideal Use Cases
  • Education: Detecting vaping in restrooms and locker rooms while monitoring classroom air quality.
  • Healthcare: Ensuring optimal environmental conditions and detecting aggressive behavior in waiting rooms.
  • Smart Buildings: Automating HVAC ventilation based on real-time CO2 and occupancy data via PIR.
  • Public Safety: Monitoring chemical levels and noise disturbances in transportation terminals.
Optimize Indoor Safety and Air Quality

Enhance your facility's environmental control with the AXIS D6310. Monitor invisible threats, automate safety responses, and leverage data-driven insights from a single, secure device. Order now to upgrade your smart building infrastructure.
