[shortdesc]High-performance 1U rack-mounted AI-optimized recording and analytics server with 12 TB HDD storage, Nvidia A-series GPU, FIPS 140-2 level 2 TPM 2.0, and 28 Axis Camera Station Pro licenses.[/shortdesc]
[properties]
| Model |

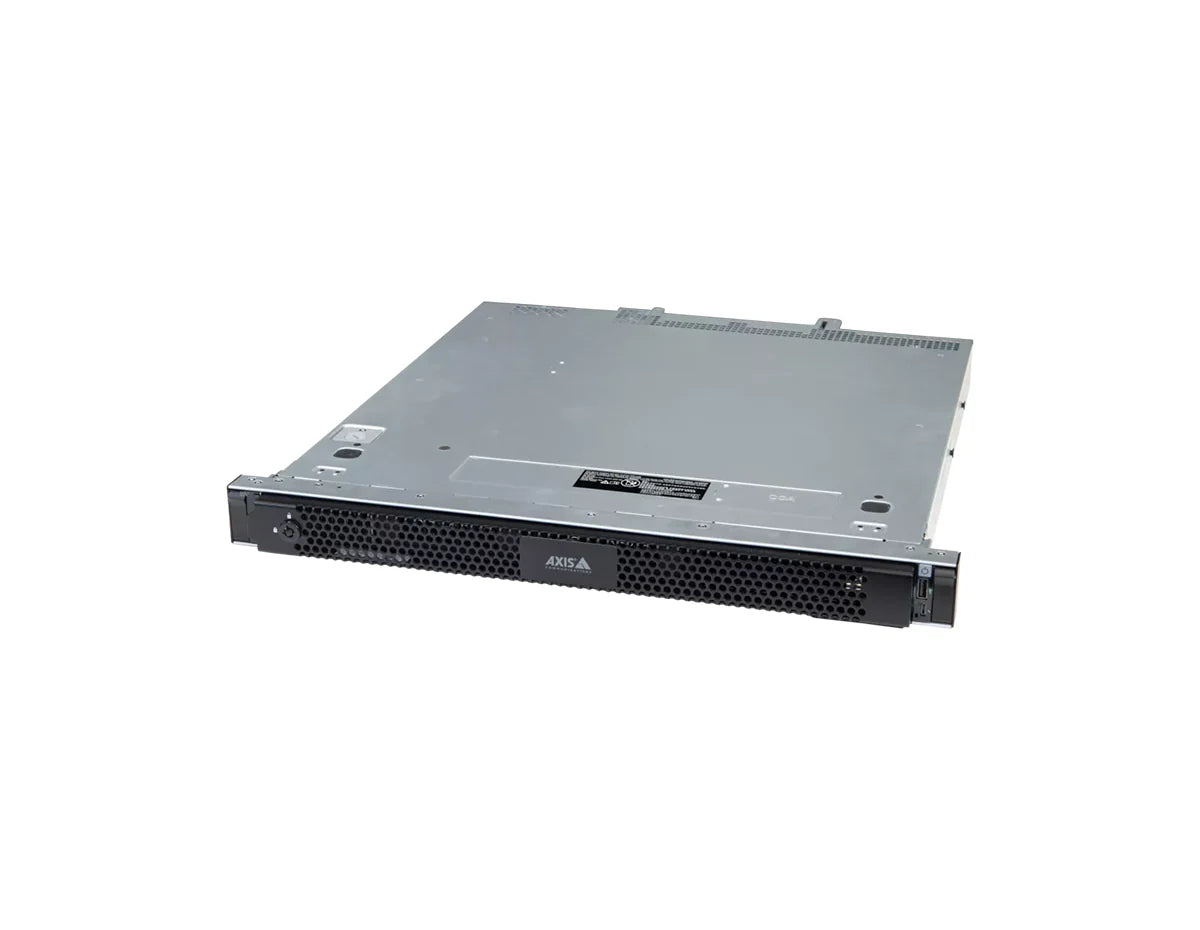

AXIS Camera Station S1228 Rack AI-Optimized Server 12 TB (03334-001) |
| Operating System |
Windows 11 IoT Enterprise LTSC 2024 |
| CPU |
Intel Xeon E processor |
| GPU |
Nvidia A series |
| Memory |
32 GB (2 × 16 GB) |
| Storage |
12 TB Enterprise HDD + 960 GB SSD (Smart search DB) + 480 GB SSD (OS drive) |
| Form Factor |
1U rack-mount |
| Dimensions |
496.74 × 482 × 42.8 mm (19.56 × 19 × 1.68 in) |
| Weight |
8.5 kg (18.7 lb) |
| Operating Temperature |
10 °C to 35 °C (50 °F to 95 °F) |
| Humidity |
8–80% RH (non-condensing) |
| Power Supply |
450 W Platinum PSU (100–240 V AC, 6.5–3.5 A, 50/60 Hz) |
| Compliance |
NDAA FY19 & FY2023, TAA compliant |
| Chassis Depth (installation) |
461.14 mm (18.16 in) |
[/properties]
[specifications]
| Performance |
Up to 300 Mbit/s total recording bitrate; qualified for 64 doors and 32 video channels |
| AI Classification Capacity |
1080p: 3000/min; 720p: 5500/min |
| Licensing |
28 Axis Camera Station Pro Core Device NVR licenses + 10 Axis Audio Manager Pro licenses |
| RAID Options |
Supported RAID: 0, 1 |
| Network Ports |
2 × RJ45 1 Gbps, 1 × iDRAC dedicated Ethernet |
| USB Ports |
Front: 1 × USB 2.0; Rear: 1 × USB 2.0, 1 × USB 3.2 |
| Display Connectivity |
1 × VGA, 4 × Mini DisplayPort |
| Security Features |
Support for encrypted OS and recording drive; FIPS 140-2 level 2 TPM 2.0; Secure Boot; SBOM |
| Remote Management |
iDRAC 9 basic |
| Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F), 5–95% RH (non-condensing) |
| EMC Certifications |
EN 55035, EN 55024, EN 55032 Class A, FCC Class A, ICES-3(A)/NMB-3(A), VCCI Class A, etc. |
| Safety Certifications |
IEC/EN/UL 62368-1 |
[/specifications]
[accesories]
| Included |
Dell Ready Rails 1U static rails; C13-to-C14 rack PDU power cable |
| Optional accessories |
Axis workstations; Enterprise hard drives |
[/accesories]
The AXIS Camera Station S1228 Rack AI-Optimized Server is designed for demanding, high-density video analytics and AI-assisted surveillance. Its Nvidia A-series GPU and Intel Xeon CPU enable state-of-the-art object detection and classification, especially in environments with heavy motion activity.
Compliant with NDAA and TAA regulations and equipped with FIPS 140-2 level 2 TPM, Secure Boot, and support for encrypted drives, this system offers strong cybersecurity protections while delivering powerful search and monitoring capabilities through Smart Search and free-text object lookup functions.
