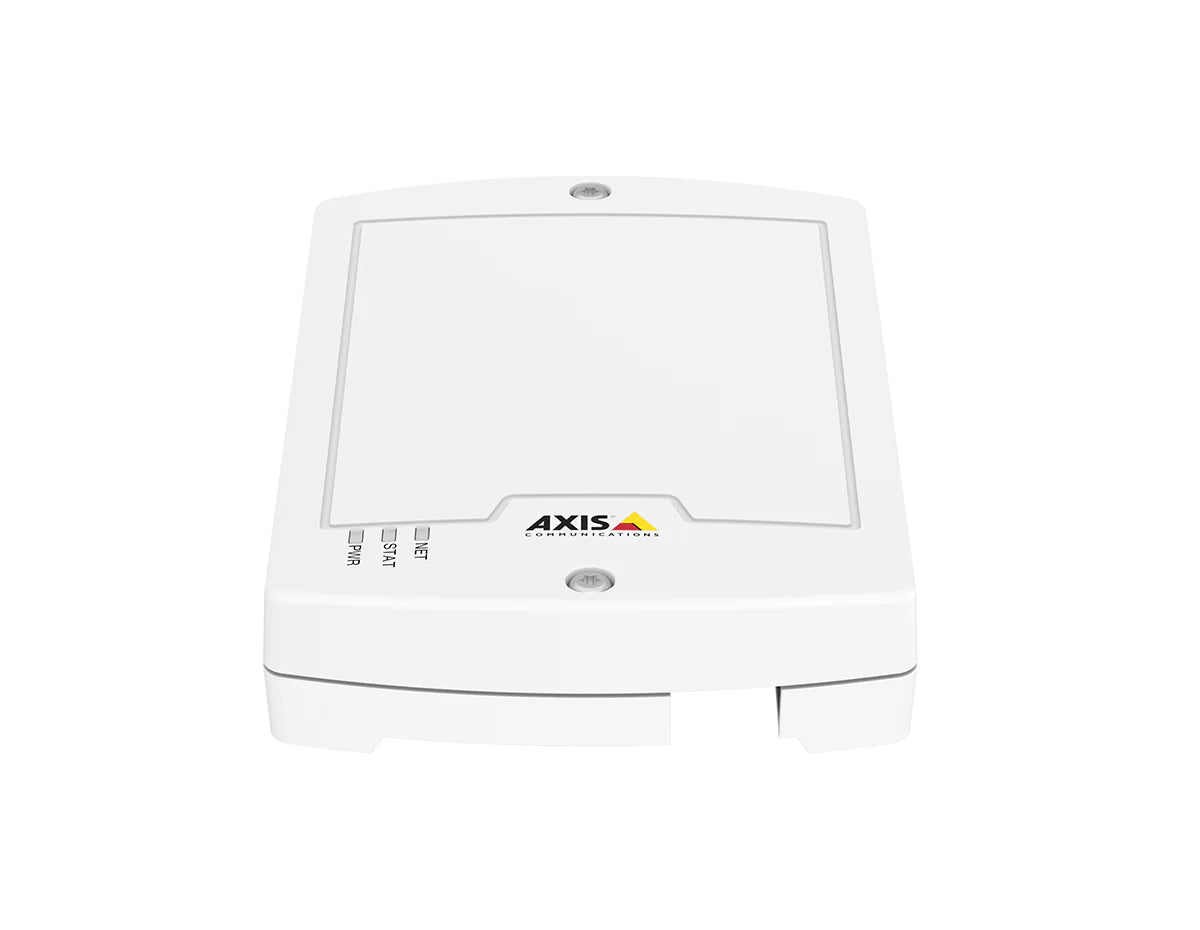

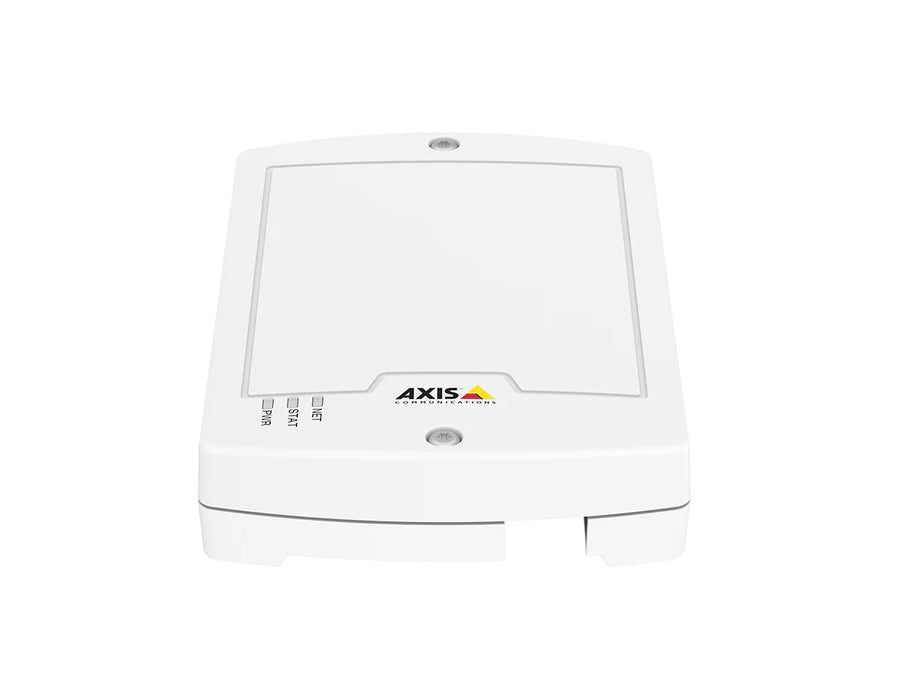

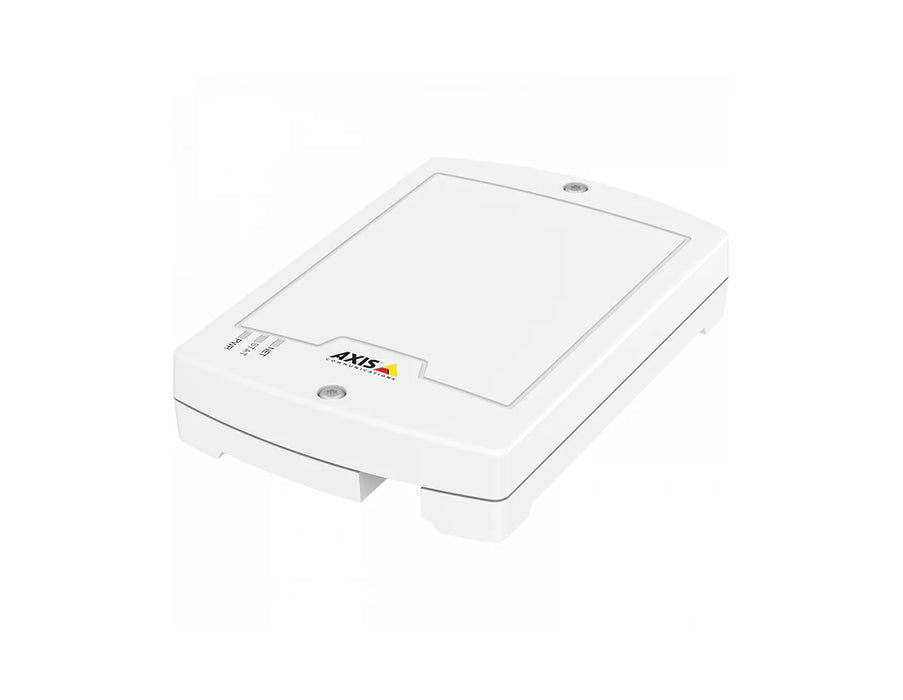

AXIS A9161 Network I/O Relay Module (0821-001)
Clique ou role para ampliar
Toque ou belisque para ampliar
AXIS A9161 Network I/O Relay Module (0821-001)
AXIS A9161 Network I/O Relay Module (0821-001)

AXIS A9161 Network I/O Relay Module (0821-001)

por Axis
R$ 3.828,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

  • Supports both Power over Ethernet (PoE) and 8–28 V DC, 6 configurable I/Os, input/output or supervised input with analog read-out, Features signed firmware and secure boot to ensure the integrity of the device.


[/shortdesc]



[properties]

Product Name AXIS A9161 Network I/O Relay Module (0821-001)
Description The AXIS A9161 Network I/O Relay Module is a versatile, cost-effective module that enhances Axis network devices by adding 6 configurable I/Os and 1 relay. Ideal for expanding surveillance and access control systems, it supports Power over Ethernet (PoE) and offers secure integration options.
Compatibility Works with Axis network cameras, AXIS A1001 Network Door Controller, and third-party systems
I/O Capabilities 6 configurable digital I/Os and 1 relay for flexible integration
Power Options Supports PoE IEEE 802.3af and 8–28 V DC inputs
Platform Integration Compatible with Axis VAPIX and ACAP for seamless integration with third-party software
Usage Ideal for integrating additional inputs and relays into surveillance and access control systems
Security Features Signed firmware and secure boot to ensure system integrity
Operating Temperature Designed for -40 °C to 55 °C (-40 °F to 131 °F)
Environmental Suitability Indoor installations
Network Protocols Supports IPv4, IPv6, HTTPS, FTP, SNMP, TCP, UDP, DHCP

[/properties]

[specifications]

Digital I/O Ports 6 configurable inputs/outputs, supporting input/output or supervised input with analog read-out
Relay Specifications 1 Form C relay (NO/NC), max 1 A, 30 V DC
Power Requirements 8–28 V DC or PoE IEEE 802.3af, Type 1 Class 3
Network Protocols IPv4, IPv6, HTTPS, FTP, SNMP, TCP, UDP, DHCP, and more
Dimensions 35 x 178 x 120 mm (1.4 x 7 x 4.7 in)
Weight 500 g (1.1 lb)
Event Management Triggers notifications and external outputs based on tamper detection, network loss, and input signals
Platform Support Compatible with Axis VAPIX and ACAP for integration flexibility
Temperature Range Operates from -40 °C to 55 °C (-40 °F to 131 °F)
Environmental Compliance RoHS compliant
Reliability Rating Designed for consistent performance across varied environmental conditions
Application Enhances Axis surveillance and access control systems with additional I/O capabilities

[/specifications]

AXIS A9161 Network I/O Relay Module (0821-001)

The AXIS A9161 Network I/O Relay Module is a cost-effective, intelligent solution that enhances the functionality of Axis products by adding 6 configurable I/Os and 1 relay. This versatile module is ideal for integrating additional I/Os or relays into your Axis network devices, including network cameras and the AXIS A1001 Network Door Controller. It can also be used as a standalone device for extending the capabilities of your surveillance or access control system. With built-in PoE support and flexible power options, the AXIS A9161 makes installation easy, while advanced security features ensure system integrity.

  • 6 I/Os and 1 Relay: Offers configurable inputs/outputs and a form C relay for flexible integration with Axis devices.
  • PoE or DC Powered: Supports both Power over Ethernet (PoE) and 8–28 V DCinputs for flexible power options.
  • Open Platform Support: Based on Axis VAPIX and ACAP platforms, allowing for seamless integration with third-party software and Axis Camera Station.
  • Event Triggers and Actions: Triggers notifications or external outputs based on event conditions such as tamper detection, network loss, and input signals.
  • Advanced Security: Features signed firmware and secure boot to ensure the integrity of the device.
  • Digital I/O: 6 configurable I/Os, input/output or supervised input with analog read-out
  • Relay: 1x Form C relay, NO/NC contacts, max 1 A, 30 V DC
  • Power: 8–28 V DC or PoE IEEE 802.3af, Type 1 Class 3
  • Network Protocols: IPv4, IPv6, HTTPS, FTP, SNMP, TCP, UDP, DHCP, and more
  • Operating Temperature: -40 °C to 55 °C (-40 °F to 131 °F)
  • Dimensions: 35 x 178 x 120 mm (1.4 x 7 x 4.7 in)
  • Weight: 500 g (1.1 lb)


This product has been discontinued.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

  • Supports both Power over Ethernet (PoE) and 8–28 V DC, 6 configurable I/Os, input/output or supervised input with analog read-out, Features signed firmware and secure boot to ensure the integrity of the device.


[/shortdesc]



[properties]

Product Name AXIS A9161 Network I/O Relay Module (0821-001)
Description The AXIS A9161 Network I/O Relay Module is a versatile, cost-effective module that enhances Axis network devices by adding 6 configurable I/Os and 1 relay. Ideal for expanding surveillance and access control systems, it supports Power over Ethernet (PoE) and offers secure integration options.
Compatibility Works with Axis network cameras, AXIS A1001 Network Door Controller, and third-party systems
I/O Capabilities 6 configurable digital I/Os and 1 relay for flexible integration
Power Options Supports PoE IEEE 802.3af and 8–28 V DC inputs
Platform Integration Compatible with Axis VAPIX and ACAP for seamless integration with third-party software
Usage Ideal for integrating additional inputs and relays into surveillance and access control systems
Security Features Signed firmware and secure boot to ensure system integrity
Operating Temperature Designed for -40 °C to 55 °C (-40 °F to 131 °F)
Environmental Suitability Indoor installations
Network Protocols Supports IPv4, IPv6, HTTPS, FTP, SNMP, TCP, UDP, DHCP

[/properties]

[specifications]

Digital I/O Ports 6 configurable inputs/outputs, supporting input/output or supervised input with analog read-out
Relay Specifications 1 Form C relay (NO/NC), max 1 A, 30 V DC
Power Requirements 8–28 V DC or PoE IEEE 802.3af, Type 1 Class 3
Network Protocols IPv4, IPv6, HTTPS, FTP, SNMP, TCP, UDP, DHCP, and more
Dimensions 35 x 178 x 120 mm (1.4 x 7 x 4.7 in)
Weight 500 g (1.1 lb)
Event Management Triggers notifications and external outputs based on tamper detection, network loss, and input signals
Platform Support Compatible with Axis VAPIX and ACAP for integration flexibility
Temperature Range Operates from -40 °C to 55 °C (-40 °F to 131 °F)
Environmental Compliance RoHS compliant
Reliability Rating Designed for consistent performance across varied environmental conditions
Application Enhances Axis surveillance and access control systems with additional I/O capabilities

[/specifications]

AXIS A9161 Network I/O Relay Module (0821-001)

The AXIS A9161 Network I/O Relay Module is a cost-effective, intelligent solution that enhances the functionality of Axis products by adding 6 configurable I/Os and 1 relay. This versatile module is ideal for integrating additional I/Os or relays into your Axis network devices, including network cameras and the AXIS A1001 Network Door Controller. It can also be used as a standalone device for extending the capabilities of your surveillance or access control system. With built-in PoE support and flexible power options, the AXIS A9161 makes installation easy, while advanced security features ensure system integrity.

Key Features:
  • 6 I/Os and 1 Relay: Offers configurable inputs/outputs and a form C relay for flexible integration with Axis devices.
  • PoE or DC Powered: Supports both Power over Ethernet (PoE) and 8–28 V DCinputs for flexible power options.
  • Open Platform Support: Based on Axis VAPIX and ACAP platforms, allowing for seamless integration with third-party software and Axis Camera Station.
  • Event Triggers and Actions: Triggers notifications or external outputs based on event conditions such as tamper detection, network loss, and input signals.
  • Advanced Security: Features signed firmware and secure boot to ensure the integrity of the device.
Technical Specifications:
  • Digital I/O: 6 configurable I/Os, input/output or supervised input with analog read-out
  • Relay: 1x Form C relay, NO/NC contacts, max 1 A, 30 V DC
  • Power: 8–28 V DC or PoE IEEE 802.3af, Type 1 Class 3
  • Network Protocols: IPv4, IPv6, HTTPS, FTP, SNMP, TCP, UDP, DHCP, and more
  • Operating Temperature: -40 °C to 55 °C (-40 °F to 131 °F)
  • Dimensions: 35 x 178 x 120 mm (1.4 x 7 x 4.7 in)
  • Weight: 500 g (1.1 lb)


This product has been discontinued.
