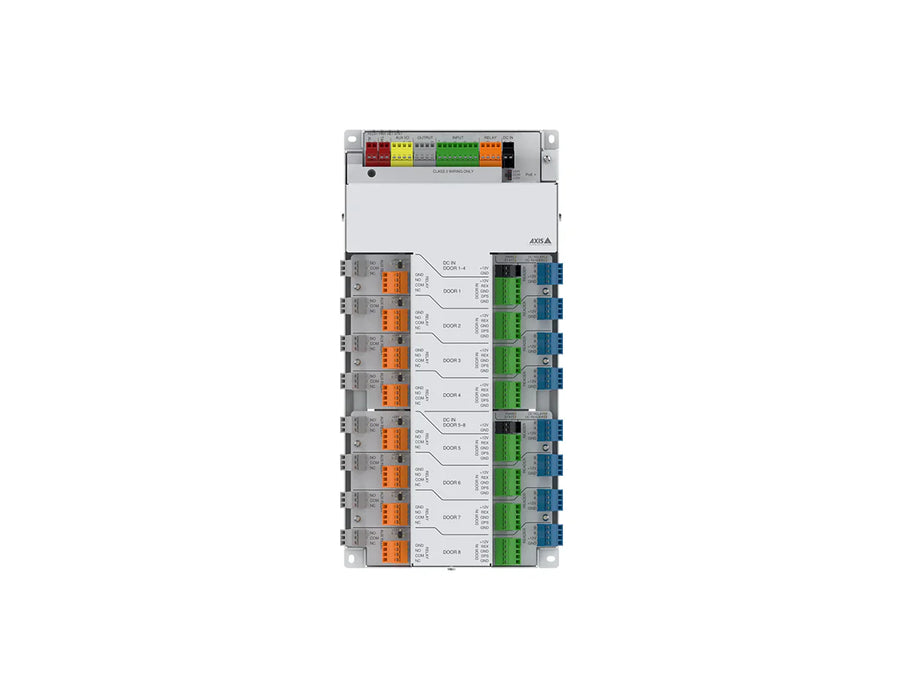

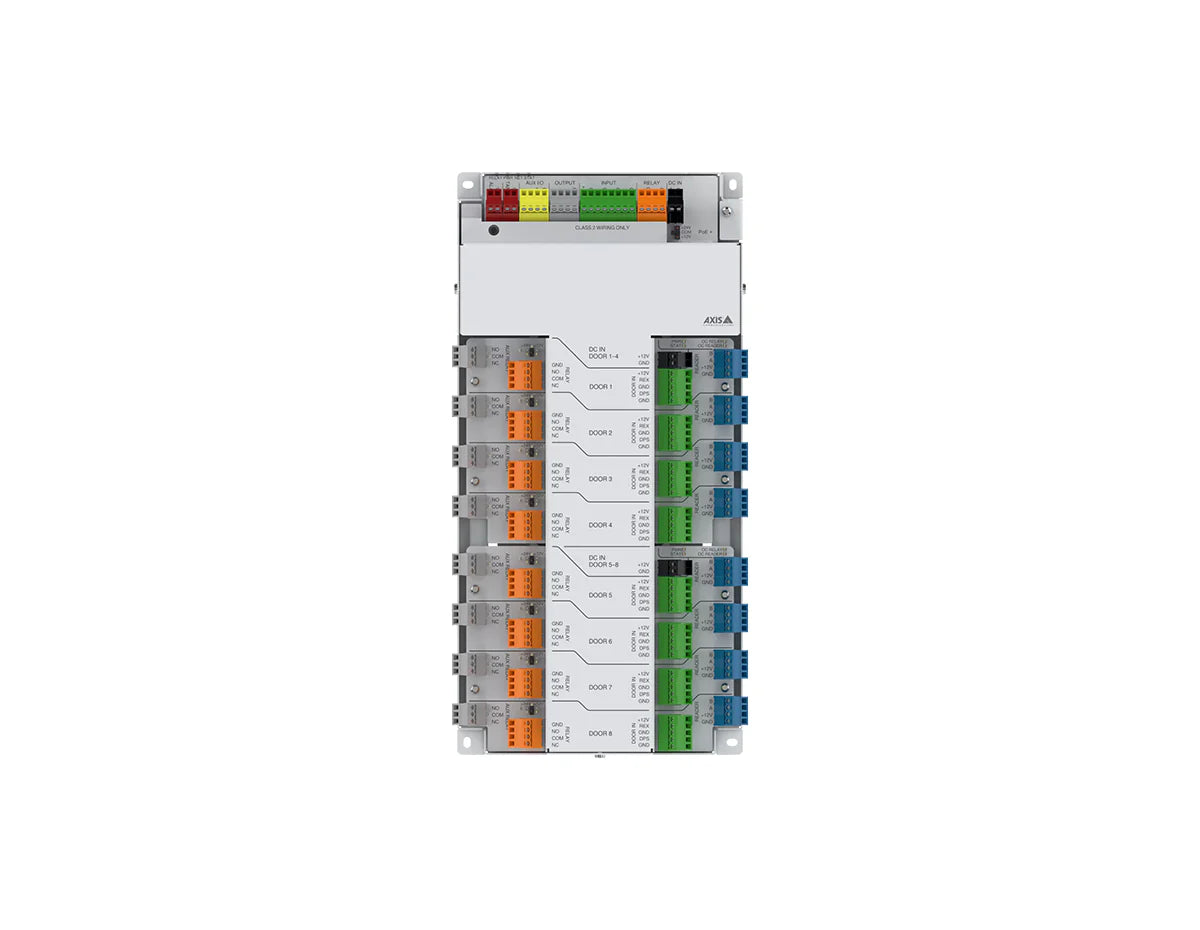

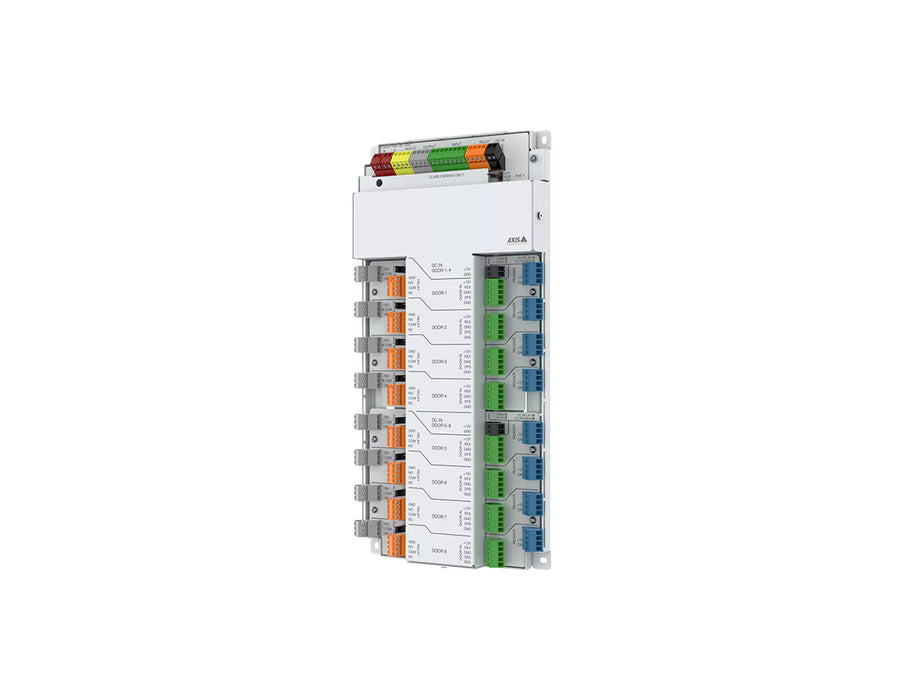

AXIS A1810-B Network Door Controller (03079-001)
Clique ou role para ampliar
Toque ou belisque para ampliar
AXIS A1810-B Network Door Controller (03079-001)
AXIS A1810-B Network Door Controller (03079-001)

AXIS A1810-B Network Door Controller (03079-001)

por Axis
R$ 36.384,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] 8-door centralized controller, support for 16 OSDP readers & locks, PoE+ or 12V DC, Axis Edge Vault cybersecurity, DIN-rail mount. [/shortdesc]

[properties]

Model AXIS A1810-B (03079-001)
Product Type Network Door Controller
Number of Doors 8 doors (Control for up to 16 locks)
Reader Support Up to 16 OSDP readers; 16x ASSA ABLOY Aperio®; Wiegand (via AXIS TA1101-B)
Credential Capacity Up to 250,000 credentials stored locally
Event Buffer Up to 250,000 events stored locally
Power Input PoE+ (IEEE 802.3at Type 2 Class 4); DC IN 12 V DC
Relay Outputs 17x Form C Relays (NO/NC) Total: 1x Main, 8x Door, 8x AUX
I/O Interface Digital inputs/outputs; RS485; AUX I/O connectors
Memory 512 MB RAM, 2 GB Flash
Network Interface RJ45 10/100/1000 Mbps PoE
Operating Temperature -40 °C to 55 °C (-40 °F to 131 °F)
Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F)
Humidity 10–85% RH (operating), 5–95% RH (storage)
Dimensions 326.5 mm x 166.1 mm (See dimension drawing for depth)
Weight 1330 g (2.9 lb)
Casing Steel; White NCS S 1002-B
Mounting DIN rail mount; Cabinet mount

[/properties]

[specifications]

Reader Connections Up to 16 OSDP/RS485 readers (multidrop); OSDP Secure Channel supported; Wiegand via accessory
Door Inputs REX and door position sensors, 0–30 V DC, supervised (4 states)
Relay Outputs 17x Form C relays (NO/NC): Main, Door relays, AUX relays
Relay Capacity (Dry) 2 A or 4 A at 30 V DC (depending on relay type)
Relay Capacity (Wet) 12/24 V DC (jumper configurable); Max 46 W per door group
Digital Inputs 3× digital input (0–30 V DC), supervised
Digital Outputs 3× open drain outputs (0–30 V DC, max 100 mA)
AUX I/O 2× configurable I/O (input or output), plus 1x 12 V DC output (max 250 mA)
External Inputs Tamper input; Alarm input (0–30 V DC, supervised)
Network Protocols IPv4/IPv6, HTTP/HTTPS, TLS, DHCP, SNMP v1/v2c/v3, RTSP, QoS, SSH, MQTT, Syslog
Cybersecurity Axis Edge Vault, Secure Boot, Secure Keystore, Signed Firmware, Brute force delay protection
Approvals CE, FCC, ICES, KC, RCM, UL/cUL, VCCI, WEEE, UL 294, UL 2043
EMC CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50130-4
Safety Standards IEC/EN/UL 62368-1; UL 2043; UL 294
Cable Requirements Reader RS485 up to 1000 m (AWG 26–14); Power AWG 16–14; Ethernet STP Cat 5e+
Languages English, German, French, Spanish, Italian, Russian, Chinese, Japanese, Korean, Portuguese, Polish

[/specifications]

[accesories]

Included in the Box Door controller; Installation guide; Connector kit (mounted); Grounding kit; Splicing connectors
Optional Accessories AXIS A9910 I/O Relay Expansion Module; AXIS TA4711 Access Card; AXIS TA4712 Key Fob; AXIS TA1901 DIN Rail Clip; AXIS TA1101-B Wiegand OSDP Converter; AXIS TA1902 Access Control Connector Kit; AXIS 30 W Midspan; AXIS T8006 PS1214

[/accesories]

The AXIS A1810-B Network Door Controller delivers centralized, high-density door control designed for enterprise and multisite deployments. Capable of managing up to eight doors and supporting up to sixteen OSDP readers, this unit offers a compact, cost-efficient footprint ideal for both new builds and retrofit access control installations. Featuring built-in lock power management and the robust Axis Edge Vault hardware cybersecurity platform, the A1810-B ensures reliable operation and superior protection against modern cyber threats.

  • High-Density Door Management: Centralized control for up to eight doors with support for 16 OSDP readers and 16 locks, optimizing installation costs.
  • Secure OSDP Communication: Features OSDP Verified secure channel to ensure tamper-resistant, encrypted bidirectional reader communication.
  • Flexible Power & Integration: Operates via PoE+ or 12 V DC, with integrated power distribution. Supports integration with ASSA ABLOY Aperio® wireless locks.
  • Robust Cybersecurity: Built on the Axis Edge Vault platform, providing secure boot, signed firmware validation, and a hardware-based secure element (CC EAL 6+).
  • Enterprise Scalability: Fully compatible with AXIS Camera Station Secure Entry and third-party software for a unified video and access management system.
  • Large commercial buildings requiring centralized, multi-door access control.
  • Critical infrastructure sites demanding UL 294 compliance and OSDP encryption.
  • Education, healthcare, and enterprise campuses standardizing on Axis security ecosystems.
  • Facilities upgrading from legacy analog systems to modern IP-based architecture.
  • High-traffic secure installations requiring massive credential (250k) and event storage.
  • Door Capacity: Up to 8 doors (2 relays per door supporting double locks).
  • Reader Support: Up to 16 OSDP readers; Wiegand supported via AXIS TA1101-B accessory.
  • Power Input: PoE+ (IEEE 802.3at Type 2) or 12 V DC.
  • Lock Power Outputs: 12/24 V DC jumper-configurable, with multiple protected circuits.
  • Credential Storage: Up to 250,000 credentials stored locally.
  • Event Buffer: Up to 250,000 events.
  • Network: 10/100/1000BASE-T RJ45 with IPv4/IPv6, HTTPS, TLS, SNMP v1/v2c/v3.
  • Cybersecurity: Axis Edge Vault, Secure Boot, Signed Firmware.
  • Operating Temperature: -40 °C to 55 °C (-40 °F to 131 °F).
  • Mounting: DIN rail or Cabinet mount (UL 294 compliant when used with appropriate enclosure).

Strengthen your security ecosystem with the AXIS A1810-B Network Door Controller. Order today to secure your facility with industry-leading technology.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] 8-door centralized controller, support for 16 OSDP readers & locks, PoE+ or 12V DC, Axis Edge Vault cybersecurity, DIN-rail mount. [/shortdesc]

[properties]

Model AXIS A1810-B (03079-001)
Product Type Network Door Controller
Number of Doors 8 doors (Control for up to 16 locks)
Reader Support Up to 16 OSDP readers; 16x ASSA ABLOY Aperio®; Wiegand (via AXIS TA1101-B)
Credential Capacity Up to 250,000 credentials stored locally
Event Buffer Up to 250,000 events stored locally
Power Input PoE+ (IEEE 802.3at Type 2 Class 4); DC IN 12 V DC
Relay Outputs 17x Form C Relays (NO/NC) Total: 1x Main, 8x Door, 8x AUX
I/O Interface Digital inputs/outputs; RS485; AUX I/O connectors
Memory 512 MB RAM, 2 GB Flash
Network Interface RJ45 10/100/1000 Mbps PoE
Operating Temperature -40 °C to 55 °C (-40 °F to 131 °F)
Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F)
Humidity 10–85% RH (operating), 5–95% RH (storage)
Dimensions 326.5 mm x 166.1 mm (See dimension drawing for depth)
Weight 1330 g (2.9 lb)
Casing Steel; White NCS S 1002-B
Mounting DIN rail mount; Cabinet mount

[/properties]

[specifications]

Reader Connections Up to 16 OSDP/RS485 readers (multidrop); OSDP Secure Channel supported; Wiegand via accessory
Door Inputs REX and door position sensors, 0–30 V DC, supervised (4 states)
Relay Outputs 17x Form C relays (NO/NC): Main, Door relays, AUX relays
Relay Capacity (Dry) 2 A or 4 A at 30 V DC (depending on relay type)
Relay Capacity (Wet) 12/24 V DC (jumper configurable); Max 46 W per door group
Digital Inputs 3× digital input (0–30 V DC), supervised
Digital Outputs 3× open drain outputs (0–30 V DC, max 100 mA)
AUX I/O 2× configurable I/O (input or output), plus 1x 12 V DC output (max 250 mA)
External Inputs Tamper input; Alarm input (0–30 V DC, supervised)
Network Protocols IPv4/IPv6, HTTP/HTTPS, TLS, DHCP, SNMP v1/v2c/v3, RTSP, QoS, SSH, MQTT, Syslog
Cybersecurity Axis Edge Vault, Secure Boot, Secure Keystore, Signed Firmware, Brute force delay protection
Approvals CE, FCC, ICES, KC, RCM, UL/cUL, VCCI, WEEE, UL 294, UL 2043
EMC CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50130-4
Safety Standards IEC/EN/UL 62368-1; UL 2043; UL 294
Cable Requirements Reader RS485 up to 1000 m (AWG 26–14); Power AWG 16–14; Ethernet STP Cat 5e+
Languages English, German, French, Spanish, Italian, Russian, Chinese, Japanese, Korean, Portuguese, Polish

[/specifications]

[accesories]

Included in the Box Door controller; Installation guide; Connector kit (mounted); Grounding kit; Splicing connectors
Optional Accessories AXIS A9910 I/O Relay Expansion Module; AXIS TA4711 Access Card; AXIS TA4712 Key Fob; AXIS TA1901 DIN Rail Clip; AXIS TA1101-B Wiegand OSDP Converter; AXIS TA1902 Access Control Connector Kit; AXIS 30 W Midspan; AXIS T8006 PS1214

[/accesories]

Advanced Multi-Door Control for Scalable, Secure Access

The AXIS A1810-B Network Door Controller delivers centralized, high-density door control designed for enterprise and multisite deployments. Capable of managing up to eight doors and supporting up to sixteen OSDP readers, this unit offers a compact, cost-efficient footprint ideal for both new builds and retrofit access control installations. Featuring built-in lock power management and the robust Axis Edge Vault hardware cybersecurity platform, the A1810-B ensures reliable operation and superior protection against modern cyber threats.

Key Benefits & Features
  • High-Density Door Management: Centralized control for up to eight doors with support for 16 OSDP readers and 16 locks, optimizing installation costs.
  • Secure OSDP Communication: Features OSDP Verified secure channel to ensure tamper-resistant, encrypted bidirectional reader communication.
  • Flexible Power & Integration: Operates via PoE+ or 12 V DC, with integrated power distribution. Supports integration with ASSA ABLOY Aperio® wireless locks.
  • Robust Cybersecurity: Built on the Axis Edge Vault platform, providing secure boot, signed firmware validation, and a hardware-based secure element (CC EAL 6+).
  • Enterprise Scalability: Fully compatible with AXIS Camera Station Secure Entry and third-party software for a unified video and access management system.
Ideal Use Cases
  • Large commercial buildings requiring centralized, multi-door access control.
  • Critical infrastructure sites demanding UL 294 compliance and OSDP encryption.
  • Education, healthcare, and enterprise campuses standardizing on Axis security ecosystems.
  • Facilities upgrading from legacy analog systems to modern IP-based architecture.
  • High-traffic secure installations requiring massive credential (250k) and event storage.
Technical Specifications
  • Door Capacity: Up to 8 doors (2 relays per door supporting double locks).
  • Reader Support: Up to 16 OSDP readers; Wiegand supported via AXIS TA1101-B accessory.
  • Power Input: PoE+ (IEEE 802.3at Type 2) or 12 V DC.
  • Lock Power Outputs: 12/24 V DC jumper-configurable, with multiple protected circuits.
  • Credential Storage: Up to 250,000 credentials stored locally.
  • Event Buffer: Up to 250,000 events.
  • Network: 10/100/1000BASE-T RJ45 with IPv4/IPv6, HTTPS, TLS, SNMP v1/v2c/v3.
  • Cybersecurity: Axis Edge Vault, Secure Boot, Signed Firmware.
  • Operating Temperature: -40 °C to 55 °C (-40 °F to 131 °F).
  • Mounting: DIN rail or Cabinet mount (UL 294 compliant when used with appropriate enclosure).
Enhance Your Access Control Performance

Strengthen your security ecosystem with the AXIS A1810-B Network Door Controller. Order today to secure your facility with industry-leading technology.
