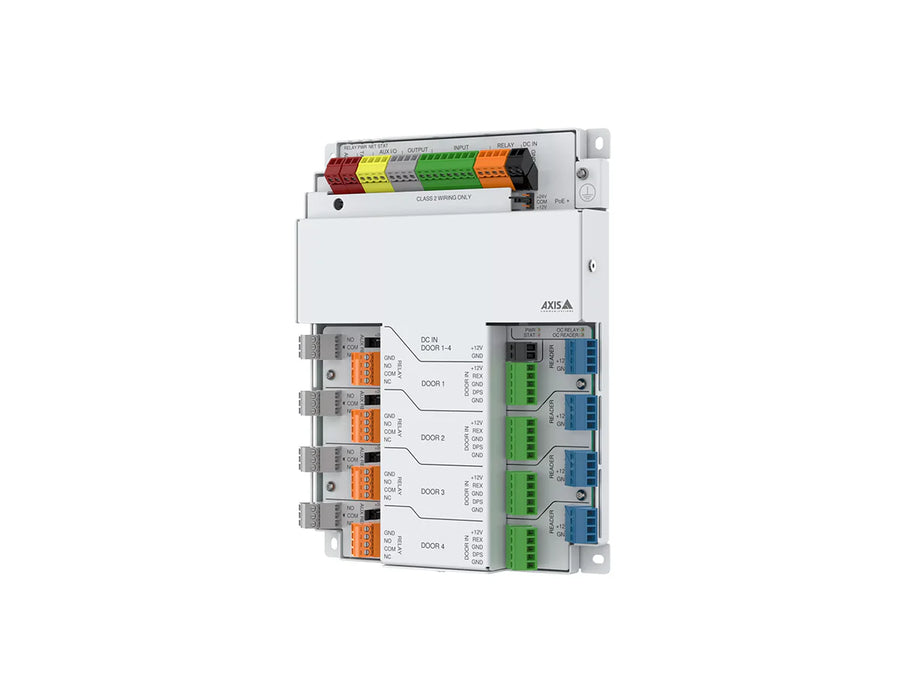

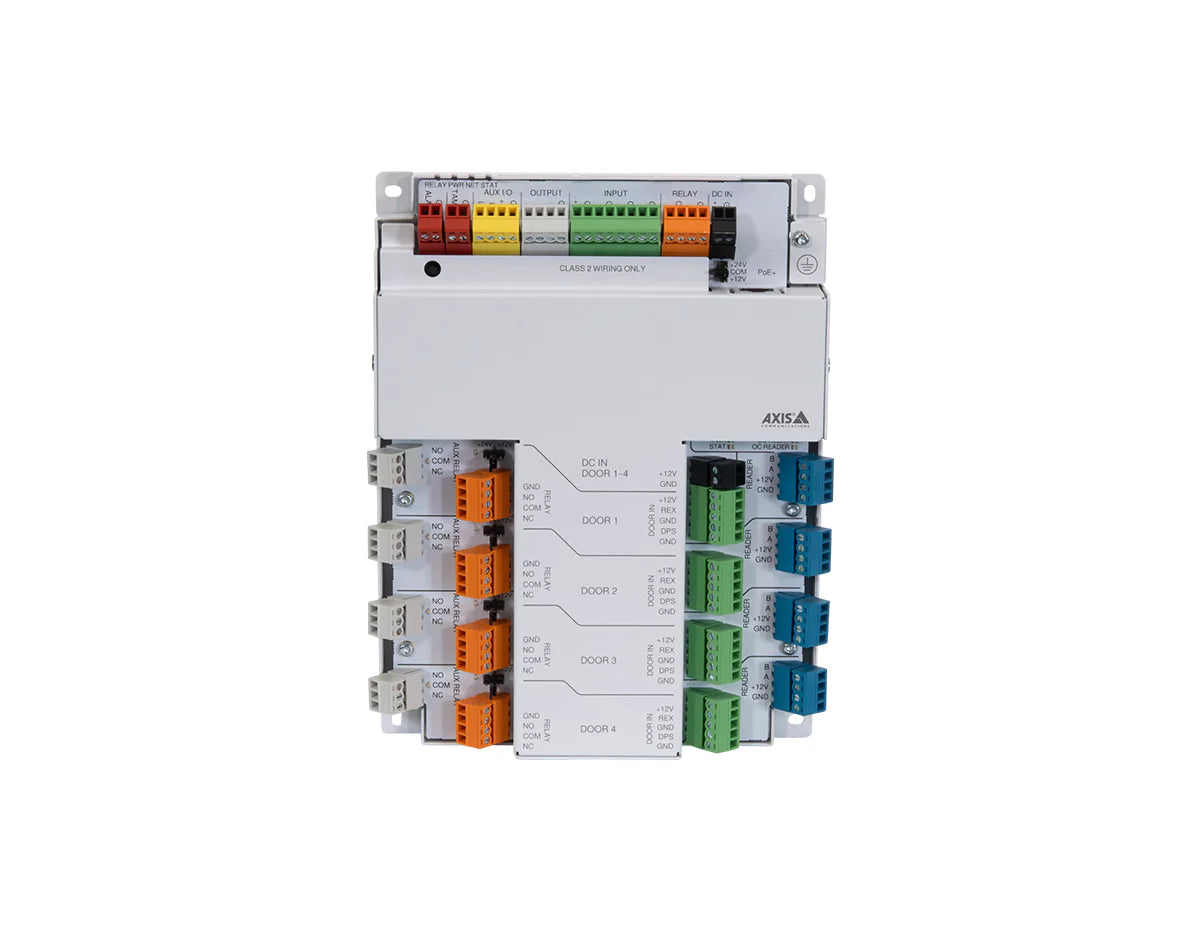

AXIS A1710-B Network Door Controller (03078-001)
Clique ou role para ampliar
Toque ou belisque para ampliar
AXIS A1710-B Network Door Controller (03078-001)
AXIS A1710-B Network Door Controller (03078-001)

AXIS A1710-B Network Door Controller (03078-001)

por Axis
R$ 18.948,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] 4-door control, 8 OSDP readers, PoE/12V DC input, built-in lock power, secure boot platform, DIN-rail mount [/shortdesc]

[properties]

Model AXIS A1710-B (03078-001)
Product Type Network Door Controller
Doors Supported 4 doors (two relays per door for double locks)
Supported Readers Up to 8 OSDP readers; Wiegand with accessory AXIS TA110-B
Credentials Capacity Up to 250,000 stored locally
Event Buffer Up to 250,000 events stored locally
Power Options PoE IEEE 802.3at Type 2 Class 4; 12 V DC input
Network Interface RJ45 10/100/1000BASE-T (PoE)
Operating Temperature -40 °C to 55 °C (-40 °F to 131 °F)
Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F)
Humidity 10–85% RH (non-condensing)
Material Steel enclosure
Color White NCS S 1002-B
Dimensions See dimension drawing in datasheet
Weight 880 g (1.9 lb)

[/properties]

[specifications]

Reader Support Up to 8 OSDP/RS485 readers (multidrop); OSDP Secure Channel; optional Wiegand
Locks Eight locks (two per door)
Relay Outputs 1 main relay + 4 door relays + 4 AUX relays (form C, NO/NC)
Digital Inputs 3 digital inputs + 4 REX + 4 door position inputs + 2 AUX IO + external tamper + alarm input
Digital Outputs 3 open-drain outputs; multiple 12 V DC outputs
Power Output to Readers 4x 12 V DC outputs (combined max 2 A)
System Memory 512 MB RAM, 2 GB Flash
Network Protocols IPv4/IPv6, HTTPS/TLS, QoS, SNMP, DHCP, MQTT, Syslog and more
Cybersecurity Axis Edge Vault secure element (CC EAL 6+), secure boot, signed firmware, 802.1X
Certifications CE, FCC, RCM, UL/cUL, VCCI, KC, WEEE
Environmental Standards IEC 60068-2 series (temperature, vibration, humidity)
Mounting Options DIN rail or cabinet mount
Supported Software AXIS Camera Station Secure Entry; ACAP apps

[/specifications]

[accesories]

Included in the Box Door controller; installation guide; connector kit (mounted); grounding kit; splicing connectors
Optional Accessories AXIS A9910 I/O Relay Expansion Module; AXIS TA4711 Access Card; AXIS TA4712 Key Fob; AXIS TA1901 DIN Rail Clip; AXIS TA110-B Wiegand Converter; AXIS TA1902 Connector Kit; AXIS 30 W Midspan; AXIS T8006 PS1214

[/accesories]

The AXIS A1710-B Network Door Controller delivers streamlined, centralized control for up to four doors while supporting eight OSDP readers and eight locks. Designed for both new and retrofit installations, it combines compact hardware, built-in lock power management, and strong cybersecurity features to protect high-security access environments. With support for third-party cabinets and multiple reader types, it fits enterprise, industrial, and critical infrastructure deployments.

  • Full four-door control: Manage up to four doors with double-lock support and integrated I/O options for sensors, REX devices, and alarms.
  • Eight OSDP reader support: Connect up to eight secure OSDP readers with multidrop architecture and OSDP Secure Channel verification.
  • Built-in power management: Simplify installations with onboard 12 V DC power outputs for locks, sensors, and door peripherals.
  • Advanced cybersecurity: Axis Edge Vault hardware platform, secure boot, signed firmware, and strong authentication protocols safeguard device integrity.
  • Flexible power and mounting: Operates via PoE+, 12 V DC, or multi-input power setups; supports DIN rail and cabinet mounting.
  • Enterprise facilities requiring centralized multi-door access control
  • Industrial and critical infrastructure sites with strict cybersecurity needs
  • Retrofit projects integrating OSDP or Wiegand readers
  • AXIS Camera Station Secure Entry deployments
  • Multi-building campuses standardizing on network-based access control
  • Doors: Up to 4 doors with double-lock relay support
  • Reader Support: 8 OSDP readers, multidrop RS485
  • Credentials: Stores up to 250,000 local credentials
  • Event Buffer: 250,000 local events
  • Power Input: PoE IEEE 802.3at Type 2 or 12 V DC
  • Outputs: 12/24 V DC wet relays, overcurrent-protected
  • Network Interface: 10/100/1000BASE-T RJ45
  • Operating Temperature: -40 °C to 55 °C
  • Memory: 512 MB RAM, 2 GB Flash
  • Cybersecurity: Axis Edge Vault, secure element (CC EAL 6+), secure boot

Enhance your security infrastructure with powerful multi-door control and advanced cybersecurity. Order now.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] 4-door control, 8 OSDP readers, PoE/12V DC input, built-in lock power, secure boot platform, DIN-rail mount [/shortdesc]

[properties]

Model AXIS A1710-B (03078-001)
Product Type Network Door Controller
Doors Supported 4 doors (two relays per door for double locks)
Supported Readers Up to 8 OSDP readers; Wiegand with accessory AXIS TA110-B
Credentials Capacity Up to 250,000 stored locally
Event Buffer Up to 250,000 events stored locally
Power Options PoE IEEE 802.3at Type 2 Class 4; 12 V DC input
Network Interface RJ45 10/100/1000BASE-T (PoE)
Operating Temperature -40 °C to 55 °C (-40 °F to 131 °F)
Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F)
Humidity 10–85% RH (non-condensing)
Material Steel enclosure
Color White NCS S 1002-B
Dimensions See dimension drawing in datasheet
Weight 880 g (1.9 lb)

[/properties]

[specifications]

Reader Support Up to 8 OSDP/RS485 readers (multidrop); OSDP Secure Channel; optional Wiegand
Locks Eight locks (two per door)
Relay Outputs 1 main relay + 4 door relays + 4 AUX relays (form C, NO/NC)
Digital Inputs 3 digital inputs + 4 REX + 4 door position inputs + 2 AUX IO + external tamper + alarm input
Digital Outputs 3 open-drain outputs; multiple 12 V DC outputs
Power Output to Readers 4x 12 V DC outputs (combined max 2 A)
System Memory 512 MB RAM, 2 GB Flash
Network Protocols IPv4/IPv6, HTTPS/TLS, QoS, SNMP, DHCP, MQTT, Syslog and more
Cybersecurity Axis Edge Vault secure element (CC EAL 6+), secure boot, signed firmware, 802.1X
Certifications CE, FCC, RCM, UL/cUL, VCCI, KC, WEEE
Environmental Standards IEC 60068-2 series (temperature, vibration, humidity)
Mounting Options DIN rail or cabinet mount
Supported Software AXIS Camera Station Secure Entry; ACAP apps

[/specifications]

[accesories]

Included in the Box Door controller; installation guide; connector kit (mounted); grounding kit; splicing connectors
Optional Accessories AXIS A9910 I/O Relay Expansion Module; AXIS TA4711 Access Card; AXIS TA4712 Key Fob; AXIS TA1901 DIN Rail Clip; AXIS TA110-B Wiegand Converter; AXIS TA1902 Connector Kit; AXIS 30 W Midspan; AXIS T8006 PS1214

[/accesories]

Centralized Access Control with Scalable Multi-Door Management

The AXIS A1710-B Network Door Controller delivers streamlined, centralized control for up to four doors while supporting eight OSDP readers and eight locks. Designed for both new and retrofit installations, it combines compact hardware, built-in lock power management, and strong cybersecurity features to protect high-security access environments. With support for third-party cabinets and multiple reader types, it fits enterprise, industrial, and critical infrastructure deployments.

Key Benefits & Features
  • Full four-door control: Manage up to four doors with double-lock support and integrated I/O options for sensors, REX devices, and alarms.
  • Eight OSDP reader support: Connect up to eight secure OSDP readers with multidrop architecture and OSDP Secure Channel verification.
  • Built-in power management: Simplify installations with onboard 12 V DC power outputs for locks, sensors, and door peripherals.
  • Advanced cybersecurity: Axis Edge Vault hardware platform, secure boot, signed firmware, and strong authentication protocols safeguard device integrity.
  • Flexible power and mounting: Operates via PoE+, 12 V DC, or multi-input power setups; supports DIN rail and cabinet mounting.
Ideal Use Cases
  • Enterprise facilities requiring centralized multi-door access control
  • Industrial and critical infrastructure sites with strict cybersecurity needs
  • Retrofit projects integrating OSDP or Wiegand readers
  • AXIS Camera Station Secure Entry deployments
  • Multi-building campuses standardizing on network-based access control
Technical Specifications
  • Doors: Up to 4 doors with double-lock relay support
  • Reader Support: 8 OSDP readers, multidrop RS485
  • Credentials: Stores up to 250,000 local credentials
  • Event Buffer: 250,000 local events
  • Power Input: PoE IEEE 802.3at Type 2 or 12 V DC
  • Outputs: 12/24 V DC wet relays, overcurrent-protected
  • Network Interface: 10/100/1000BASE-T RJ45
  • Operating Temperature: -40 °C to 55 °C
  • Memory: 512 MB RAM, 2 GB Flash
  • Cybersecurity: Axis Edge Vault, secure element (CC EAL 6+), secure boot
Upgrade Your Access Control Today

Enhance your security infrastructure with powerful multi-door control and advanced cybersecurity. Order now.
