[shortdesc]

• The AXIS 90W AC/DC PoE Midspan is a flexible power solution designed for installations where mains power is unavailable, supporting IEEE 802.3bt (90W) output for AXIS PoE devices.

[/shortdesc]

[specifications] [/specifications]

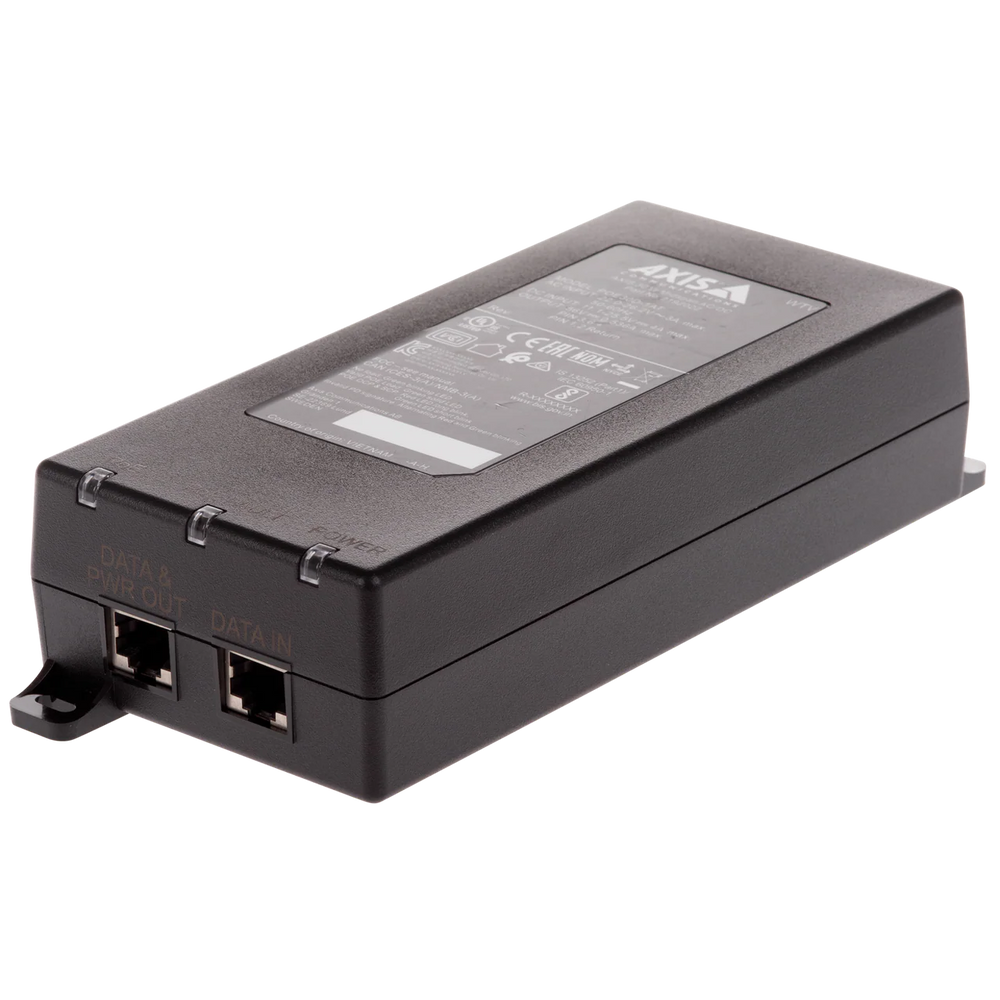

AXIS 90W AC/DC PoE Midspan (02209-001)

The AXIS 90W AC/DC PoE Midspan is a versatile power injector designed for scenarios where mains power is not an option. With support for both 24V AC and 20-26.4V DC input, this midspan delivers up to 90W of PoE power (IEEE 802.3bt), making it ideal for retrofitting PTZ cameras, dome cameras, and other network devices. It allows installations in harsh environments and is compatible with AXIS PoE devices, ensuring seamless integration and reliable power delivery.

• High-Power PoE: Supports up to 90W output (IEEE 802.3bt) for demanding network devices.
• Flexible Power Input: Operates with 24V AC or 20-26.4V DC power sources.
• Ideal for Retrofitting: Enables installation in environments where new cabling is not feasible.
• Load-dependent operating temperature: Operates from -20°C up to 70°C depending on power load.
• Compact and Durable: Wall, shelf, or DIN rail mountable design with LED indicators.
• Full AXIS Compatibility: Works seamlessly with AXIS PoE-powered network devices.

• Input Voltage: 24V AC ± 20% or 20-26.4V DC
• PoE Output: 56V DC (up to 90W, IEEE 802.3bt)
• Data Rate: 10/100/1000 Mbps
• Connectors: Shielded RJ45, EIA 568A/568B, 3-pin AC/DC connector
• Mounting Options: Wall, shelf, or DIN rail
• Operating Temperature: -20°C to 70°C (load-dependent: 30–90 W)
• Storage Temperature: -40°C to 75°C
• Dimensions: 189 x 80 x 44 mm (7.44 x 3.15 x 1.73 in)
• Weight: 500 g (1.1 lb)
