• The AXIS PoE Midspan 8-Port offers a compact and cost-effective solution for powering up to 8 network devices with reliable IEEE 802.3af compliance

[/shortdesc]

[specifications] [/specifications]

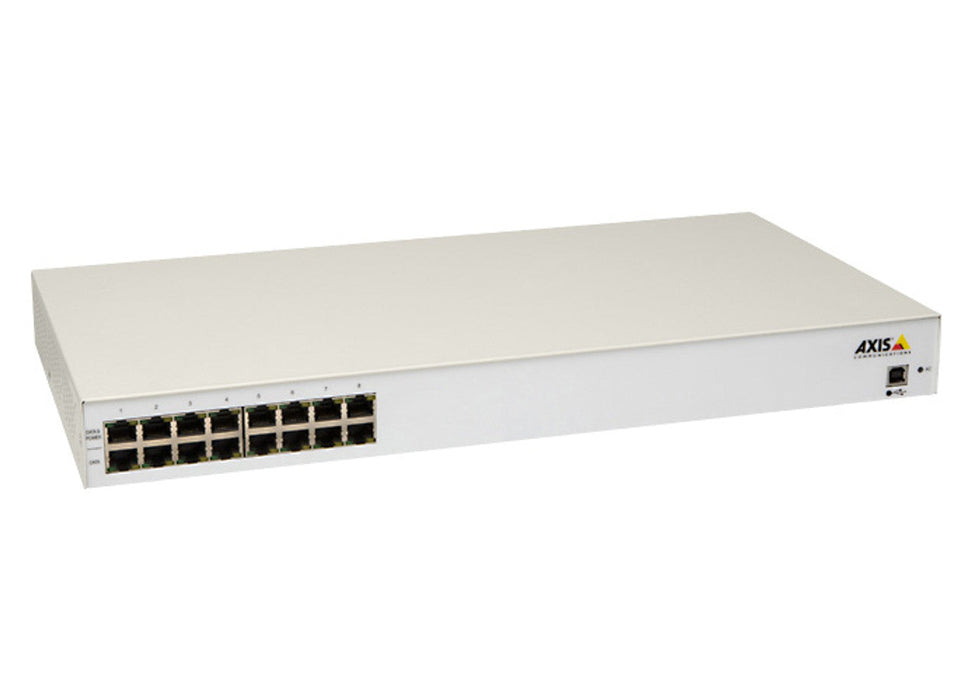

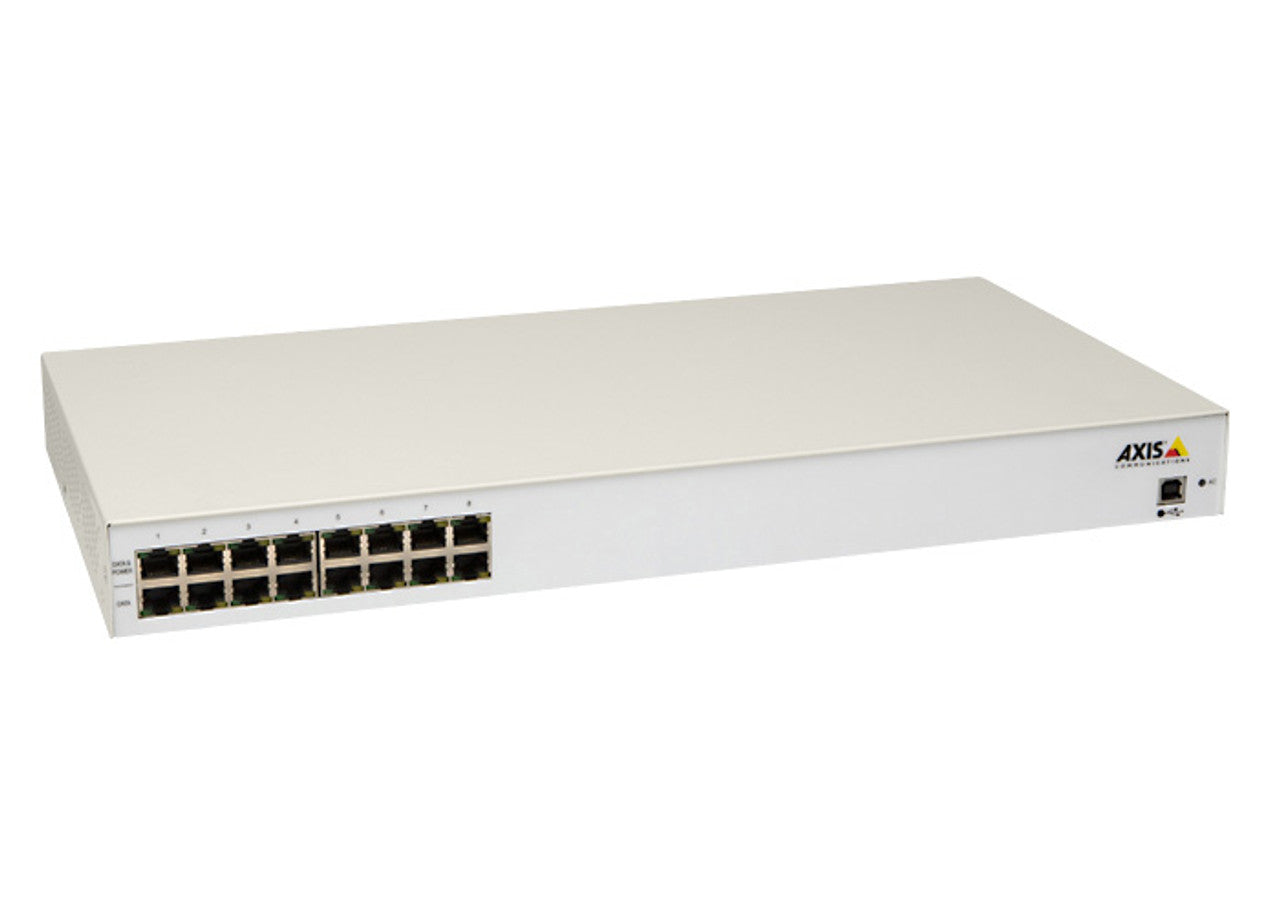

AXIS PoE Midspan 8-Port (5012-004)

The AXIS PoE Midspan 8-Port provides seamless power and data transmission for up to eight network devices simultaneously, making it ideal for efficient and cost-effective installations. This midspan complies with IEEE 802.3af standards, delivering up to 15.4W per port for dependable PoE support. Designed for 19-inch, 1U rack installations, it ensures easy access and streamlined network monitoring through its front-panel interfaces. With plug-and-play functionality and auto-sensing capabilities, it guarantees effortless setup and management for diverse surveillance and networking needs.

• IEEE 802.3af Compliance: Provides reliable PoE support for a wide range of Axis devices.
• Plug-and-Play Installation: Automatically detects devices with PoE support for hassle-free setup.
• Power Efficiency: Delivers up to 15.4W per port with 48V DC power input.
• Robust Design: Prepared for 19-inch rack installations with a 1U height profile.
• High Compatibility: Supports data rates up to 10/100/1000 Mbps over shielded Ethernet cables.
• Operating Conditions: Performs reliably in temperatures between 0 °C to 40 °C (32 °F to 104 °F).

• Power Output: 48V DC, max 15.4W per port
• Ports: 8 shielded RJ45 ports (IEEE 802.3af compliant)
• Data Rate: 10/100/1000 Mbps
• Input Voltage: 90-264V AC, 47-63 Hz
• Mounting: 19-inch, 1U rack installation
• Dimensions: 44.5 x 228 x 438 mm (1.8 x 8.9 x 17.3 in)
• Weight: 9 lbs
• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Compliance: IEEE 802.3af, CE, FCC Class B, UL, TUV
