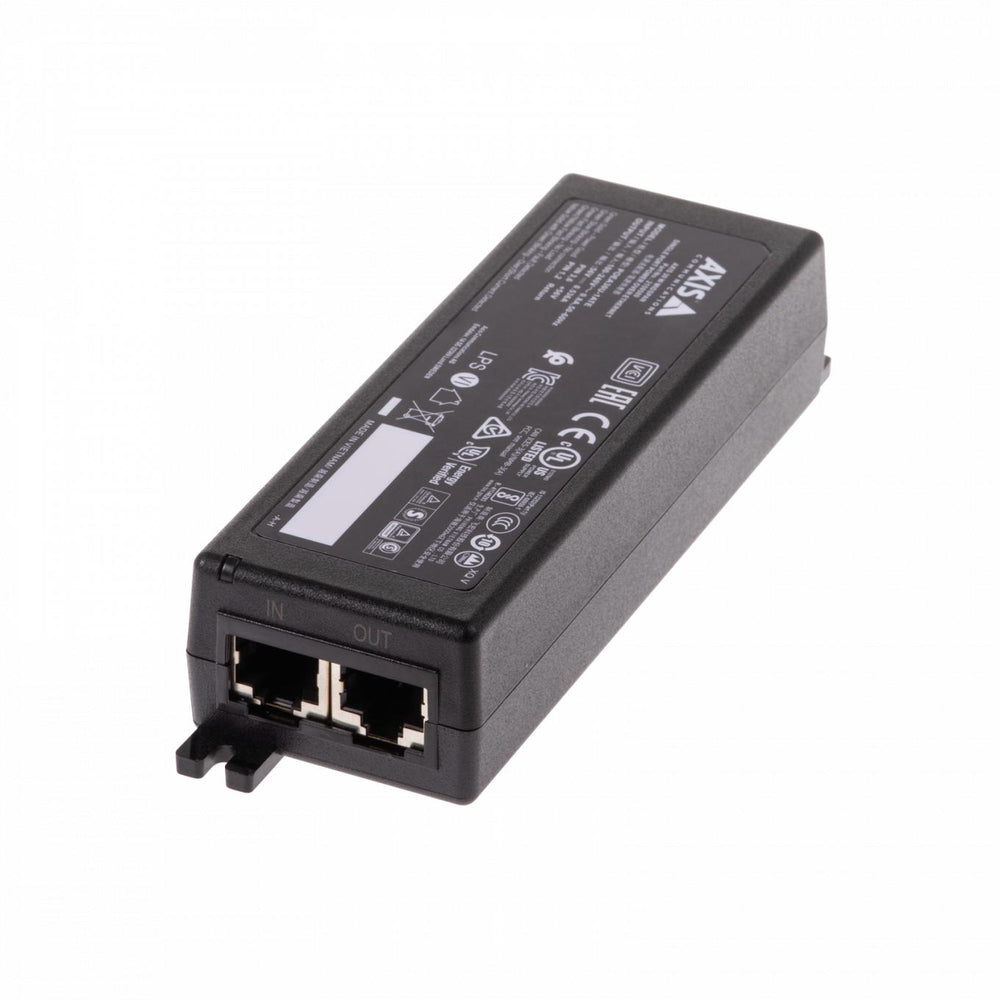

Axis 30W Single-Port PoE Midspan (02172-004)
Axis 30W Single-Port PoE Midspan (02172-004)

Axis 30W Single-Port PoE Midspan (02172-004)

por Axis
R$ 1.104,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

  • Delivers data at speeds of 10/100/1000 Mbps, Input 100 to 240 V AC 47–63 Hz, Output 56 V DC up to 30 W.


[/shortdesc]

[properties]

Product Name Axis 30 W Midspan
Description Reliable midspan providing up to 30 W of power to one network device, compatible with IEEE 802.3af and IEEE 802.3at standards.
PoE Compatibility Supports IEEE 802.3af (15 W) and IEEE 802.3at (30 W) standards for flexible power delivery.
High Data Rate Supports data transfer speeds of 10/100/1000 Mbps for fast and stable connectivity.
Wide Input Range Accepts AC input voltage from 100 to 240 V, compatible with various global installations.
Easy Installation Plug-and-play design with automatic PoE detection and front panel LED indicators for easy monitoring.
Versatile Design Ideal for environments requiring a simple and effective PoE power solution for network devices.
Recommended Use Suitable for powering Axis network devices in varied indoor environments.
Power Output Delivers 56 V DC, up to 30 W, ensuring compatibility with high-power PoE devices.
Temperature Resilience Operates from -20 °C to 40 °C at 30 W, extending up to 55 °C at 15 W.
Mounting Options Supports wall, shelf, or DIN rail mounting (DIN rail mount sold separately).
Durability Constructed to operate in a wide temperature range for reliable performance.

[/properties]

[specifications]

Power Input 100 to 240 V AC, 47–63 Hz for global compatibility.
Power Output 56 V DC, up to 30 W in compliance with IEEE 802.3at (Type 2).
Data Rate 10/100/1000 Mbps, ensuring high-speed data transmission.
Operating Temperature -20 °C to 40 °C (-4 °F to 104 °F) at 30 W; up to 55 °C (131 °F) at reduced 15 W output.
Dimensions 30 x 46 x 140.1 mm (1.1 x 1.8 x 5.5 in), compact for easy integration.
Weight 145 g (0.3 lb), lightweight for flexible mounting.
LED Indicators Front panel LEDs for power and connectivity status monitoring.
PoE Standards Supports both IEEE 802.3af and IEEE 802.3at, providing flexibility across device types.
Mounting Flexibility Can be wall-mounted, shelf-mounted, or DIN rail mounted (optional accessory for DIN rail).
Material and Design Durable construction for reliable performance in varied indoor conditions.

[/specifications]

[accesories]

Included Accessories Mains IEC-C13 cable.

[/accesories]

Axis 30 W Midspan

The Axis 30 W Midspan is a reliable and efficient power solution designed to deliver up to 30 W of power to one network device. Compliant with IEEE 802.3af (15 W) and IEEE 802.3at (30 W) standards, it ensures compatibility with most Axis network products that support PoE. This midspan provides a simple, cost-effective way to power network devices through a single Ethernet cable, injecting both power and data without the need to replace existing Ethernet switches or cabling infrastructure. With its plug-and-play design, installation is quick and easy.

  • PoE Compatibility: Supports both IEEE 802.3af and IEEE 802.3at standards, providing up to 30 W of power.
  • High Data Rate: Delivers data at speeds of 10/100/1000 Mbps, ensuring fast and reliable connectivity.
  • Wide Input Range: Operates with an AC input voltage of 100 to 240 V, making it versatile for various installations.
  • Easy Installation: Plug-and-play design with automatic PoE detection and front panel LED indicators for power and connectivity status.
  • Durable Design: Built to operate in a wide temperature range and withstand harsh environmental conditions.
  • Recommended for: Powering network devices in environments where a simple, reliable PoE solution is required.
  • Power Input: 100 to 240 V AC, 47–63 Hz.
  • Power Output: 56 V DC, up to 30 W according to IEEE 802.3at standards.
  • Data Rate: 10/100/1000 Mbps.
  • Operating Conditions: -20 °C to 40 °C (-4 °F to 104 °F) at 30 W; -20 °C to 55 °C (-4 °F to 131 °F) at 15 W.
  • Dimensions: 30 x 46 x 140.1 mm (1.1 x 1.8 x 5.5 in).
  • Weight: 145 g (0.3 lb).
  • Mounting Options: Wall, shelf, or DIN rail (optional accessory).
  • Included Accessories: Installation guide, Mains IEC-C13 cable.

You can check the related tab for the Axis 30 W Midspan datasheet.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

  • Delivers data at speeds of 10/100/1000 Mbps, Input 100 to 240 V AC 47–63 Hz, Output 56 V DC up to 30 W.


[/shortdesc]

[properties]

Product Name Axis 30 W Midspan
Description Reliable midspan providing up to 30 W of power to one network device, compatible with IEEE 802.3af and IEEE 802.3at standards.
PoE Compatibility Supports IEEE 802.3af (15 W) and IEEE 802.3at (30 W) standards for flexible power delivery.
High Data Rate Supports data transfer speeds of 10/100/1000 Mbps for fast and stable connectivity.
Wide Input Range Accepts AC input voltage from 100 to 240 V, compatible with various global installations.
Easy Installation Plug-and-play design with automatic PoE detection and front panel LED indicators for easy monitoring.
Versatile Design Ideal for environments requiring a simple and effective PoE power solution for network devices.
Recommended Use Suitable for powering Axis network devices in varied indoor environments.
Power Output Delivers 56 V DC, up to 30 W, ensuring compatibility with high-power PoE devices.
Temperature Resilience Operates from -20 °C to 40 °C at 30 W, extending up to 55 °C at 15 W.
Mounting Options Supports wall, shelf, or DIN rail mounting (DIN rail mount sold separately).
Durability Constructed to operate in a wide temperature range for reliable performance.

[/properties]

[specifications]

Power Input 100 to 240 V AC, 47–63 Hz for global compatibility.
Power Output 56 V DC, up to 30 W in compliance with IEEE 802.3at (Type 2).
Data Rate 10/100/1000 Mbps, ensuring high-speed data transmission.
Operating Temperature -20 °C to 40 °C (-4 °F to 104 °F) at 30 W; up to 55 °C (131 °F) at reduced 15 W output.
Dimensions 30 x 46 x 140.1 mm (1.1 x 1.8 x 5.5 in), compact for easy integration.
Weight 145 g (0.3 lb), lightweight for flexible mounting.
LED Indicators Front panel LEDs for power and connectivity status monitoring.
PoE Standards Supports both IEEE 802.3af and IEEE 802.3at, providing flexibility across device types.
Mounting Flexibility Can be wall-mounted, shelf-mounted, or DIN rail mounted (optional accessory for DIN rail).
Material and Design Durable construction for reliable performance in varied indoor conditions.

[/specifications]

[accesories]

Included Accessories Mains IEC-C13 cable.

[/accesories]

Axis 30 W Midspan

The Axis 30 W Midspan is a reliable and efficient power solution designed to deliver up to 30 W of power to one network device. Compliant with IEEE 802.3af (15 W) and IEEE 802.3at (30 W) standards, it ensures compatibility with most Axis network products that support PoE. This midspan provides a simple, cost-effective way to power network devices through a single Ethernet cable, injecting both power and data without the need to replace existing Ethernet switches or cabling infrastructure. With its plug-and-play design, installation is quick and easy.

Key Features:
  • PoE Compatibility: Supports both IEEE 802.3af and IEEE 802.3at standards, providing up to 30 W of power.
  • High Data Rate: Delivers data at speeds of 10/100/1000 Mbps, ensuring fast and reliable connectivity.
  • Wide Input Range: Operates with an AC input voltage of 100 to 240 V, making it versatile for various installations.
  • Easy Installation: Plug-and-play design with automatic PoE detection and front panel LED indicators for power and connectivity status.
  • Durable Design: Built to operate in a wide temperature range and withstand harsh environmental conditions.
Technical Overview:
  • Recommended for: Powering network devices in environments where a simple, reliable PoE solution is required.
  • Power Input: 100 to 240 V AC, 47–63 Hz.
  • Power Output: 56 V DC, up to 30 W according to IEEE 802.3at standards.
  • Data Rate: 10/100/1000 Mbps.
  • Operating Conditions: -20 °C to 40 °C (-4 °F to 104 °F) at 30 W; -20 °C to 55 °C (-4 °F to 131 °F) at 15 W.
  • Dimensions: 30 x 46 x 140.1 mm (1.1 x 1.8 x 5.5 in).
  • Weight: 145 g (0.3 lb).
  • Mounting Options: Wall, shelf, or DIN rail (optional accessory).
  • Included Accessories: Installation guide, Mains IEC-C13 cable.

You can check the related tab for the Axis 30 W Midspan datasheet.
