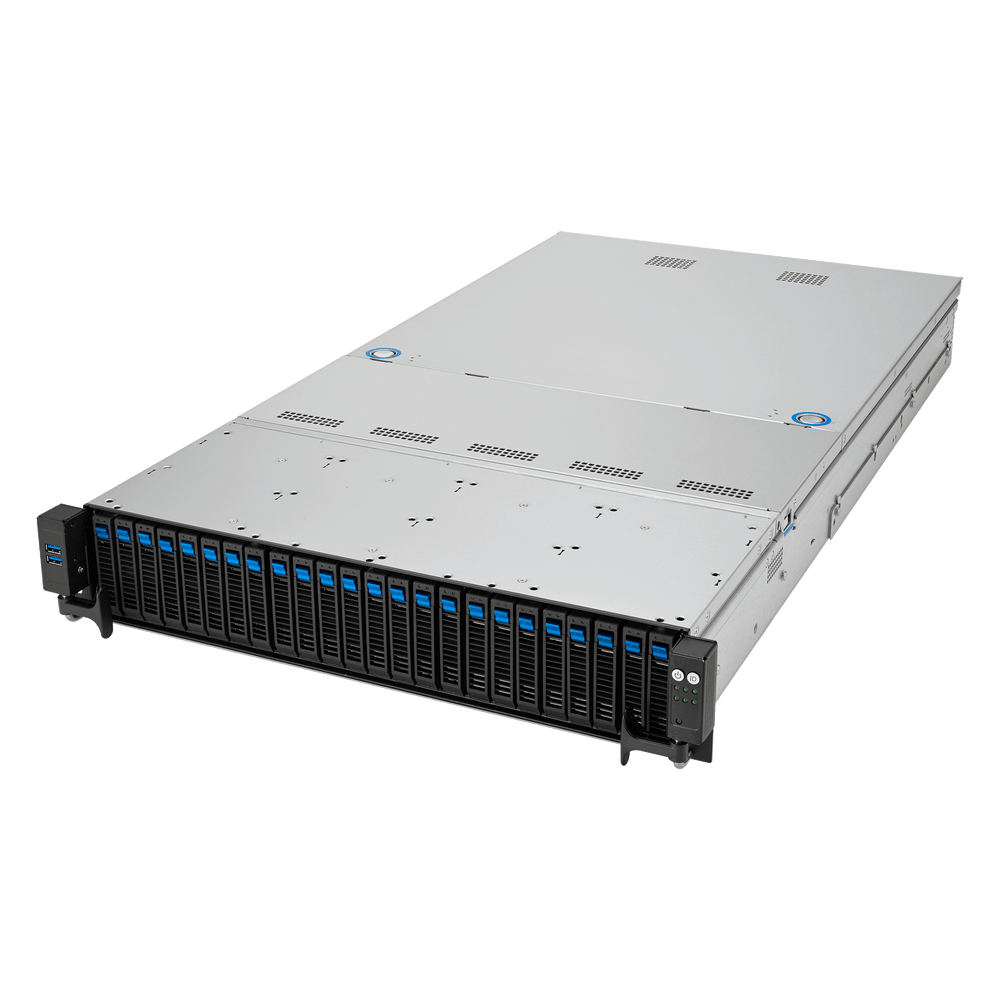

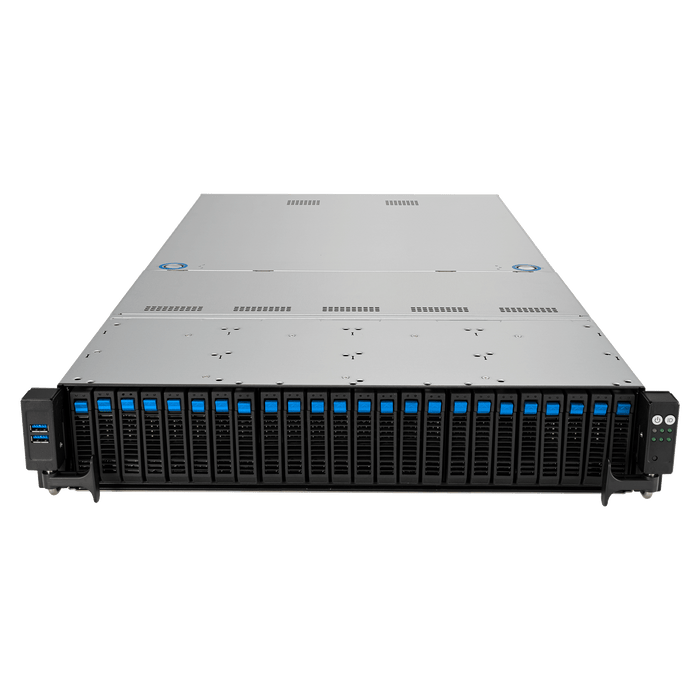

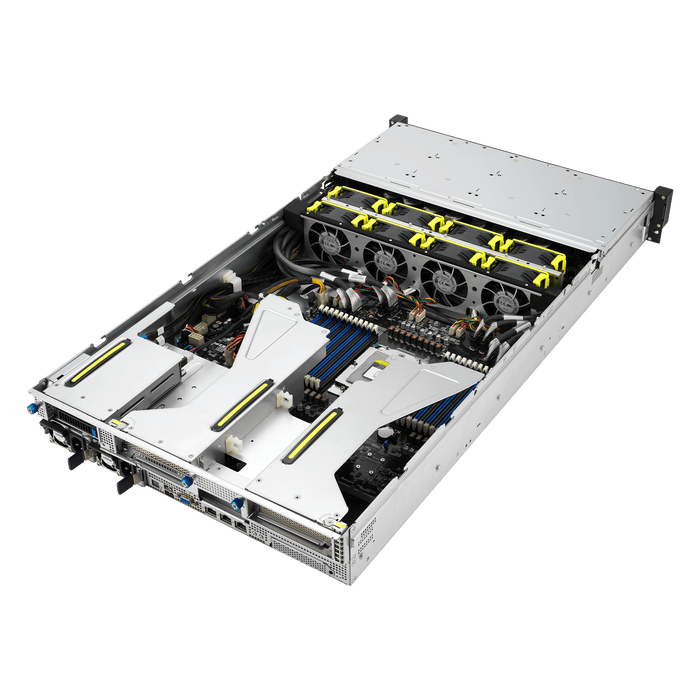

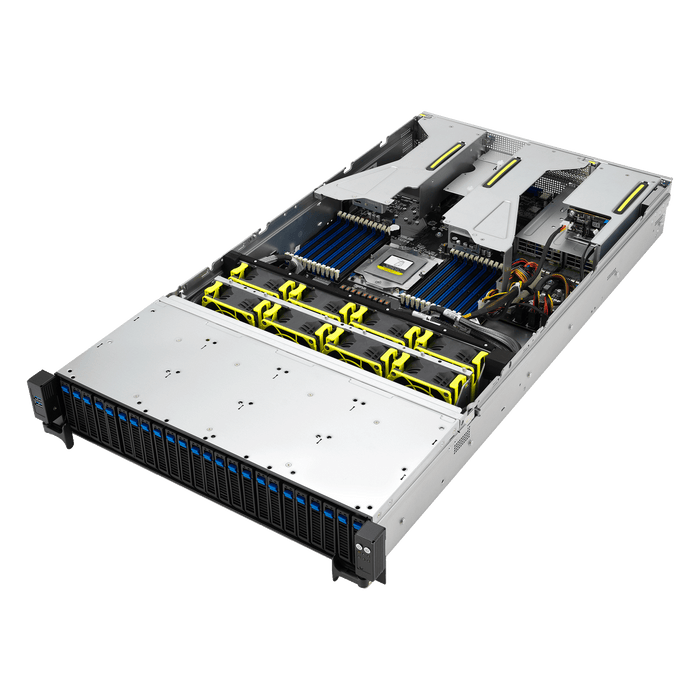

Asus RS520A-E12-RS24U 2U Rack-Mountable Server – Pre-Configured and Ready for Deployment
This high-performance 2U rack-mountable Storage server is pre-configured and optimized for demanding workloads. Designed with cutting-edge components, it offers robust processing power, ample memory, and reliable storage to meet your business or data center needs.
Included components in the server:
Component |
Description |
Processor |
Powered by an AMD EPYC 9124 16 Core, a base clock speed of 3.0GHz, and 64MB cache, delivering efficient multi-core performance for intensive tasks. |
Memory |
Equipped with 32GB of high-speed DDR5 SDRAM to handle memory-intensive applications seamlessly. |
Primary Storage |
A 480 GB SSD ensures ultra-fast read/write speeds and reliable data access. |
Customizable Server Solutions
We specialize in custom server builds tailored to your requirements. From component integration to full assembly and comprehensive burn-in testing, we ensure reliability and top-tier performance for your needs.
Key Specifications
Component |
Description |
Processor |
• 1 x Socket SP5 (LGA 6096)
• 4th Generation AMD EPYC Processors with AMD 3D V-Cache technology
• AMD EPYC™ 9004 Series Processors (Air cool with STD HSK up to 400W) |
Memory |
• 24 x DIMM slots
• DDR5 4800/4400/4000/3600 RDIMM / 3DS RDIMM
• 1DPC up to 4800
• 2DPC up to 4000 (1R+1R)
• 2DPC up to 3600 (1R+2R / 2R+2R)
• Maximum 6144GB |
Expansion Slots (16/12 NVMe SKU) |
• Up to 5 PCIe Gen5 slots + 1 OCP3.0
• Option: 2 x PCIe Gen5 x16 (FHFL) or 4 x PCIe Gen5 x8 (FHFL)
• 1 x PCIe Gen5 x8, LP
• 1 x OCP 3.0 Slot (PCIe Gen5 x16) |
Storage |
Storage Controller:
• CPU Integrated or Optional kits: Broadcom Mega RAID 9560-16i / ASUS PIKE II 3008-8i (8-port SAS 12G HBA card)
Drive Bays – Front:
• 16 NVMe SKU: 24 x 2.5” hot-swap bays supporting 16x NVMe + 8 SAS/SATA (RAID/PIKE cable needed for SAS/SATA)
• 12 NVMe SKU: 24 x 2.5” hot-swap bays supporting 12x NVMe + 12 SAS/SATA (SAS support only from optional SAS HBA/RAID card)
• 24 NVMe SKU: 24 x 2.5” hot-swap bays supporting 24x NVMe
Drive Bays – Rear:
• 2 x 2.5” SATA hot-swap bays
• 2 x M.2 connectors
|
Networking |
• 1 x Dual Port Intel I350-AM2 GbE LAN Controller
• 1 x Management Port |
Graphics |
• Up to 4 single-slot or 2 double-slot GPU cards
Note: 24 NVMe SKU cannot support GPU
|
Dimensions |
• 840mm x 449mm x 88.1mm (2U)
• 33.07” x 17.68” x 3.47 |
Front I/O |
• 2 x USB 3.2 Gen1 ports
• 1 x VGA port |
Rear I/O |
• 2 x USB 3.2 Gen1 ports
• 1 x VGA port
• 1 x Management port
• 2 x 1GbE LAN ports |
Weight |
• Net Weight: 19.14 kg
• Gross Weight: 26.63 kg
|
Power Supply |
Options:
• 1+1 Redundant 1600W 80 PLUS Titanium
• 1+1 Redundant 1600W/1200W 80 PLUS Platinum |
This server is a perfect fit for enterprise applications, virtualization, or high-performance computing. With its scalable features and robust build, it's ready to tackle the most demanding workloads
|
Compatible CPU/
Part Number
|
Description |
100-000000802 |
AMD EPYC™ 9124 Processor 16-core 3.00GHz 64MB Cache (200W) |
100-000000939 |
AMD EPYC™ 9224 Processor 24-core 2.50GHz 64MB Cache (200W) |
100-000000798 |
AMD EPYC™ 9354 Processor 32-core 3.25GHz 256MB Cache (280W) |
100-000000478 |
AMD EPYC™ 9454 Processor 48-core 2.75GHz 256MB Cache (290W) |
100-000000799 |
AMD EPYC™ 9534 Processor 64-core 2.45GHz 256MB Cache (280W) |
100-000000789 |
AMD EPYC™ 9654 Processor 96-core 2.40GHz 384MB Cache (360W) |
|
Compatible RAM
|
4800MHz ECC Registered DDR5 DIMMs |
16GB PC5-38400 4800MHz DDR5 ECC RDIMM |
32GB PC5-38400 4800MHz DDR5 ECC RDIMM |
64GB PC5-38400 4800MHz DDR5 ECC RDIMM |
128GB PC5-38400 4800MHz DDR5 ECC RDIMM |
Compatible SSD |
480GB – 3.84TB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm) |
960GB – 3.84TB Samsung PM9A3 Series M.2 PCIe 4.0 x4 NVMe Solid State Drive |
3.84TB – 30.72TB Solidigm SSD D7-P5520 Series U.2 PCIe 4.0 x4 NVMe Solid State Drive |
1.92TB – 30.72TB Micron 7450 PRO Series U.3 PCIe 4.0 x4 NVMe Solid State Drive (15mm) |
1.92TB – 15.0TB Samsung PM9A3 Series U.2 PCIe 4.0 x4 NVMe Solid State Drive (7mm) |
Compatible Network Cards |
Broadcom NetXtreme 25-Gigabit Ethernet Network Adapter N225P - PCIe 3.0 x8 - OCP 3.0 - 2x SFP28 |
Intel® 10-Gigabit Ethernet Network Adapter X710-T2L - PCIe 3.0 x8 - OCP 3.0 - 2x RJ45 |
Intel® 100-Gigabit Ethernet Network Adapter E810-CQDA - PCIe 4.0 x16 - OCP 3.0 - 1x QSFP28 |
NVIDIA® ConnectX®-6 Dx EN 25-Gigabit Ethernet Adapter - PCIe 4.0 x8 - 2x SFP28 - Secure Boot |
NVIDIA® ConnectX®-6 200-Gigabit HDR InfiniBand Adapter - PCIe 4.0 x16 - 1x QSFP56 |
NVIDIA® ConnectX®-7 200-Gigabit Ethernet Adapter - PCIe 5.0 x16 - 2x QSFP112 - Crypto Enabled |
Compatible Operating System |
Microsoft Windows Server 2022 |
Rocky Linux |
Ubuntu Linux |
Red Hat Enterprise Linux |
