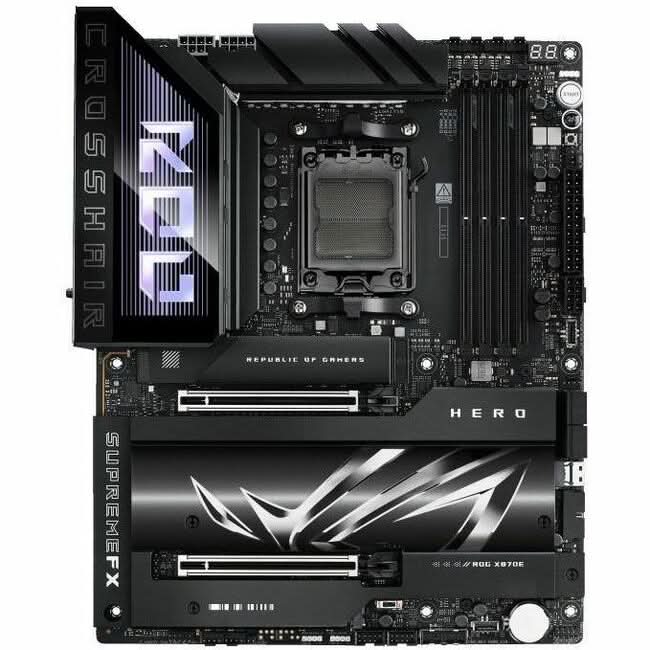

ASUS ROGCROSSHAIRX870EHERO AMD X870E Chipset Socket AM5 ATX Gaming Desktop Motherboard
ROG Crosshair X870E HERO
The AI PC-ready ROG Crosshair X870E Hero offers unyielding power delivery, robust thermal management, hyperspeed connectivity, comprehensive PCIE 5.0 and DDR5 support to unleash the performance of AMD Ryzen™ 9000 Series processors. Dark hues predominate across this motherboard, drawing your attention to premium metallic textures, nickel-plated surfaces, sleek contours and a stereoscopic visual effect on the large M.2 and chipset heatsink. This board also features our Polymo Lighting II effect. This upgraded lighting module built into the I/O shroud provides more dynamic RGB illumination for the signature ROG logo.
ASUS AI INTELLIGENCE | AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed ofWiFi 7.
AI OVERCLOCKING
Tuning is now faster and smarter than ever before.
AI OVERCLOCKING<
- Ryzen 7 processors supported for enhanced, dependable system performance with maximum usability
- DDR5 SDRAM slot for convenient installation of memory
- RAID supported levels provide data reliability and fault tolerance
- Enjoy the freedom of wireless connectivity and get the devices connected faster with IEEE 802.11be wireless standard support
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
Product Specification:
|
Package Contents:
- Crosshair X870E HERO Gaming Desktop Motherboard
- 1 x ARGB RGB extension cable
- 4 x SATA 6Gb/s cables
- 1 x ASUS WiFi Q-Antenna
- 1 x Q-connector
- 2 x M.2 Q-Latch package
- 3 x M.2 Q-Slide package
- 5 x M.2 rubber package
- 1 x ROG stickers
- 1 x ROG thank you card
- 1 x ROG Bottle Opener
- 1 x USB drive with utilities and drivers
- 1 x Quick start guide
|
| Product Type: Gaming Desktop Motherboard |
| Error Checking: ECC |
| Manufacturer Part Number: ROGCROSSHAIRX870EHERO |
| Manufacturer Website Address: http://usa.asus.com |
| Maximum Memory Supported: 192 GB |
| S/Pdif: Yes |
| Limited Warranty: 3 Year |
| Form Factor: ATX |
| Manufacturer: ASUS Computer International |
| Product Model: X870E HERO |
| Product Name: Crosshair X870E HERO Gaming Desktop Motherboard |
| Processor Supported: Ryzen 7,Ryzen 9 |
| Product Line: Crosshair |
| Raid Levels: 0,1,5,10 |
| Total Processor Supported: 1 |
| Controller Type: Serial ATA/600 |
| Processor Socket: Socket AM5 |
| Brand Name: Asus ROG |
| Memory Technology: DDR5 SDRAM |
| Chipset Manufacturer: AMD |
| Chipset Model: X870E |
| Number Of Memory Slots: 4 |
| Audio Channels: 7.1 |
| Bluetooth: Yes |
| Gigabit Ethernet: Yes |
| Wireless Lan: Yes |
| Number Of Sata Interfaces: 4 |
| Wireless Lan Standard: IEEE 802.11be |
| Bluetooth Standard: Bluetooth 5.4 |
| Onboard Video: CPU Dependent Video |
| Raid Supported: Yes |
| Number Of Pci Express X16 Slots: 6 |
| Hdmi: Yes |
| Hdmi Version: 2.1 |
| Vga: Yes |
| Number Of Network (Rj 45) Ports: 2 |
| Displayport: Yes |
| Total Number Of Usb Ports: 10 |
| Total Number Of Onboard Usb Ports: 10 |
| Number Of Onboard Usb 2.0 Ports: 4 |
| Pci Express Standard: PCI Express 4.0,PCI Express 5.0 |
| Total Number Of Pci Express Slots: 6 |
| Memory Form Factor: DIMM,UDIMM |
| Total Number Of Expansion Slots: 6 |
| Number Of M.2 Interfaces: 5 |
| Feature1: Ryzen 7 processors supported for enhanced, dependable system performance with maximum usability |
| Feature2: DDR5 SDRAM slot for convenient installation of memory |
| Feature3: RAID supported levels provide data reliability and fault tolerance |
| Feature4: Enjoy the freedom of wireless connectivity and get the devices connected faster with IEEE 802.11be wireless standard support |
| Feature5: HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display |
| Feature6: DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance |
| Feature7: ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability |
*
