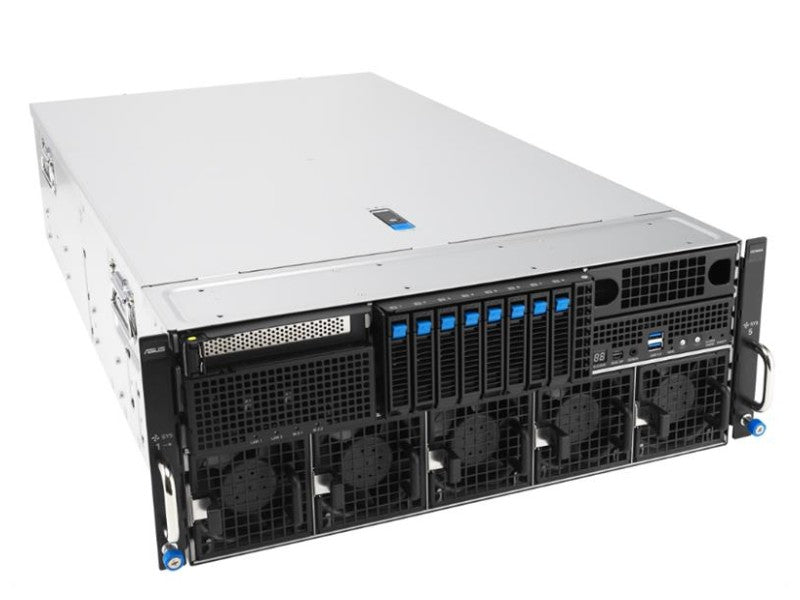

ASUS ESC8000A-E13-32WNR is a 4U rackmount server featuring an AMD EPYC 9005 processor, DDR5 DIMM memory support with 24 slots and up to 3 TB capacity, eight hard drive bays, and redundant 3.2 kW 80 PLUS Titanium power supplies. It includes Gigabit Ethernet connectivity, dedicated management LAN, front and rear I/O interfaces, and enterprise class expandability for high performance computing and data center workloads.
Specifications
Model Number: ESC8000A-E13-32WNR
Brand: ASUS
Alt Part Number(s): ESC8000A-E13-32WNR
Product Type: Server
Technical Description
Brand: ASUS
Model Number: ESC8000A-E13-32WNR
Cabinet Form Factor: 4U
Processor Type: EPYC
Processor Manufacturer: AMD
Processor Number: 9005
Processor Installed Quantity: 1
RAM Technology: DDR5
RAM Form Factor: DIMM
RAM Total Slots Quantity: 24
RAM Maximum Supported Size: 3 TB
Hard Drive Bays Quantity: 8
Networking Type: Ethernet
Data Link Protocol: Gigabit Ethernet
Power Device Type: Power Supply - Redundant
Power Redundant Capable: Yes
Power Provided: 3.2 kW
Power Voltage Required: 220-240 VAC, 50/60 Hz
80 PLUS Certification: 80 PLUS Titanium
Interfaces & Connections: Front I/O Ports: 1 x Mini DisplayPort; 2 x USB 5Gbps Ports; 1 x Debug Port; Rear I/O Ports: 1 x USB 5Gbps Port; 1 x RJ-45 Management LAN Port
Front I/O Ports: 1 x Mini DisplayPort; 2 x USB 5Gbps Ports; 1 x Debug Port
Rear I/O Ports: 1 x USB 5Gbps Port; 1 x RJ-45 Management LAN Port
Width: 31.5 Inch
Depth: 17.3 Inch
Height: 6.9 Inch
Weight: 42 kg
Minimum Operating Temperature: 10°C
Maximum Operating Temperature: 35°C
Operating Humidity Range: 20% to 85% (Non-Condensing)
Country of Origin: China
TAA Compliance: No
UNSPSC Code: 43211501
