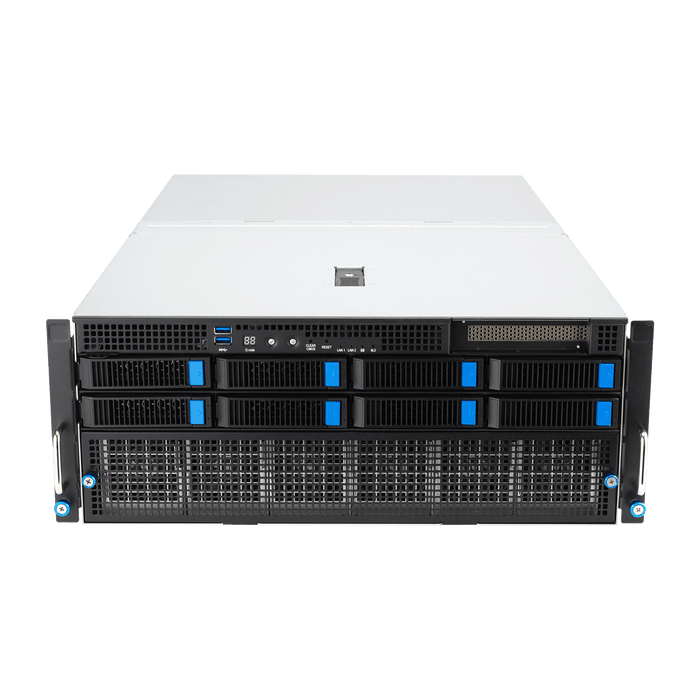

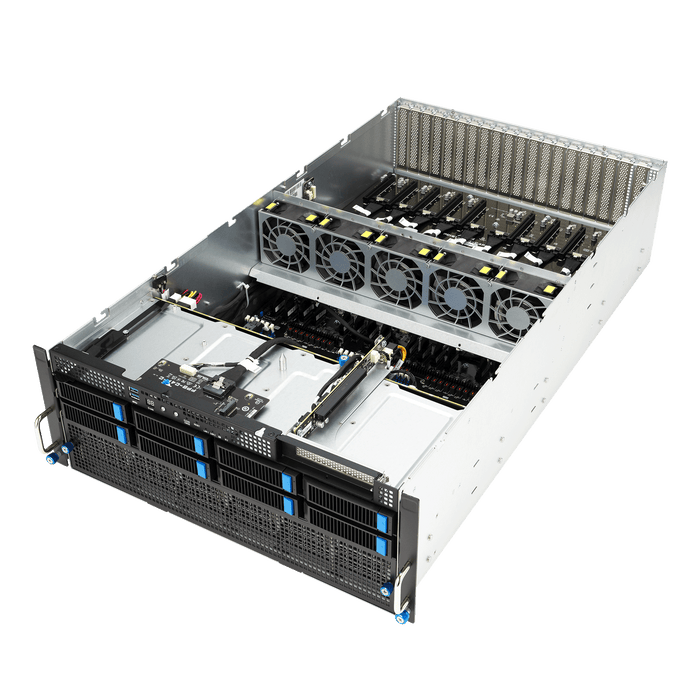

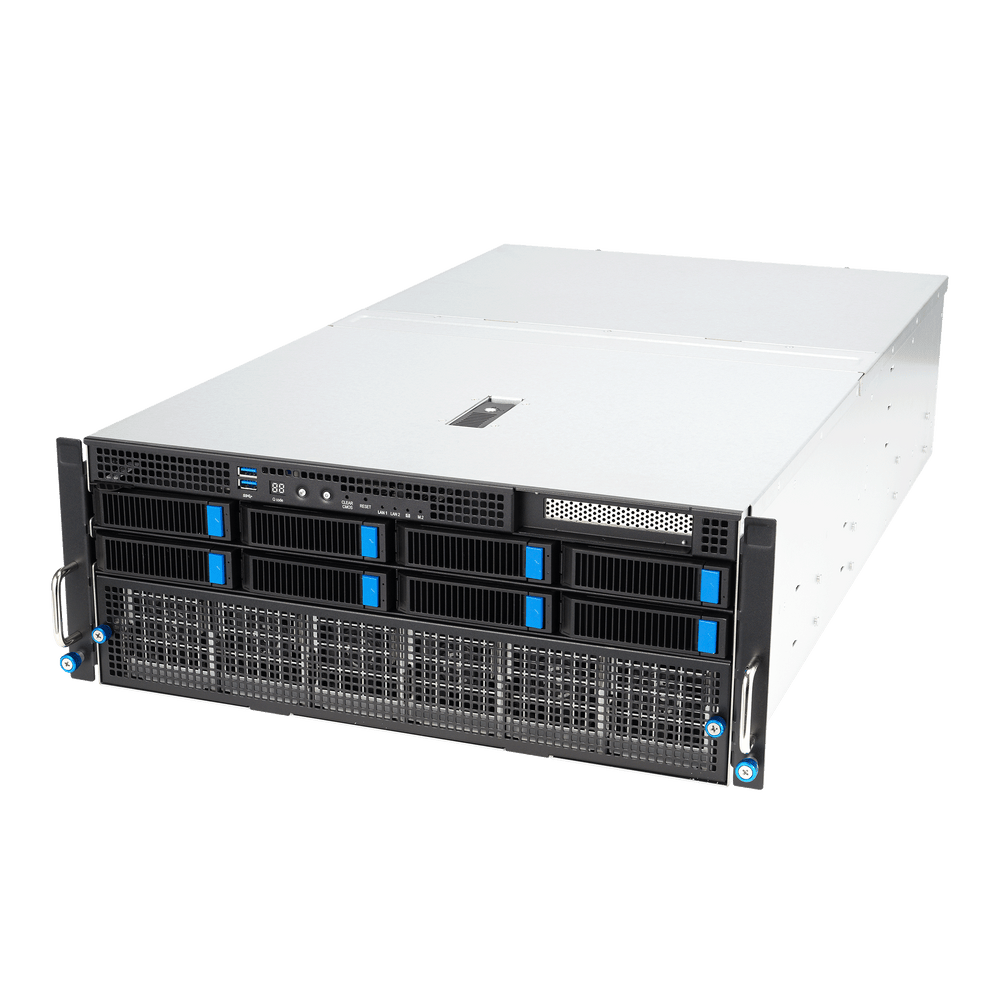

ASUS ESC8000A-E12-26W10G features dual LGA 6096 sockets supporting AMD EPYC 9004 series processors with 3D V-Cache and 24 DDR5 RDIMM or 3DS RDIMM slots up to 4800 MT/s for a maximum of 3TB per socket. It offers 8 PCIe Gen5 x16 slots with high-density GPU support, optional OCP 3.0 NIC, Broadcom MegaRAID or ASUS PIKE II HBA options, dual 10GbE or 1GbE LAN, ASMB11-iKVM remote management, USB 3.2 and VGA front I/O, and 2+2 redundant 2600W or 3000W Titanium power supplies.
Specifications
Model Number: ESC8000A-E12-26W10G
Brand: ASUS
Alt Part Number(s): ESC8000A-E12-26W10G
Product Type: Server
Technical Description
Brand: ASUS
Model: ESC8000A-E12-26W10G
CPU Sockets: Dual socket (LGA 6096)
Processor Support: AMD EPYC 9004 series (up to 400W)
Architecture Feature: AMD 3D V-Cache support
Total DIMM Slots: 24 (12 per CPU)
Memory Channels: 12-channel per CPU
Max Capacity: Up to 3TB per socket
Memory Type: DDR5 RDIMM / 3DS RDIMM
Memory Speed: Up to 4800 MT/s
PCIe Slots: 8 × PCIe Gen5 x16 (FHFL, GPU capable)
Multi-GPU Support: Yes (high-density GPU support)
OCP Support: OCP 3.0 NIC (optional SKU-3)
RAID Support: Broadcom MegaRAID (9560-16i / 9540-8i options)
HBA Options: ASUS PIKE II series
LAN Options: Dual 10GbE (Intel X710-AT2) or dual 1GbE
Dedicated Management Port: Yes (RJ45)
Remote Management: ASMB11-iKVM (AST2600 BMC)
Front I/O: USB 3.2 + VGA
Form Factor: 4U rack-mounted
Power Supply: 2+2 redundant 2600W/3000W Titanium
