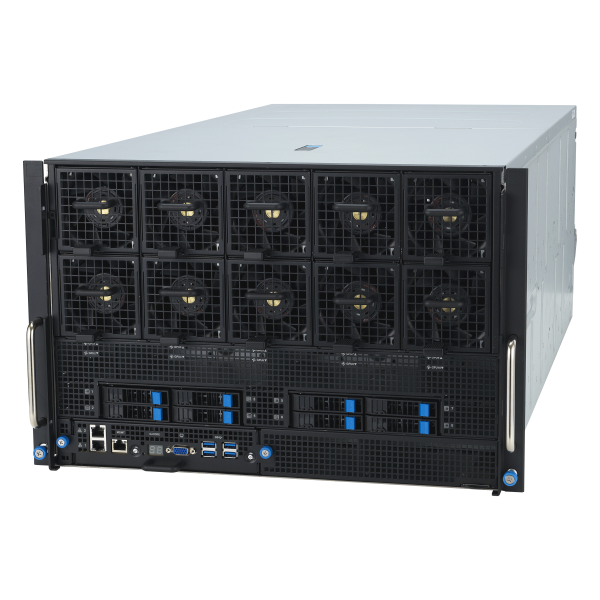

ASUS ESC A8A-E12U series GPU Server features dual AMD EPYC 9005 and 9004 Series processors, support for up to 3TB of DDR5-6400 RDIMM memory across 24 DIMM slots, and a 7U chassis with extensive PCIe Gen5 expansion. It includes dual 10 Gigabit Ethernet networking, 5 plus 1 redundant 3000W 80 PLUS Titanium power supplies, ASUS remote management, and enterprise class reliability for AI, HPC, and GPU accelerated workloads.
Specifications
Model Number: ESC A8A-E12U
Brand: ASUS
Alt Part Number(s): ESC A8A-E12U
Product Type: GPU Server
Technical Description
Brand: ASUS
Model Number: ESC A8A-E12U
Processor: 2 x AMD EPYC 9005/9004 Series Processors
Processor TDP: Up to 400W
Memory Slots: 24 x DDR5 DIMM
Memory Speed: Up to 6400MHz 1DPC
Memory Channels: 12-channel per CPU
Memory Per CPU: 12 DIMM per CPU
Maximum Memory: 3TB
Memory Type: DDR5-6400 RDIMM; DDR5-5600 RDIMM
Memory Capacity Supported: 64GB; 96GB; 128GB
Expansion Slots: 8 x PCIe Gen5 x16 Low Profile Half Length; 1 x PCIe Gen5 x16 Full Height Half Length; 1 x PCIe Gen5 x8 Full Height Half Length; 1 x PCIe Gen5 x16 Full Height Half Length CPU2
Networking: 2 x 10 Gigabit RJ45 LAN Intel X710-AT2 Controller; 1 x Management Port
Front USB Ports: 4 x USB 3.2 Gen1
Front VGA Ports: 1 x VGA
Front LAN Ports: 2 x 10Gb RJ45 Intel X710 Based
Management LAN Ports: 1 x Management LAN
Front Buttons: 1 x Locate Button; 1 x Power Button
Rear Buttons: 1 x Locate Button; 1 x Power Button
Front LEDs: 1 x Power Button LED; 1 x Location Button LED; 1 x Message LED; 1 x Q-Code Port 80 LED
Rear LEDs: 1 x Location LED; 1 x Power Button LED
Management: ASUS Control Center; ASUS ASMB11-iKVM On-board
Regulatory Compliance: BSMI; CB; CE; FCC
Dimensions: 885mm x 447mm x 306.65mm
Form Factor: 7U
Net Weight: 108kg
Gross Weight: 142.4kg
Power Supply: 5+1 Redundant 3000W 80 PLUS Titanium PSU
Operating Temperature: 10°C to 35°C
Non-Operating Temperature: -40°C to 70°C
Non-Operating Humidity: 20% to 90% Non-Condensing
