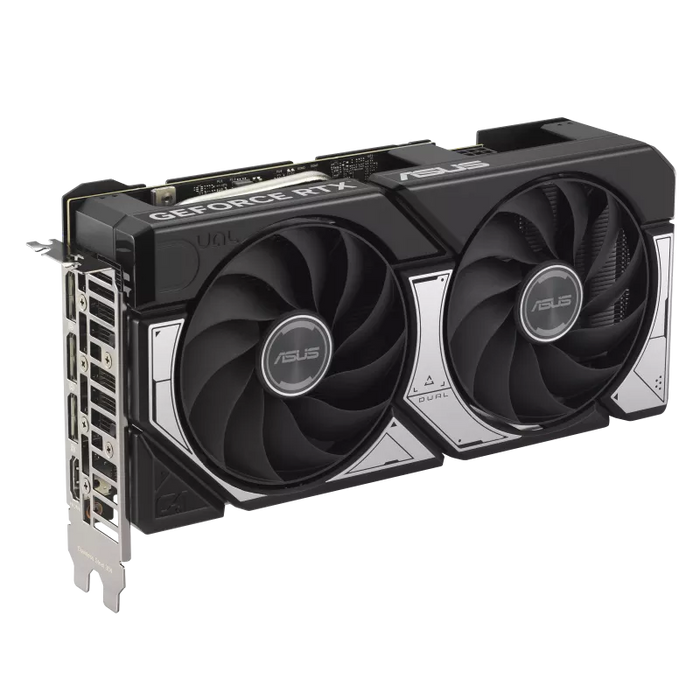

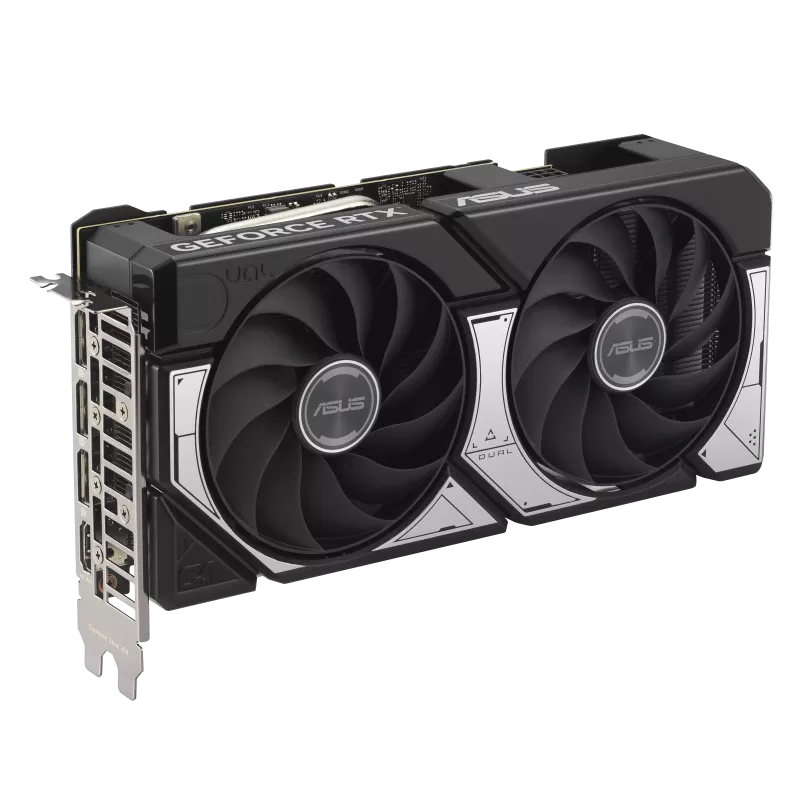

Built for a modern desktop graphics upgrade, the ASUS Dual RTX 5060 Ti pairs 16GB of GDDR7 memory with a compact 2.5-slot design. Its listed display outputs support a flexible multi-monitor arrangement, while the PCI Express 5.0 interface makes the card relevant to current-generation builds. Check case clearance and power connections before choosing it for an existing PC.
Key Features
- 16GB graphics memory for demanding visual workloads
- Four-display output capability
- Dual-series card sized for space-conscious builds
Product Specifications
- Brand: ASUS
- Graphics Processor: NVIDIA GeForce RTX 5060 Ti
- Video Memory: 16GB GDDR7
- Memory Interface: 128-bit
- Memory Speed: 28Gbps
- CUDA Cores: 4608
- Default Boost Clock: 2602MHz
- OC Mode Clock: 2632MHz
- Bus Interface: PCI Express 5.0
- Display Outputs: 1 x HDMI 2.1b; 3 x DisplayPort 2.1b
- Maximum Displays: 4
- Maximum Digital Resolution: 7680 x 4320
- Power Connector: 1 x 8-pin
- Recommended Power Supply: 550W
- Dimensions: 229 x 120 x 50mm
- Slot Width: 2.5 slots
- HDCP Support: 2.3
Use Cases
Consider it for a gaming or content-creation desktop that needs substantial dedicated graphics memory and several display connections.
Compatibility
Confirm a suitable PCI Express slot, an available 8-pin power connector, sufficient case clearance, and an appropriately sized power supply.
Frequently Asked Questions
- How many monitors can this card support?
- The product information lists support for up to four displays.
- What space does it occupy in a case?
- The card is listed as 229 x 120 x 50mm and 2.5 slots wide.
This ASUS card offers a clear upgrade path for a desktop whose graphics demands have outgrown its current hardware. Compare its physical size, display connections, and power requirements with your build first so the upgrade arrives ready to fit.
