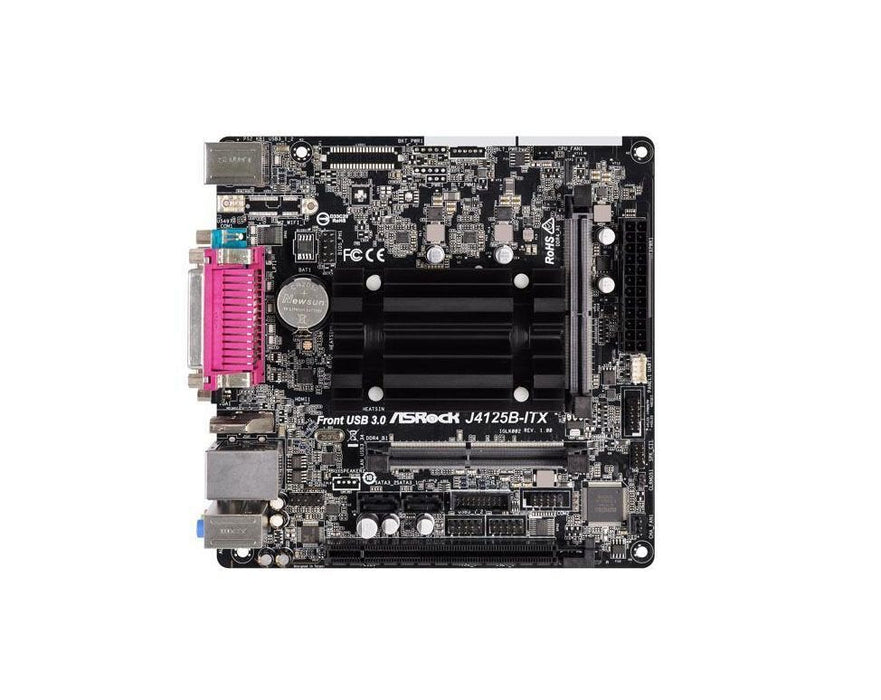

The J4125B-ITX answers a question more builders ask every year: how small, quiet and cheap can a genuinely useful computer be? With an Intel Celeron J4125 soldered directly to the board, quad-core processing arrives with a 10-watt thermal envelope, so the finished system sips power around the clock in a closet, on a shelf or behind a counter. Two DDR4 SO-DIMM slots, M.2 and SATA storage, USB 3.2 Gen1, Gigabit LAN and 7.1-channel HD audio cover everything a compact NAS, kiosk, point-of-sale terminal or everyday desktop needs, and the Mini-ITX footprint means the whole build fits in a case the size of a shoebox, or less.
Key Features
- Integrated Intel Celeron J4125, quad-core with four threads up to 2.7GHz
- 10-watt processor TDP for silent, always-on builds
- Intel UHD Graphics 600 with HDMI, DisplayPort and D-Sub outputs
- Two DDR4 SO-DIMM slots in a dual-channel layout
- Onboard M.2 slot plus SATA 6Gb/s connectors
- USB 3.2 Gen1 and Gigabit Ethernet networking
- COM and TPM headers for industrial and secure deployments
Product Specifications
- Processor: Intel Celeron J4125, 4 cores / 4 threads, 2.0GHz base up to 2.7GHz burst, 10W TDP, integrated design
- Graphics: Intel UHD Graphics 600 with hardware-accelerated 4K media playback
- Display Outputs: 1x HDMI 2.0a, 1x DisplayPort 1.2, 1x D-Sub, supporting multiple independent displays
- Memory: 2x DDR4 2400 SO-DIMM slots, dual-channel
- Storage: onboard M.2 slot for SSDs (2242/2260/2280), 2x SATA 6Gb/s connectors
- USB: USB 3.2 Gen1 and USB 2.0 rear ports with additional internal headers
- Networking: Gigabit Ethernet LAN
- Audio: 7.1-channel HD audio
- Headers: COM port header, TPM header, fan headers
- Form Factor: Mini-ITX, 17.0 x 17.0 cm
Use Cases
This board shines as the heart of a low-draw home NAS or file server that runs 24/7 without heating a room, and it is equally at home in a digital-signage player or kiosk where the COM header and TPM support matter as much as the price. Office builders turn it into compact productivity desktops, media fans use the UHD 600 engine for 4K playback, and tinkerers appreciate a platform cool enough to run with slow, silent fans or in fanless-style enclosures.
Compatibility
The integrated Intel Celeron J4125 cannot be swapped, so planning starts with memory and storage: any DDR4 2400 SO-DIMM modules in the two dual-channel slots, plus SSDs on the M.2 slot or SATA ports. The platform is supported by current Windows and Linux operating systems, drives 4K displays over HDMI 2.0a, and fits any standard Mini-ITX chassis.
Frequently Asked Questions
- Can I upgrade the processor?
- No. The Celeron J4125 is soldered to the board, which is part of how the platform achieves its low power draw and compact cooling needs.
- Does it support 4K video?
- Yes. Intel UHD Graphics 600 decodes 4K media, and the HDMI 2.0a output carries it to modern displays.
- Is it good for a NAS?
- It is a popular NAS choice thanks to its 10W draw, dual SATA ports and always-on efficiency, with the M.2 slot available for a cache or boot SSD.
- Can it run silent?
- Yes. With a 10-watt processor the whole platform runs cool, so quiet fan setups and even fanless-style passive builds are practical.
There is a certain satisfaction in a build where every watt and every dollar does visible work. The J4125B-ITX packs a complete quad-core system, dual-channel memory, modern storage and full display flexibility onto a board smaller than a sheet of paper, making it one of the easiest ways to put a dependable, quiet, always-on computer almost anywhere.
