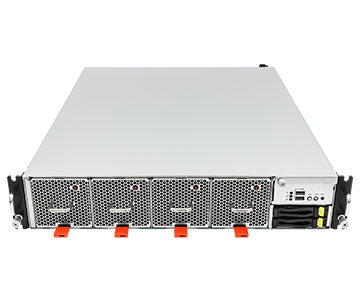

ASRock 2U2G-TURIN/HPR is a 2U rackmount server featuring a single Socket SP5 platform supporting AMD EPYC 9005, 9004, and 97x4 series processors with up to 500 W TDP, 12 DDR5 RDIMM slots supporting up to 6400 MHz, and dual hot swap NVMe drive bays with PCIe 4.0 x4 connectivity. It includes support for up to two high performance GPUs, PCIe 5.0 expansion, redundant 80 PLUS Titanium power supplies, ASPEED AST2600 remote management, and enterprise class storage and networking for AI, HPC, and data center workloads.
Specifications
Model Number: 2U2G-TURIN/HPR
Brand: ASRock
Alt Part Number(s): 2U2G-TURIN/HPR
Product Type: Server
Technical Description
Brand: ASRock
Model Number: 2U2G-TURIN/HPR
Form Factor: 2U Rackmount
Support Motherboard: TURIND12M3/N/500W
Buttons: Power Button with LED; UID Button with LED; System Reset
LEDs: HDD Activity; System Event LED
Front I/O Ports: 2 x USB 3.2 Gen1 Type-A
Front Side Drive Bays: 2 Hot-Swap 2.5-inch NVMe (PCIe 4.0 x4) Drive Bays
Front Side Backplane: 2-Port NVMe Passive Backplane
Internal Storage: 2 x M-Key; PCIe 5.0 x4 or 4 x SATA 6Gb/s; Supports 22110; 2280; 2260 Form Factors
Power Supply: 1+1 Hot-Swap CRPS
Power Output Rating: 1000 W at 100-127 VAC Input; 2700 W at 200-240 VAC Input
Power Supply Efficiency: 80 PLUS Titanium
AC Input: 100-127 VAC, 50/60 Hz; 200-240 VAC, 50/60 Hz
System Fans: 4 x Front PWM Hot-Swap 80 x 56 mm Fans; 1 x Middle PWM Fixed 40 x 28 mm Fan
GPU Support: Supports 2 GPU and Accelerator Cards; Up to 600 W Each at 25°C Ambient; Up to 400 W Each at 35°C Ambient
CPU Support: AMD EPYC 9005/9004 with AMD 3D V-Cache Technology; AMD EPYC 97x4 Series
Socket Type: Single Socket SP5 (LGA 6096P)
Thermal Design Power (TDP): Up to 500 W
Chipset: System on Chip
Number of DIMM Slots: 12 (1DPC)
Supported Memory: DDR5 288-pin RDIMM; RDIMM-3DS
Maximum Memory Capacity: 128 GB per RDIMM (2Rx4); 256 GB per RDIMM-3DS (2Rx4)
Maximum Memory Speed: 6400 MHz
Memory Voltage: 1.1 V
PCIe x16 Slots: 2 x FHFL Dual-Slot PCIe 5.0 x16; 1 x HHHL PCIe 5.0 x16
TPM Support: TPM-SPI
OCP Slot: 1 x OCP NIC 3.0 (PCIe 5.0 x16)
BMC Controller: ASPEED AST2600
Dedicated IPMI LAN: 1 x Realtek RTL8211F Gigabit LAN
Graphics Controller: ASPEED AST2600
Graphics Memory: 512 MB DDR4 VRAM
Video Port: 1 x DB15 (VGA)
Serial Port: 1 x DB9 (COM)
Rear USB Ports: 2 x USB 3.2 Gen1 Type-A
RJ45 Port: 1 Dedicated IPMI
BIOS Type: AMI UEFI BIOS; 256 Mb (32 MB) SPI Flash ROM
BIOS Features: ASRock Rack Instant Flash; ACPI 6.4 and Above Compliance Wake Up Events; SMBIOS 3.5.0 and Above; Plug and Play (PnP)
Temperature Monitoring: CPU Temperature Sensing; Memory Temperature Sensing
Fan Monitoring: CPU/Rear/Front Fan Tachometer; CPU Quiet Fan; CPU/Rear/Front Fan Multi-Speed Control
Voltage Monitoring: VOLT_3VSB; VOLT_5VSB; VOLT_VCORE0; VOLT_VCORE1; VOLT_P0_VSOC; VOLT_VDD_11; VOLT_VDDIO; VOLT_VDD_33; VOLT_VDD_18; VOLT_BAT; VOLT_3V; VOLT_5V; VOLT_12V
Operating Temperature: 10°C to 35°C
Non-Operating Temperature: -40°C to 70°C
Non-Operating Humidity: 20% to 90% (Non-Condensing)
Dimensions: 44 x 34 x 17 in
Weight: 183 lb
