PLEASE NOTE: Fan & Power Supplies not included & must be purchased separately.
Cisco ASR 9000 Series Aggregation Services Routers deliver industry-leading scalability, carrier-class reliability, and modular power efficiency for next-generation edge and core networks. Running on Cisco IOS XR, this high-performance router platform supports advanced features like network virtualization (nV), hierarchical QoS, SyncE, and IPv6 transition readiness. With fully distributed architecture, redundant hardware, and optimized power and cooling design, the ASR 9000 Series ensures high availability and low TCO, making it ideal for service providers seeking robust mobile aggregation, video delivery, and cloud-ready infrastructure.
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
| Specification Category |
Details |

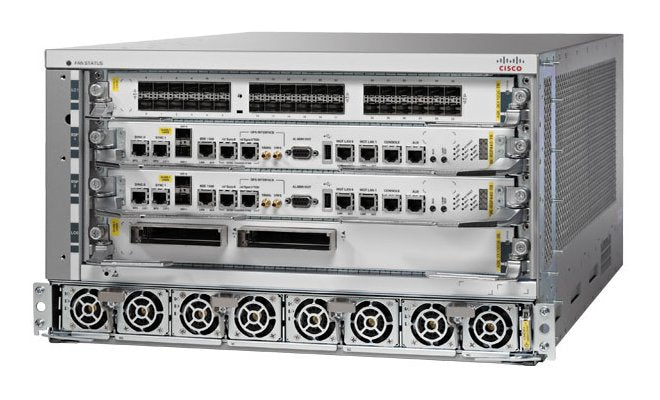

| Model Number |
ASR-9904 |
| Description |
High-capacity modular chassis from Cisco ASR 9000 Series, designed for scalability, high availability, and service provider-grade performance. |
| Chassis Dimensions |
Height: 10.38 inches (26.36 cm)Width: 17.50 inches (44.45 cm)Depth: 20.60 inches (52.32 cm) |
| Slot Configuration |
Route Switch Processor (RSP) Slots: 2Line Card Slots: 2Fabric Card Slots: 2 |
| Performance |
Total Throughput Capacity: Up to 6.4 TbpsPer-Slot Bandwidth: Up to 3.2 Tbps |
| Redundancy & Availability |
Supports redundant RSPs and fabric cardsHot-swappable modules and power supplies |
| Environmental Specs |
Operating Temp: 41°F to 104°F (5°C to 40°C)Relative Humidity: 5% to 85% non-condensing |
| Power Requirements |
Input Voltage: -40 to -72 VDCPower consumption varies by configuration |
| Advanced Features |
Modular and scalable platformCarrier-grade reliabilityHigh energy efficiency for reduced operational cost |
| Compatibility |
Compatible with Cisco IOS XR and ASR 9000 Series line cards and modules |
FAQs:
What is the maximum throughput capacity of the Cisco ASR-9904 Router Chassis?
The ASR-9904 supports up to 6.4 Tbps of total throughput, providing high-performance routing capabilities for demanding network environments.
How many line card slots are available in the ASR-9904 chassis?
The chassis offers 2 line card slots, allowing for flexible and scalable network configurations.
Does the ASR-9904 support redundant components for high availability?
Yes, it supports redundant Route Switch Processors (RSPs) and fabric cards, along with hot-swappable modules and power supplies to ensure continuous operation.
What are the power requirements for the ASR-9904 chassis?
The chassis requires an input voltage of -40 to -72 VDC, with power consumption varying based on the specific configuration.
Is the ASR-9904 suitable for deployment in varying environmental conditions?
The router operates within a temperature range of 41°F to 104°F (5°C to 40°C) and supports relative humidity levels from 5% to 85% non-condensing, making it adaptable to diverse environments.
