PLEASE NOTE - CHASSIS ONLY - POWER SUPPLIES & FANS NOT INCLUDED & MUST PURCHASED SEPARATELY.

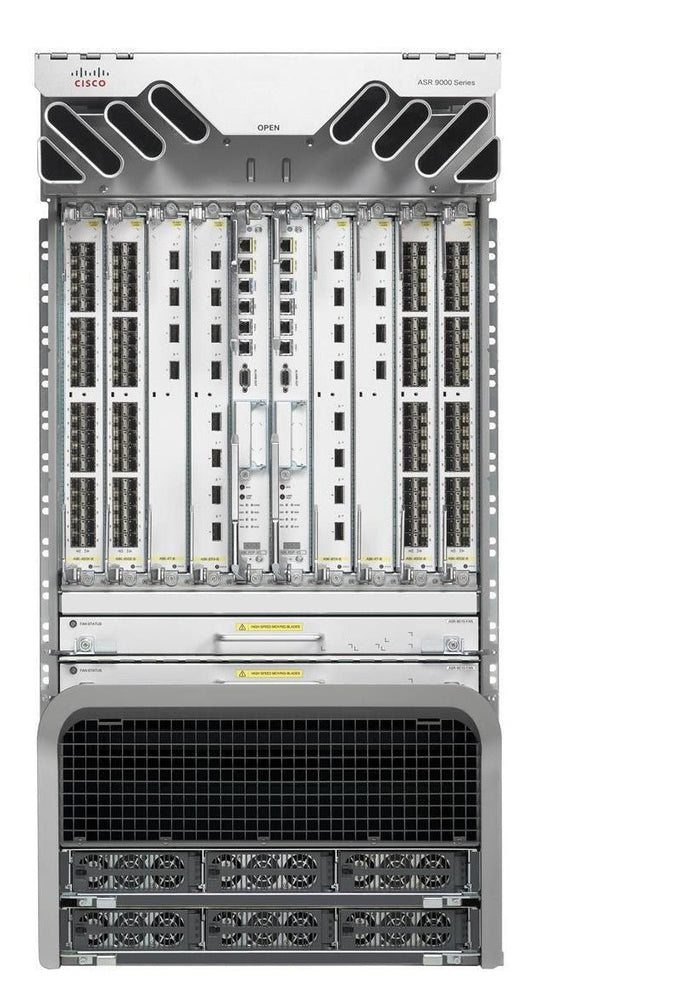

The Cisco ASR-9010-AC-V2 Aggregation Services Router is a high-performance, carrier-grade solution built for the most demanding network environments. Featuring exceptional scalability, this advanced modular chassis supports up to 8 line cards and 2 route processors, delivering up to 14 Tbps switching capacity for next-generation bandwidth needs. Its energy-efficient power modules and advanced cooling systems ensure optimal performance even under heavy loads, while full hardware redundancy minimizes downtime in mission-critical deployments.
With support for 10GE and 100GE high-density Ethernet interfaces, the ASR-9010-AC-V2 is ideal for large enterprises and service providers seeking to expand network capacity or aggregate high-throughput links. Powered by the robust Cisco IOS XR operating system, this router offers advanced routing, MPLS/VPN, and comprehensive quality of service (QoS) features, giving you the flexibility to support complex, multi-service architectures.
Designed to simplify network management, the ASR-9010-AC-V2 integrates seamlessly into existing infrastructures with CLI, SNMP, and web-based interfaces, ensuring streamlined operations and rapid service deployment. Its durable 21RU chassis fits standard racks, and the modular design provides room to grow as network demands increase. Choose the Cisco ASR-9010-AC-V2 for a reliable, future-ready router that combines high bandwidth, outstanding reliability, and comprehensive feature sets to power today’s and tomorrow’s hyper-connected environments.
Part Number: ASR-9010-AC-V2
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
| Specification |
Details |
| Product Name |
Cisco ASR-9010-AC-V2, ASR 9010 AC Chassis with PEM Version 2 |
| Form Factor |
Modular 21RU rack-mount chassis; adaptable for 19"/21"/23" racks |
| Slots |
8 Line Cards, 2 Route Switch Processors (RSPs) |
| Line Card Capacity |
880 Gbps per slot |
| Max System Capacity |
14 Tbps |
| Dimensions (H × W × D) |
36.75 in (933.45 mm) × 17.38 in (441.45 mm) × 29.03 in (737.4 mm, with doors) |
| Weight |
155.6 lb (70.73 kg, chassis with PEM), 231.6 lb (105.27 kg, fully loaded, no line cards/power mods) |
| Slot Orientation |
Vertical |
| Power (AC) |
6 kW or 3 kW AC PEMs; Worldwide support 200–240V AC, 16A max |
| Power (DC) |
4.4 kW/2.1 kW DC PEMs; not mixable with AC modules |
| Power Module Redundancy |
AC: N+N; DC: N+1; Fully load-sharing infrastructure |
| Cooling |
2 fan trays (12 high-efficiency, variable-speed fans per tray); front-to-back airflow |
| Environmental Specs |
Operating: 5–40°C (41–104°F); Short-term: -5–50°C (23–122°F); Storage: -40–70°C (-40–158°F) |
| Humidity |
Operating: 5–90% RH; Storage: 5–93% RH |
| Altitude |
-60 to 4000 m (up to 2000m conforms to safety standards) |
| Redundancy |
Fully redundant power supplies, fan trays, PEMs, RSPs, fabric modules, and software |
| Network Interfaces |
Modular; supports 10GE, 40GE, 100GE, and more via line cards (not included in chassis base) |
| Management |
CLI, SNMP, web management; integrated Cisco IOS XR OS |
| Advanced Features |
MPLS, VPN, QoS, Ethernet OAM, advanced timing (PTP/SyncE), IPv4/IPv6, Segment Routing |
| Regulatory Compliance |
NEBS (SR-3580, GR-1089, GR-63), EN300 386/ETSI 300 019, FCC Class A, VCCI, BSMI, IEC/EN standards |
| Accessories |
ASR-9010 Fan Trays, Air Filter, PEMs, compatible line cards/RSPs (sold separately) |
| Mounting |
Rack mount (19", 21", 23" adapters available) |
FAQs for Cisco ASR 9010
What is the primary function of the ASR 9010?
It serves as a high-performance modular router for service provider and enterprise networks.
What routing protocols does it support?
It supports advanced routing protocols, including BGP, OSPF, IS-IS, and MPLS.
How does the ASR 9010 improve network scalability?
It offers high-density Ethernet line cards and advanced traffic management features.
Is this router suitable for data center deployments?
Yes, it is designed for carrier-grade reliability and large-scale data center applications.
What management options are available?
It supports CLI, SNMP, and Cisco IOS XR for streamlined network operations.
