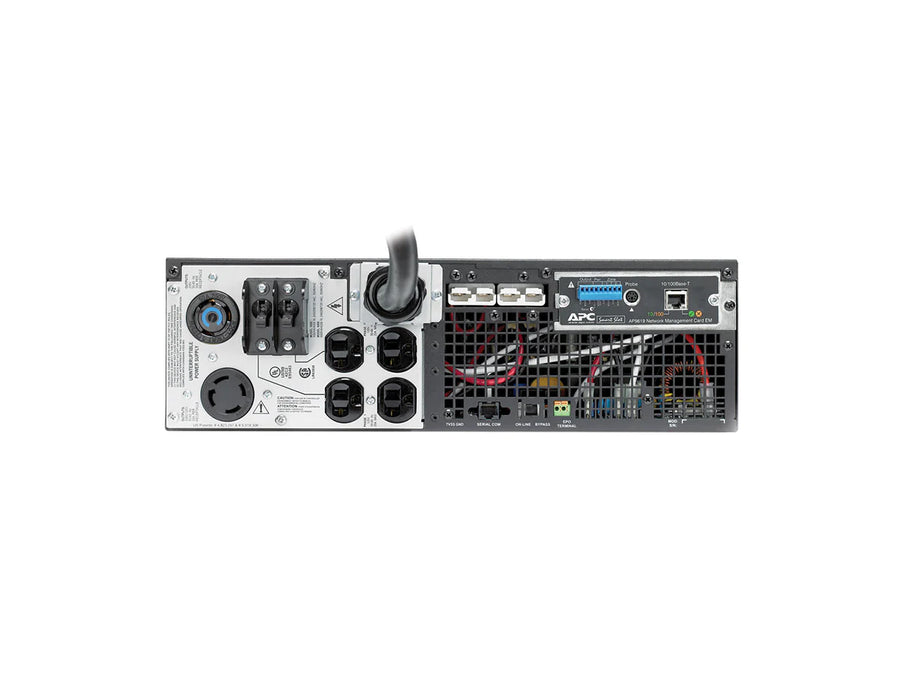

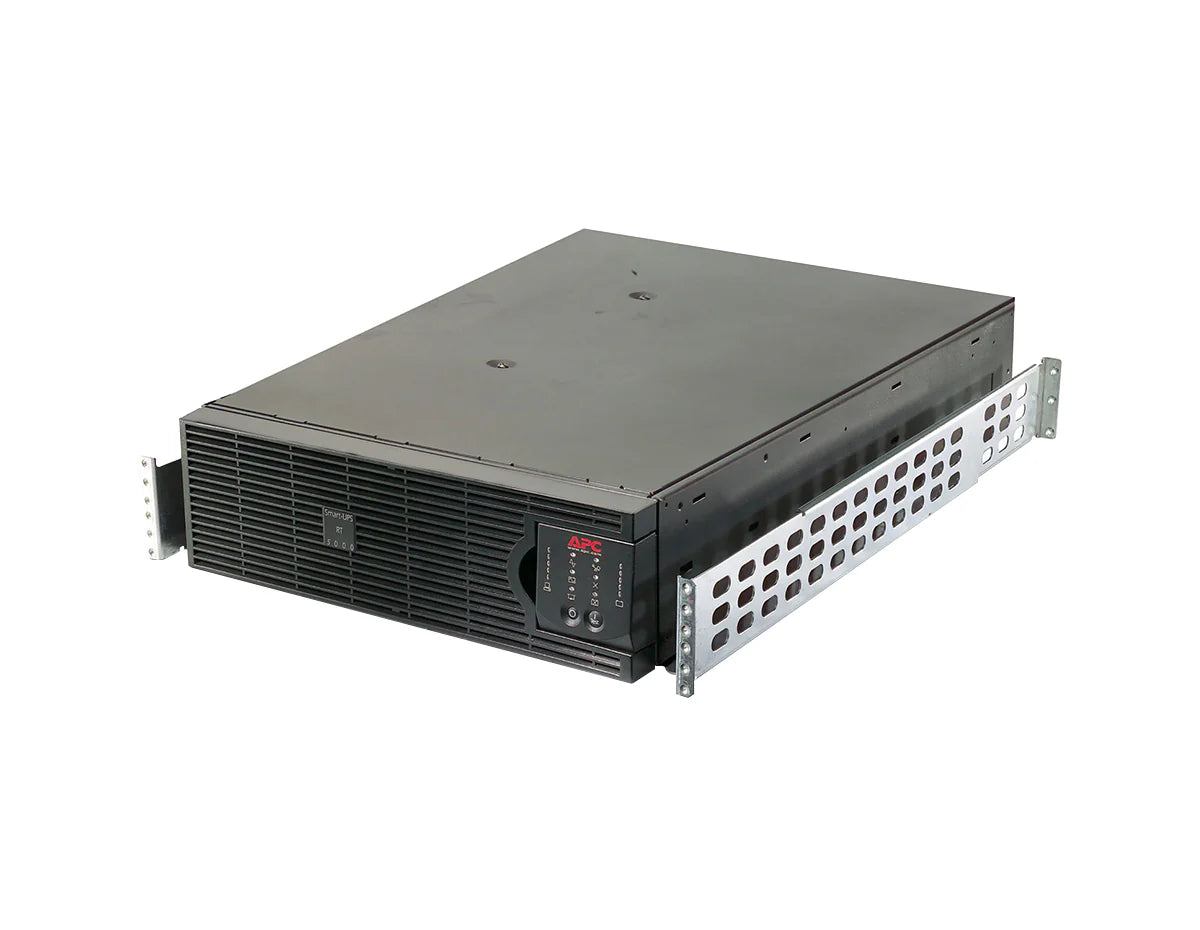

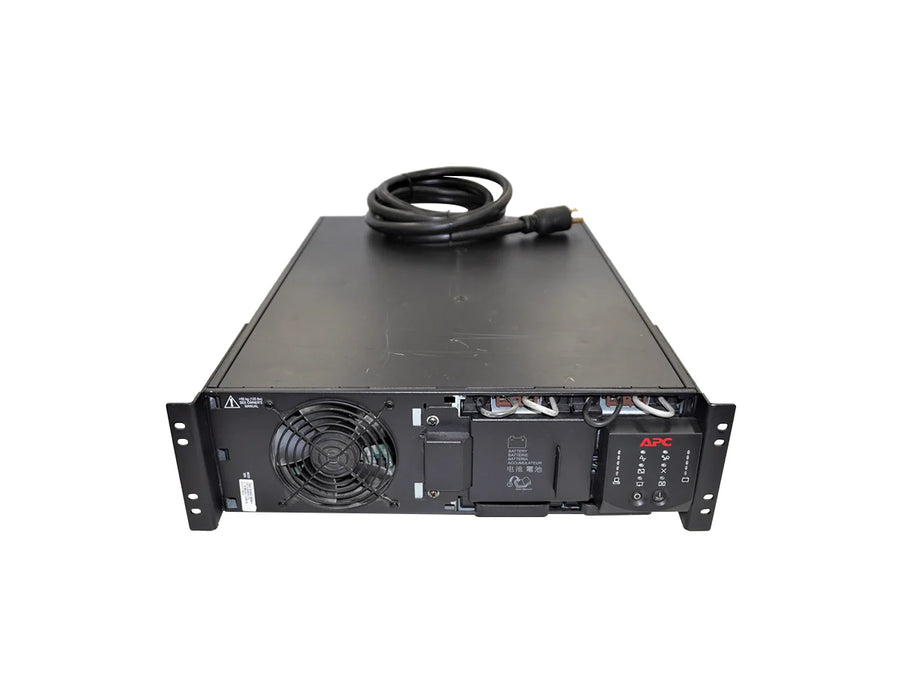

APC SURTD5000RMXLP3U - Smart-UPS RT 5kVA 3U Rack UPS
Clique ou role para ampliar
Toque ou belisque para ampliar
APC SURTD5000RMXLP3U - Smart-UPS RT 5kVA 3U Rack UPS
Clique ou role para ampliar
Toque ou belisque para ampliar
APC SURTD5000RMXLP3U - Smart-UPS RT 5kVA 3U Rack UPS
APC SURTD5000RMXLP3U - Smart-UPS RT 5kVA 3U Rack UPS

APC SURTD5000RMXLP3U - Smart-UPS RT 5kVA 3U Rack UPS

por APC
Desconto de 32%
R$ 145.680,00
R$ 98.616,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] 5000VA / 4000W, Double-Conversion Online, 3U Rackmount, 4x 5-20R + 1x L6-30R + 1x L14-30R Outlets, Split-Phase 208/240V to 120V, Pre-installed NMC 2 [/shortdesc]

[properties]

Brand APC by Schneider Electric
Model SURTD5000RMXLP3U
Product Type Smart-UPS RT, Double Conversion
Form Factor Rackmount 3U
Dimensions (H x W x D) 5.1" x 17.008" x 26.0" (130 x 432 x 660 mm)
Weight 128.0005 lb (58.06 kg)
Color Black
Number of Rack Units 3U
Cable Length 10 ft (3.05 m)
Cooling Not specified
[/properties]

[specifications]

Capacity 5000 VA / 4000 W
Input Voltage 208 V (other: 240 V) • Adjustable: 85–136 V / 156–236 V
Input Connection Type NEMA L14-30P
Input Frequency 50/60 Hz ±5 Hz auto-sensing
Output Voltage 120 V, 208 V (other: 240 V)
Output Connections 4 × NEMA 5-20R, 1 × NEMA L6-30R, 1 × NEMA L14-30R
Waveform Type Sine wave
Topology Double Conversion On-Line
Transfer Time 0 ms (on-line)
Bypass Type Internal Bypass (Automatic and Manual)
Crest Factor 3:1
Harmonic Distortion <2%
Battery Type Lead-Acid • 2 Battery Modules Included • Voltage: Not specified • Recharge: 2.5 h • Life: 3–5 years • RBC Qty: 1 • Replacement: APCRBC140 • Charge power: 382 W rated
Extendable Runtime Yes
Surge Energy Rating 365 J
Acoustic Noise 55 dBA
Thermal Dissipation 1589 BTU/h
Operating Temperature 0–40 °C (32–104 °F)
Operating Humidity 0–95% non-condensing
Altitude 0–10,000 ft operating
Communications RS-232, EPO, Audible alarms, Pre-installed Network Management Card 2 with environmental monitoring
Certifications CSA
Warranty 2 years repair or replace
[/specifications]

[accesories]

Rack Mounting Support Rails Included in the box
Removable Support Feet Included in the box
RS-232 Cable Included in the box
User Manual Included in the box
CD with Software Included in the box
Warranty Card Not specified
[/accesories]

The APC Smart-UPS RT SURTD5000RMXLP3U delivers 5000VA / 4000W of true online double-conversion power in a compact 3U rack form. Featuring split-phase input with 208/240V conversion to 120V, it supports mixed equipment loads. With scalable runtime, internal bypass, and a pre-installed Network Management Card 2, it ensures maximum uptime and advanced power management for critical IT and network environments.

  • Double-Conversion Online: Maintains pure sine wave output, filtering out power disturbances.
  • Flexible Power Output: 208/240V input with split-phase conversion to 120V for diverse load compatibility.
  • Comprehensive Outlets: 4x NEMA 5-20R, 1x L6-30R, and 1x L14-30R for multiple device types.
  • Scalable Runtime: Extendable with external battery modules for longer backup support.
  • Embedded NMC 2: Provides environmental monitoring and remote network management.

The SURTD5000RMXLP3U employs double-conversion topology, converting AC to DC and back to AC, ensuring a clean and stable sine wave output. This isolates connected devices from surges, sags, and harmonics, providing continuous protection for sensitive loads.

Its split-phase design allows it to accept 208/240V input and provide both 208V and 120V outputs, enabling it to power diverse equipment within the same deployment. The UPS includes a 10 ft NEMA L14-30P input cable and multiple output receptacles, giving installation teams flexibility in connecting various IT and network hardware.

The pre-installed Network Management Card 2 supports secure remote monitoring and environmental data integration. Internal automatic/manual bypass ensures uptime during service or anomalies, while intelligent alarms help operators respond to issues promptly.

  • Enterprise server racks and storage arrays
  • Mixed-voltage network hardware deployments
  • Healthcare and laboratory IT systems
  • Industrial environments requiring split-phase power distribution

Q1: How is the SURTD5000RMXLP3U installed?
A: It is a 3U rackmount UPS with support rails and removable feet. Input uses NEMA L14-30P, outputs include 4x 5-20R, 1x L6-30R, and 1x L14-30R.

Q2: What performance and runtime can I expect?
A: The UPS provides 5000VA / 4000W capacity. Runtime varies by load and can be extended with external battery modules.

Q3: How can the UPS be managed?
A: It includes a pre-installed Network Management Card 2 for remote management, environmental monitoring, and SNMP integration.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] 5000VA / 4000W, Double-Conversion Online, 3U Rackmount, 4x 5-20R + 1x L6-30R + 1x L14-30R Outlets, Split-Phase 208/240V to 120V, Pre-installed NMC 2 [/shortdesc]

[properties]

Brand APC by Schneider Electric
Model SURTD5000RMXLP3U
Product Type Smart-UPS RT, Double Conversion
Form Factor Rackmount 3U
Dimensions (H x W x D) 5.1" x 17.008" x 26.0" (130 x 432 x 660 mm)
Weight 128.0005 lb (58.06 kg)
Color Black
Number of Rack Units 3U
Cable Length 10 ft (3.05 m)
Cooling Not specified
[/properties]

[specifications]

Capacity 5000 VA / 4000 W
Input Voltage 208 V (other: 240 V) • Adjustable: 85–136 V / 156–236 V
Input Connection Type NEMA L14-30P
Input Frequency 50/60 Hz ±5 Hz auto-sensing
Output Voltage 120 V, 208 V (other: 240 V)
Output Connections 4 × NEMA 5-20R, 1 × NEMA L6-30R, 1 × NEMA L14-30R
Waveform Type Sine wave
Topology Double Conversion On-Line
Transfer Time 0 ms (on-line)
Bypass Type Internal Bypass (Automatic and Manual)
Crest Factor 3:1
Harmonic Distortion <2%
Battery Type Lead-Acid • 2 Battery Modules Included • Voltage: Not specified • Recharge: 2.5 h • Life: 3–5 years • RBC Qty: 1 • Replacement: APCRBC140 • Charge power: 382 W rated
Extendable Runtime Yes
Surge Energy Rating 365 J
Acoustic Noise 55 dBA
Thermal Dissipation 1589 BTU/h
Operating Temperature 0–40 °C (32–104 °F)
Operating Humidity 0–95% non-condensing
Altitude 0–10,000 ft operating
Communications RS-232, EPO, Audible alarms, Pre-installed Network Management Card 2 with environmental monitoring
Certifications CSA
Warranty 2 years repair or replace
[/specifications]

[accesories]

Rack Mounting Support Rails Included in the box
Removable Support Feet Included in the box
RS-232 Cable Included in the box
User Manual Included in the box
CD with Software Included in the box
Warranty Card Not specified
[/accesories]
Overview

The APC Smart-UPS RT SURTD5000RMXLP3U delivers 5000VA / 4000W of true online double-conversion power in a compact 3U rack form. Featuring split-phase input with 208/240V conversion to 120V, it supports mixed equipment loads. With scalable runtime, internal bypass, and a pre-installed Network Management Card 2, it ensures maximum uptime and advanced power management for critical IT and network environments.

Key Features & Benefits
  • Double-Conversion Online: Maintains pure sine wave output, filtering out power disturbances.
  • Flexible Power Output: 208/240V input with split-phase conversion to 120V for diverse load compatibility.
  • Comprehensive Outlets: 4x NEMA 5-20R, 1x L6-30R, and 1x L14-30R for multiple device types.
  • Scalable Runtime: Extendable with external battery modules for longer backup support.
  • Embedded NMC 2: Provides environmental monitoring and remote network management.
Technical Deep Dive

The SURTD5000RMXLP3U employs double-conversion topology, converting AC to DC and back to AC, ensuring a clean and stable sine wave output. This isolates connected devices from surges, sags, and harmonics, providing continuous protection for sensitive loads.

Its split-phase design allows it to accept 208/240V input and provide both 208V and 120V outputs, enabling it to power diverse equipment within the same deployment. The UPS includes a 10 ft NEMA L14-30P input cable and multiple output receptacles, giving installation teams flexibility in connecting various IT and network hardware.

The pre-installed Network Management Card 2 supports secure remote monitoring and environmental data integration. Internal automatic/manual bypass ensures uptime during service or anomalies, while intelligent alarms help operators respond to issues promptly.

Ideal Applications
  • Enterprise server racks and storage arrays
  • Mixed-voltage network hardware deployments
  • Healthcare and laboratory IT systems
  • Industrial environments requiring split-phase power distribution
Frequently Asked Questions (FAQs)

Q1: How is the SURTD5000RMXLP3U installed?
A: It is a 3U rackmount UPS with support rails and removable feet. Input uses NEMA L14-30P, outputs include 4x 5-20R, 1x L6-30R, and 1x L14-30R.

Q2: What performance and runtime can I expect?
A: The UPS provides 5000VA / 4000W capacity. Runtime varies by load and can be extended with external battery modules.

Q3: How can the UPS be managed?
A: It includes a pre-installed Network Management Card 2 for remote management, environmental monitoring, and SNMP integration.
