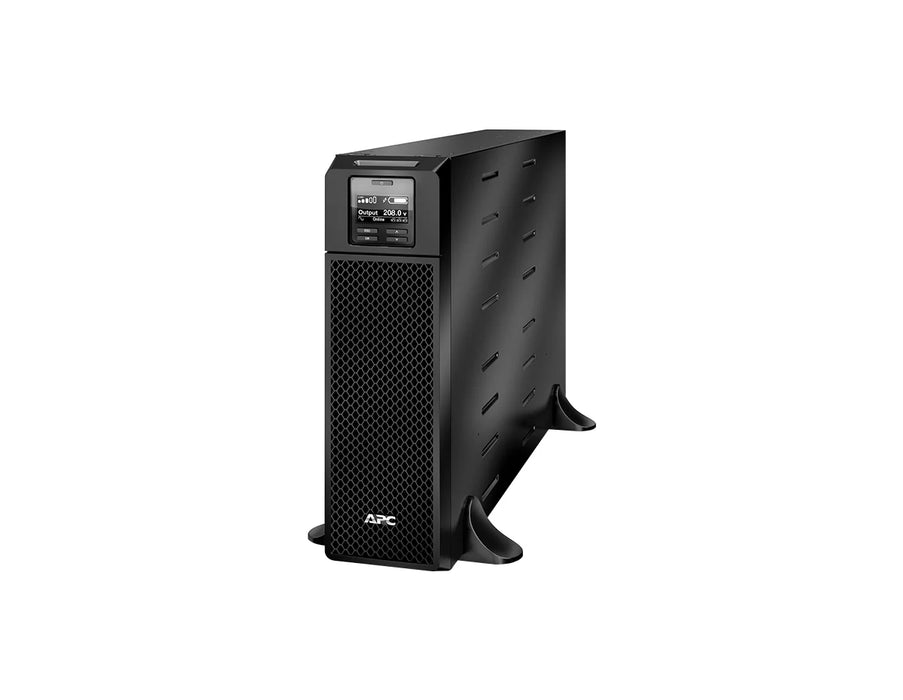

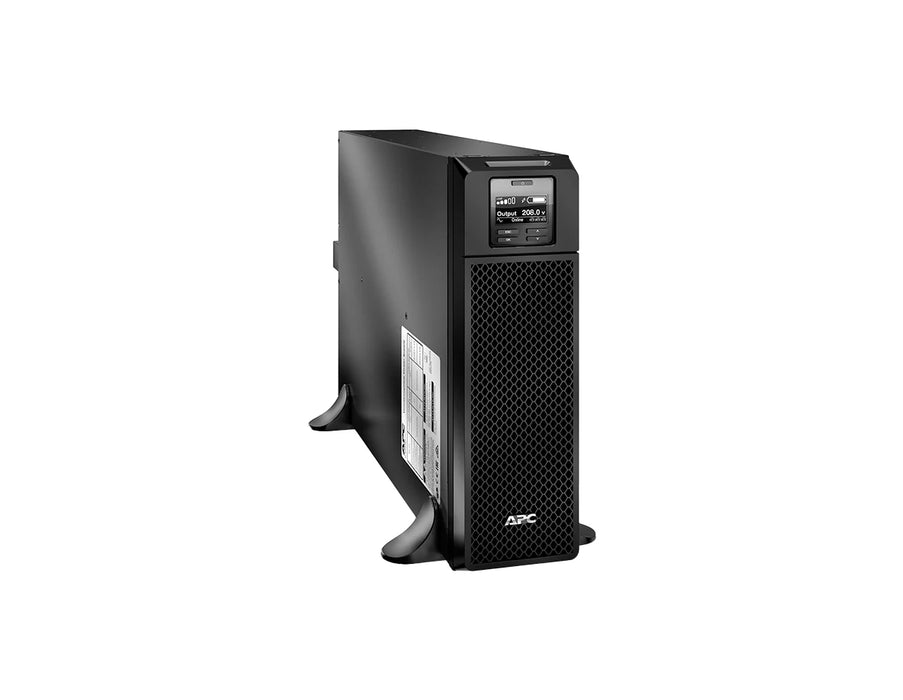

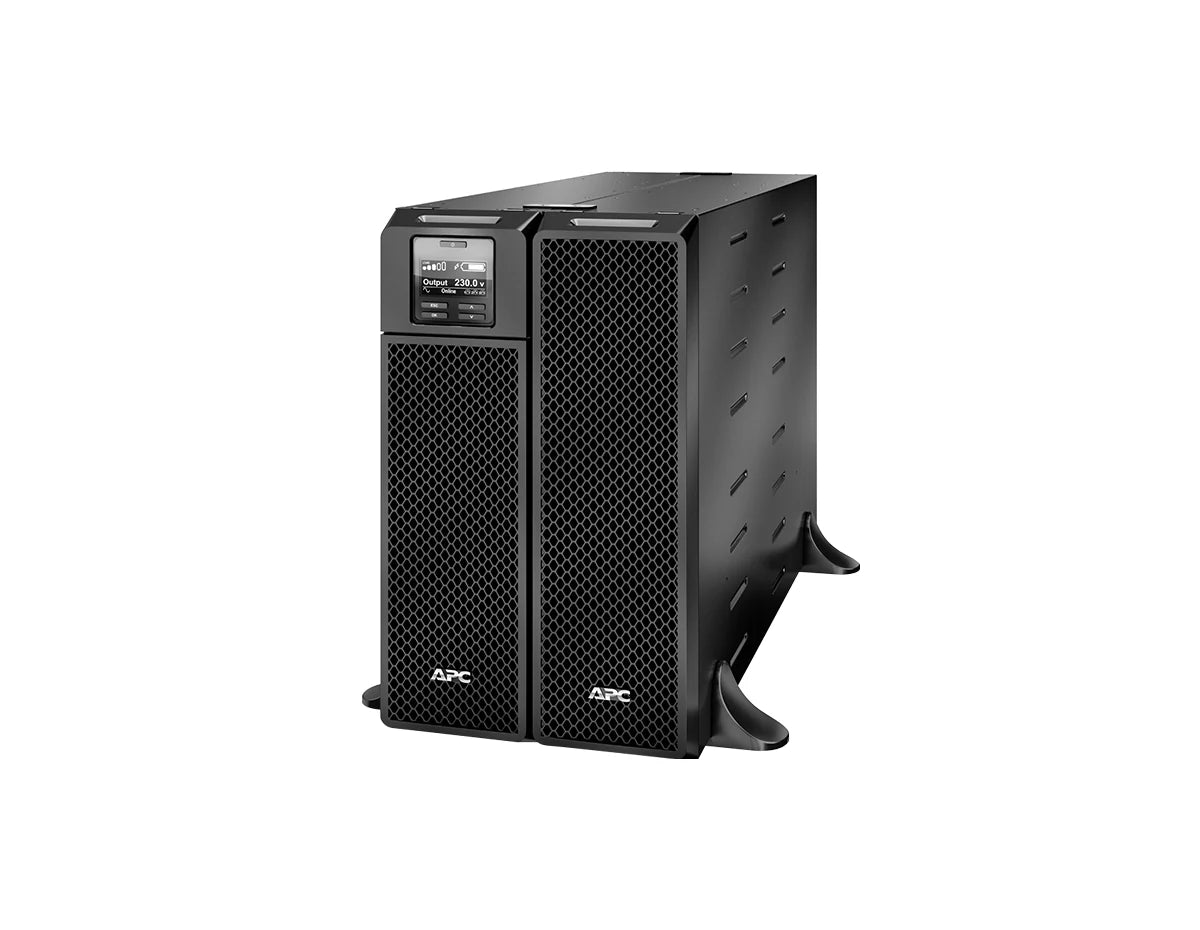

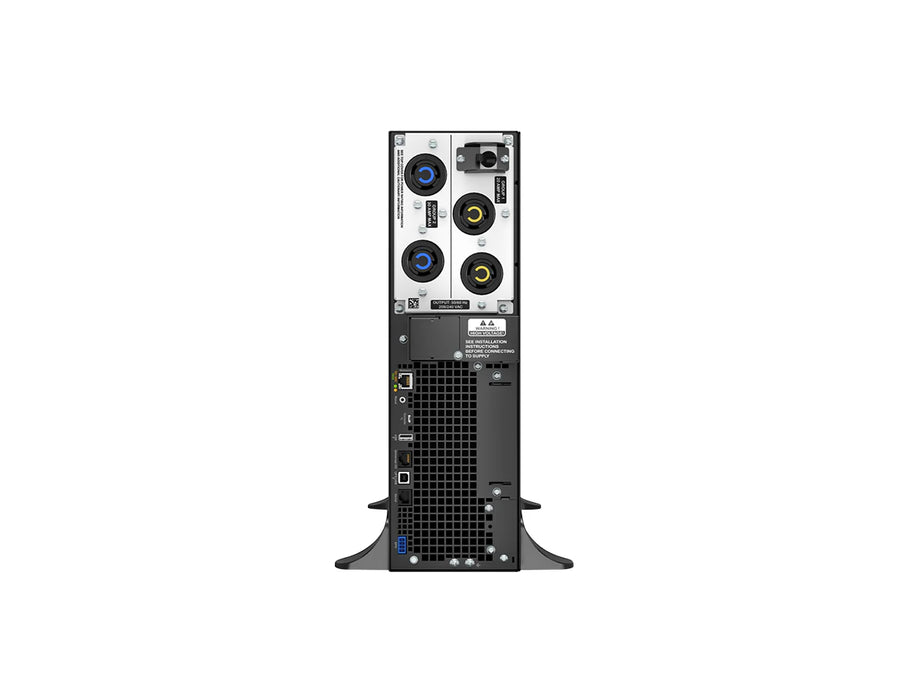

APC SRT5KXLT - Smart-UPS On-Line 5.4kVA Tower UPS
Clique ou role para ampliar
Toque ou belisque para ampliar
APC SRT5KXLT - Smart-UPS On-Line 5.4kVA Tower UPS
Clique ou role para ampliar
Toque ou belisque para ampliar
APC SRT5KXLT - Smart-UPS On-Line 5.4kVA Tower UPS
Clique ou role para ampliar
Toque ou belisque para ampliar
APC SRT5KXLT - Smart-UPS On-Line 5.4kVA Tower UPS
APC SRT5KXLT - Smart-UPS On-Line 5.4kVA Tower UPS

APC SRT5KXLT - Smart-UPS On-Line 5.4kVA Tower UPS

por APC
Desconto de 33%
R$ 126.900,00
R$ 84.696,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] 5.4kVA / 4.8kW, Double-Conversion Online, Tower 208V, 2x L6-20R + 2x L6-30R, Embedded Network Management Card 3, SmartSlot [/shortdesc]

[properties]

Brand APC by Schneider Electric
Model SRT5KXLT
Product Type Smart-UPS On-Line, Double Conversion
Form Factor Tower (Rackmount with kit)
Dimensions (H x W x D) 17.008" x 5.1" x 28.3" (432 x 130 x 719 mm)
Weight 123 lb (55.79 kg)
Color Black
Number of Rack Units — (Rackmount kit required)
Cable Length 10 ft (3.05 m)
Cooling —
[/properties]

[specifications]

Capacity 5400 VA / 4800 W
Input Voltage 208 V (other: 240 V) • Adjustable: 100–275 V (half load)
Input Connection Type NEMA L6-30P
Input Frequency 40–70 Hz auto-sensing
Output Voltage 208 V (other: 240 V)
Output Connections 2 × NEMA L6-20R, 2 × NEMA L6-30R
Waveform Type Sine wave
Topology Double Conversion On-Line
Transfer Time 0 ms (on-line)
Bypass Type Internal Bypass (Automatic and Manual)
Crest Factor 3:1
Harmonic Distortion <2%
Battery Type Lead-Acid • Voltage: 192 V • Recharge: 1.5 h • Life: 3–5 years • RBC Qty: 1 • Replacement: APCRBC140 • Charge power: 556 W rated
Extendable Runtime Yes
Surge Energy Rating 480 J
Acoustic Noise 55 dBA
Thermal Dissipation 1047 BTU/h
Operating Temperature 0–40 °C (32–104 °F)
Operating Humidity 0–95% non-condensing
Altitude 0–10,000 ft operating
Communications USB compatible, EPO, Audible/visible alarms, Pre-installed Network Management Card 3, 1 free SmartSlot
Certifications ENERGY STAR V2.0 (USA), NOM
[/specifications]

[accesories]

Removable Support Feet Included in the box
Temperature Probe Included in the box
USB Cable Included in the box
Documentation CD with software, Documentation CD, Installation guide, Warranty card
Web/SNMP Management Card Pre-installed in the unit
[/accesories]

The APC Smart-UPS On-Line SRT5KXLT delivers 5400VA / 4800W of continuous, high-density power in a robust tower design. With double-conversion online topology, pure sine wave output, and a pre-installed Network Management Card 3 with environmental monitoring, it safeguards critical servers, storage, and network hardware on 208V infrastructures while enabling advanced remote visibility and control.

  • Double-Conversion Online: Continuous power conditioning for stable, clean sine wave output.
  • 208V Output with Flexible Outlets: 2x NEMA L6-20R and 2x NEMA L6-30R support diverse loads.
  • Embedded Network Management Card 3: Enables remote monitoring plus environmental insights.
  • Internal Bypass: Automatic and manual bypass help maintain uptime during anomalies.
  • Scalable Runtime: Supports extended runtime configurations with external battery options.

Double-conversion architecture converts incoming AC to DC and back to AC, isolating equipment from sags, surges, and harmonics. This ensures the UPS always delivers a tightly regulated sine wave, synchronized at 50/60 Hz within tolerance.

Power distribution and connectivity include a 208V output with two L6-20R and two L6-30R receptacles, plus an L6-30P input for straightforward deployment. The unit integrates an Embedded Network Management Card 3 for secure remote access and environmental monitoring, and a SmartSlot for additional expansion.

Operational resilience is reinforced by an internal automatic/manual bypass, 1.5-hour typical recharge profile, and intelligent alarms prioritized by severity, helping teams respond quickly to events.

  • Enterprise servers and storage stacks
  • Core and distribution network devices
  • Industrial control systems requiring 208V
  • Edge and branch environments needing remote oversight

Q1: How is the SRT5KXLT installed?
A: It is a tower model with removable support feet; rack-mounting is possible with the appropriate kit. Power input uses NEMA L6-30P and outputs are 2x L6-20R and 2x L6-30R.

Q2: What performance and runtime should I expect?
A: The UPS delivers 5400VA / 4800W of double-conversion power at 208V. Runtime depends on load and any attached external battery packs; consult the runtime graph for exact values.

Q3: How is it managed?
A: An embedded Network Management Card 3 provides remote monitoring and environmental data. The unit also offers a SmartSlot for expansion and audible/visual alarms prioritized by severity.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] 5.4kVA / 4.8kW, Double-Conversion Online, Tower 208V, 2x L6-20R + 2x L6-30R, Embedded Network Management Card 3, SmartSlot [/shortdesc]

[properties]

Brand APC by Schneider Electric
Model SRT5KXLT
Product Type Smart-UPS On-Line, Double Conversion
Form Factor Tower (Rackmount with kit)
Dimensions (H x W x D) 17.008" x 5.1" x 28.3" (432 x 130 x 719 mm)
Weight 123 lb (55.79 kg)
Color Black
Number of Rack Units — (Rackmount kit required)
Cable Length 10 ft (3.05 m)
Cooling —
[/properties]

[specifications]

Capacity 5400 VA / 4800 W
Input Voltage 208 V (other: 240 V) • Adjustable: 100–275 V (half load)
Input Connection Type NEMA L6-30P
Input Frequency 40–70 Hz auto-sensing
Output Voltage 208 V (other: 240 V)
Output Connections 2 × NEMA L6-20R, 2 × NEMA L6-30R
Waveform Type Sine wave
Topology Double Conversion On-Line
Transfer Time 0 ms (on-line)
Bypass Type Internal Bypass (Automatic and Manual)
Crest Factor 3:1
Harmonic Distortion <2%
Battery Type Lead-Acid • Voltage: 192 V • Recharge: 1.5 h • Life: 3–5 years • RBC Qty: 1 • Replacement: APCRBC140 • Charge power: 556 W rated
Extendable Runtime Yes
Surge Energy Rating 480 J
Acoustic Noise 55 dBA
Thermal Dissipation 1047 BTU/h
Operating Temperature 0–40 °C (32–104 °F)
Operating Humidity 0–95% non-condensing
Altitude 0–10,000 ft operating
Communications USB compatible, EPO, Audible/visible alarms, Pre-installed Network Management Card 3, 1 free SmartSlot
Certifications ENERGY STAR V2.0 (USA), NOM
[/specifications]

[accesories]

Removable Support Feet Included in the box
Temperature Probe Included in the box
USB Cable Included in the box
Documentation CD with software, Documentation CD, Installation guide, Warranty card
Web/SNMP Management Card Pre-installed in the unit
[/accesories]
Overview

The APC Smart-UPS On-Line SRT5KXLT delivers 5400VA / 4800W of continuous, high-density power in a robust tower design. With double-conversion online topology, pure sine wave output, and a pre-installed Network Management Card 3 with environmental monitoring, it safeguards critical servers, storage, and network hardware on 208V infrastructures while enabling advanced remote visibility and control.

Key Features & Benefits
  • Double-Conversion Online: Continuous power conditioning for stable, clean sine wave output.
  • 208V Output with Flexible Outlets: 2x NEMA L6-20R and 2x NEMA L6-30R support diverse loads.
  • Embedded Network Management Card 3: Enables remote monitoring plus environmental insights.
  • Internal Bypass: Automatic and manual bypass help maintain uptime during anomalies.
  • Scalable Runtime: Supports extended runtime configurations with external battery options.
Technical Deep Dive

Double-conversion architecture converts incoming AC to DC and back to AC, isolating equipment from sags, surges, and harmonics. This ensures the UPS always delivers a tightly regulated sine wave, synchronized at 50/60 Hz within tolerance.

Power distribution and connectivity include a 208V output with two L6-20R and two L6-30R receptacles, plus an L6-30P input for straightforward deployment. The unit integrates an Embedded Network Management Card 3 for secure remote access and environmental monitoring, and a SmartSlot for additional expansion.

Operational resilience is reinforced by an internal automatic/manual bypass, 1.5-hour typical recharge profile, and intelligent alarms prioritized by severity, helping teams respond quickly to events.

Ideal Applications
  • Enterprise servers and storage stacks
  • Core and distribution network devices
  • Industrial control systems requiring 208V
  • Edge and branch environments needing remote oversight
Frequently Asked Questions (FAQs)

Q1: How is the SRT5KXLT installed?
A: It is a tower model with removable support feet; rack-mounting is possible with the appropriate kit. Power input uses NEMA L6-30P and outputs are 2x L6-20R and 2x L6-30R.

Q2: What performance and runtime should I expect?
A: The UPS delivers 5400VA / 4800W of double-conversion power at 208V. Runtime depends on load and any attached external battery packs; consult the runtime graph for exact values.

Q3: How is it managed?
A: An embedded Network Management Card 3 provides remote monitoring and environmental data. The unit also offers a SmartSlot for expansion and audible/visual alarms prioritized by severity.
