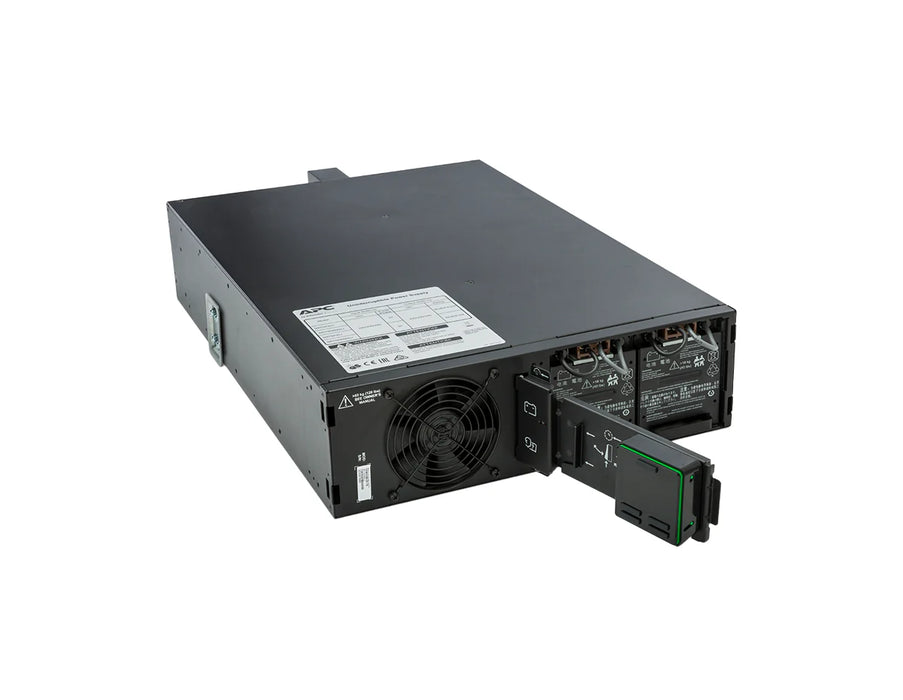

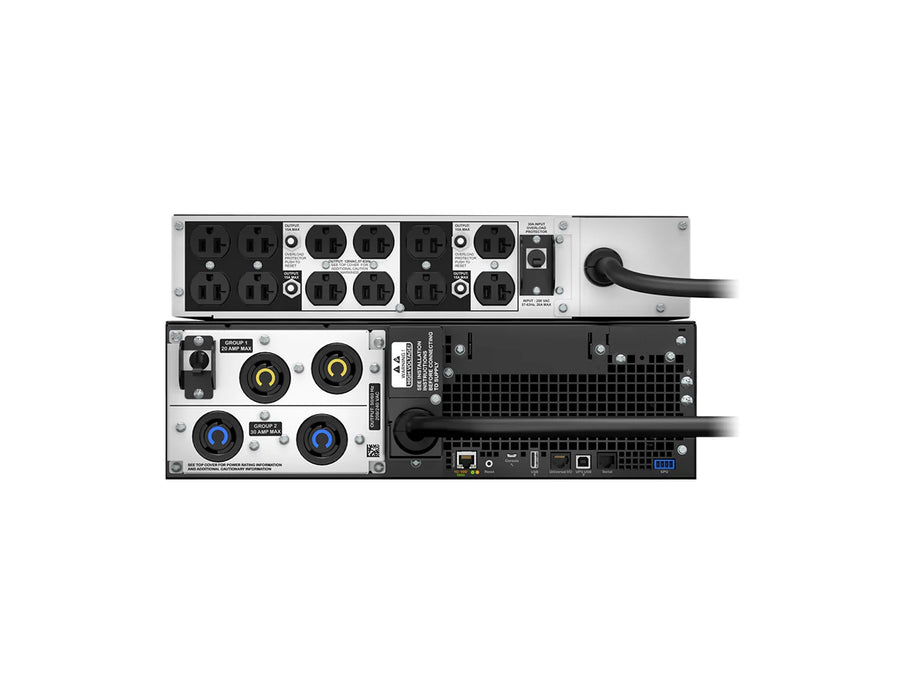

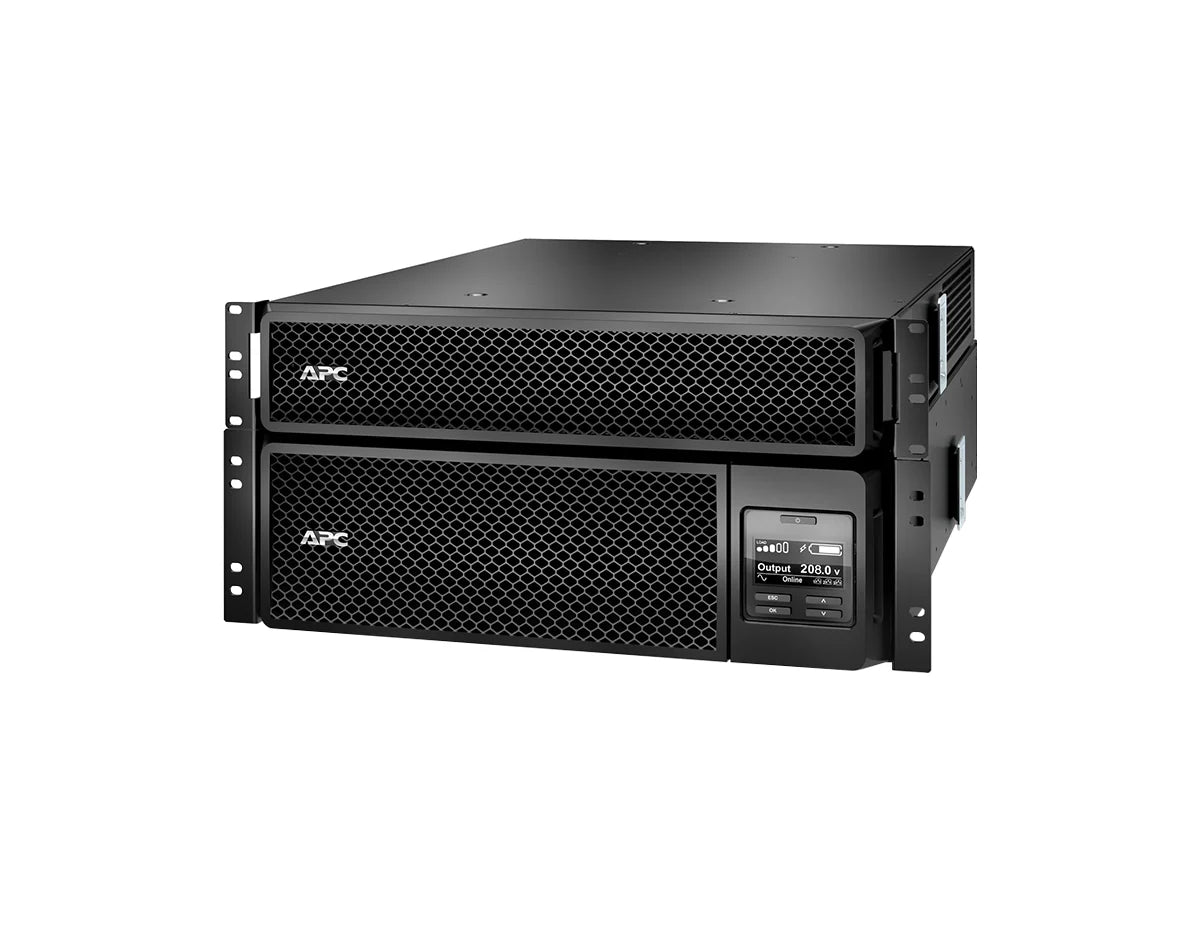

APC SRT5KRMXLT-5KTF - Smart-UPS On-Line 5kVA 5U Rackmount
Clique ou role para ampliar
Toque ou belisque para ampliar
APC SRT5KRMXLT-5KTF - Smart-UPS On-Line 5kVA 5U Rackmount
Clique ou role para ampliar
Toque ou belisque para ampliar
APC SRT5KRMXLT-5KTF - Smart-UPS On-Line 5kVA 5U Rackmount
APC SRT5KRMXLT-5KTF - Smart-UPS On-Line 5kVA 5U Rackmount

APC SRT5KRMXLT-5KTF - Smart-UPS On-Line 5kVA 5U Rackmount

por APC
Desconto de 36%
R$ 150.060,00
R$ 96.360,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

5kVA / 4800W Online, Integrated 208V→120V Transformer, 12x NEMA 5-20R + 2x L6-20R + 2x L6-30R, Pre-installed Network Management Card 3

[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model SRT5KRMXLT-5KTF
Product Type Smart-UPS On-Line with Transformer
Form Factor Rackmount 5U
Dimensions (H x W x D) 8.6" x 17.0" x 28.3" (218 x 432 x 719 mm)
Weight 217.99 lb (98.88 kg)
Color Black
Number of Rack Units 5U
Cable Length 10 ft (3.05 m)
Cooling Not specified
[/properties]

[specifications]

Capacity 5000 VA / 4800 W
Input Voltage 208 V (other: 220 V) • Adjustable (half load): 100–275 V
Input Connection Type NEMA L6-30P
Input Frequency 40–70 Hz auto-sensing
Output Voltage 120 V
Output Connections 12 × NEMA 5-20R, 2 × NEMA L6-20R, 2 × NEMA L6-30R
Waveform Type Sine wave
Topology Double Conversion On-Line
Transfer Time Not specified
Bypass Type Internal Bypass (Automatic and Manual)
Crest Factor 3:1
Harmonic Distortion <2%
Battery Type Lead-Acid • Voltage: 192 V • Recharge: 1.5 h • Life: 3–5 years • RBC Qty: 1 • Replacement: APCRBC140 • Charge power: 556 W rated
Extendable Runtime Yes
Surge Energy Rating 480 J
Acoustic Noise 55 dBA
Thermal Dissipation 1047 BTU/h
Operating Temperature 0–40 °C (32–104 °F)
Operating Humidity 0–95% non-condensing
Altitude 0–10,000 ft operating
Communications USB compatible, EPO, Audible/visible alarms, 1 SmartSlot (free), Pre-installed Network Management Card 3 with environmental monitoring
Certifications ENERGY STAR V2.0 (USA)
Warranty 3 years repair or replace (UPS), 2 years for battery
[/specifications]

[accessories]

Rack Mounting Hardware Included in the box
Rack Mounting Brackets Included in the box
Rack Mounting Support Rails Included in the box
USB Cable Included in the box
Documentation Documentation CD, Installation guide, User Manual, Warranty card
Web/SNMP Management Card Pre-installed in the unit
[/accesories]

The APC Smart-UPS On-Line SRT5KRMXLT-5KTF delivers 5kVA/4800W of conditioned power in a 5U rackmount design. With true double-conversion protection, an integrated 208V to 120V transformer, a comprehensive outlet mix, and a factory-installed Network Management Card 3 with environmental monitoring, it safeguards mission-critical servers, storage, and network devices with centralized visibility and control.

  • Double Conversion Online – Continuous AC-DC-AC conditioning provides stable, low-distortion sine wave output.
  • 208V→120V Transformer – Built-in step-down conversion broadens compatibility for downstream 120 V equipment.
  • Comprehensive Outlets – 12× 5-20R, 2× L6-20R, 2× L6-30R support diverse IT loads and higher-current connections.
  • Pre-installed NMC 3 – Enables secure remote monitoring, control, and environmental sensing.
  • Internal Bypass – Automatic and manual bypass paths help maintain power to the load during certain events.
  • Extendable Runtime – External battery support with typical 1.5 h recharge restores readiness quickly.
  • ENERGY STAR® V2.0 – High-efficiency design helps reduce operating impact.

Online Topology: The UPS isolates connected loads from sags, surges, and line noise by regenerating AC power. Output harmonic distortion is less than 2%, and a 3:1 crest factor handles transient inrush typical of electronic equipment.

Power Distribution & Conversion: An integrated transformer converts 208 V input to regulated 120 V output. The outlet mix (5-20R, L6-20R, L6-30R) simplifies distribution across mixed equipment profiles while retaining locking options for higher-current devices.

Energy Storage & Controls: A 192 V lead-acid battery system supports extended runtime and typically recharges in about 1.5 hours. The unit includes Emergency Power Off (EPO), prioritized audible/visible alarms, USB compatibility, and a SmartSlot architecture with the Network Management Card 3 pre-installed.

  • Rack-mounted servers, high-capacity storage, and core network hardware
  • Sites needing 120 V distribution from a 208 V source
  • Distributed IT and edge locations requiring remote monitoring
  • Environments within 32–104 °F (0–40 °C) and up to 95% RH non-condensing

Q1: How is the SRT5KRMXLT-5KTF installed?
A: It is a 5U rackmount UPS and ships with rack hardware, brackets, support rails, user manual, and USB cable. Input uses a NEMA L6-30P; cord length is 10 ft (3.05 m).

Q2: What performance can I expect?
A: Rated 5kVA / 4800 W with sine wave output. Runtime varies by load and any external battery packs; consult APC’s runtime chart for exact values. Typical recharge is ~1.5 hours.

Q3: How can it be managed?
A: The pre-installed Network Management Card 3 enables remote monitoring and environmental inputs. USB compatibility, EPO, and prioritized alarms support local control and safety integration.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

5kVA / 4800W Online, Integrated 208V→120V Transformer, 12x NEMA 5-20R + 2x L6-20R + 2x L6-30R, Pre-installed Network Management Card 3

[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model SRT5KRMXLT-5KTF
Product Type Smart-UPS On-Line with Transformer
Form Factor Rackmount 5U
Dimensions (H x W x D) 8.6" x 17.0" x 28.3" (218 x 432 x 719 mm)
Weight 217.99 lb (98.88 kg)
Color Black
Number of Rack Units 5U
Cable Length 10 ft (3.05 m)
Cooling Not specified
[/properties]

[specifications]

Capacity 5000 VA / 4800 W
Input Voltage 208 V (other: 220 V) • Adjustable (half load): 100–275 V
Input Connection Type NEMA L6-30P
Input Frequency 40–70 Hz auto-sensing
Output Voltage 120 V
Output Connections 12 × NEMA 5-20R, 2 × NEMA L6-20R, 2 × NEMA L6-30R
Waveform Type Sine wave
Topology Double Conversion On-Line
Transfer Time Not specified
Bypass Type Internal Bypass (Automatic and Manual)
Crest Factor 3:1
Harmonic Distortion <2%
Battery Type Lead-Acid • Voltage: 192 V • Recharge: 1.5 h • Life: 3–5 years • RBC Qty: 1 • Replacement: APCRBC140 • Charge power: 556 W rated
Extendable Runtime Yes
Surge Energy Rating 480 J
Acoustic Noise 55 dBA
Thermal Dissipation 1047 BTU/h
Operating Temperature 0–40 °C (32–104 °F)
Operating Humidity 0–95% non-condensing
Altitude 0–10,000 ft operating
Communications USB compatible, EPO, Audible/visible alarms, 1 SmartSlot (free), Pre-installed Network Management Card 3 with environmental monitoring
Certifications ENERGY STAR V2.0 (USA)
Warranty 3 years repair or replace (UPS), 2 years for battery
[/specifications]

[accessories]

Rack Mounting Hardware Included in the box
Rack Mounting Brackets Included in the box
Rack Mounting Support Rails Included in the box
USB Cable Included in the box
Documentation Documentation CD, Installation guide, User Manual, Warranty card
Web/SNMP Management Card Pre-installed in the unit
[/accesories]
Overview

The APC Smart-UPS On-Line SRT5KRMXLT-5KTF delivers 5kVA/4800W of conditioned power in a 5U rackmount design. With true double-conversion protection, an integrated 208V to 120V transformer, a comprehensive outlet mix, and a factory-installed Network Management Card 3 with environmental monitoring, it safeguards mission-critical servers, storage, and network devices with centralized visibility and control.

Key Features & Benefits
  • Double Conversion Online – Continuous AC-DC-AC conditioning provides stable, low-distortion sine wave output.
  • 208V→120V Transformer – Built-in step-down conversion broadens compatibility for downstream 120 V equipment.
  • Comprehensive Outlets – 12× 5-20R, 2× L6-20R, 2× L6-30R support diverse IT loads and higher-current connections.
  • Pre-installed NMC 3 – Enables secure remote monitoring, control, and environmental sensing.
  • Internal Bypass – Automatic and manual bypass paths help maintain power to the load during certain events.
  • Extendable Runtime – External battery support with typical 1.5 h recharge restores readiness quickly.
  • ENERGY STAR® V2.0 – High-efficiency design helps reduce operating impact.
Technical Deep Dive

Online Topology: The UPS isolates connected loads from sags, surges, and line noise by regenerating AC power. Output harmonic distortion is less than 2%, and a 3:1 crest factor handles transient inrush typical of electronic equipment.

Power Distribution & Conversion: An integrated transformer converts 208 V input to regulated 120 V output. The outlet mix (5-20R, L6-20R, L6-30R) simplifies distribution across mixed equipment profiles while retaining locking options for higher-current devices.

Energy Storage & Controls: A 192 V lead-acid battery system supports extended runtime and typically recharges in about 1.5 hours. The unit includes Emergency Power Off (EPO), prioritized audible/visible alarms, USB compatibility, and a SmartSlot architecture with the Network Management Card 3 pre-installed.

Ideal Applications
  • Rack-mounted servers, high-capacity storage, and core network hardware
  • Sites needing 120 V distribution from a 208 V source
  • Distributed IT and edge locations requiring remote monitoring
  • Environments within 32–104 °F (0–40 °C) and up to 95% RH non-condensing
Frequently Asked Questions (FAQs)

Q1: How is the SRT5KRMXLT-5KTF installed?
A: It is a 5U rackmount UPS and ships with rack hardware, brackets, support rails, user manual, and USB cable. Input uses a NEMA L6-30P; cord length is 10 ft (3.05 m).

Q2: What performance can I expect?
A: Rated 5kVA / 4800 W with sine wave output. Runtime varies by load and any external battery packs; consult APC’s runtime chart for exact values. Typical recharge is ~1.5 hours.

Q3: How can it be managed?
A: The pre-installed Network Management Card 3 enables remote monitoring and environmental inputs. USB compatibility, EPO, and prioritized alarms support local control and safety integration.
