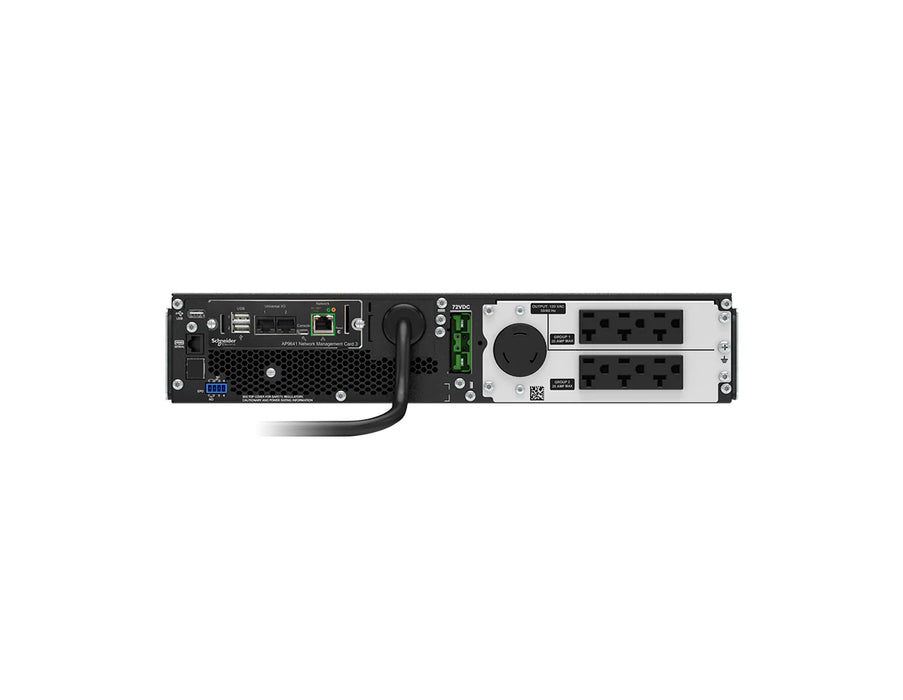

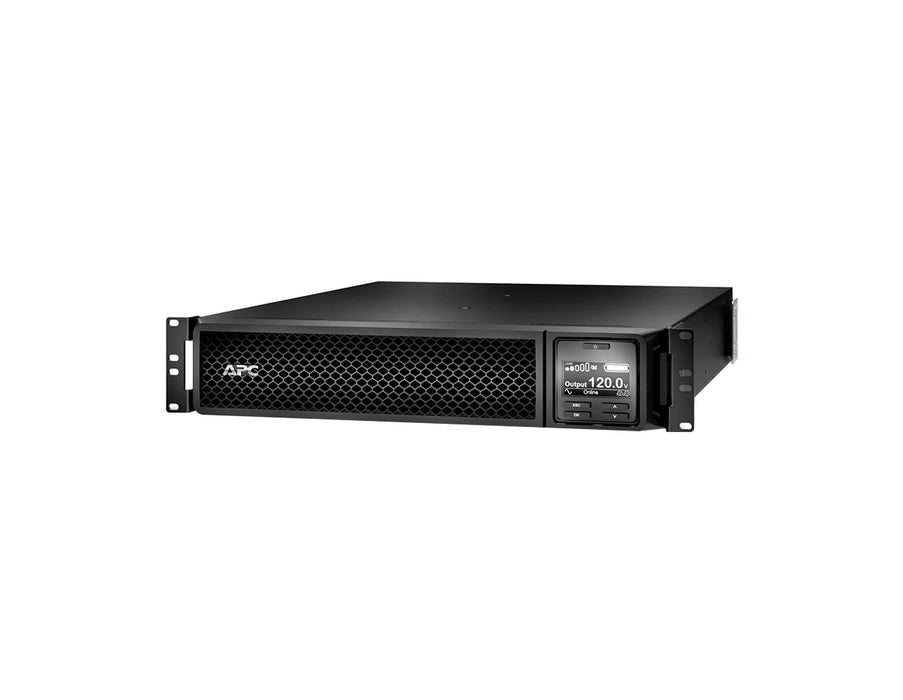

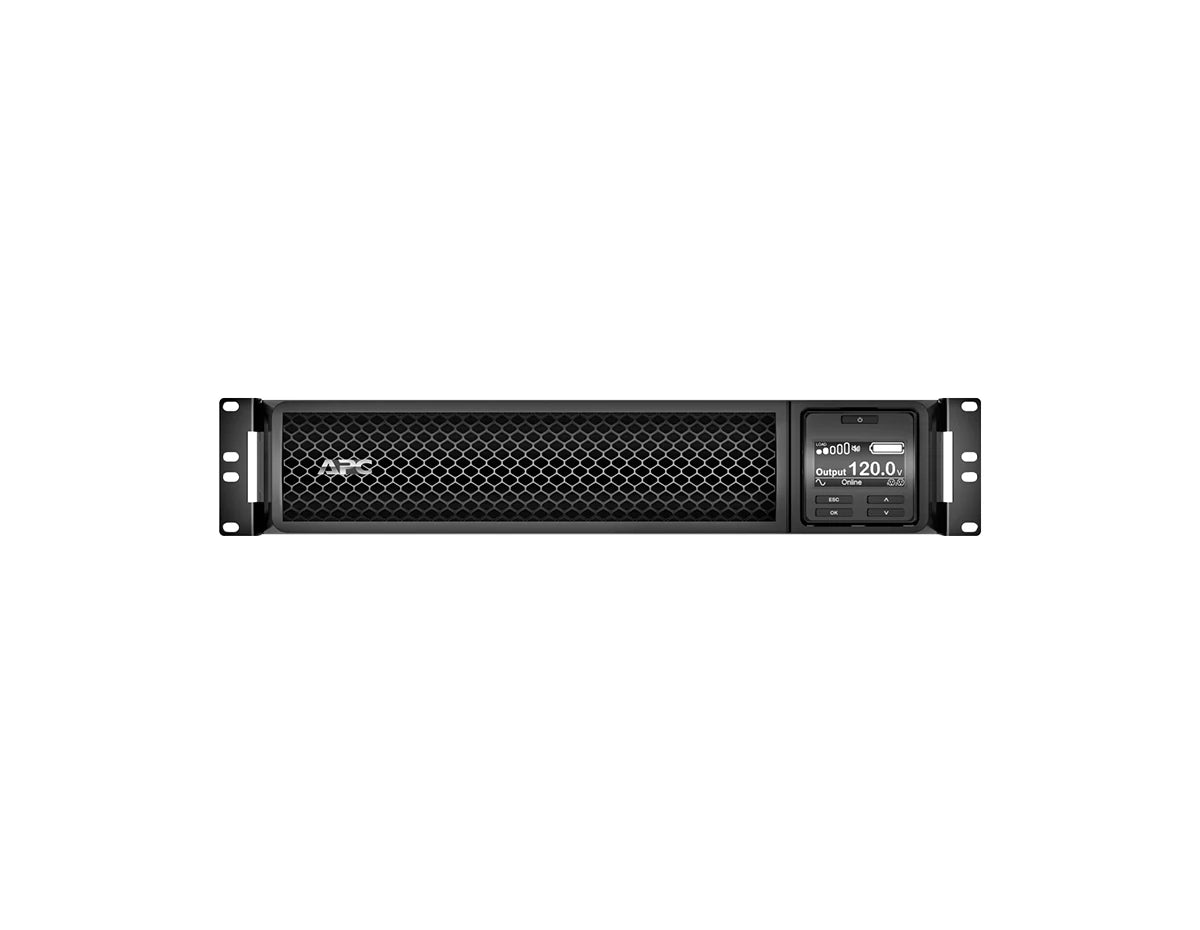

APC SRT2200RMXLA-NC - Smart-UPS On-Line 2200VA 2U Rackmount
Clique ou role para ampliar
Toque ou belisque para ampliar
APC SRT2200RMXLA-NC - Smart-UPS On-Line 2200VA 2U Rackmount
Clique ou role para ampliar
Toque ou belisque para ampliar
APC SRT2200RMXLA-NC - Smart-UPS On-Line 2200VA 2U Rackmount
APC SRT2200RMXLA-NC - Smart-UPS On-Line 2200VA 2U Rackmount

APC SRT2200RMXLA-NC - Smart-UPS On-Line 2200VA 2U Rackmount

por APC
Desconto de 33%
R$ 51.540,00
R$ 34.620,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] 2200VA / 1800W, Double-Conversion Online, 2U Rackmount, 120V, 6× NEMA 5-20R + 1× NEMA L5-20R, Pre-installed Network Management Card 3 [/shortdesc]

[properties]

Brand APC by Schneider Electric
Model SRT2200RMXLA-NC
Product Type Smart-UPS On-Line, Double Conversion
Form Factor Rackmount 2U
Dimensions (H x W x D) 3.3" x 17.0" x 23.0" (85 x 432 x 584 mm)
Weight 55.1 lb (25 kg)
Color Black
Number of Rack Units 2U
Cable Length 6 ft (1.8 m)
Cooling Not specified
[/properties]

[specifications]

Capacity 2200 VA / 1800 W
Input Voltage 120 V
Input Connection Type NEMA 5-20P
Input Frequency 40–70 Hz auto-sensing
Output Voltage 120 V
Output Connections 6 × NEMA 5-20R, 1 × NEMA L5-20R
Waveform Type Sine wave
Topology Double Conversion On-Line
Transfer Time Not specified
Bypass Type Built-in Bypass
Crest Factor 3:1
Harmonic Distortion <2%
Battery Type Lead-Acid • Voltage: 72 V • Recharge time: 3 h • Life: 3–5 years • RBC Qty: 1 • Replacement: APCRBC141 • Charge power: 102 W rated
Extendable Runtime Yes
Surge Energy Rating 340 J
Acoustic Noise 55 dBA
Thermal Dissipation 535 BTU/h
Operating Temperature 0–40 °C (32–104 °F)
Operating Humidity 0–95% non-condensing
Altitude 0–10,000 ft operating
Communications USB, EPO, Audible/visible alarms, Pre-installed Network Management Card 3 with environmental monitoring
Certifications ENERGY STAR V2.0 (USA)
Warranty 3 years repair or replace (UPS), 2 years (battery)
[/specifications]

[accesories]

Rack Mounting Hardware Included in the box
Rack Mounting Brackets Included in the box
Rack Mounting Support Rails Included in the box
USB Cable Included in the box
Documentation CD with software, Documentation CD, Installation guide, Warranty card
Network Management Card Pre-installed in the unit
[/accesories]

The APC SRT2200RMXLA-NC is a high-density Smart-UPS On-Line delivering 2200 VA / 1800 W of clean sine wave power in a compact 2U rackmount format. With true double-conversion topology, built-in bypass, and a pre-installed Network Management Card 3 with environmental monitoring, it safeguards servers, storage, and network hardware in demanding 120 V installations.

  • Double-Conversion Online – Regenerates AC power to isolate loads from input anomalies for maximum uptime.
  • 2200VA / 1800W Capacity – Supports critical IT and network devices with stable sine wave output.
  • 2U Rackmount, 120 V – Space-efficient protection for standard North American racks.
  • Outlet Mix – 6× NEMA 5-20R plus 1× NEMA L5-20R for diverse equipment connections.
  • Integrated Management – Pre-installed Network Management Card 3 enables secure remote monitoring with environmental data.
  • Extendable Runtime – Supports up to 10 external battery packs for longer backup windows.
  • Online Topology & Bypass: Incoming AC is converted to DC and back to AC, delivering a consistent sine wave independent of utility quality. A built-in bypass (automatic/manual) maintains power to loads during service or faults.
  • Power Quality: Less than 2% harmonic distortion and a 3:1 crest factor support modern PFC power supplies without derating. Output is 50/60 Hz (±3 Hz) synchronized to mains.
  • Battery System & Recharge: 72 V lead-acid battery, user-replaceable (APCRBC141), with typical 3-hour recharge; runtime is scalable via external battery cabinets.
  • Environmental & Efficiency: ENERGY STAR® UPS V2.0, 55 dBA acoustic rating, and 535 BTU/h heat dissipation for predictable deployment in shared racks.
  • Rack-mounted servers and storage arrays
  • Core switches, routers, and security appliances
  • Branch offices and network closets requiring 120 V
  • Healthcare, retail, and financial IT where continuous power is critical

Q1: How is the SRT2200RMXLA-NC installed?
A: It’s a 2U rackmount unit shipped with rack mounting hardware, brackets, and support rails for straightforward integration.

Q2: What performance can I expect?
A: The UPS is rated 2200 VA / 1800 W with sine wave output. Actual runtime depends on load and any external battery packs; consult APC runtime charts for detailed values.

Q3: How is it managed?
A: A pre-installed Network Management Card 3 provides remote Web/SNMP access and environmental monitoring; USB and EPO are also supported.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] 2200VA / 1800W, Double-Conversion Online, 2U Rackmount, 120V, 6× NEMA 5-20R + 1× NEMA L5-20R, Pre-installed Network Management Card 3 [/shortdesc]

[properties]

Brand APC by Schneider Electric
Model SRT2200RMXLA-NC
Product Type Smart-UPS On-Line, Double Conversion
Form Factor Rackmount 2U
Dimensions (H x W x D) 3.3" x 17.0" x 23.0" (85 x 432 x 584 mm)
Weight 55.1 lb (25 kg)
Color Black
Number of Rack Units 2U
Cable Length 6 ft (1.8 m)
Cooling Not specified
[/properties]

[specifications]

Capacity 2200 VA / 1800 W
Input Voltage 120 V
Input Connection Type NEMA 5-20P
Input Frequency 40–70 Hz auto-sensing
Output Voltage 120 V
Output Connections 6 × NEMA 5-20R, 1 × NEMA L5-20R
Waveform Type Sine wave
Topology Double Conversion On-Line
Transfer Time Not specified
Bypass Type Built-in Bypass
Crest Factor 3:1
Harmonic Distortion <2%
Battery Type Lead-Acid • Voltage: 72 V • Recharge time: 3 h • Life: 3–5 years • RBC Qty: 1 • Replacement: APCRBC141 • Charge power: 102 W rated
Extendable Runtime Yes
Surge Energy Rating 340 J
Acoustic Noise 55 dBA
Thermal Dissipation 535 BTU/h
Operating Temperature 0–40 °C (32–104 °F)
Operating Humidity 0–95% non-condensing
Altitude 0–10,000 ft operating
Communications USB, EPO, Audible/visible alarms, Pre-installed Network Management Card 3 with environmental monitoring
Certifications ENERGY STAR V2.0 (USA)
Warranty 3 years repair or replace (UPS), 2 years (battery)
[/specifications]

[accesories]

Rack Mounting Hardware Included in the box
Rack Mounting Brackets Included in the box
Rack Mounting Support Rails Included in the box
USB Cable Included in the box
Documentation CD with software, Documentation CD, Installation guide, Warranty card
Network Management Card Pre-installed in the unit
[/accesories]
Overview

The APC SRT2200RMXLA-NC is a high-density Smart-UPS On-Line delivering 2200 VA / 1800 W of clean sine wave power in a compact 2U rackmount format. With true double-conversion topology, built-in bypass, and a pre-installed Network Management Card 3 with environmental monitoring, it safeguards servers, storage, and network hardware in demanding 120 V installations.

Key Features & Benefits
  • Double-Conversion Online – Regenerates AC power to isolate loads from input anomalies for maximum uptime.
  • 2200VA / 1800W Capacity – Supports critical IT and network devices with stable sine wave output.
  • 2U Rackmount, 120 V – Space-efficient protection for standard North American racks.
  • Outlet Mix – 6× NEMA 5-20R plus 1× NEMA L5-20R for diverse equipment connections.
  • Integrated Management – Pre-installed Network Management Card 3 enables secure remote monitoring with environmental data.
  • Extendable Runtime – Supports up to 10 external battery packs for longer backup windows.
Technical Deep Dive
  • Online Topology & Bypass: Incoming AC is converted to DC and back to AC, delivering a consistent sine wave independent of utility quality. A built-in bypass (automatic/manual) maintains power to loads during service or faults.
  • Power Quality: Less than 2% harmonic distortion and a 3:1 crest factor support modern PFC power supplies without derating. Output is 50/60 Hz (±3 Hz) synchronized to mains.
  • Battery System & Recharge: 72 V lead-acid battery, user-replaceable (APCRBC141), with typical 3-hour recharge; runtime is scalable via external battery cabinets.
  • Environmental & Efficiency: ENERGY STAR® UPS V2.0, 55 dBA acoustic rating, and 535 BTU/h heat dissipation for predictable deployment in shared racks.
Ideal Applications
  • Rack-mounted servers and storage arrays
  • Core switches, routers, and security appliances
  • Branch offices and network closets requiring 120 V
  • Healthcare, retail, and financial IT where continuous power is critical
Frequently Asked Questions (FAQs)

Q1: How is the SRT2200RMXLA-NC installed?
A: It’s a 2U rackmount unit shipped with rack mounting hardware, brackets, and support rails for straightforward integration.

Q2: What performance can I expect?
A: The UPS is rated 2200 VA / 1800 W with sine wave output. Actual runtime depends on load and any external battery packs; consult APC runtime charts for detailed values.

Q3: How is it managed?
A: A pre-installed Network Management Card 3 provides remote Web/SNMP access and environmental monitoring; USB and EPO are also supported.
