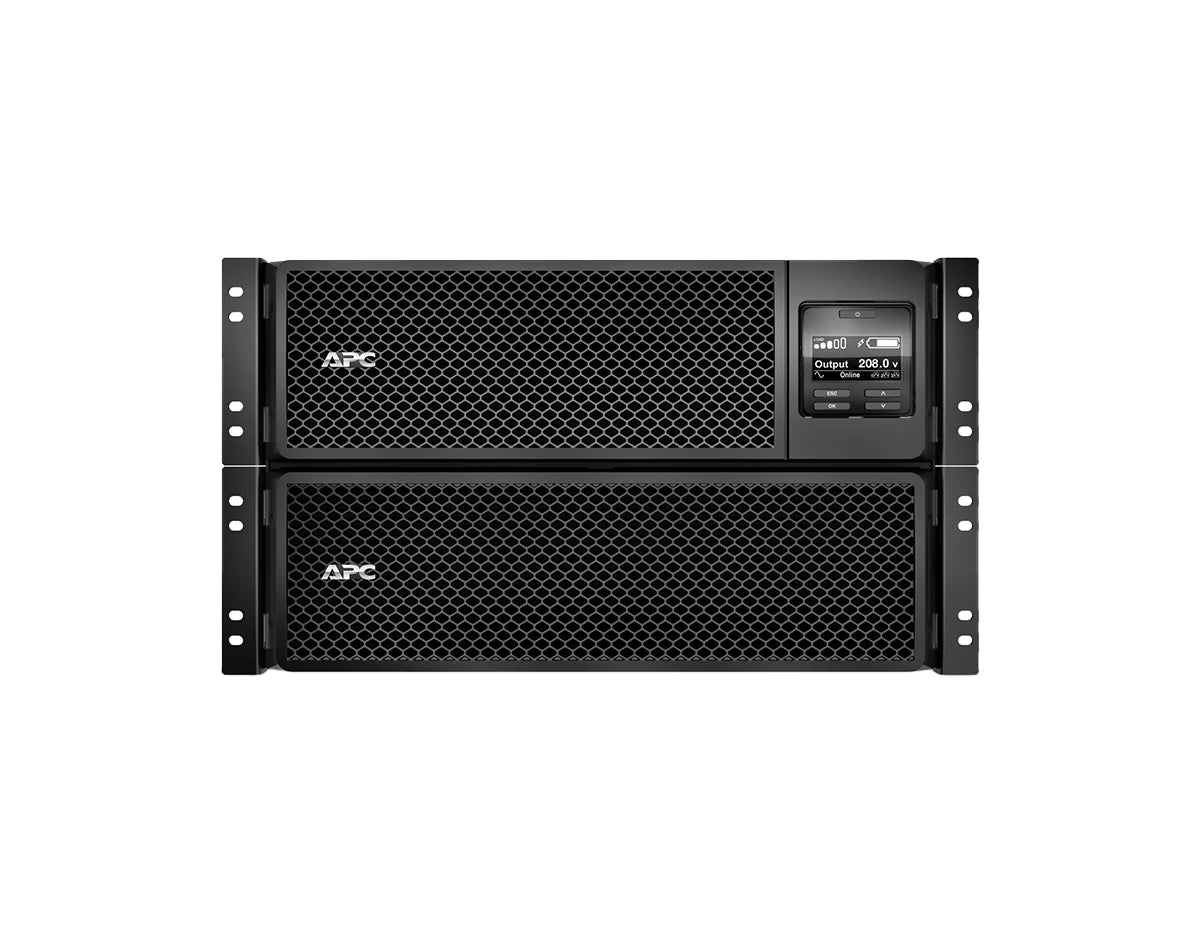

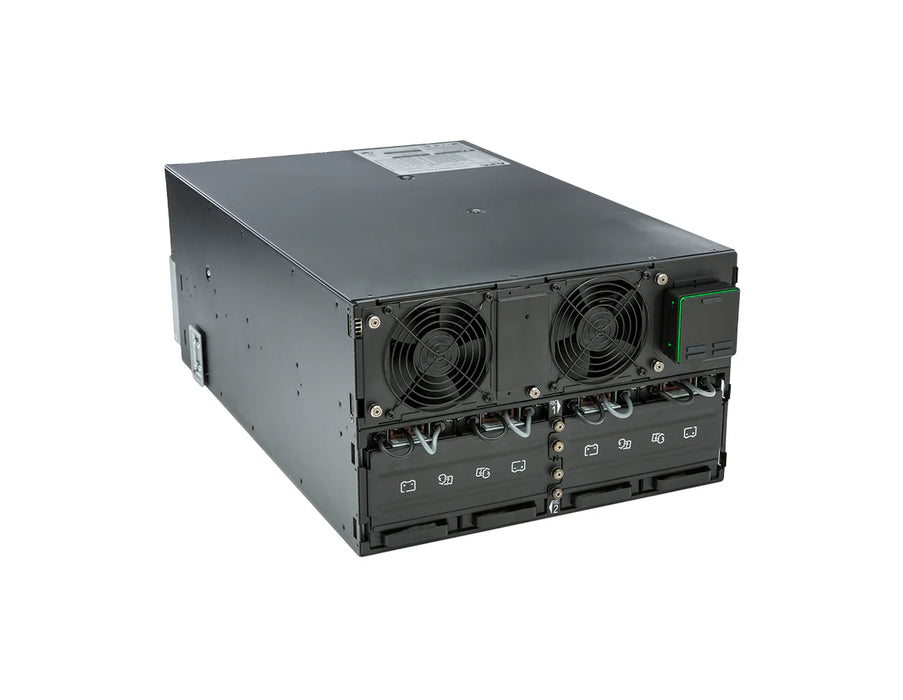

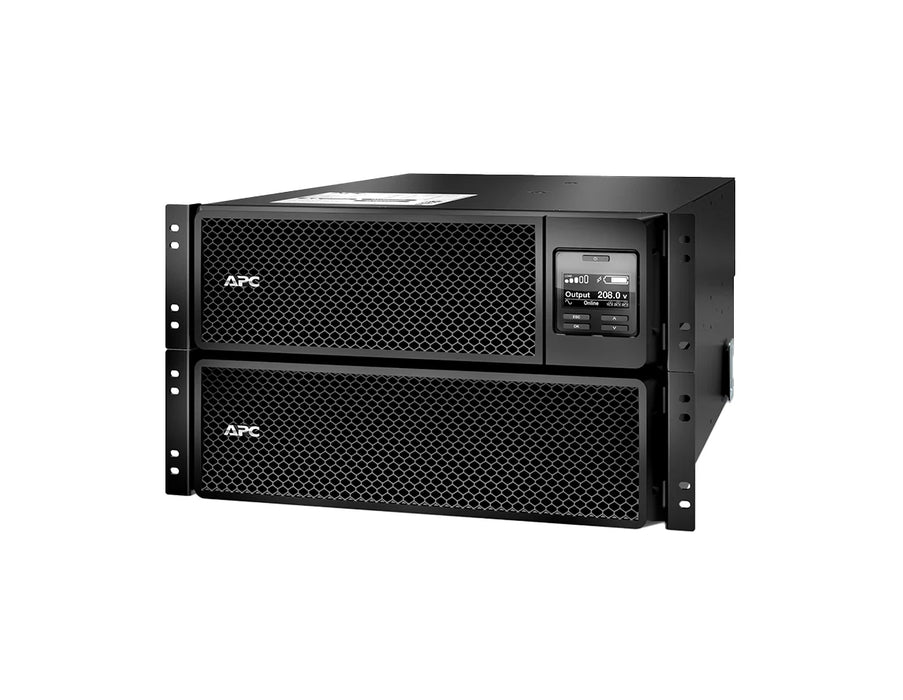

APC SRT10KRMXLT - Smart-UPS On-Line 10kVA 10kW Rackmount 6U UPS
Clique ou role para ampliar
Toque ou belisque para ampliar
APC SRT10KRMXLT - Smart-UPS On-Line 10kVA 10kW Rackmount 6U UPS
Clique ou role para ampliar
Toque ou belisque para ampliar
APC SRT10KRMXLT - Smart-UPS On-Line 10kVA 10kW Rackmount 6U UPS
Clique ou role para ampliar
Toque ou belisque para ampliar
APC SRT10KRMXLT - Smart-UPS On-Line 10kVA 10kW Rackmount 6U UPS
APC SRT10KRMXLT - Smart-UPS On-Line 10kVA 10kW Rackmount 6U UPS

APC SRT10KRMXLT - Smart-UPS On-Line 10kVA 10kW Rackmount 6U UPS

por APC
Desconto de 31%
R$ 210.960,00
R$ 144.888,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]10kVA / 10kW, 6U Rackmount, Double-Conversion Online, 4x L6-20R & 2x L6-30R Outlets, Pre-installed SNMP Card[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model SRT10KRMXLT
Product Type Smart-UPS On-Line, Double Conversion
Form Factor Rackmount 6U
Dimensions (H x W x D) 10.4" x 17.0" x 28.1" (263 x 432 x 715 mm)
Weight 245.99 lb (111.58 kg)
Color Black
Number of Rack Units 6U
Cooling Active (fan-based)
[/properties]

[specifications]

Capacity 10000 VA / 10000 W
Input Voltage 208 V (other: 240 V)
Input Connection Type Hard Wire 3-wire (2PH + G)
Input Frequency 40–70 Hz auto-sensing
Output Voltage 208 V (other: 240 V)
Output Frequency 50/60 Hz ±3 Hz sync to mains

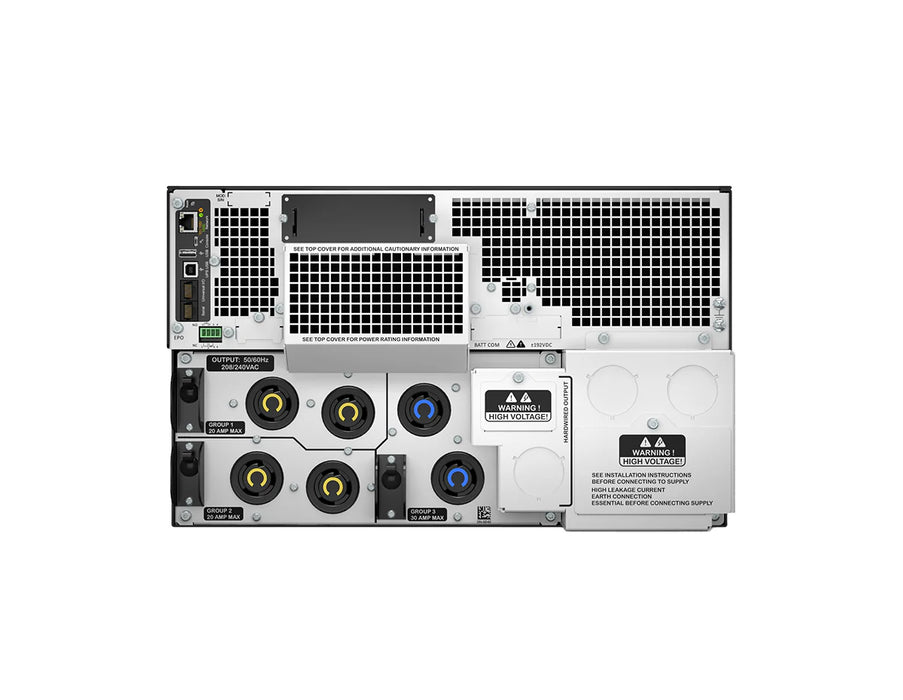

Output Connections 4 × NEMA L6-20R, 2 × NEMA L6-30R, 1 × Hard Wire 3-wire (2PH + G)
Waveform Type Sine wave
Topology Double Conversion On-Line
Transfer Time 0 ms (on-line)
Bypass Type Internal Bypass (Automatic and Manual)
Crest Factor 3:1
Harmonic Distortion <2%
Battery Type Lead-Acid • Voltage: +/-192 V • Recharge time: 1.5 h • Life: 3–5 years • RBC Qty: 2 • Replacement: APCRBC140 • Charge power: 1191 W rated
Extendable Runtime Yes
Surge Energy Rating 480 J
Acoustic Noise 55 dBA
Thermal Dissipation 2490 BTU/h
Operating Temperature 0–40 °C (32–104 °F)
Operating Humidity 0–95% non-condensing
Altitude 0–10,000 ft operating
Communications USB, RS-232, EPO, Audible/visible alarms, SmartSlot (1 free), Pre-installed Network Management Card 3 with environmental monitoring
Certifications ENERGY STAR V2.0 (USA), UL 1778, FCC Part 15 Class A, NOM
Warranty 3 years repair or replace (excluding battery), 2 years (battery)
[/specifications]

[accesories]

Rack Mounting Hardware Included in the box
Rack Mounting Brackets Included in the box
Rack Mounting Support Rails Included in the box
Temperature Probe Included in the box
USB Cable Included in the box
Documentation CD with software, Documentation CD, Installation guide, Warranty card
Web/SNMP Management Card Pre-installed in the unit
[/accesories]

The APC SRT10KRMXLT delivers high-density online power protection with a full 10kVA / 10kW capacity in a 6U rackmount form factor. Designed for demanding IT environments, it ensures continuous uptime with double-conversion topology, advanced management features, and scalable runtime options.

  • 10kVA / 10kW Capacity: Reliable protection for large network devices, servers, and critical systems.
  • Double-Conversion Online: Provides pure, conditioned power independent of utility fluctuations.
  • 6U Rackmount Design: Space-efficient installation with included rails and hardware.
  • Flexible Output Connections: 4x NEMA L6-20R and 2x L6-30R outlets plus hardwire option.
  • Pre-Installed SNMP Card: Remote monitoring and environmental management built in.
  • Scalable Runtime: Extendable with external battery packs for long backup needs.

As a double-conversion online UPS, the SRT10KRMXLT continuously regenerates clean sine wave power, ensuring complete isolation from voltage dips, surges, and frequency variations. This architecture provides the highest level of protection for mission-critical loads.

Equipped with a split-battery 192V system, the UPS ensures stable DC bus performance with rapid 1.5-hour recharge time. Lead-acid modules are hot-swappable, enabling quick service without downtime.

The integrated Network Management Card 3 enhances visibility, offering environmental monitoring and remote control through SNMP protocols. Together, these features make it suitable for enterprise data centers and distributed IT environments where uptime is essential.

  • Data centers requiring 10kW power capacity
  • Enterprise server and storage racks
  • Network hardware in branch or campus environments
  • Industrial or healthcare IT systems with zero tolerance for downtime

Q1: How is the SRT10KRMXLT installed?
A: It is a 6U rackmount UPS delivered with rails, brackets, and mounting support for seamless integration into standard racks.

Q2: What performance can I expect?
A: It delivers 10kVA / 10kW with sine wave output. Backup runtime depends on load and can be extended using additional battery packs. Actual runtime may vary with battery age and environment.

Q3: How can this UPS be managed?
A: The UPS includes a pre-installed Network Management Card 3, supporting SNMP monitoring, remote management, and environmental sensors for comprehensive oversight.
