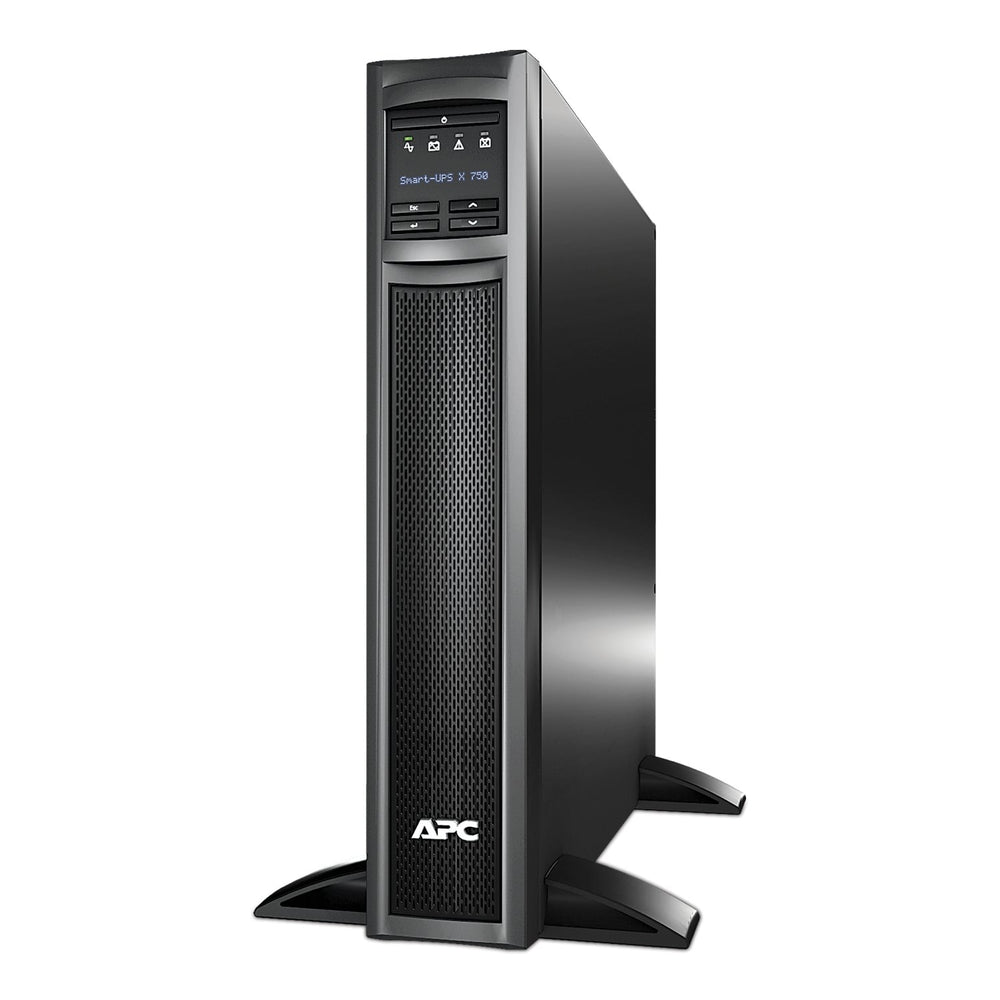

APC SMX750CNC - Smart-UPS X 750VA Line-Interactive 2U Rack/Tower Convertible UPS
APC SMX750CNC - Smart-UPS X 750VA Line-Interactive 2U Rack/Tower Convertible UPS

APC SMX750CNC - Smart-UPS X 750VA Line-Interactive 2U Rack/Tower Convertible UPS

por APC
Desconto de 34%
R$ 26.220,00
R$ 17.256,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]750VA / 675W, Pure Sinewave Output, 2U Rack/Tower Convertible, 8x NEMA 5-15R Outlets, SmartConnect & Pre-Installed NMC, Extended Runtime Support[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model SMX750CNC
Product Type Line-Interactive UPS, Extended Runtime
Form Factor Rack/Tower Convertible 2U
Dimensions (H x W x D) 8.9 cm x 43.2 cm x 49 cm (3.50" x 17.01" x 19.29")
Weight 22.05 kg (48.61 lbs)
Color Black
Number of Rack Units 2U
[/properties]

[specifications]

Capacity 750 VA / 675 W
Input Voltage 120 V (adjustable: 75–154 V; nominal: 82–143 V)
Input Connection Type NEMA 5-15P
Output Voltage 120 V
Output Connections 8 x NEMA 5-15R
Waveform Type Sine wave
Topology Line Interactive
Transfer Time 6 ms typical, 10 ms maximum
Battery Type Lead-Acid
Battery Recharge Time 3 hours
Battery Life 3–5 years
Replacement Battery APCRBC116
Battery Charge Power 104 W rated
Full/Half Load Runtime 11 min 30 sec (660 W) / 27 min (330 W)
Surge Energy Rating 645 J
Acoustic Noise 40 dBA
Operating Temperature 0°C to 40°C (32°F to 104°F)
Operating Humidity 0–95% non-condensing
Altitude 0–10,000 ft operating
Communications LCD status/control panel, SmartConnect Ethernet, RS-232, USB, pre-installed Network Management Card 3
Certifications cUL Listed, ENERGY STAR V2.0 (USA)
Warranty 3 years repair or replace for hardware. 2 years for battery, plus 1 additional year if customers registers device to SmartConnect
[/specifications]

[accesories]

Rack Mounting Brackets Included in the box
RS-232 Cable Included in the box
USB Cable Included in the box
Cat 5 Ethernet Cable Included in the box
Installation Guide Included in the box
Removable Mobile Power Pack Included in the box
[/accesories]

The APC Smart-UPS X SMX750CNC is a versatile 750VA / 675W line-interactive UPS engineered for critical IT infrastructure. Built as a 2U rack/tower convertible system, it combines pure sine wave output, Automatic Voltage Regulation, and extended runtime capability with a modular battery design. Featuring SmartConnect Ethernet for cloud monitoring and a pre-installed Network Management Card 3, it delivers powerful local and remote management, ensuring reliable protection for servers, storage, and essential network devices.

  • 750VA / 675W Capacity: Provides reliable backup power for small to medium IT and network loads.
  • Rack/Tower Convertible 2U Design: Flexible deployment for rack-mounted or standalone tower environments.
  • Pure Sine Wave Output: Maintains consistent and clean power delivery to sensitive equipment.
  • Automatic Voltage Regulation (AVR): Stabilizes input fluctuations without using battery power.
  • Extended Runtime Support: Compatible with external battery packs for scalable backup duration.
  • Pre-Installed Network Management Card: Advanced environmental monitoring and remote control out of the box.
  • SmartConnect Ethernet: Cloud-enabled remote monitoring with real-time alerts.
  • Multi-Function LCD Panel: Easy access to runtime, load levels, and UPS status.
  • ENERGY STAR® Certified: Meets high efficiency standards to minimize operating costs.

The SMX750CNC uses line-interactive topology with AVR, ensuring continuous stabilization of power during utility fluctuations. By correcting voltage without switching to batteries, it prolongs battery life and minimizes unnecessary discharges.

Its pure sine wave output ensures maximum compatibility with sensitive IT hardware, including devices with active PFC power supplies. This guarantees reliable performance and reduces the risk of downtime caused by poor power quality.

Designed for extended runtime, the UPS supports hot-swappable battery packs, enabling users to scale backup duration to their operational needs. Management is enhanced by the integrated Network Management Card 3, offering advanced remote monitoring with environmental data, while the SmartConnect Ethernet port ensures cloud-based oversight. Together with the LCD interface, these tools provide full visibility and control, both on-site and remotely.

  • Rack-mounted or tower servers and storage systems
  • Network hardware including routers, switches, and firewalls
  • Branch office and edge IT deployments requiring modular runtime
  • Healthcare, finance, and retail operations needing continuous uptime

Q1: How is the SMX750CNC installed?
A: It is a 2U rack/tower convertible UPS supplied with brackets for rack installation and stands for tower setup, offering flexible deployment options.

Q2: What performance can I expect?
A: The SMX750CNC provides 750VA / 675W of sinewave power. At half load (330W) it offers ~27 minutes runtime, while at full load (660W) ~11.5 minutes. Runtime can be extended with additional battery packs. Actual runtime varies by connected load and environment.

Q3: How can the UPS be managed?
A: It features SmartConnect Ethernet for cloud-based monitoring, a pre-installed Network Management Card 3 for advanced remote control, and a multi-function LCD for local management.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]750VA / 675W, Pure Sinewave Output, 2U Rack/Tower Convertible, 8x NEMA 5-15R Outlets, SmartConnect & Pre-Installed NMC, Extended Runtime Support[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model SMX750CNC
Product Type Line-Interactive UPS, Extended Runtime
Form Factor Rack/Tower Convertible 2U
Dimensions (H x W x D) 8.9 cm x 43.2 cm x 49 cm (3.50" x 17.01" x 19.29")
Weight 22.05 kg (48.61 lbs)
Color Black
Number of Rack Units 2U
[/properties]

[specifications]

Capacity 750 VA / 675 W
Input Voltage 120 V (adjustable: 75–154 V; nominal: 82–143 V)
Input Connection Type NEMA 5-15P
Output Voltage 120 V
Output Connections 8 x NEMA 5-15R
Waveform Type Sine wave
Topology Line Interactive
Transfer Time 6 ms typical, 10 ms maximum
Battery Type Lead-Acid
Battery Recharge Time 3 hours
Battery Life 3–5 years
Replacement Battery APCRBC116
Battery Charge Power 104 W rated
Full/Half Load Runtime 11 min 30 sec (660 W) / 27 min (330 W)
Surge Energy Rating 645 J
Acoustic Noise 40 dBA
Operating Temperature 0°C to 40°C (32°F to 104°F)
Operating Humidity 0–95% non-condensing
Altitude 0–10,000 ft operating
Communications LCD status/control panel, SmartConnect Ethernet, RS-232, USB, pre-installed Network Management Card 3
Certifications cUL Listed, ENERGY STAR V2.0 (USA)
Warranty 3 years repair or replace for hardware. 2 years for battery, plus 1 additional year if customers registers device to SmartConnect
[/specifications]

[accesories]

Rack Mounting Brackets Included in the box
RS-232 Cable Included in the box
USB Cable Included in the box
Cat 5 Ethernet Cable Included in the box
Installation Guide Included in the box
Removable Mobile Power Pack Included in the box
[/accesories]
Overview

The APC Smart-UPS X SMX750CNC is a versatile 750VA / 675W line-interactive UPS engineered for critical IT infrastructure. Built as a 2U rack/tower convertible system, it combines pure sine wave output, Automatic Voltage Regulation, and extended runtime capability with a modular battery design. Featuring SmartConnect Ethernet for cloud monitoring and a pre-installed Network Management Card 3, it delivers powerful local and remote management, ensuring reliable protection for servers, storage, and essential network devices.

Key Features & Benefits
  • 750VA / 675W Capacity: Provides reliable backup power for small to medium IT and network loads.
  • Rack/Tower Convertible 2U Design: Flexible deployment for rack-mounted or standalone tower environments.
  • Pure Sine Wave Output: Maintains consistent and clean power delivery to sensitive equipment.
  • Automatic Voltage Regulation (AVR): Stabilizes input fluctuations without using battery power.
  • Extended Runtime Support: Compatible with external battery packs for scalable backup duration.
  • Pre-Installed Network Management Card: Advanced environmental monitoring and remote control out of the box.
  • SmartConnect Ethernet: Cloud-enabled remote monitoring with real-time alerts.
  • Multi-Function LCD Panel: Easy access to runtime, load levels, and UPS status.
  • ENERGY STAR® Certified: Meets high efficiency standards to minimize operating costs.
Technical Deep Dive

The SMX750CNC uses line-interactive topology with AVR, ensuring continuous stabilization of power during utility fluctuations. By correcting voltage without switching to batteries, it prolongs battery life and minimizes unnecessary discharges.

Its pure sine wave output ensures maximum compatibility with sensitive IT hardware, including devices with active PFC power supplies. This guarantees reliable performance and reduces the risk of downtime caused by poor power quality.

Designed for extended runtime, the UPS supports hot-swappable battery packs, enabling users to scale backup duration to their operational needs. Management is enhanced by the integrated Network Management Card 3, offering advanced remote monitoring with environmental data, while the SmartConnect Ethernet port ensures cloud-based oversight. Together with the LCD interface, these tools provide full visibility and control, both on-site and remotely.

Ideal Applications
  • Rack-mounted or tower servers and storage systems
  • Network hardware including routers, switches, and firewalls
  • Branch office and edge IT deployments requiring modular runtime
  • Healthcare, finance, and retail operations needing continuous uptime
Frequently Asked Questions (FAQs)

Q1: How is the SMX750CNC installed?
A: It is a 2U rack/tower convertible UPS supplied with brackets for rack installation and stands for tower setup, offering flexible deployment options.

Q2: What performance can I expect?
A: The SMX750CNC provides 750VA / 675W of sinewave power. At half load (330W) it offers ~27 minutes runtime, while at full load (660W) ~11.5 minutes. Runtime can be extended with additional battery packs. Actual runtime varies by connected load and environment.

Q3: How can the UPS be managed?
A: It features SmartConnect Ethernet for cloud-based monitoring, a pre-installed Network Management Card 3 for advanced remote control, and a multi-function LCD for local management.
