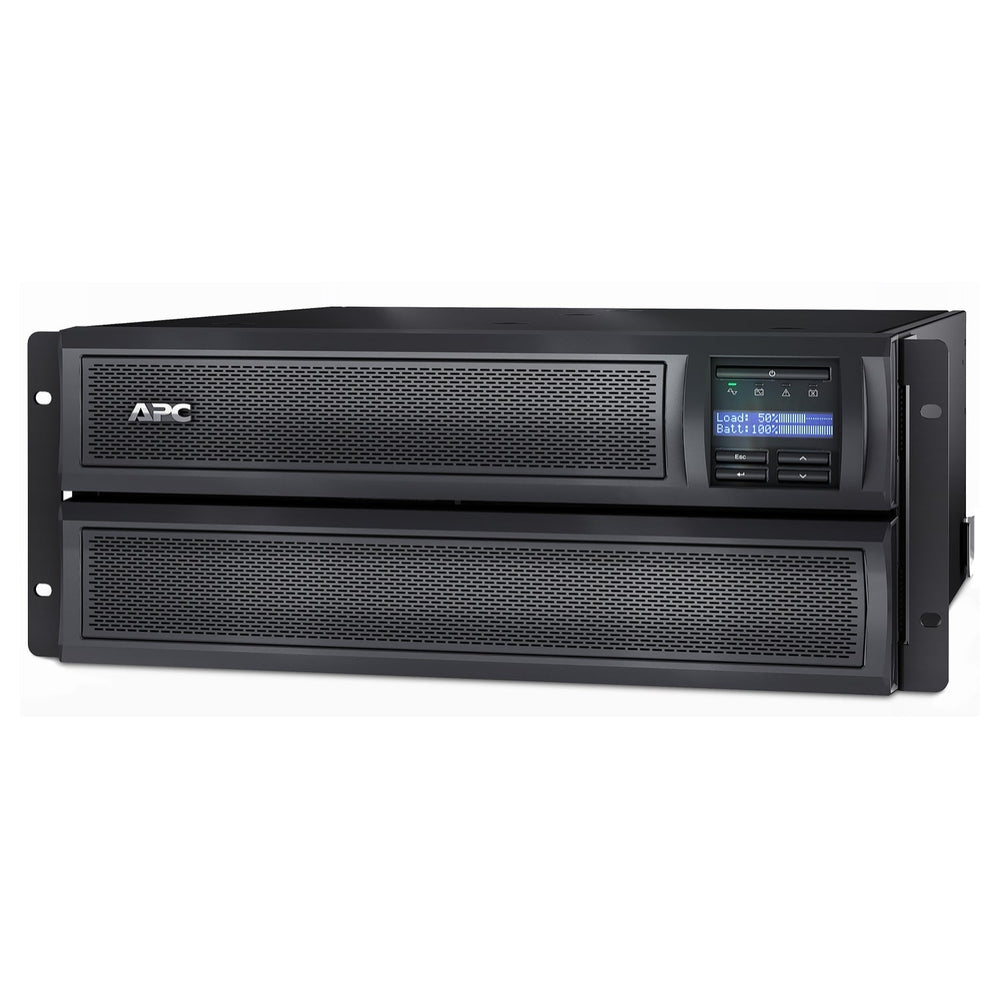

APC SMX3000LVUS - Smart-UPS X 3kVA Rack/Tower Convertible Line-Interactive UPS
APC SMX3000LVUS - Smart-UPS X 3kVA Rack/Tower Convertible Line-Interactive UPS

APC SMX3000LVUS - Smart-UPS X 3kVA Rack/Tower Convertible Line-Interactive UPS

por APC
Desconto de 31%
R$ 46.020,00
R$ 31.548,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] 2880VA / 2700W, Line-Interactive, Pure Sine Wave, 6x NEMA 5-15R + 3x NEMA 5-20R + 1x L5-30R, SmartSlot, Extended Runtime [/shortdesc]

[properties]

Brand APC by Schneider Electric
Model SMX3000LVUS
Product Type Smart-UPS X, Line-Interactive (Extended runtime)
Form Factor Rack/Tower Convertible 4U
Dimensions (H x W x D) 17.01" x 7.01" x 19.02" (43.2 x 17.8 x 48.3 cm)
Weight 85.19 lb (38.64 kg)
Color Black
Number of Rack Units 4U
Cable Length 8 ft (2.4 m)
Mounting Rack-mounted; two-post mountable
[/properties]

[specifications]

Capacity 2880 VA / 2700 W (Max configurable: 2880 VA / 2700 W)
Input Voltage 120 V (other: 100 V, 110 V, 127 V) • Operating range: 70–153 V
Input Connection Type NEMA L5-30P
Input Frequency 50/60 Hz ±3 Hz, auto-sensing
Output Voltage 120 V (other: 100 V, 110 V, 127 V)
Output Connections 6 × NEMA 5-15R, 3 × NEMA 5-20R, 1 × NEMA L5-30R
Topology / Waveform Line-Interactive • Sine wave • <5% THD
Transfer Time 2–4 ms (typical 4 ms, max 8 ms)
Output Frequency 50/60 Hz ±3 Hz (sync to mains)
Battery Type Lead-Acid • Typical recharge 3 h • Life 3–5 years • Extendable runtime: Yes
Replacement Battery APCRBC143US • RBC qty: 1 • Charge power: 245 W rated
Surge Energy Rating 540 J
Acoustic Noise 55 dBA
Thermal Dissipation 276 BTU/h (online)
Operating Environment 0–40 °C (32–104 °F) • 0–95% RH (non-cond.) • Altitude 0–10,000 ft
Communications LCD control panel, LED status indicators, alarms, USB, RS-232, SmartSlot, EPO
Certifications BSMI, CSA, NOM, TÜV, VCCI Class A, TAA compliant
Warranty 3 years repair or replace (excluding battery) and 2 years for battery
[/specifications]

[accesories]

Rack Mounting Hardware & Brackets Included in the box
Rack Mounting Support Rails Included in the box
Removable Support Feet Included in the box
Smart-UPS Signalling RS-232 Cable Included in the box
USB Cable Included in the box
Documentation Installation guide, Documentation CD, CD with software
[/accesories]

The APC Smart-UPS X SMX3000LVUS is a line-interactive UPS delivering 2880VA / 2700W of reliable backup power for critical IT infrastructure. This 4U rack/tower convertible unit ensures business continuity with pure sine wave output, AVR, SmartSlot expandability, and support for extended runtime.

  • 2880VA / 2700W Capacity: Provides reliable backup for servers, storage, and network hardware.
  • Pure Sine Wave Output: Ensures compatibility with sensitive IT equipment and active PFC power supplies.
  • Extended Runtime Ready: Supports additional battery packs for longer uptime during outages.
  • Rack/Tower Convertible 4U Design: Flexible installation in both rackmount and tower configurations.
  • SmartSlot Expansion: Enables advanced monitoring and management with optional cards.
  • Multi-function LCD Console: Simplifies local monitoring with detailed system status and alerts.

The SMX3000LVUS uses line-interactive topology with Automatic Voltage Regulation (AVR) to correct power fluctuations without switching to batteries. This ensures consistent performance, reduces battery usage, and extends battery life.

With its pure sine wave output, the UPS maintains clean and stable power for sensitive electronic systems, preventing disruptions during voltage irregularities. Its SmartSlot architecture provides the flexibility to integrate optional network management cards, enhancing remote monitoring and control for distributed environments.

The UPS also supports extended runtime through external battery packs, allowing organizations to customize backup duration based on operational needs. This scalability makes it a reliable choice for businesses where continuous uptime is mission-critical.

  • Enterprise servers and storage systems
  • Data center racks and network infrastructure
  • Healthcare IT requiring secure and stable uptime
  • Finance and retail operations with mission-critical applications

Q1: How is the SMX3000LVUS installed?
A: It is a 4U rack/tower convertible UPS with included mounting rails, brackets, and support feet for flexible deployment.

Q2: What performance can I expect?
A: This UPS provides 2880VA / 2700W of sine wave output with AVR. Runtime varies by load and can be extended with external battery packs. Actual performance depends on load, battery age, and environmental factors.

Q3: How can the UPS be managed?
A: It includes a multifunction LCD console for local control and offers SmartSlot expandability, supporting optional network management cards for advanced remote administration.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] 2880VA / 2700W, Line-Interactive, Pure Sine Wave, 6x NEMA 5-15R + 3x NEMA 5-20R + 1x L5-30R, SmartSlot, Extended Runtime [/shortdesc]

[properties]

Brand APC by Schneider Electric
Model SMX3000LVUS
Product Type Smart-UPS X, Line-Interactive (Extended runtime)
Form Factor Rack/Tower Convertible 4U
Dimensions (H x W x D) 17.01" x 7.01" x 19.02" (43.2 x 17.8 x 48.3 cm)
Weight 85.19 lb (38.64 kg)
Color Black
Number of Rack Units 4U
Cable Length 8 ft (2.4 m)
Mounting Rack-mounted; two-post mountable
[/properties]

[specifications]

Capacity 2880 VA / 2700 W (Max configurable: 2880 VA / 2700 W)
Input Voltage 120 V (other: 100 V, 110 V, 127 V) • Operating range: 70–153 V
Input Connection Type NEMA L5-30P
Input Frequency 50/60 Hz ±3 Hz, auto-sensing
Output Voltage 120 V (other: 100 V, 110 V, 127 V)
Output Connections 6 × NEMA 5-15R, 3 × NEMA 5-20R, 1 × NEMA L5-30R
Topology / Waveform Line-Interactive • Sine wave • <5% THD
Transfer Time 2–4 ms (typical 4 ms, max 8 ms)
Output Frequency 50/60 Hz ±3 Hz (sync to mains)
Battery Type Lead-Acid • Typical recharge 3 h • Life 3–5 years • Extendable runtime: Yes
Replacement Battery APCRBC143US • RBC qty: 1 • Charge power: 245 W rated
Surge Energy Rating 540 J
Acoustic Noise 55 dBA
Thermal Dissipation 276 BTU/h (online)
Operating Environment 0–40 °C (32–104 °F) • 0–95% RH (non-cond.) • Altitude 0–10,000 ft
Communications LCD control panel, LED status indicators, alarms, USB, RS-232, SmartSlot, EPO
Certifications BSMI, CSA, NOM, TÜV, VCCI Class A, TAA compliant
Warranty 3 years repair or replace (excluding battery) and 2 years for battery
[/specifications]

[accesories]

Rack Mounting Hardware & Brackets Included in the box
Rack Mounting Support Rails Included in the box
Removable Support Feet Included in the box
Smart-UPS Signalling RS-232 Cable Included in the box
USB Cable Included in the box
Documentation Installation guide, Documentation CD, CD with software
[/accesories]
Overview

The APC Smart-UPS X SMX3000LVUS is a line-interactive UPS delivering 2880VA / 2700W of reliable backup power for critical IT infrastructure. This 4U rack/tower convertible unit ensures business continuity with pure sine wave output, AVR, SmartSlot expandability, and support for extended runtime.

Key Features & Benefits
  • 2880VA / 2700W Capacity: Provides reliable backup for servers, storage, and network hardware.
  • Pure Sine Wave Output: Ensures compatibility with sensitive IT equipment and active PFC power supplies.
  • Extended Runtime Ready: Supports additional battery packs for longer uptime during outages.
  • Rack/Tower Convertible 4U Design: Flexible installation in both rackmount and tower configurations.
  • SmartSlot Expansion: Enables advanced monitoring and management with optional cards.
  • Multi-function LCD Console: Simplifies local monitoring with detailed system status and alerts.
Technical Deep Dive

The SMX3000LVUS uses line-interactive topology with Automatic Voltage Regulation (AVR) to correct power fluctuations without switching to batteries. This ensures consistent performance, reduces battery usage, and extends battery life.

With its pure sine wave output, the UPS maintains clean and stable power for sensitive electronic systems, preventing disruptions during voltage irregularities. Its SmartSlot architecture provides the flexibility to integrate optional network management cards, enhancing remote monitoring and control for distributed environments.

The UPS also supports extended runtime through external battery packs, allowing organizations to customize backup duration based on operational needs. This scalability makes it a reliable choice for businesses where continuous uptime is mission-critical.

Ideal Applications
  • Enterprise servers and storage systems
  • Data center racks and network infrastructure
  • Healthcare IT requiring secure and stable uptime
  • Finance and retail operations with mission-critical applications
Frequently Asked Questions (FAQs)

Q1: How is the SMX3000LVUS installed?
A: It is a 4U rack/tower convertible UPS with included mounting rails, brackets, and support feet for flexible deployment.

Q2: What performance can I expect?
A: This UPS provides 2880VA / 2700W of sine wave output with AVR. Runtime varies by load and can be extended with external battery packs. Actual performance depends on load, battery age, and environmental factors.

Q3: How can the UPS be managed?
A: It includes a multifunction LCD console for local control and offers SmartSlot expandability, supporting optional network management cards for advanced remote administration.
