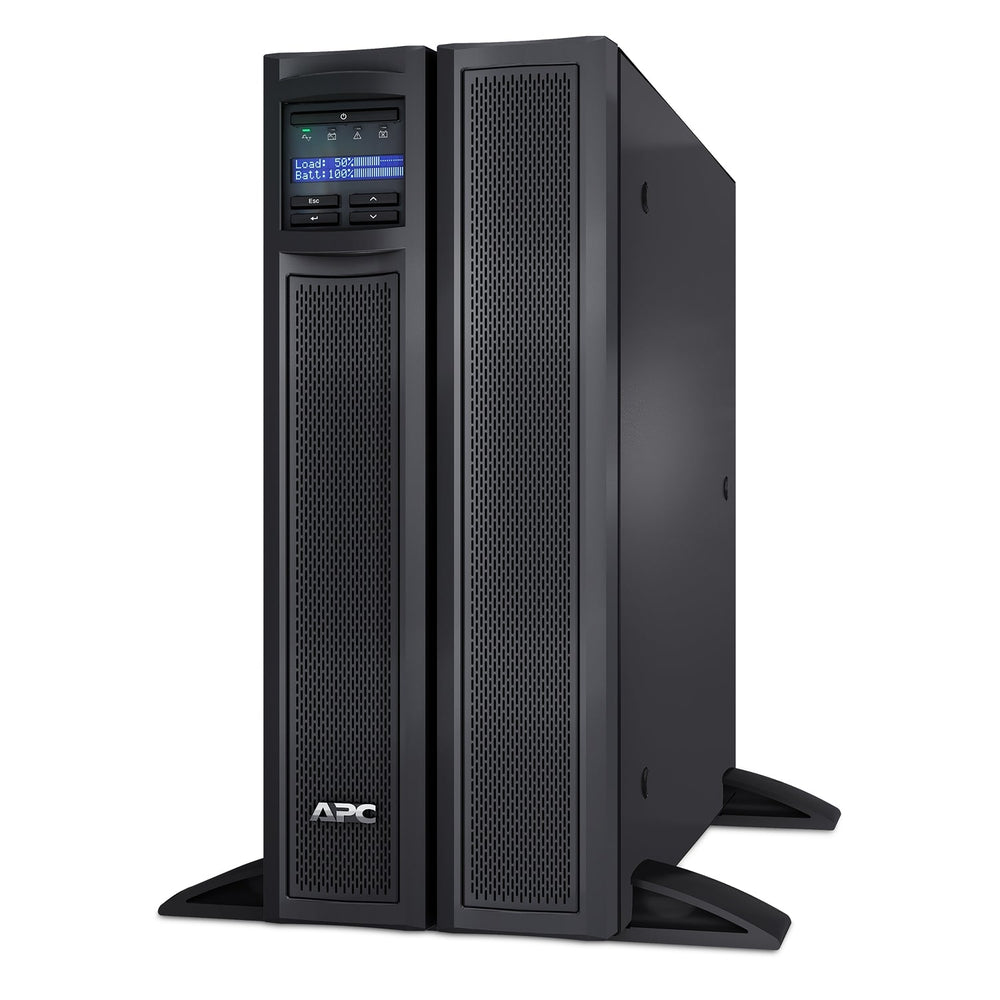

APC SMX3000HVTUS - Smart-UPS X 3kVA 4U Rack/Tower UPS
APC SMX3000HVTUS - Smart-UPS X 3kVA 4U Rack/Tower UPS

APC SMX3000HVTUS - Smart-UPS X 3kVA 4U Rack/Tower UPS

por APC
Desconto de 28%
R$ 49.020,00
R$ 35.172,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] 3000VA / 2700W, Line-Interactive 4U Rack/Tower, Pure Sine Wave Output, 2x NEMA L6-20R + 4x IEC C13 + 2x IEC C19 Outlets, SmartSlot Expandability, LCD Console [/shortdesc]

[properties]

Brand APC by Schneider Electric
Model SMX3000HVTUS
Product Type Smart-UPS X, Line-Interactive (Extended Runtime)
Form Factor Rack/Tower Convertible 4U
Dimensions (H x W x D) 17.01" x 7.01" x 19.02" (43.2 x 17.8 x 48.3 cm)
Weight 85.19 lb (38.64 kg)
Color Black
Number of Rack Units 4U
Cable Length 1 × power cable (included)
Cooling Fan-cooled (55 dBA)
[/properties]

[specifications]

Capacity 3000 VA / 2700 W
Input Voltage 208 V (other: 220 V, 230 V, 240 V) • Range: 141–255 V (full load), 160–280 V (half load)
Input Connection Type NEMA L6-20P
Input Frequency 50/60 Hz ±3 Hz, auto-sensing
Output Voltage 208 V (other: 220 V, 230 V, 240 V)
Output Connections 2 × NEMA L6-20R, 4 × IEC 320 C13, 2 × IEC 320 C19, 3 × IEC Jumpers
Waveform Type Sine wave
Topology Line Interactive
Transfer Time 2–4 ms typical, 8 ms max
Crest Factor 3:1
Harmonic Distortion <5%
Battery Type Lead-Acid • Recharge 3 h • Life 3–5 years • RBC Qty: 1 • Replacement: APCRBC143US • Charge power: 245 W
Extendable Runtime Yes
Surge Energy Rating 645 J
Acoustic Noise 55 dBA
Thermal Dissipation 184 BTU/h
Operating Temperature 0–40 °C (32–104 °F)
Operating Humidity 0–95% non-condensing
Altitude 0–10,000 ft operating
Communications Multi-function LCD panel, LED status indicators, USB, RS-232, SmartSlot (1 free), EPO, audible alarms
Certifications CE, CSA, C-tick, IRAM, VDE, GOST, TAA compliance
Warranty 3 years repair or replace (excluding battery), 2 years for battery
[/specifications]

[accessories]

Rack Mounting Brackets Included in the box
USB Cable Included in the box
RS-232 Cable Included in the box
CD with Software Included in the box
Documentation CD & User Manual Included in the box
[/accesories]

The APC Smart-UPS X SMX3000HVTUS is a high-capacity, TAA-compliant UPS designed to deliver 3000VA/2700W of reliable backup power in a 4U rack/tower convertible format. Featuring pure sine wave output, advanced line-interactive topology with AVR, and SmartSlot expandability, it ensures uptime for critical IT infrastructure. With a multi-function LCD interface and extended runtime capability, it is engineered for enterprise servers, storage, and high-density network hardware.

  • 3000VA / 2700W Capacity: Provides robust backup power for demanding enterprise IT systems.
  • Line-Interactive Topology: Automatic Voltage Regulation minimizes battery use while correcting voltage fluctuations.
  • Pure Sine Wave Output: Ensures clean, stable power for sensitive servers and network hardware.
  • SmartSlot Expandability: Supports optional management cards for advanced remote monitoring and control.
  • LCD Control Panel: Multi-function display with clear system status and configuration options.
  • Versatile Output Connections: Equipped with 2x NEMA L6-20R, 4x IEC C13, and 2x IEC C19 outlets to support diverse devices.
  • Extended Runtime Ready: Supports external battery packs to extend backup duration.
  • Surge Protection: 645 J rating with full-time multi-pole noise filtering safeguards connected equipment.

The SMX3000HVTUS is built on line-interactive technology with Automatic Voltage Regulation (AVR), which stabilizes input voltage in real-time. This ensures connected devices are protected from brownouts and surges without unnecessary battery usage, extending both runtime and battery life.

Delivering pure sine wave output, the UPS guarantees compatibility with mission-critical IT and networking equipment. Its crest factor of 3:1 and less than 5% harmonic distortion ensure high-quality, stable power suitable for sensitive electronics in enterprise-grade environments.

Flexibility in deployment is a core strength. With SmartSlot expandability, administrators can integrate advanced network management cards, enabling real-time monitoring and remote control. The multi-function LCD panel provides at-a-glance system status, making it easier to manage local deployments. Extended runtime support with external battery packs further enhances resilience for long-duration outages.

  • Enterprise servers and storage systems
  • Core network infrastructure including switches and routers
  • Data centers and high-density IT deployments
  • Government and TAA-compliant IT environments
  • Healthcare and finance industries requiring extended uptime

Q1: How is the SMX3000HVTUS installed?
A: It is a 4U rack/tower convertible UPS. Rack-mounting brackets, cables, and support accessories are included for flexible installation.

Q2: What performance can I expect?
A: The UPS delivers 3000VA / 2700W with a transfer time of 2–4 ms (up to 8 ms maximum). Typical recharge time is 3 hours. Runtime varies by load but can be extended with additional battery packs.

Q3: How can the UPS be managed?
A: It includes a multi-function LCD console for local management and a SmartSlot for optional management cards, allowing remote monitoring and integration into enterprise systems.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] 3000VA / 2700W, Line-Interactive 4U Rack/Tower, Pure Sine Wave Output, 2x NEMA L6-20R + 4x IEC C13 + 2x IEC C19 Outlets, SmartSlot Expandability, LCD Console [/shortdesc]

[properties]

Brand APC by Schneider Electric
Model SMX3000HVTUS
Product Type Smart-UPS X, Line-Interactive (Extended Runtime)
Form Factor Rack/Tower Convertible 4U
Dimensions (H x W x D) 17.01" x 7.01" x 19.02" (43.2 x 17.8 x 48.3 cm)
Weight 85.19 lb (38.64 kg)
Color Black
Number of Rack Units 4U
Cable Length 1 × power cable (included)
Cooling Fan-cooled (55 dBA)
[/properties]

[specifications]

Capacity 3000 VA / 2700 W
Input Voltage 208 V (other: 220 V, 230 V, 240 V) • Range: 141–255 V (full load), 160–280 V (half load)
Input Connection Type NEMA L6-20P
Input Frequency 50/60 Hz ±3 Hz, auto-sensing
Output Voltage 208 V (other: 220 V, 230 V, 240 V)
Output Connections 2 × NEMA L6-20R, 4 × IEC 320 C13, 2 × IEC 320 C19, 3 × IEC Jumpers
Waveform Type Sine wave
Topology Line Interactive
Transfer Time 2–4 ms typical, 8 ms max
Crest Factor 3:1
Harmonic Distortion <5%
Battery Type Lead-Acid • Recharge 3 h • Life 3–5 years • RBC Qty: 1 • Replacement: APCRBC143US • Charge power: 245 W
Extendable Runtime Yes
Surge Energy Rating 645 J
Acoustic Noise 55 dBA
Thermal Dissipation 184 BTU/h
Operating Temperature 0–40 °C (32–104 °F)
Operating Humidity 0–95% non-condensing
Altitude 0–10,000 ft operating
Communications Multi-function LCD panel, LED status indicators, USB, RS-232, SmartSlot (1 free), EPO, audible alarms
Certifications CE, CSA, C-tick, IRAM, VDE, GOST, TAA compliance
Warranty 3 years repair or replace (excluding battery), 2 years for battery
[/specifications]

[accessories]

Rack Mounting Brackets Included in the box
USB Cable Included in the box
RS-232 Cable Included in the box
CD with Software Included in the box
Documentation CD & User Manual Included in the box
[/accesories]
Overview

The APC Smart-UPS X SMX3000HVTUS is a high-capacity, TAA-compliant UPS designed to deliver 3000VA/2700W of reliable backup power in a 4U rack/tower convertible format. Featuring pure sine wave output, advanced line-interactive topology with AVR, and SmartSlot expandability, it ensures uptime for critical IT infrastructure. With a multi-function LCD interface and extended runtime capability, it is engineered for enterprise servers, storage, and high-density network hardware.

Key Features & Benefits
  • 3000VA / 2700W Capacity: Provides robust backup power for demanding enterprise IT systems.
  • Line-Interactive Topology: Automatic Voltage Regulation minimizes battery use while correcting voltage fluctuations.
  • Pure Sine Wave Output: Ensures clean, stable power for sensitive servers and network hardware.
  • SmartSlot Expandability: Supports optional management cards for advanced remote monitoring and control.
  • LCD Control Panel: Multi-function display with clear system status and configuration options.
  • Versatile Output Connections: Equipped with 2x NEMA L6-20R, 4x IEC C13, and 2x IEC C19 outlets to support diverse devices.
  • Extended Runtime Ready: Supports external battery packs to extend backup duration.
  • Surge Protection: 645 J rating with full-time multi-pole noise filtering safeguards connected equipment.
Technical Deep Dive

The SMX3000HVTUS is built on line-interactive technology with Automatic Voltage Regulation (AVR), which stabilizes input voltage in real-time. This ensures connected devices are protected from brownouts and surges without unnecessary battery usage, extending both runtime and battery life.

Delivering pure sine wave output, the UPS guarantees compatibility with mission-critical IT and networking equipment. Its crest factor of 3:1 and less than 5% harmonic distortion ensure high-quality, stable power suitable for sensitive electronics in enterprise-grade environments.

Flexibility in deployment is a core strength. With SmartSlot expandability, administrators can integrate advanced network management cards, enabling real-time monitoring and remote control. The multi-function LCD panel provides at-a-glance system status, making it easier to manage local deployments. Extended runtime support with external battery packs further enhances resilience for long-duration outages.

Ideal Applications
  • Enterprise servers and storage systems
  • Core network infrastructure including switches and routers
  • Data centers and high-density IT deployments
  • Government and TAA-compliant IT environments
  • Healthcare and finance industries requiring extended uptime
Frequently Asked Questions (FAQs)

Q1: How is the SMX3000HVTUS installed?
A: It is a 4U rack/tower convertible UPS. Rack-mounting brackets, cables, and support accessories are included for flexible installation.

Q2: What performance can I expect?
A: The UPS delivers 3000VA / 2700W with a transfer time of 2–4 ms (up to 8 ms maximum). Typical recharge time is 3 hours. Runtime varies by load but can be extended with additional battery packs.

Q3: How can the UPS be managed?
A: It includes a multi-function LCD console for local management and a SmartSlot for optional management cards, allowing remote monitoring and integration into enterprise systems.
