APC SMX2200RMLV2U - Smart-UPS X 2200VA Rack/Tower Convertible

[shortdesc] 2200VA / 1980W, Line-Interactive UPS, 2U Rack/Tower Convertible, 6x NEMA 5-15R + 2x NEMA 5-20R Outlets, Extended Runtime, LCD, SmartSlot [/shortdesc]

[properties]

[specifications]

[accesories]

The APC Smart-UPS X SMX2200RMLV2U provides 2200VA / 1980W of dependable backup power in a 2U rack/tower convertible form factor. Designed with extended runtime capability, pure sine wave output, and line-interactive topology, it delivers stable and reliable protection for critical IT infrastructure. Equipped with a SmartSlot for management expansion and a multi-function LCD interface, this UPS is engineered for flexibility, scalability, and simplified management in enterprise IT environments.

• Extended Runtime Capability: Supports external battery packs for scalable backup tailored to business needs.
• Pure Sine Wave Output: Ensures high-quality power delivery for sensitive IT and network hardware.
• SmartSlot Integration: Expands UPS functionality with optional network and environmental management cards.

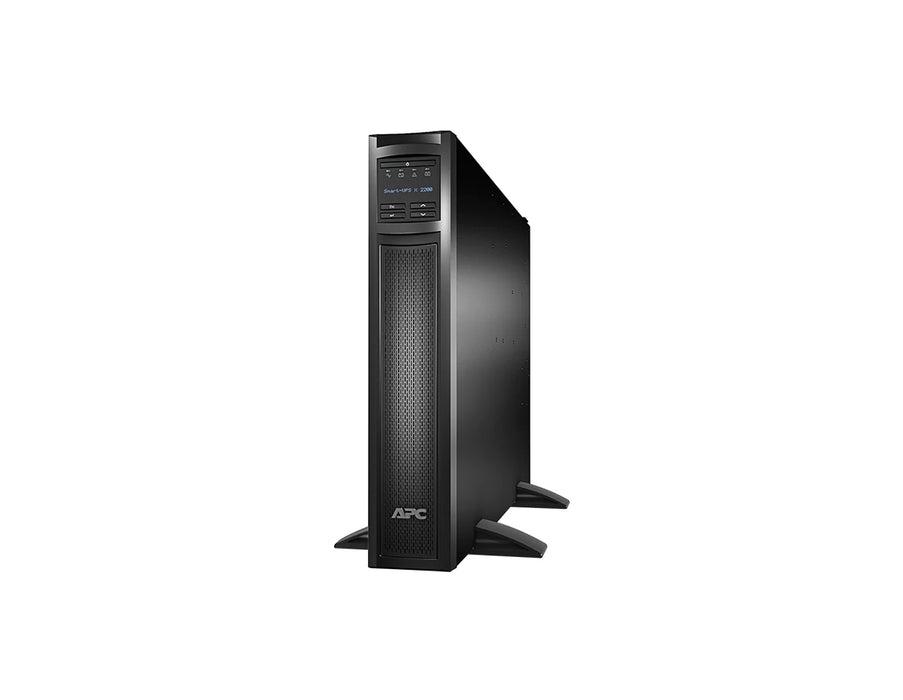

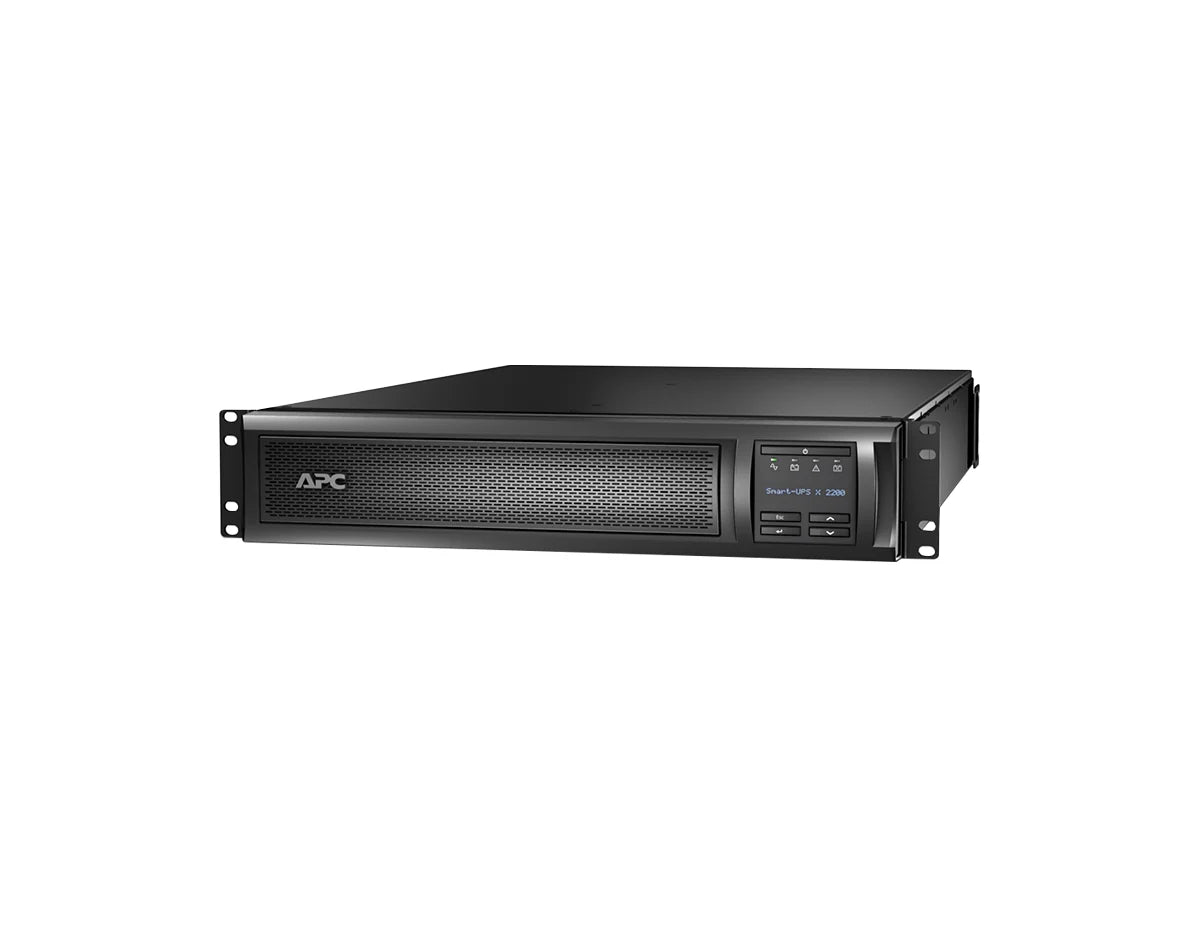

• Rack/Tower Convertible Design: Deployable as a 2U rackmount or tower unit with included mounting hardware and support feet.
• Multi-Function LCD Console: Provides intuitive local monitoring and configuration of UPS settings.

The SMX2200RMLV2U leverages a line-interactive topology with AVR to stabilize incoming voltage between 70–153V, ensuring that short-term fluctuations are corrected without engaging the battery. This reduces unnecessary discharge cycles, extending the lifespan of the lead-acid battery and preserving runtime for actual outages.

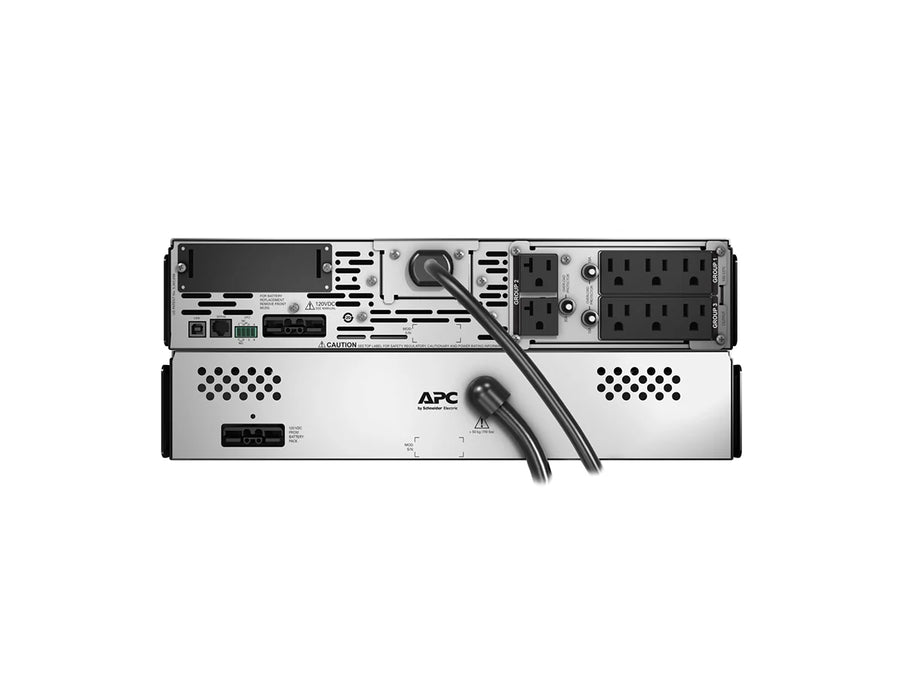

With a maximum capacity of 2200VA / 1980W, it delivers clean sine wave output, making it compatible with modern servers, storage, and network hardware. Runtime can be significantly extended with the addition of external battery packs, offering flexibility for critical systems requiring prolonged backup.

The SmartSlot interface enhances adaptability by allowing the integration of optional management cards for advanced network monitoring and environmental control. Coupled with the built-in LCD console and USB/RS-232 connectivity, IT teams gain both local and remote visibility into UPS health, runtime, and performance.

• Rack-mounted or tower servers and storage systems
• Network closets and branch office IT infrastructure
• Healthcare, finance, and education environments requiring extended runtime protection
• Retail and enterprise systems with scalable backup needs

Q1: How is the SMX2200RMLV2U installed?
A: It is a 2U rack/tower convertible UPS that ships with rack rails, brackets, and removable support feet for flexible deployment.

Q2: What performance can I expect?
A: The UPS provides 2200VA / 1980W of sine wave power. Runtime varies by load but can be expanded with external battery packs. Consult APC runtime charts for detailed values.

Q3: How can the UPS be managed?
A: Local monitoring is available via the LCD console, while advanced remote and environmental management can be added through the SmartSlot with optional cards.
