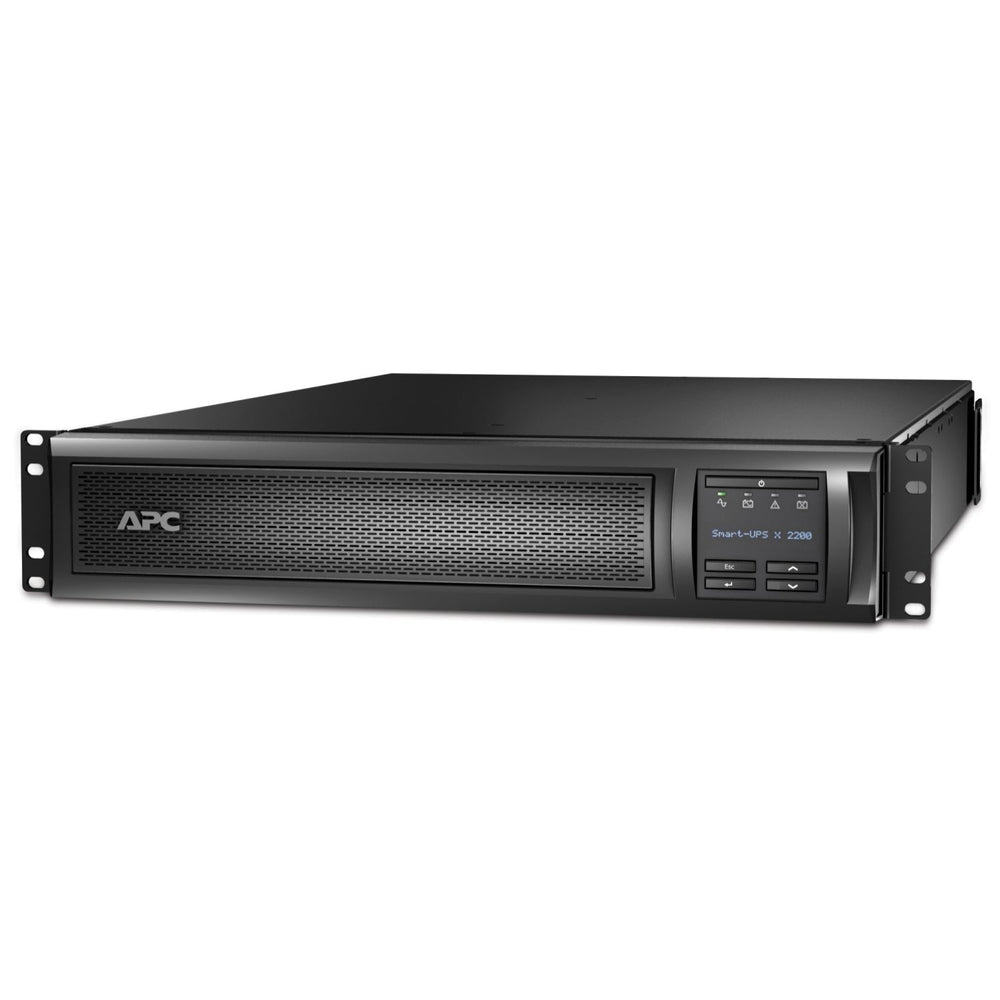

APC SMX2200R2HVNC - Smart-UPS X 2200VA 2U Rack/Tower Convertible UPS
APC SMX2200R2HVNC - Smart-UPS X 2200VA 2U Rack/Tower Convertible UPS

APC SMX2200R2HVNC - Smart-UPS X 2200VA 2U Rack/Tower Convertible UPS

por APC
Desconto de 33%
R$ 62.040,00
R$ 41.556,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]2200VA / 1980W, Line-Interactive, 2U Rack/Tower Convertible, 8x IEC C13 + 1x C19 Outlets, Pre-installed Network Management Card[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model SMX2200R2HVNC
Product Type Smart-UPS X, Line-Interactive (Extended Runtime)
Form Factor Rack/Tower Convertible 2U
Dimensions (H x W x D) 3.35" x 17.01" x 26.26" (8.5 x 43.2 x 66.7 cm)
Weight 82.10 lb (37.24 kg)
Color Black
Number of Rack Units 2U
Cable Length 6 ft (1.8 m)
[/properties]

[specifications]

Capacity 2200 VA / 1980 W
Input Voltage 208 V / 230 V (other: 220 V, 240 V) • Operating range: 140–280 V
Input Connection Type BS1363A, IEC 320 C20, Schuko CEE 7 / EU1-16P
Input Frequency 50/60 Hz ±3 Hz, auto-sensing
Output Voltage 208 V / 230 V (other: 220 V, 240 V)
Output Connections 8 × IEC 320 C13, 1 × IEC 320 C19, 2 × IEC Jumpers
Waveform Type Sine wave
Topology Line Interactive
Transfer Time 6 ms typical, 10 ms maximum
Battery Type Lead-Acid • Recharge time: 3 h • Life: 3–5 years • RBC Qty: 1 • Replacement battery: APCRBC117 • Charge power: 233 W
Extendable Runtime Yes
Surge Energy Rating 645 J
Acoustic Noise 55 dBA
Thermal Dissipation 150 BTU/h
Operating Temperature 0–40 °C (32–104 °F)
Operating Humidity 0–95% non-condensing
Altitude 0–10,000 ft operating
Communications Multi-function LCD, LED status display with bar-graphs, RS-232, USB, SmartSlot (pre-installed Network Management Card 3), EPO, audible alarms
Certifications CE, EAC, IRAM, RCM, TISI, VDE, UK PSTI
Warranty 3 years repair or replace (excluding battery), 2 years for battery
[/specifications]

[accessories]

Rack Mounting Support Rails Included in the box
RS-232 Cable Included in the box
USB Cable Included in the box
Network Management Card Pre-installed in the unit
Temperature Probe Included in the box
Documentation CD with software, Documentation CD, Installation guide
[/accesories]

The APC Smart-UPS X SMX2200R2HVNC is a highly reliable, line-interactive UPS delivering 2200VA / 1980W of dependable backup power in a compact 2U rack/tower convertible form. Designed for business-critical servers, network devices, and IT environments, it offers sine wave output, extended runtime options, and advanced management capabilities. With a pre-installed network management card and full-time power conditioning, it ensures uninterrupted uptime and robust protection for enterprise applications.

  • 2200VA / 1980W Power Capacity: Supports high-demand servers, switches, and storage with clean sine wave output.
  • Rack/Tower Convertible 2U Design: Flexible installation in standard racks or as a tower unit to fit diverse IT setups.
  • Automatic Voltage Regulation (AVR): Stabilizes input fluctuations without draining battery, extending runtime efficiency.
  • Extended Runtime Capability: Compatible with external battery packs for scalable power backup during long outages.
  • Network Management Card: Pre-installed NMC with environmental monitoring for advanced remote UPS control.
  • Comprehensive Connectivity: Includes 8x IEC C13 and 1x C19 outlets with USB, RS-232, and EPO support.
  • Efficient & Quiet: Operates at 55 dBA with optimized energy efficiency for data centers and offices.

The SMX2200R2HVNC leverages line-interactive topology with sine wave output, providing superior protection for sensitive IT equipment. Its Automatic Voltage Regulation (AVR) continuously adjusts low or high voltages without engaging the battery, ensuring longer battery life and consistent output to connected loads.

The UPS integrates a pre-installed Network Management Card 3, enabling real-time monitoring, remote management, and environmental sensing across IT environments. This allows administrators to proactively manage power events and maintain uptime across distributed locations.

With its modular extended runtime capability, this UPS adapts to evolving infrastructure needs. Hot-swappable, user-replaceable batteries allow continuous operation without downtime, while the 3-hour recharge time ensures readiness even after prolonged outages.

  • Enterprise server and storage systems
  • Network switches, routers, and firewalls
  • Edge computing and distributed IT deployments
  • Retail, healthcare, and financial institutions requiring scalable runtime
  • Data center rack environments needing advanced remote management

Q1: How is the SMX2200R2HVNC installed?
A: It is a 2U rack/tower convertible UPS and includes support rails, mounting hardware, and tower stand options for flexible installation.

Q2: What performance can I expect?
A: The unit delivers 2200VA / 1980W with sine wave output. Runtime depends on load and can be extended with external battery packs. Refer to APC runtime charts for detailed data. Actual runtime varies by environment, battery age, and connected devices.

Q3: How can the UPS be managed?
A: It comes with a pre-installed Network Management Card 3 for advanced remote management and includes USB, RS-232, and SmartSlot™ interfaces for flexible monitoring.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]2200VA / 1980W, Line-Interactive, 2U Rack/Tower Convertible, 8x IEC C13 + 1x C19 Outlets, Pre-installed Network Management Card[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model SMX2200R2HVNC
Product Type Smart-UPS X, Line-Interactive (Extended Runtime)
Form Factor Rack/Tower Convertible 2U
Dimensions (H x W x D) 3.35" x 17.01" x 26.26" (8.5 x 43.2 x 66.7 cm)
Weight 82.10 lb (37.24 kg)
Color Black
Number of Rack Units 2U
Cable Length 6 ft (1.8 m)
[/properties]

[specifications]

Capacity 2200 VA / 1980 W
Input Voltage 208 V / 230 V (other: 220 V, 240 V) • Operating range: 140–280 V
Input Connection Type BS1363A, IEC 320 C20, Schuko CEE 7 / EU1-16P
Input Frequency 50/60 Hz ±3 Hz, auto-sensing
Output Voltage 208 V / 230 V (other: 220 V, 240 V)
Output Connections 8 × IEC 320 C13, 1 × IEC 320 C19, 2 × IEC Jumpers
Waveform Type Sine wave
Topology Line Interactive
Transfer Time 6 ms typical, 10 ms maximum
Battery Type Lead-Acid • Recharge time: 3 h • Life: 3–5 years • RBC Qty: 1 • Replacement battery: APCRBC117 • Charge power: 233 W
Extendable Runtime Yes
Surge Energy Rating 645 J
Acoustic Noise 55 dBA
Thermal Dissipation 150 BTU/h
Operating Temperature 0–40 °C (32–104 °F)
Operating Humidity 0–95% non-condensing
Altitude 0–10,000 ft operating
Communications Multi-function LCD, LED status display with bar-graphs, RS-232, USB, SmartSlot (pre-installed Network Management Card 3), EPO, audible alarms
Certifications CE, EAC, IRAM, RCM, TISI, VDE, UK PSTI
Warranty 3 years repair or replace (excluding battery), 2 years for battery
[/specifications]

[accessories]

Rack Mounting Support Rails Included in the box
RS-232 Cable Included in the box
USB Cable Included in the box
Network Management Card Pre-installed in the unit
Temperature Probe Included in the box
Documentation CD with software, Documentation CD, Installation guide
[/accesories]
Overview

The APC Smart-UPS X SMX2200R2HVNC is a highly reliable, line-interactive UPS delivering 2200VA / 1980W of dependable backup power in a compact 2U rack/tower convertible form. Designed for business-critical servers, network devices, and IT environments, it offers sine wave output, extended runtime options, and advanced management capabilities. With a pre-installed network management card and full-time power conditioning, it ensures uninterrupted uptime and robust protection for enterprise applications.

Key Features & Benefits
  • 2200VA / 1980W Power Capacity: Supports high-demand servers, switches, and storage with clean sine wave output.
  • Rack/Tower Convertible 2U Design: Flexible installation in standard racks or as a tower unit to fit diverse IT setups.
  • Automatic Voltage Regulation (AVR): Stabilizes input fluctuations without draining battery, extending runtime efficiency.
  • Extended Runtime Capability: Compatible with external battery packs for scalable power backup during long outages.
  • Network Management Card: Pre-installed NMC with environmental monitoring for advanced remote UPS control.
  • Comprehensive Connectivity: Includes 8x IEC C13 and 1x C19 outlets with USB, RS-232, and EPO support.
  • Efficient & Quiet: Operates at 55 dBA with optimized energy efficiency for data centers and offices.
Technical Deep Dive

The SMX2200R2HVNC leverages line-interactive topology with sine wave output, providing superior protection for sensitive IT equipment. Its Automatic Voltage Regulation (AVR) continuously adjusts low or high voltages without engaging the battery, ensuring longer battery life and consistent output to connected loads.

The UPS integrates a pre-installed Network Management Card 3, enabling real-time monitoring, remote management, and environmental sensing across IT environments. This allows administrators to proactively manage power events and maintain uptime across distributed locations.

With its modular extended runtime capability, this UPS adapts to evolving infrastructure needs. Hot-swappable, user-replaceable batteries allow continuous operation without downtime, while the 3-hour recharge time ensures readiness even after prolonged outages.

Ideal Applications
  • Enterprise server and storage systems
  • Network switches, routers, and firewalls
  • Edge computing and distributed IT deployments
  • Retail, healthcare, and financial institutions requiring scalable runtime
  • Data center rack environments needing advanced remote management
Frequently Asked Questions (FAQs)

Q1: How is the SMX2200R2HVNC installed?
A: It is a 2U rack/tower convertible UPS and includes support rails, mounting hardware, and tower stand options for flexible installation.

Q2: What performance can I expect?
A: The unit delivers 2200VA / 1980W with sine wave output. Runtime depends on load and can be extended with external battery packs. Refer to APC runtime charts for detailed data. Actual runtime varies by environment, battery age, and connected devices.

Q3: How can the UPS be managed?
A: It comes with a pre-installed Network Management Card 3 for advanced remote management and includes USB, RS-232, and SmartSlot™ interfaces for flexible monitoring.
