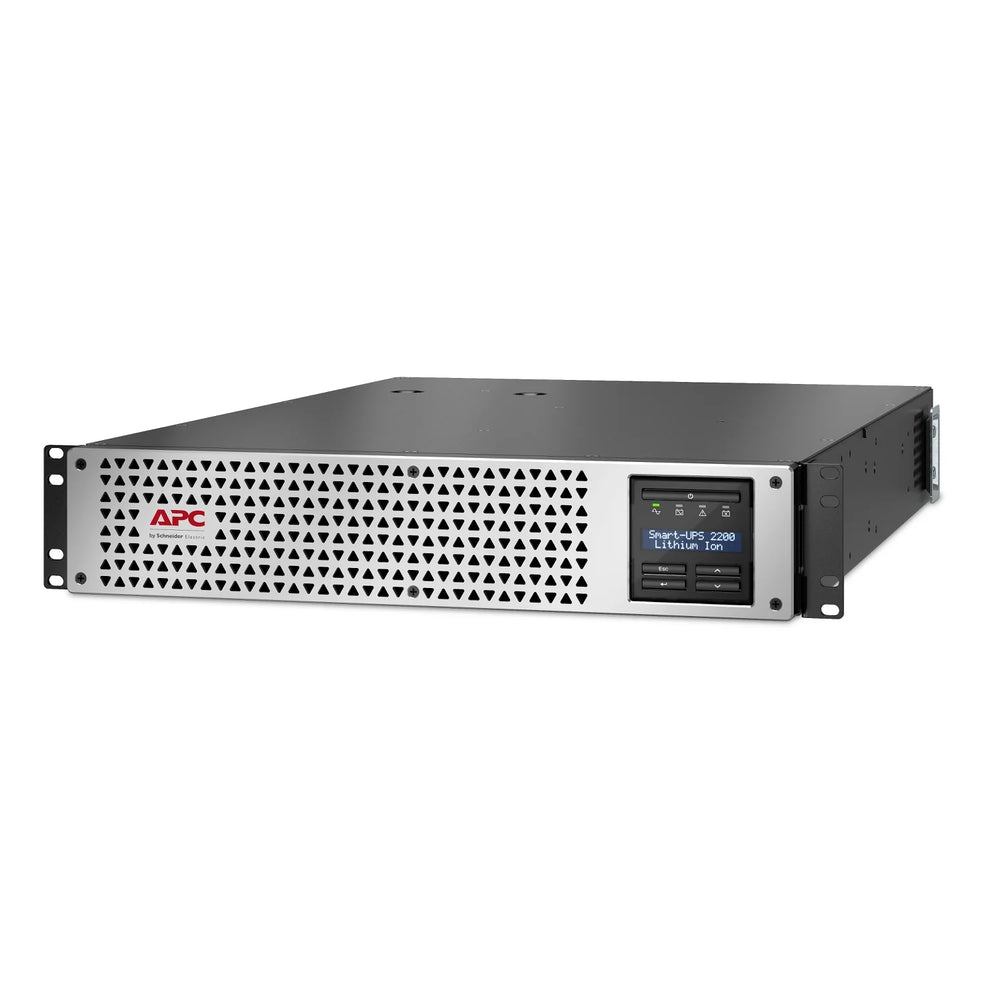

APC SMTL2200RM2UC - Smart-UPS Lithium-Ion 2200VA 2U Rackmount

[shortdesc]1920VA / 1920W (Max configurable 2200VA / 1980W), Lithium-Ion Battery, 2U Rackmount, 2x NEMA 5-20R + 6x NEMA 5-15R Outlets, AVR, SmartConnect & SmartSlot[/shortdesc]

[properties]

[specifications]

[accessories]

The APC Smart-UPS SMTL2200RM2UC delivers 1920VA / 1920W of backup power (max configurable 2200VA / 1980W) in a compact 2U rackmount design. Powered by lithium-ion technology with an extended 8–10 year design life, it ensures longer-lasting performance, faster recharge times, and reduced maintenance. With Automatic Voltage Regulation (AVR), pure sine wave output, SmartConnect cloud monitoring, and a SmartSlot for expansion, this UPS is optimized for enterprise networks, servers, and business-critical IT infrastructure.

• 1920VA / 1920W Output (Max configurable 2200VA / 1980W): High-capacity backup power designed for servers, storage, and network hardware.
• Lithium-Ion Battery: Extended 8–10 year design life with rapid 2-hour recharge time reduces total cost of ownership.
• Automatic Voltage Regulation (AVR): Stabilizes input voltage within the supported operating range without switching to battery, preserving runtime.
• 2U Rackmount Design: Short-depth rackmount UPS with included rails and brackets for efficient installation.
• SmartConnect & SmartSlot: Enables cloud-based remote monitoring and supports optional network management cards.
• 2x NEMA 5-20R + 6x NEMA 5-15R Outlets: Flexible output for IT environments with mixed power needs.
• ENERGY STAR® Certified: Meets efficiency standards for reduced energy consumption and operating costs.

The SMTL2200RM2UC leverages advanced lithium-ion chemistry, providing significantly longer lifespan compared to sealed lead-acid alternatives. Its design life of 8–10 years, coupled with a short 2-hour recharge, maximizes uptime and reduces replacement cycles, which is crucial in distributed IT deployments.

With line-interactive topology, the UPS integrates Automatic Voltage Regulation (AVR) to correct input voltage fluctuations within its supported operating window without consuming battery reserves. This reduces unnecessary cycling and extends battery performance while ensuring stable, clean power delivery.

Management flexibility is achieved through the built-in SmartConnect Ethernet port for remote cloud monitoring and an expandable SmartSlot that supports advanced network management cards. The front-panel LCD offers at-a-glance visibility, while audible and visual alarms ensure proactive alerts. These combined capabilities provide IT administrators with both local and remote visibility for mission-critical environments.

• Enterprise server racks and storage systems
• Network closets and branch office IT infrastructure
• Healthcare IT and financial institutions with high availability demands
• Retail and POS systems requiring stable and reliable uptime
• Edge computing deployments in distributed environments

Q1: How is the SMTL2200RM2UC installed?
A: It is a 2U rackmount UPS supplied with mounting brackets, support rails, screws, and cables for quick installation into standard racks.

Q2: What performance can I expect?
A: The UPS delivers 1920VA / 1920W with pure sine wave output (max configurable 2200VA / 1980W). Runtime depends on load and operating conditions; actual results vary by load type, environment, and battery condition.

Q3: How can the UPS be managed?
A: It includes a SmartConnect Ethernet port for cloud-based monitoring and a SmartSlot for optional network management cards, enabling advanced visibility, control, and integration with IT systems.
