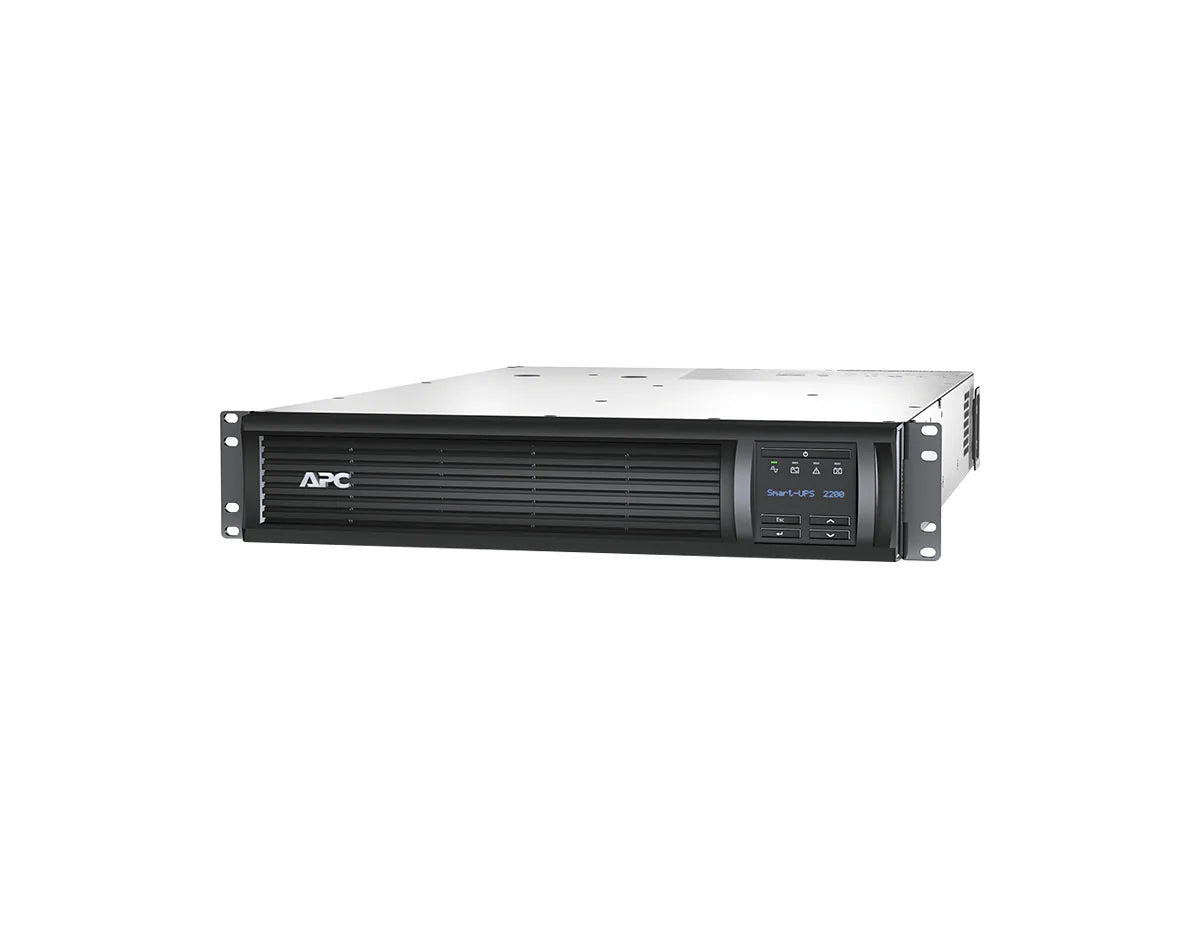

APC SMT2200RMUS - Smart-UPS 2200VA Line-Interactive 2U Rackmount UPS
Clique ou role para ampliar
Toque ou belisque para ampliar
APC SMT2200RMUS - Smart-UPS 2200VA Line-Interactive 2U Rackmount UPS
APC SMT2200RMUS - Smart-UPS 2200VA Line-Interactive 2U Rackmount UPS

Nobreak APC Smart-UPS 2200VA Line-Interactive Rack 2U (SMT2200RMUS)

por APC
R$ 0,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

2200VA / 1920W, Line-Interactive 2U Rack/Tower, Pure Sine Wave Output, LCD Console, SmartSlot Expandability

Brand APC by Schneider Electric
Model SMT2200RMUS
Product Type Smart-UPS, Line-Interactive
Form Factor Rackmount 2U
Dimensions (H x W x D) 3.4" x 18.9" x 26.9" (8.6 x 48 x 68.3 cm)
Weight 93.28 lb (42.31 kg)
Color Black
Number of Rack Units 2U
Cable Length 8 ft (2.4 m)
Cooling Not specified
Capacity 2200 VA / 1920 W (Max configurable: 2200 VA / 1980 W)
Input Voltage 120 V (adjustable range: 75–154 V, 82–143 V)
Input Connection Type NEMA 5-20P
Input Frequency 50/60 Hz ±3 Hz, auto-sensing
Output Voltage 120 V
Output Connections 6 × NEMA 5-15R, 2 × NEMA 5-20R
Waveform Type Sine wave
Topology Line Interactive
Transfer Time 4 ms typical, 8 ms maximum
Battery Type Lead-Acid
Battery Recharge Time 3 hours
Battery Life 3–5 years
Replacement Battery RBC43
Battery Charge Power 164 W rated
Surge Energy Rating 530 J
Acoustic Noise 55 dBA
Operating Temperature 0°C to 40°C (32°F to 104°F)
Operating Humidity 0–95% non-condensing
Altitude 0–10,000 ft operating
Communications Multi-function LCD, LED status indicators, SmartSlot, USB, RS-232, EPO
Certifications CSA, TAA Compliant
Warranty 3 years repair or replace (excluding battery) and 2 years for battery
Rack Mounting Brackets Included in the box
Rack Mounting Support Rails Included in the box
Smart-UPS Signalling RS-232 Cable Included in the box
USB Cable Included in the box
Documentation CD with software, Documentation CD

The APC Smart-UPS SMT2200RMUS is a high-capacity 2200VA / 1920W line-interactive UPS designed for mission-critical IT and network hardware. With a compact 2U rackmount form factor, it integrates automatic voltage regulation, pure sine wave output, and an intuitive LCD interface. SmartSlot expandability ensures seamless integration with advanced management cards, making it a robust choice for enterprise and data center environments.

  • 2200VA / 1920W Capacity: Provides reliable backup power for servers, storage, and networking equipment.
  • Pure Sine Wave Output: Ensures consistent, high-quality power delivery for sensitive IT loads.
  • Automatic Voltage Regulation (AVR): Corrects voltage fluctuations without draining the battery.
  • LCD Interface: Multi-function status display for real-time monitoring and control.
  • SmartSlot Expansion: Supports optional network management cards for remote management.
  • Rackmount 2U Design: Space-efficient installation with included brackets and rails.

The SMT2200RMUS utilizes line-interactive topology with Automatic Voltage Regulation, enabling it to stabilize input voltages between 75–154V (and 82–143V nominal) without switching to battery. This helps prolong battery life and reduce unnecessary cycling during common power fluctuations.

Its sine wave output is critical for protecting sensitive IT equipment, ensuring that servers and networking hardware receive clean and stable power. This feature helps prevent unexpected shutdowns, data corruption, and hardware wear caused by irregular voltage signals.

The unit’s SmartSlot provides expandability for advanced management options, such as remote monitoring through network management cards. Combined with its multi-function LCD panel and EPO (Emergency Power Off) feature, the UPS offers comprehensive visibility and control for enterprise deployments.

  • Rack-mounted servers and enterprise storage arrays
  • Network hardware including routers, switches, and firewalls
  • Data centers and edge computing environments
  • Healthcare and financial institutions requiring uninterrupted operations
  • Government and compliance-driven IT infrastructures (TAA compliant)

Q1: How is the SMT2200RMUS installed?
A: It is designed for 2U rackmount installations and comes with mounting brackets and support rails for straightforward integration.

Q2: What performance can I expect?
A: The UPS provides 2200VA / 1920W of reliable backup with a 3-hour typical recharge time; maximum configurable output is 2200VA / 1980W. Runtime depends on connected load; consult APC runtime charts for detailed data. Actual results vary by battery age, load, and environment.

Q3: How can the UPS be managed?
A: The unit includes a multi-function LCD interface for local monitoring and supports SmartSlot cards for network-based management and environmental monitoring.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

2200VA / 1920W, Line-Interactive 2U Rack/Tower, Pure Sine Wave Output, LCD Console, SmartSlot Expandability

Brand APC by Schneider Electric
Model SMT2200RMUS
Product Type Smart-UPS, Line-Interactive
Form Factor Rackmount 2U
Dimensions (H x W x D) 3.4" x 18.9" x 26.9" (8.6 x 48 x 68.3 cm)
Weight 93.28 lb (42.31 kg)
Color Black
Number of Rack Units 2U
Cable Length 8 ft (2.4 m)
Cooling Not specified
Capacity 2200 VA / 1920 W (Max configurable: 2200 VA / 1980 W)
Input Voltage 120 V (adjustable range: 75–154 V, 82–143 V)
Input Connection Type NEMA 5-20P
Input Frequency 50/60 Hz ±3 Hz, auto-sensing
Output Voltage 120 V
Output Connections 6 × NEMA 5-15R, 2 × NEMA 5-20R
Waveform Type Sine wave
Topology Line Interactive
Transfer Time 4 ms typical, 8 ms maximum
Battery Type Lead-Acid
Battery Recharge Time 3 hours
Battery Life 3–5 years
Replacement Battery RBC43
Battery Charge Power 164 W rated
Surge Energy Rating 530 J
Acoustic Noise 55 dBA
Operating Temperature 0°C to 40°C (32°F to 104°F)
Operating Humidity 0–95% non-condensing
Altitude 0–10,000 ft operating
Communications Multi-function LCD, LED status indicators, SmartSlot, USB, RS-232, EPO
Certifications CSA, TAA Compliant
Warranty 3 years repair or replace (excluding battery) and 2 years for battery
Rack Mounting Brackets Included in the box
Rack Mounting Support Rails Included in the box
Smart-UPS Signalling RS-232 Cable Included in the box
USB Cable Included in the box
Documentation CD with software, Documentation CD
Overview

The APC Smart-UPS SMT2200RMUS is a high-capacity 2200VA / 1920W line-interactive UPS designed for mission-critical IT and network hardware. With a compact 2U rackmount form factor, it integrates automatic voltage regulation, pure sine wave output, and an intuitive LCD interface. SmartSlot expandability ensures seamless integration with advanced management cards, making it a robust choice for enterprise and data center environments.

Key Features & Benefits
  • 2200VA / 1920W Capacity: Provides reliable backup power for servers, storage, and networking equipment.
  • Pure Sine Wave Output: Ensures consistent, high-quality power delivery for sensitive IT loads.
  • Automatic Voltage Regulation (AVR): Corrects voltage fluctuations without draining the battery.
  • LCD Interface: Multi-function status display for real-time monitoring and control.
  • SmartSlot Expansion: Supports optional network management cards for remote management.
  • Rackmount 2U Design: Space-efficient installation with included brackets and rails.
Technical Deep Dive

The SMT2200RMUS utilizes line-interactive topology with Automatic Voltage Regulation, enabling it to stabilize input voltages between 75–154V (and 82–143V nominal) without switching to battery. This helps prolong battery life and reduce unnecessary cycling during common power fluctuations.

Its sine wave output is critical for protecting sensitive IT equipment, ensuring that servers and networking hardware receive clean and stable power. This feature helps prevent unexpected shutdowns, data corruption, and hardware wear caused by irregular voltage signals.

The unit’s SmartSlot provides expandability for advanced management options, such as remote monitoring through network management cards. Combined with its multi-function LCD panel and EPO (Emergency Power Off) feature, the UPS offers comprehensive visibility and control for enterprise deployments.

Ideal Applications
  • Rack-mounted servers and enterprise storage arrays
  • Network hardware including routers, switches, and firewalls
  • Data centers and edge computing environments
  • Healthcare and financial institutions requiring uninterrupted operations
  • Government and compliance-driven IT infrastructures (TAA compliant)
Frequently Asked Questions (FAQs)

Q1: How is the SMT2200RMUS installed?
A: It is designed for 2U rackmount installations and comes with mounting brackets and support rails for straightforward integration.

Q2: What performance can I expect?
A: The UPS provides 2200VA / 1920W of reliable backup with a 3-hour typical recharge time; maximum configurable output is 2200VA / 1980W. Runtime depends on connected load; consult APC runtime charts for detailed data. Actual results vary by battery age, load, and environment.

Q3: How can the UPS be managed?
A: The unit includes a multi-function LCD interface for local monitoring and supports SmartSlot cards for network-based management and environmental monitoring.
