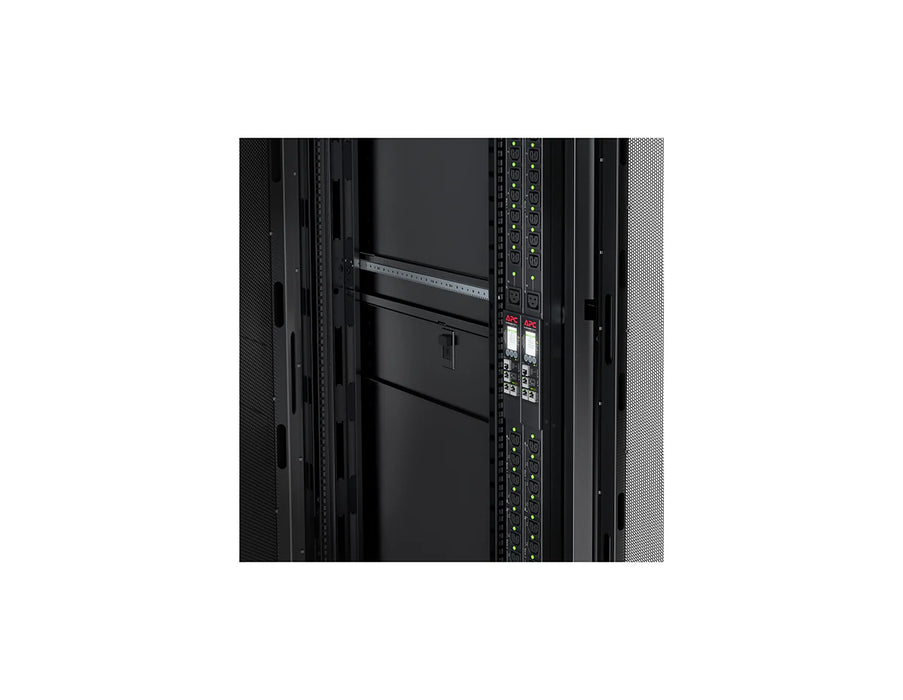

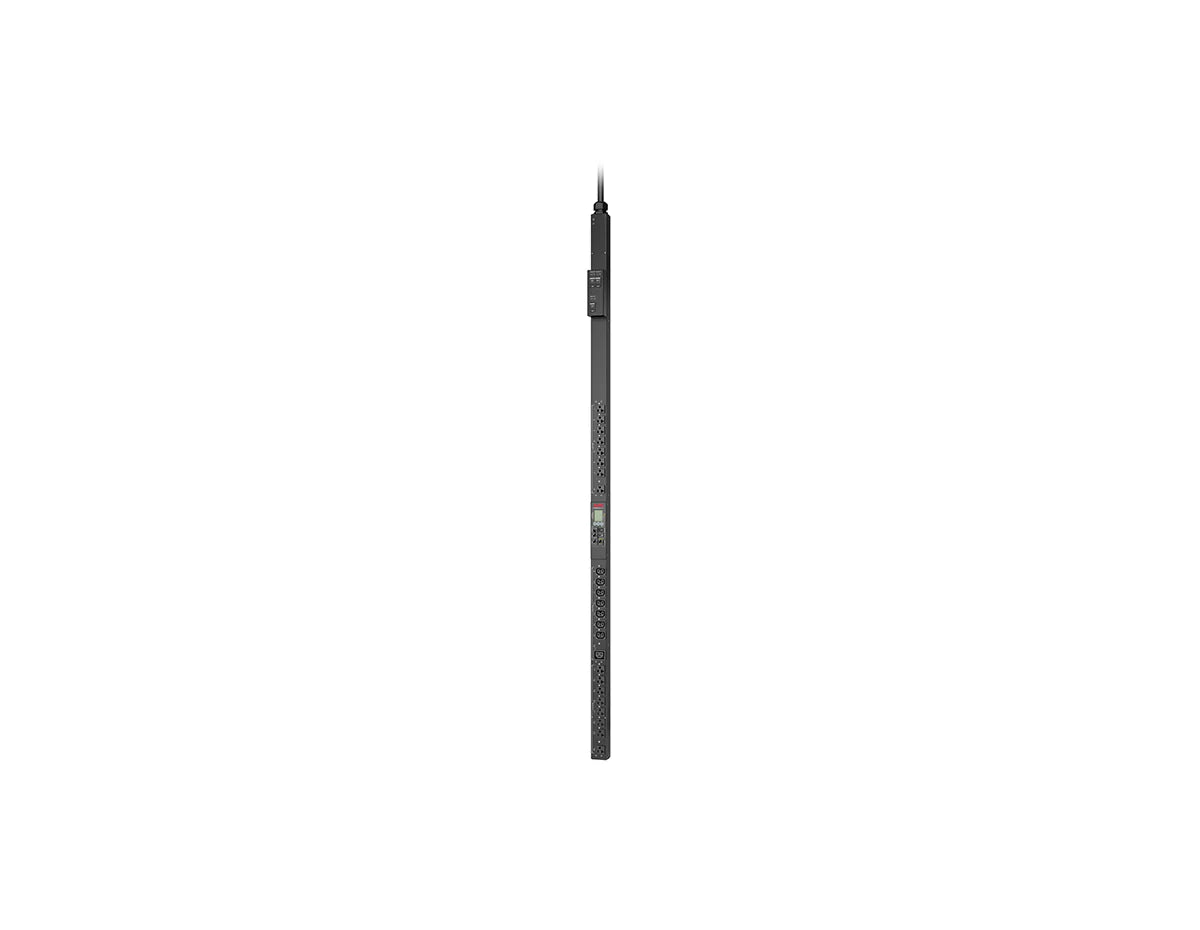

APC APDU9970 - NetShelter Switched Rack PDU 9K Series 0U 30A
Clique ou role para ampliar
Toque ou belisque para ampliar
APC APDU9970 - NetShelter Switched Rack PDU 9K Series 0U 30A
APC APDU9970 - NetShelter Switched Rack PDU 9K Series 0U 30A

APC APDU9970 - NetShelter Switched Rack PDU 9K Series 0U 30A

por APC
Desconto de 34%
R$ 36.240,00
R$ 24.096,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

0U Vertical, 30A 120/208V Input, 16 NEMA 5-20R + 7 C13/C15 + 1 C19/C21, Switched PDU, SNMP & Redfish Management

[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model APDU9970
Product Type NetShelter Switched Rack PDU
Form Factor 0U Vertical
Dimensions (H x W x D) 72.008" x 2.2" x 1.8" (1829 x 56 x 46 mm)
Weight 20.79 lb (9.43 kg)
Color Black
Number of Rack Units 0U
Mounting Mode Not rack-mountable
Cooling Not specified
[/properties]

[specifications]

PDU Type Switched (9K Series)
Input Voltage 120 V / 208 V
Output Voltage 120 V / 208 V
Input Plug Type NEMA L14-30P
Input Frequency 50/60 Hz
Line Rated Current 24 A (Input current limit 30 A)
Load Capacity 4992 VA
Outlets 16 × NEMA 5-20R, 7 × IEC C13/C15, 1 × IEC C19/C21
Communication Ports SNMP, Redfish, 10/100/1000BASE-T
Operating Temperature 23–140 °F (-5–60 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 5–95%
Storage Humidity 5–95%
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance cUL Listed, FCC Part 15 Class A, UL 62368-1, RoHS, REACh
Warranty 3 years repair or replace
[/specifications]

[accessories]

Installation Guide Included in the box
Rack Mounting Brackets Included in the box
Safety Guide Included in the box
[/accesories]

The APC NetShelter APDU9970 Switched Rack PDU provides enterprise-class power distribution in a compact 0U vertical design. With 30A capacity, advanced outlet-level control, and integrated SNMP/Redfish management, it is engineered for high-density IT environments that demand precision, uptime, and full remote power monitoring.

  • High-Density Outlet Configuration: 16 NEMA 5-20R, 7 C13/C15, and 1 C19/C21 outlets maximize compatibility with diverse IT loads.
  • Switched Functionality: Remote on/off outlet control streamlines management and reduces downtime during maintenance.
  • Integrated Network Management: Built-in SNMP and Redfish protocols deliver seamless monitoring across IT ecosystems.
  • Vertical 0U Form Factor: Saves critical rack space while supporting high-capacity deployments.
  • Wide Environmental Tolerance: Operates from -5°C to 60°C, ensuring resilience in challenging conditions.

The APDU9970 operates with a line-rated current of 24A and supports input voltages of 120/208V, making it highly adaptable for modern data centers. Its switched functionality enables administrators to control individual outlets remotely, a critical capability for load shedding, device reboot, or energy optimization strategies.

By incorporating SNMP and Redfish, the PDU seamlessly integrates into network management frameworks. These protocols provide real-time visibility into energy consumption, load balancing, and fault alerts, enabling proactive IT operations. The vertical 0U mounting design maximizes rack density without consuming rack units, a significant advantage for high-density deployments.

Engineered for demanding environments, the APDU9970 is designed to withstand up to 10,000 feet of altitude and wide humidity ranges, making it suitable for both controlled and edge deployments.

  • Enterprise data centers with high outlet density requirements
  • Co-location and hosting facilities
  • Telecommunications network racks
  • Distributed IT and edge deployments

Q1: How is the APDU9970 installed?
A: It is a 0U vertical PDU with included mounting brackets for easy integration into NetShelter racks.

Q2: What performance can I expect?
A: The PDU supports a line-rated 24A current with 30A input. Load capacity reaches 4992VA. Runtime depends on connected UPS systems and load type.

Q3: How can the PDU be managed?
A: It includes network connectivity with SNMP and Redfish, allowing remote monitoring, outlet control, and integration into DCIM platforms.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

0U Vertical, 30A 120/208V Input, 16 NEMA 5-20R + 7 C13/C15 + 1 C19/C21, Switched PDU, SNMP & Redfish Management

[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model APDU9970
Product Type NetShelter Switched Rack PDU
Form Factor 0U Vertical
Dimensions (H x W x D) 72.008" x 2.2" x 1.8" (1829 x 56 x 46 mm)
Weight 20.79 lb (9.43 kg)
Color Black
Number of Rack Units 0U
Mounting Mode Not rack-mountable
Cooling Not specified
[/properties]

[specifications]

PDU Type Switched (9K Series)
Input Voltage 120 V / 208 V
Output Voltage 120 V / 208 V
Input Plug Type NEMA L14-30P
Input Frequency 50/60 Hz
Line Rated Current 24 A (Input current limit 30 A)
Load Capacity 4992 VA
Outlets 16 × NEMA 5-20R, 7 × IEC C13/C15, 1 × IEC C19/C21
Communication Ports SNMP, Redfish, 10/100/1000BASE-T
Operating Temperature 23–140 °F (-5–60 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 5–95%
Storage Humidity 5–95%
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance cUL Listed, FCC Part 15 Class A, UL 62368-1, RoHS, REACh
Warranty 3 years repair or replace
[/specifications]

[accessories]

Installation Guide Included in the box
Rack Mounting Brackets Included in the box
Safety Guide Included in the box
[/accesories]
Overview

The APC NetShelter APDU9970 Switched Rack PDU provides enterprise-class power distribution in a compact 0U vertical design. With 30A capacity, advanced outlet-level control, and integrated SNMP/Redfish management, it is engineered for high-density IT environments that demand precision, uptime, and full remote power monitoring.

Key Features & Benefits
  • High-Density Outlet Configuration: 16 NEMA 5-20R, 7 C13/C15, and 1 C19/C21 outlets maximize compatibility with diverse IT loads.
  • Switched Functionality: Remote on/off outlet control streamlines management and reduces downtime during maintenance.
  • Integrated Network Management: Built-in SNMP and Redfish protocols deliver seamless monitoring across IT ecosystems.
  • Vertical 0U Form Factor: Saves critical rack space while supporting high-capacity deployments.
  • Wide Environmental Tolerance: Operates from -5°C to 60°C, ensuring resilience in challenging conditions.
Technical Deep Dive

The APDU9970 operates with a line-rated current of 24A and supports input voltages of 120/208V, making it highly adaptable for modern data centers. Its switched functionality enables administrators to control individual outlets remotely, a critical capability for load shedding, device reboot, or energy optimization strategies.

By incorporating SNMP and Redfish, the PDU seamlessly integrates into network management frameworks. These protocols provide real-time visibility into energy consumption, load balancing, and fault alerts, enabling proactive IT operations. The vertical 0U mounting design maximizes rack density without consuming rack units, a significant advantage for high-density deployments.

Engineered for demanding environments, the APDU9970 is designed to withstand up to 10,000 feet of altitude and wide humidity ranges, making it suitable for both controlled and edge deployments.

Ideal Applications
  • Enterprise data centers with high outlet density requirements
  • Co-location and hosting facilities
  • Telecommunications network racks
  • Distributed IT and edge deployments
Frequently Asked Questions (FAQs)

Q1: How is the APDU9970 installed?
A: It is a 0U vertical PDU with included mounting brackets for easy integration into NetShelter racks.

Q2: What performance can I expect?
A: The PDU supports a line-rated 24A current with 30A input. Load capacity reaches 4992VA. Runtime depends on connected UPS systems and load type.

Q3: How can the PDU be managed?
A: It includes network connectivity with SNMP and Redfish, allowing remote monitoring, outlet control, and integration into DCIM platforms.
