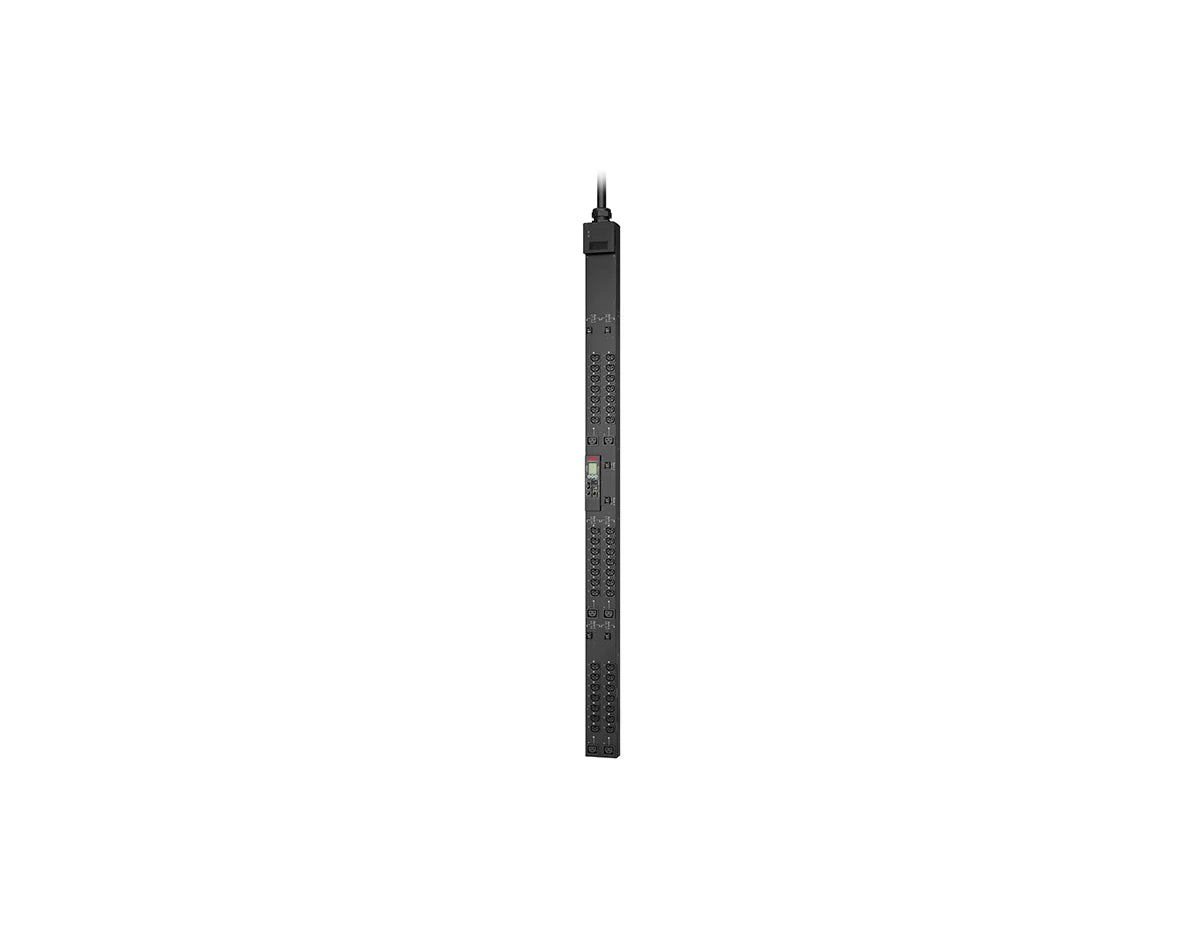

APC APDU9967 - Switched Rack PDU 17.3kW 0U 208V
Clique ou role para ampliar
Toque ou belisque para ampliar
APC APDU9967 - Switched Rack PDU 17.3kW 0U 208V
APC APDU9967 - Switched Rack PDU 17.3kW 0U 208V

APC APDU9967 - Switched Rack PDU 17.3kW 0U 208V

por APC
Desconto de 25%
R$ 66.600,00
R$ 49.872,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

17.3kW / 208V, 42 C13/C15 & 6 C19/C21 Outlets, 0U Vertical Mount, SNMP & Redfish Support

[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model APDU9967
Product Type NetShelter Switched Rack PDU
Form Factor 0U Vertical
Dimensions (H x W x D) 72.2" x 4.4" x 3.0" (1833 x 111 x 76 mm)
Weight 32.06 lb (14.54 kg)
Color Black
Number of Rack Units 0U
Mounting Mode Not rack-mountable
Cooling Not specified
[/properties]

[specifications]

PDU Type Switched (9K Series)
Input Voltage 208 V (3 Phase)
Output Voltage 208 V
Input Plug Type IEC 60309 60 A 3P+PE
Input Frequency 50/60 Hz
Line Rated Current 48 A (Input current limit 60 A)
Load Capacity 17,300 VA
Outlets 42 × C13/C15, 6 × C19/C21
Communication Ports SNMP, Redfish, 10/100/1000BASE-T
Operating Temperature 23–140 °F (-5–60 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 5–95%
Storage Humidity 5–95%
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance cUL Listed, UL Listed, FCC Part 15 Class A, VCCI Class A, EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, RoHS, REACh
Warranty 3 years repair or replace
[/specifications]

[accessories]

Installation Guide Included in the box
Rack Mounting Brackets Included in the box
Safety Guide Included in the box
[/accesories]

The APC APDU9967 is a high-density switched rack PDU engineered for enterprise data centers. Delivering 17.3kW of three-phase power in a slim 0U vertical form factor, it maximizes rack space while offering intelligent outlet-level control. With 48 outlets and advanced monitoring via SNMP and Redfish, this PDU ensures secure, reliable power distribution for mission-critical IT infrastructure.

  • High Capacity Power: 17.3kW load support across 48 outlets for dense IT environments.
  • Switched Control: Remote on/off per outlet for energy optimization and improved security.
  • SNMP & Redfish Management: Standards-based monitoring for seamless integration with DCIM tools.
  • 0U Vertical Design: Side-mounted form factor saves rack U-space for IT equipment.
  • Robust Certifications: UL, cUL, FCC, and VCCI compliance for global deployments.

The APDU9967 operates at 208V three-phase input, supplying up to 48A per line with an input current limit of 60A. Its switched architecture gives administrators granular outlet-level control, allowing selective shutdown, reboot, or sequencing of connected devices. This is particularly valuable for colocation facilities and remote sites where physical access is limited.

The PDU’s integration of SNMP and Redfish protocols ensures compatibility with existing monitoring frameworks. IT managers can track load, temperature, and operational status in real time, improving visibility and preventing overload conditions before they impact uptime.

Its 0U vertical mounting design ensures that the full rack U-space remains available for servers, storage, and network hardware. With 42 C13/C15 and 6 C19/C21 outlets, it supports both standard and high-power IT devices in a single distribution unit.

  • Enterprise and hyperscale data centers
  • High-density server racks and blade systems
  • Network and telecom equipment rooms
  • Colocation facilities requiring outlet-level control

Q1: How is the APDU9967 installed?
A: It is a 0U vertical PDU with brackets for side-mounting, designed for tool-less integration in standard racks.

Q2: What performance can I expect?
A: It supports up to 17.3kW of load capacity at 208V, with 48 outlets available. Runtime is not applicable since this is a PDU and not a UPS.

Q3: How can the unit be managed?
A: It features SNMP and Redfish network management, enabling remote monitoring, outlet control, and integration with DCIM systems.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

17.3kW / 208V, 42 C13/C15 & 6 C19/C21 Outlets, 0U Vertical Mount, SNMP & Redfish Support

[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model APDU9967
Product Type NetShelter Switched Rack PDU
Form Factor 0U Vertical
Dimensions (H x W x D) 72.2" x 4.4" x 3.0" (1833 x 111 x 76 mm)
Weight 32.06 lb (14.54 kg)
Color Black
Number of Rack Units 0U
Mounting Mode Not rack-mountable
Cooling Not specified
[/properties]

[specifications]

PDU Type Switched (9K Series)
Input Voltage 208 V (3 Phase)
Output Voltage 208 V
Input Plug Type IEC 60309 60 A 3P+PE
Input Frequency 50/60 Hz
Line Rated Current 48 A (Input current limit 60 A)
Load Capacity 17,300 VA
Outlets 42 × C13/C15, 6 × C19/C21
Communication Ports SNMP, Redfish, 10/100/1000BASE-T
Operating Temperature 23–140 °F (-5–60 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 5–95%
Storage Humidity 5–95%
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance cUL Listed, UL Listed, FCC Part 15 Class A, VCCI Class A, EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, RoHS, REACh
Warranty 3 years repair or replace
[/specifications]

[accessories]

Installation Guide Included in the box
Rack Mounting Brackets Included in the box
Safety Guide Included in the box
[/accesories]
Overview

The APC APDU9967 is a high-density switched rack PDU engineered for enterprise data centers. Delivering 17.3kW of three-phase power in a slim 0U vertical form factor, it maximizes rack space while offering intelligent outlet-level control. With 48 outlets and advanced monitoring via SNMP and Redfish, this PDU ensures secure, reliable power distribution for mission-critical IT infrastructure.

Key Features & Benefits
  • High Capacity Power: 17.3kW load support across 48 outlets for dense IT environments.
  • Switched Control: Remote on/off per outlet for energy optimization and improved security.
  • SNMP & Redfish Management: Standards-based monitoring for seamless integration with DCIM tools.
  • 0U Vertical Design: Side-mounted form factor saves rack U-space for IT equipment.
  • Robust Certifications: UL, cUL, FCC, and VCCI compliance for global deployments.
Technical Deep Dive

The APDU9967 operates at 208V three-phase input, supplying up to 48A per line with an input current limit of 60A. Its switched architecture gives administrators granular outlet-level control, allowing selective shutdown, reboot, or sequencing of connected devices. This is particularly valuable for colocation facilities and remote sites where physical access is limited.

The PDU’s integration of SNMP and Redfish protocols ensures compatibility with existing monitoring frameworks. IT managers can track load, temperature, and operational status in real time, improving visibility and preventing overload conditions before they impact uptime.

Its 0U vertical mounting design ensures that the full rack U-space remains available for servers, storage, and network hardware. With 42 C13/C15 and 6 C19/C21 outlets, it supports both standard and high-power IT devices in a single distribution unit.

Ideal Applications
  • Enterprise and hyperscale data centers
  • High-density server racks and blade systems
  • Network and telecom equipment rooms
  • Colocation facilities requiring outlet-level control
Frequently Asked Questions (FAQs)

Q1: How is the APDU9967 installed?
A: It is a 0U vertical PDU with brackets for side-mounting, designed for tool-less integration in standard racks.

Q2: What performance can I expect?
A: It supports up to 17.3kW of load capacity at 208V, with 48 outlets available. Runtime is not applicable since this is a PDU and not a UPS.

Q3: How can the unit be managed?
A: It features SNMP and Redfish network management, enabling remote monitoring, outlet control, and integration with DCIM systems.
