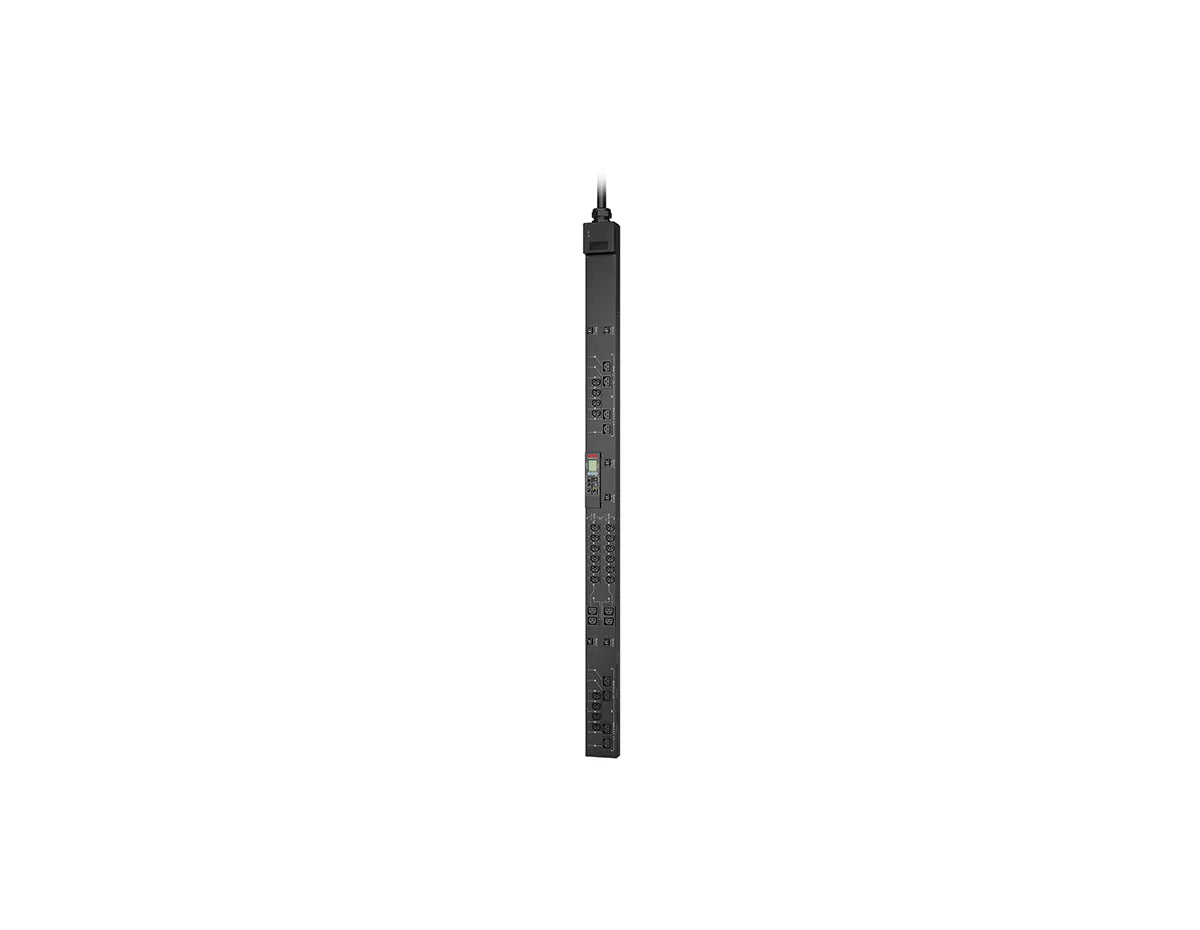

APC APDU9966 - NetShelter Switched Rack PDU 17.3kW 0U
Clique ou role para ampliar
Toque ou belisque para ampliar
APC APDU9966 - NetShelter Switched Rack PDU 17.3kW 0U
APC APDU9966 - NetShelter Switched Rack PDU 17.3kW 0U

APC APDU9966 - NetShelter Switched Rack PDU 17.3kW 0U

por APC
Desconto de 35%
R$ 76.560,00
R$ 49.788,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

17.3kW / 208V, 0U Rackmount, 20x C13/C15 & 12x C19/C21 Outlets, IEC 60309 60A 3P+PE Input, SNMP & Redfish Management

[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model APDU9966
Product Type NetShelter Switched Rack PDU
Form Factor 0U Vertical
Dimensions (H x W x D) 72.2" x 4.4" x 3.0" (1833 x 111 x 76 mm)
Weight 30.9 lb (14 kg)
Color Black
Number of Rack Units 0U
Mounting Mode Rack-mounted (Vertical)
Cooling Not specified
[/properties]

[specifications]

PDU Type Switched (9K Series)
Input Voltage 208 V (3 Phase)
Output Voltage 208 V
Input Plug Type IEC 60309 60 A 3P+PE
Input Frequency 50/60 Hz
Line Rated Current 48 A (Input current limit 60 A)
Load Capacity 17,300 VA
Outlets 20 × C13/C15, 12 × C19/C21
Communication Ports SNMP, Redfish, 10/100/1000BASE-T
Operating Temperature 23–140 °F (-5–60 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 5–95%
Storage Humidity 5–95%
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance cUL Listed, FCC Part 15 Class A, IEC 62368-1, RoHS, REACh
Warranty 3 years repair or replace
[/specifications]

[accessories]

Installation Guide Included in the box
Rack Mounting Brackets Included in the box
Safety Guide Included in the box
[/accesories]

[specifications]

[/specifications]

The APC NetShelter APDU9966 Switched Rack PDU delivers 17.3kW of power in a space-saving 0U vertical form factor. Built for high-density racks, it combines intelligent outlet control, advanced monitoring, and secure network management to ensure reliable power distribution in demanding IT environments.

  • High Power Density: 17.3kW output supports enterprise-grade data center loads.
  • Switched Outlets: Remote on/off control improves uptime and operational efficiency.
  • Advanced Management: Integrated SNMP and Redfish protocols for seamless monitoring.
  • Flexible Connectivity: 20 C13/C15 and 12 C19/C21 outlets for mixed IT equipment.

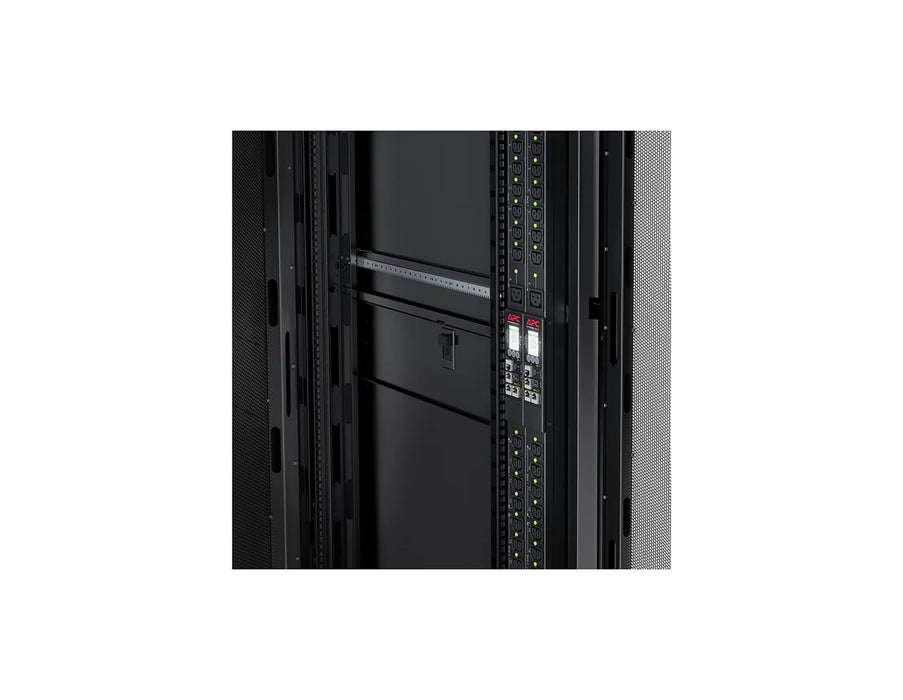

  • Space-Efficient 0U Design: Maximizes rack space with vertical side mounting.

The APDU9966 operates at 208V three-phase with a 60A IEC 60309 plug, providing a total load capacity of 17,300VA. With a maximum line current of 48A, it ensures stable delivery across critical IT loads. The unit leverages intelligent switched outlets, allowing administrators to cycle power remotely for individual devices—minimizing downtime without site visits.

Management is built around dual communication options: SNMP for traditional network monitoring and Redfish for modern, scalable management. This ensures seamless integration with data center infrastructure management platforms. The 0U vertical mount design optimizes rack density, enabling easy installation alongside other rack equipment without consuming U-space.

Environmental resilience is designed in, supporting operation at temperatures from -5°C to 60°C and altitudes up to 10,000 ft, making it suitable for global deployments.

  • Enterprise data centers with high-density racks
  • Colocation facilities requiring secure power distribution
  • Cloud and edge computing deployments
  • Telecommunications and networking infrastructure

Q1: How is the APDU9966 installed?
A: It is a 0U vertical PDU designed for side-mounting in standard APC NetShelter racks with included brackets.

Q2: What performance does it deliver?
A: The unit supports 17.3kW at 208V with a maximum line current of 48A. Runtime depends on facility backup systems and load profiles.

Q3: How is the PDU managed?
A: It provides remote outlet switching and monitoring via SNMP and Redfish protocols over a Gigabit Ethernet interface.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

17.3kW / 208V, 0U Rackmount, 20x C13/C15 & 12x C19/C21 Outlets, IEC 60309 60A 3P+PE Input, SNMP & Redfish Management

[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model APDU9966
Product Type NetShelter Switched Rack PDU
Form Factor 0U Vertical
Dimensions (H x W x D) 72.2" x 4.4" x 3.0" (1833 x 111 x 76 mm)
Weight 30.9 lb (14 kg)
Color Black
Number of Rack Units 0U
Mounting Mode Rack-mounted (Vertical)
Cooling Not specified
[/properties]

[specifications]

PDU Type Switched (9K Series)
Input Voltage 208 V (3 Phase)
Output Voltage 208 V
Input Plug Type IEC 60309 60 A 3P+PE
Input Frequency 50/60 Hz
Line Rated Current 48 A (Input current limit 60 A)
Load Capacity 17,300 VA
Outlets 20 × C13/C15, 12 × C19/C21
Communication Ports SNMP, Redfish, 10/100/1000BASE-T
Operating Temperature 23–140 °F (-5–60 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 5–95%
Storage Humidity 5–95%
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance cUL Listed, FCC Part 15 Class A, IEC 62368-1, RoHS, REACh
Warranty 3 years repair or replace
[/specifications]

[accessories]

Installation Guide Included in the box
Rack Mounting Brackets Included in the box
Safety Guide Included in the box
[/accesories]

[specifications]

[/specifications]

Overview

The APC NetShelter APDU9966 Switched Rack PDU delivers 17.3kW of power in a space-saving 0U vertical form factor. Built for high-density racks, it combines intelligent outlet control, advanced monitoring, and secure network management to ensure reliable power distribution in demanding IT environments.

Key Features & Benefits
  • High Power Density: 17.3kW output supports enterprise-grade data center loads.
  • Switched Outlets: Remote on/off control improves uptime and operational efficiency.
  • Advanced Management: Integrated SNMP and Redfish protocols for seamless monitoring.
  • Flexible Connectivity: 20 C13/C15 and 12 C19/C21 outlets for mixed IT equipment.
  • Space-Efficient 0U Design: Maximizes rack space with vertical side mounting.
Technical Deep Dive

The APDU9966 operates at 208V three-phase with a 60A IEC 60309 plug, providing a total load capacity of 17,300VA. With a maximum line current of 48A, it ensures stable delivery across critical IT loads. The unit leverages intelligent switched outlets, allowing administrators to cycle power remotely for individual devices—minimizing downtime without site visits.

Management is built around dual communication options: SNMP for traditional network monitoring and Redfish for modern, scalable management. This ensures seamless integration with data center infrastructure management platforms. The 0U vertical mount design optimizes rack density, enabling easy installation alongside other rack equipment without consuming U-space.

Environmental resilience is designed in, supporting operation at temperatures from -5°C to 60°C and altitudes up to 10,000 ft, making it suitable for global deployments.

Ideal Applications
  • Enterprise data centers with high-density racks
  • Colocation facilities requiring secure power distribution
  • Cloud and edge computing deployments
  • Telecommunications and networking infrastructure
Frequently Asked Questions (FAQs)

Q1: How is the APDU9966 installed?
A: It is a 0U vertical PDU designed for side-mounting in standard APC NetShelter racks with included brackets.

Q2: What performance does it deliver?
A: The unit supports 17.3kW at 208V with a maximum line current of 48A. Runtime depends on facility backup systems and load profiles.

Q3: How is the PDU managed?
A: It provides remote outlet switching and monitoring via SNMP and Redfish protocols over a Gigabit Ethernet interface.
