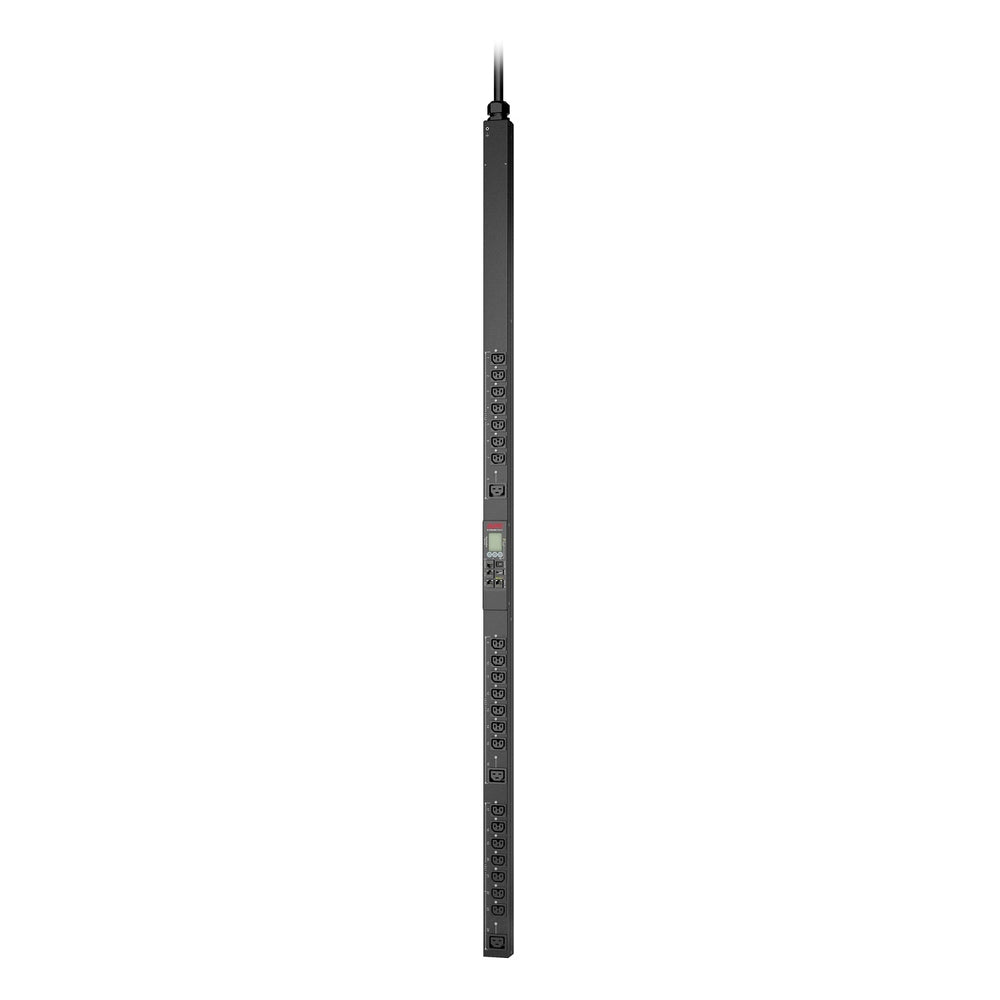

APC APDU9961 - NetShelter 9kW 0U Switched Rack PDU
APC APDU9961 - NetShelter 9kW 0U Switched Rack PDU

APC APDU9961 - NetShelter 9kW 0U Switched Rack PDU

por APC
Desconto de 35%
R$ 34.800,00
R$ 22.692,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] 5.7kW / 208V, 24 Outlets (21x C13/C15, 3x C19/C21), Switched 0U Vertical, Remote Management via SNMP & Redfish [/shortdesc]

[properties]

Brand APC by Schneider Electric
Model APDU9961
Product Type NetShelter Switched Rack PDU
Form Factor 0U Vertical
Dimensions (H x W x D) 70.55" x 2.17" x 1.81" (1792 x 55 x 46 mm)
Weight 15.23 lb (6.91 kg)
Color Black
Number of Rack Units 0U
Mounting Mode Vertical, Side Mountable
[/properties]

[specifications]

PDU Type Switched (9K Series)
Input Voltage 208 V (3 Phase)
Output Voltage 208 V
Input Plug Type NEMA L21-20P
Input Frequency 50/60 Hz
Line Rated Current 16 A (Max 20 A)
Load Capacity 5700 VA
Outlets 21 × IEC C13/C15, 3 × IEC C19/C21
Communication Ports SNMP, Redfish, 10/100/1000BASE-T
Operating Temperature 23–140 °F (-5–60 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 5–95% non-condensing
Storage Humidity 5–95% non-condensing
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance cUL Listed, FCC Part 15 Class A, IEC 62368-1
Warranty 3 years repair or replace
[/specifications]

[accessories]

Installation Guide Included in the box
Rack Mounting Brackets Included in the box
Safety Guide Included in the box
[/accesories]

The APC APDU9961 is a high-density NetShelter switched rack PDU designed for modern data centers and enterprise IT environments. Delivering 5.7kW of capacity at 208V, this 0U vertical unit provides advanced outlet-level control, robust network management via SNMP and Redfish, and versatile mounting for seamless integration into any rack system. Built for reliability and efficiency, it ensures secure power distribution to critical servers, storage, and networking equipment.

  • High Power Density: 5.7kW capacity supports demanding IT loads in enterprise racks.
  • Switched Outlet Control: Remote power cycling and outlet-level management reduce downtime.
  • Comprehensive Connectivity: Supports SNMP and Redfish for seamless integration into DCIM systems.
  • 0U Vertical Design: Maximizes rack space while delivering centralized power distribution.
  • Versatile Outlets: 21 C13/C15 and 3 C19/C21 outlets accommodate a wide range of IT hardware.
  • Durable Build: Engineered with robust safety compliance (IEC 62368-1, FCC Class A).

The APDU9961 leverages a switched PDU design, enabling administrators to control each outlet individually. This feature not only simplifies remote troubleshooting but also enhances energy efficiency by allowing selective power cycling of devices without physical intervention.

Its support for industry-standard management protocols such as SNMP and Redfish ensures compatibility with both traditional network management systems and emerging API-driven infrastructures. This flexibility makes it highly adaptable for modern data center automation strategies.

The 0U vertical mounting configuration allows the unit to reside outside standard rack units, preserving valuable rack space for servers and networking gear. With 24 total outlets, including high-current C19/C21 receptacles, the APDU9961 can power both standard and high-capacity IT hardware with ease.

  • Enterprise data centers requiring high-density power distribution
  • Colocation facilities with diverse client hardware
  • Network closets supporting mixed device form factors
  • Cloud and edge deployments needing remote outlet control

Q1: How is the APDU9961 installed?
A: The PDU is a 0U vertical unit with included brackets, designed for side mounting in standard racks without consuming rack units.

Q2: What performance can I expect?
A: It delivers 5.7kW at 208V with 24 outlets. Actual performance and load handling depend on connected equipment and environmental factors.

Q3: How is the unit managed remotely?
A: The APDU9961 supports SNMP and Redfish, enabling advanced monitoring, outlet switching, and seamless integration with DCIM tools.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] 5.7kW / 208V, 24 Outlets (21x C13/C15, 3x C19/C21), Switched 0U Vertical, Remote Management via SNMP & Redfish [/shortdesc]

[properties]

Brand APC by Schneider Electric
Model APDU9961
Product Type NetShelter Switched Rack PDU
Form Factor 0U Vertical
Dimensions (H x W x D) 70.55" x 2.17" x 1.81" (1792 x 55 x 46 mm)
Weight 15.23 lb (6.91 kg)
Color Black
Number of Rack Units 0U
Mounting Mode Vertical, Side Mountable
[/properties]

[specifications]

PDU Type Switched (9K Series)
Input Voltage 208 V (3 Phase)
Output Voltage 208 V
Input Plug Type NEMA L21-20P
Input Frequency 50/60 Hz
Line Rated Current 16 A (Max 20 A)
Load Capacity 5700 VA
Outlets 21 × IEC C13/C15, 3 × IEC C19/C21
Communication Ports SNMP, Redfish, 10/100/1000BASE-T
Operating Temperature 23–140 °F (-5–60 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 5–95% non-condensing
Storage Humidity 5–95% non-condensing
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance cUL Listed, FCC Part 15 Class A, IEC 62368-1
Warranty 3 years repair or replace
[/specifications]

[accessories]

Installation Guide Included in the box
Rack Mounting Brackets Included in the box
Safety Guide Included in the box
[/accesories]
Overview

The APC APDU9961 is a high-density NetShelter switched rack PDU designed for modern data centers and enterprise IT environments. Delivering 5.7kW of capacity at 208V, this 0U vertical unit provides advanced outlet-level control, robust network management via SNMP and Redfish, and versatile mounting for seamless integration into any rack system. Built for reliability and efficiency, it ensures secure power distribution to critical servers, storage, and networking equipment.

Key Features & Benefits
  • High Power Density: 5.7kW capacity supports demanding IT loads in enterprise racks.
  • Switched Outlet Control: Remote power cycling and outlet-level management reduce downtime.
  • Comprehensive Connectivity: Supports SNMP and Redfish for seamless integration into DCIM systems.
  • 0U Vertical Design: Maximizes rack space while delivering centralized power distribution.
  • Versatile Outlets: 21 C13/C15 and 3 C19/C21 outlets accommodate a wide range of IT hardware.
  • Durable Build: Engineered with robust safety compliance (IEC 62368-1, FCC Class A).
Technical Deep Dive

The APDU9961 leverages a switched PDU design, enabling administrators to control each outlet individually. This feature not only simplifies remote troubleshooting but also enhances energy efficiency by allowing selective power cycling of devices without physical intervention.

Its support for industry-standard management protocols such as SNMP and Redfish ensures compatibility with both traditional network management systems and emerging API-driven infrastructures. This flexibility makes it highly adaptable for modern data center automation strategies.

The 0U vertical mounting configuration allows the unit to reside outside standard rack units, preserving valuable rack space for servers and networking gear. With 24 total outlets, including high-current C19/C21 receptacles, the APDU9961 can power both standard and high-capacity IT hardware with ease.

Ideal Applications
  • Enterprise data centers requiring high-density power distribution
  • Colocation facilities with diverse client hardware
  • Network closets supporting mixed device form factors
  • Cloud and edge deployments needing remote outlet control
Frequently Asked Questions (FAQs)

Q1: How is the APDU9961 installed?
A: The PDU is a 0U vertical unit with included brackets, designed for side mounting in standard racks without consuming rack units.

Q2: What performance can I expect?
A: It delivers 5.7kW at 208V with 24 outlets. Actual performance and load handling depend on connected equipment and environmental factors.

Q3: How is the unit managed remotely?
A: The APDU9961 supports SNMP and Redfish, enabling advanced monitoring, outlet switching, and seamless integration with DCIM tools.
