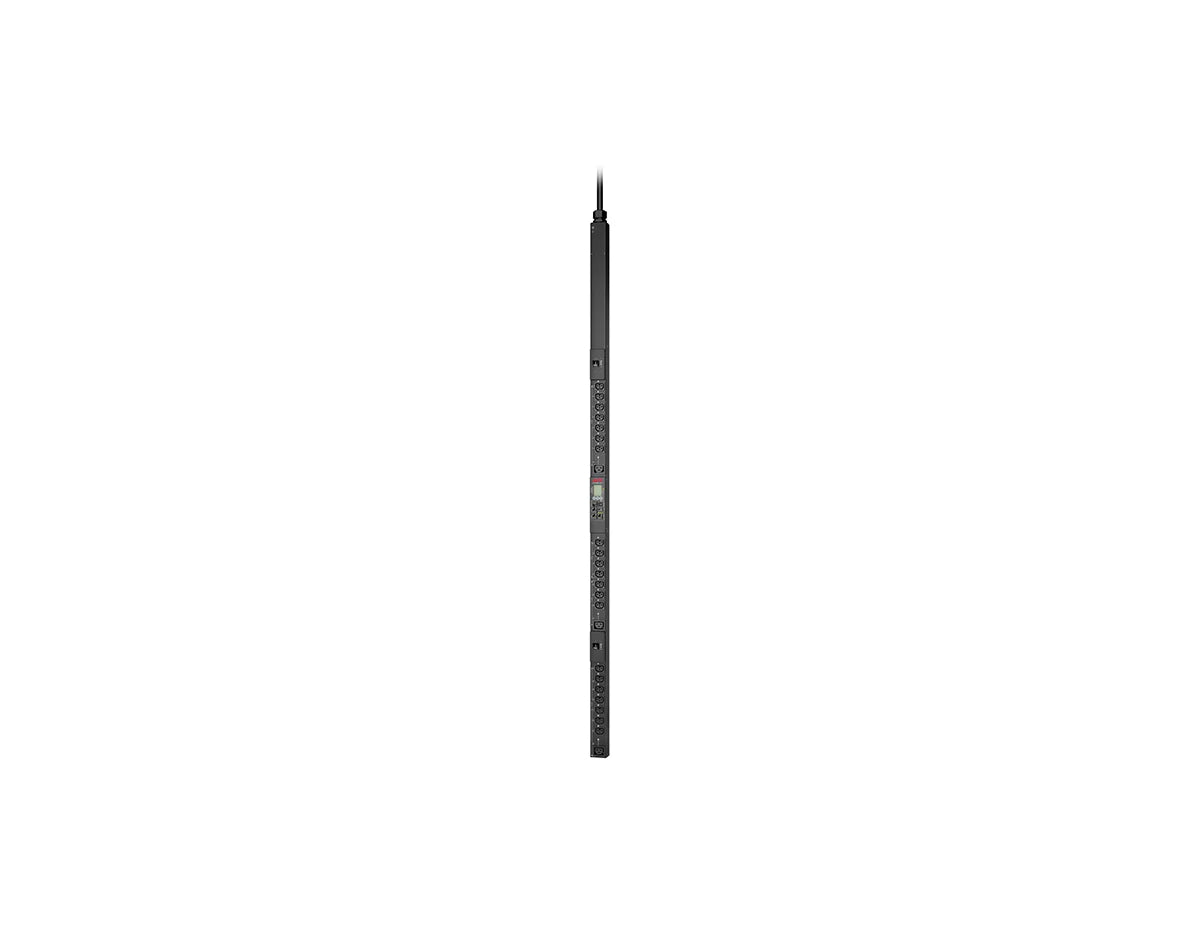

APC APDU9941 - NetShelter Switched Rack PDU 0U 5kW
APC APDU9941 - NetShelter Switched Rack PDU 0U 5kW

APC APDU9941 - NetShelter Switched Rack PDU 0U 5kW

por APC
Desconto de 35%
R$ 31.020,00
R$ 20.220,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

5.0kW Load Capacity, 208V Input, 21x C13/C15 & 3x C19/C21 Outlets, Switched 0U Vertical PDU with SNMP & Redfish

[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model APDU9941
Product Type NetShelter Switched Rack PDU
Form Factor 0U Vertical
Dimensions (H x W x D) 72.01" x 2.17" x 1.81" (1829 x 55 x 46 mm)
Weight 18.7 lb (8.5 kg)
Color Black
Number of Rack Units 0U
Mounting Mode Vertical (Side Mounting)
Cooling Passive
[/properties]

[specifications]

PDU Type Switched
Input Voltage 200 V / 208 V
Output Voltage 200 V / 208 V
Input Plug Type NEMA L6-30P
Input Frequency 50/60 Hz
Line Rated Current 24 A (Max 30 A)
Load Capacity 4992 VA
Outlets 21 × C13/C15, 3 × C19/C21
Communication Ports SNMP, Redfish, 10/100/1000BASE-T
Operating Temperature 23–140 °F (-5–60 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 5–95% non-condensing
Storage Humidity 5–95% non-condensing
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance cUL Listed, FCC Part 15 Class A, PSE, ICES-003, RoHS, REACh, WEEE
Warranty 3 years repair or replace
[/specifications]

[accessories]

Installation Guide Included in the box
Rack Mounting Brackets Included in the box
Safety Guide Included in the box
[/accesories]

The APC APDU9941 is a high-performance 0U vertical switched rack PDU engineered for demanding IT racks. Supporting 5.0kW at 200/208V, it integrates 24 outlets, advanced remote monitoring, and a slim 72-inch profile to maximize rack space efficiency while ensuring power distribution reliability for modern server environments.

  • Switched PDU Control: Enable or disable outlets remotely for energy management and security.
  • High Outlet Density: 21x C13/C15 and 3x C19/C21 outlets support mixed IT loads efficiently.
  • 0U Vertical Form Factor: Mounts on rack side channels without using critical rack units.
  • Advanced Monitoring: SNMP and Redfish protocols provide real-time power and status insights.
  • Robust Input Power: NEMA L6-30P plug supports up to 30A at 200/208V.

This PDU is built on a switched architecture, allowing administrators to control individual outlets for load shedding, device reboot, or power sequencing. Such functionality is crucial for remote sites where physical access is limited.

The vertical 0U design optimizes rack capacity by attaching to the rack frame without consuming U-space, leaving more room for servers and networking hardware. With a full 72-inch length, it ensures convenient access to outlets across the rack height.

Network integration is supported via SNMP and Redfish over Gigabit Ethernet, enabling centralized energy management, automated alerts, and compatibility with data center infrastructure management (DCIM) tools.

  • Enterprise and hyperscale data centers
  • Server and storage racks in colocation facilities
  • High-density virtualized environments
  • Remote and edge IT installations needing remote control

Q1: How is the APDU9941 installed?
A: It is a 0U vertical PDU mounted along rack side channels using included brackets.

Q2: What performance does it provide?
A: It supports up to 5.0kW (4992 VA) with 24 total outlets. Runtime depends on UPS configuration and load.

Q3: How can the unit be managed?
A: Remote access is enabled via SNMP and Redfish for monitoring, alerts, and outlet-level switching.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

5.0kW Load Capacity, 208V Input, 21x C13/C15 & 3x C19/C21 Outlets, Switched 0U Vertical PDU with SNMP & Redfish

[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model APDU9941
Product Type NetShelter Switched Rack PDU
Form Factor 0U Vertical
Dimensions (H x W x D) 72.01" x 2.17" x 1.81" (1829 x 55 x 46 mm)
Weight 18.7 lb (8.5 kg)
Color Black
Number of Rack Units 0U
Mounting Mode Vertical (Side Mounting)
Cooling Passive
[/properties]

[specifications]

PDU Type Switched
Input Voltage 200 V / 208 V
Output Voltage 200 V / 208 V
Input Plug Type NEMA L6-30P
Input Frequency 50/60 Hz
Line Rated Current 24 A (Max 30 A)
Load Capacity 4992 VA
Outlets 21 × C13/C15, 3 × C19/C21
Communication Ports SNMP, Redfish, 10/100/1000BASE-T
Operating Temperature 23–140 °F (-5–60 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 5–95% non-condensing
Storage Humidity 5–95% non-condensing
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance cUL Listed, FCC Part 15 Class A, PSE, ICES-003, RoHS, REACh, WEEE
Warranty 3 years repair or replace
[/specifications]

[accessories]

Installation Guide Included in the box
Rack Mounting Brackets Included in the box
Safety Guide Included in the box
[/accesories]
Overview

The APC APDU9941 is a high-performance 0U vertical switched rack PDU engineered for demanding IT racks. Supporting 5.0kW at 200/208V, it integrates 24 outlets, advanced remote monitoring, and a slim 72-inch profile to maximize rack space efficiency while ensuring power distribution reliability for modern server environments.

Key Features & Benefits
  • Switched PDU Control: Enable or disable outlets remotely for energy management and security.
  • High Outlet Density: 21x C13/C15 and 3x C19/C21 outlets support mixed IT loads efficiently.
  • 0U Vertical Form Factor: Mounts on rack side channels without using critical rack units.
  • Advanced Monitoring: SNMP and Redfish protocols provide real-time power and status insights.
  • Robust Input Power: NEMA L6-30P plug supports up to 30A at 200/208V.
Technical Deep Dive

This PDU is built on a switched architecture, allowing administrators to control individual outlets for load shedding, device reboot, or power sequencing. Such functionality is crucial for remote sites where physical access is limited.

The vertical 0U design optimizes rack capacity by attaching to the rack frame without consuming U-space, leaving more room for servers and networking hardware. With a full 72-inch length, it ensures convenient access to outlets across the rack height.

Network integration is supported via SNMP and Redfish over Gigabit Ethernet, enabling centralized energy management, automated alerts, and compatibility with data center infrastructure management (DCIM) tools.

Ideal Applications
  • Enterprise and hyperscale data centers
  • Server and storage racks in colocation facilities
  • High-density virtualized environments
  • Remote and edge IT installations needing remote control
Frequently Asked Questions (FAQs)

Q1: How is the APDU9941 installed?
A: It is a 0U vertical PDU mounted along rack side channels using included brackets.

Q2: What performance does it provide?
A: It supports up to 5.0kW (4992 VA) with 24 total outlets. Runtime depends on UPS configuration and load.

Q3: How can the unit be managed?
A: Remote access is enabled via SNMP and Redfish for monitoring, alerts, and outlet-level switching.
