• APC Basic Rack PDU, 1U, 16A, 208V, 12 IEC C13 outlets, Horizontal mount, 12-ft cord, Durable build, UL compliant.

[/shortdesc]

[specifications] [/specifications]

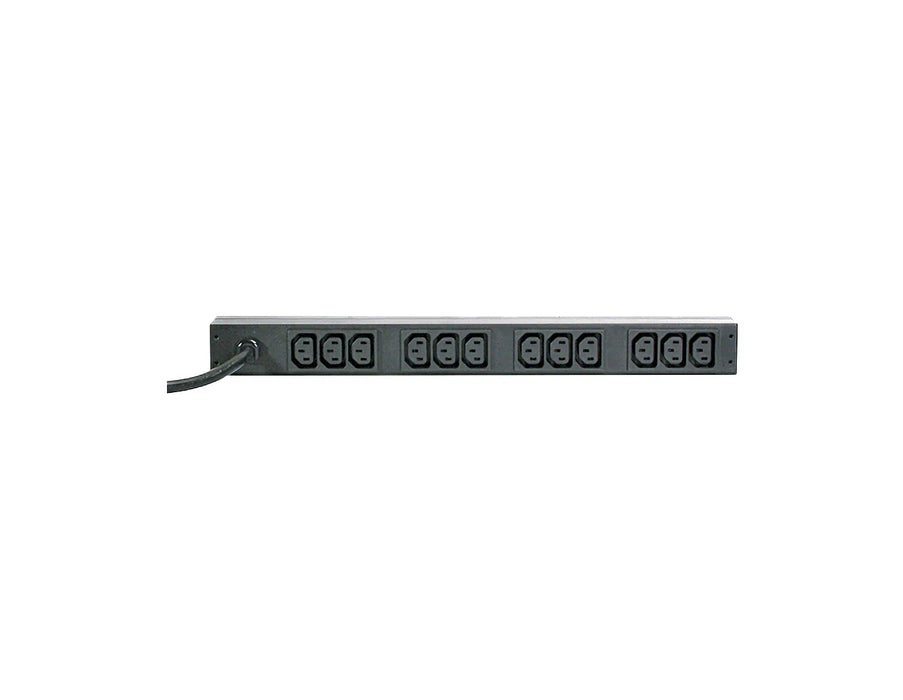

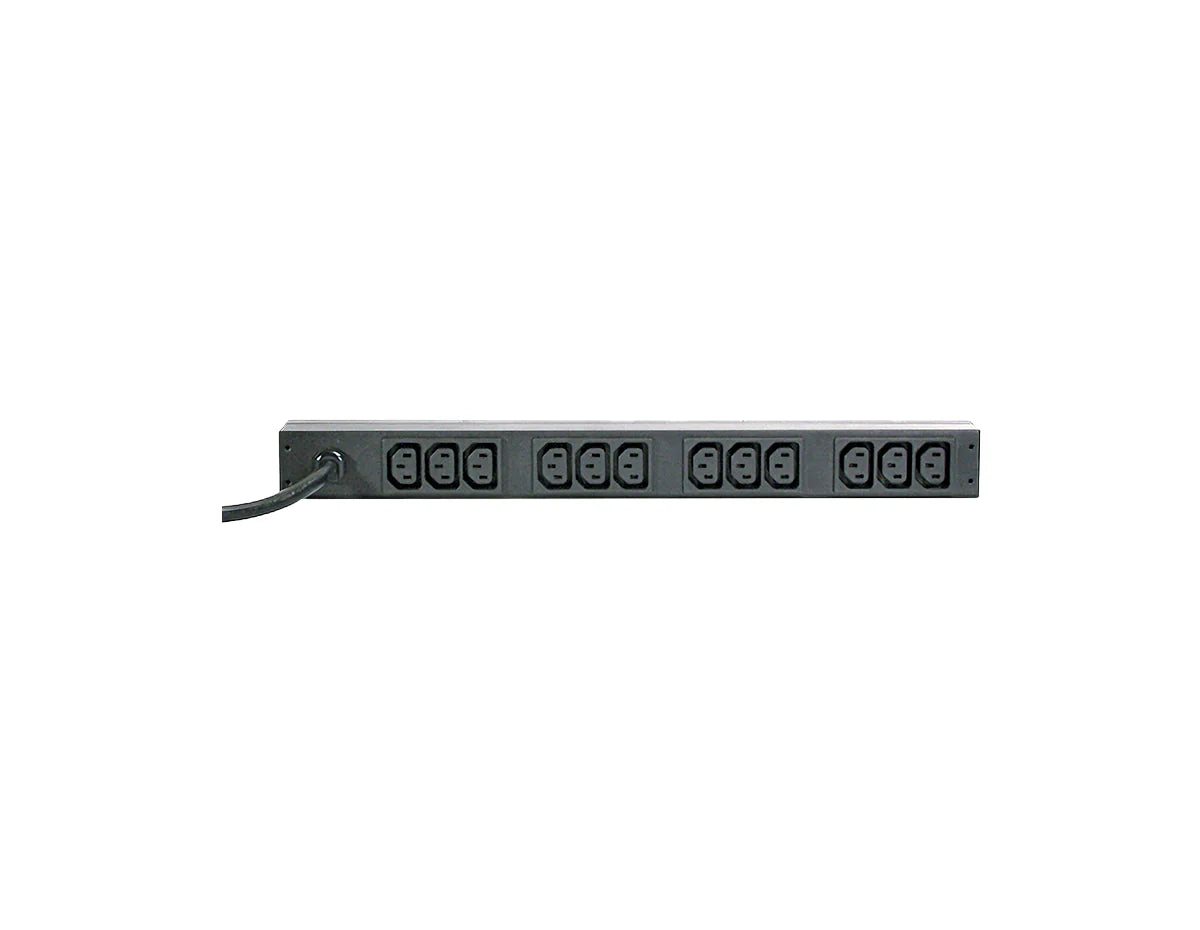

APC NetShelter Basic Rack PDU, 1U, 16A, 208V, (12) IEC C13 Outlets (AP9566)

The APC AP9566 is a basic rack power distribution unit (PDU) designed to deliver efficient and reliable power distribution for enterprise IT environments and data centers. Supporting 16A input current, it provides 3328 VA capacity through 12 IEC 60320 C13 outlets, ensuring continuous power for connected equipment.

The PDU features a NEMA L6-20P input plug with a 12-ft (3.7m) power cord, supporting input voltages between 200V and 230V at 50/60 Hz. Built for horizontal rack-mount installation, this 1U unit includes mounting hardware and is designed for front or rear placement.

It is compliant with UL and cUL safety standards, capable of operating in temperatures from 32°F to 113°F (0°C to 45°C) at altitudes up to 10,000 ft.

• Power Capacity: 16A input current, 3328 VA load capacity.
• Outlet Configuration: 12 IEC 60320 C13 outlets.

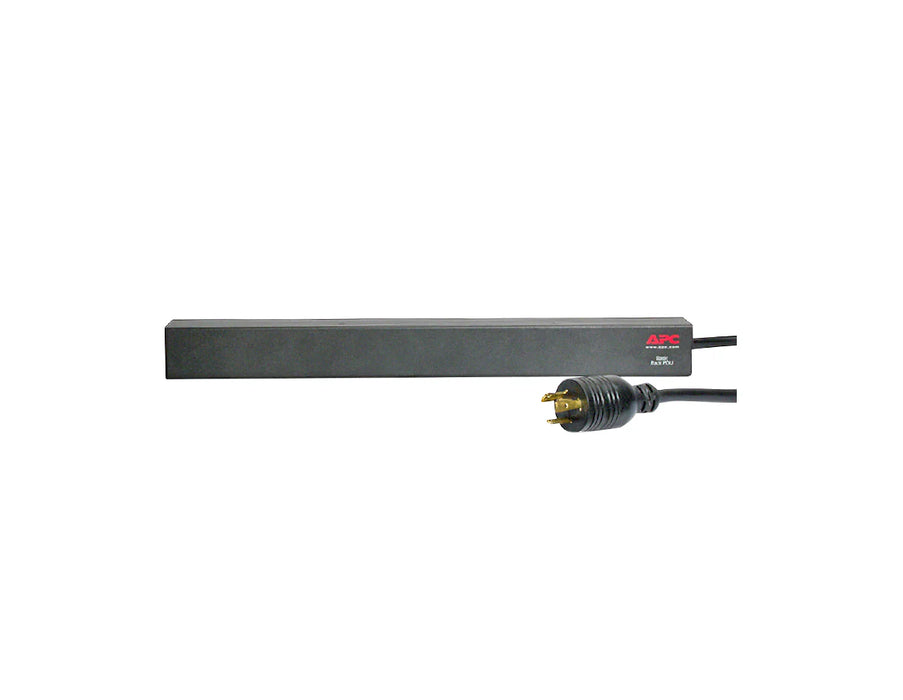

• Input Plug: NEMA L6-20P plug with a 12-ft (3.7m) cord.
• PDU Type: Basic rack PDU with horizontal mounting.
• Mounting Mode: 1U rack-mounted, front or rear positioning.
• Environmental Tolerance: Operates between 32°F and 113°F (0°C to 45°C) and up to 10,000 ft altitude.
• Certifications: UL, cUL, and compliant with UL 60950 safety standards.
• Included Components: Installation guide and rack-mounting brackets.

The APC AP9566 offers robust and essential power distribution for IT and networking infrastructure. Its high load capacity, space-efficient design, and durable construction make it an ideal choice for enterprise environments where power reliability is critical.
