• APC Basic Rack PDU, 1U, 20A, 120V, 10 NEMA 5-20R outlets, Horizontal mount, 12-ft cord, Durable build, UL compliant.


[/shortdesc]

[specifications] [/specifications]

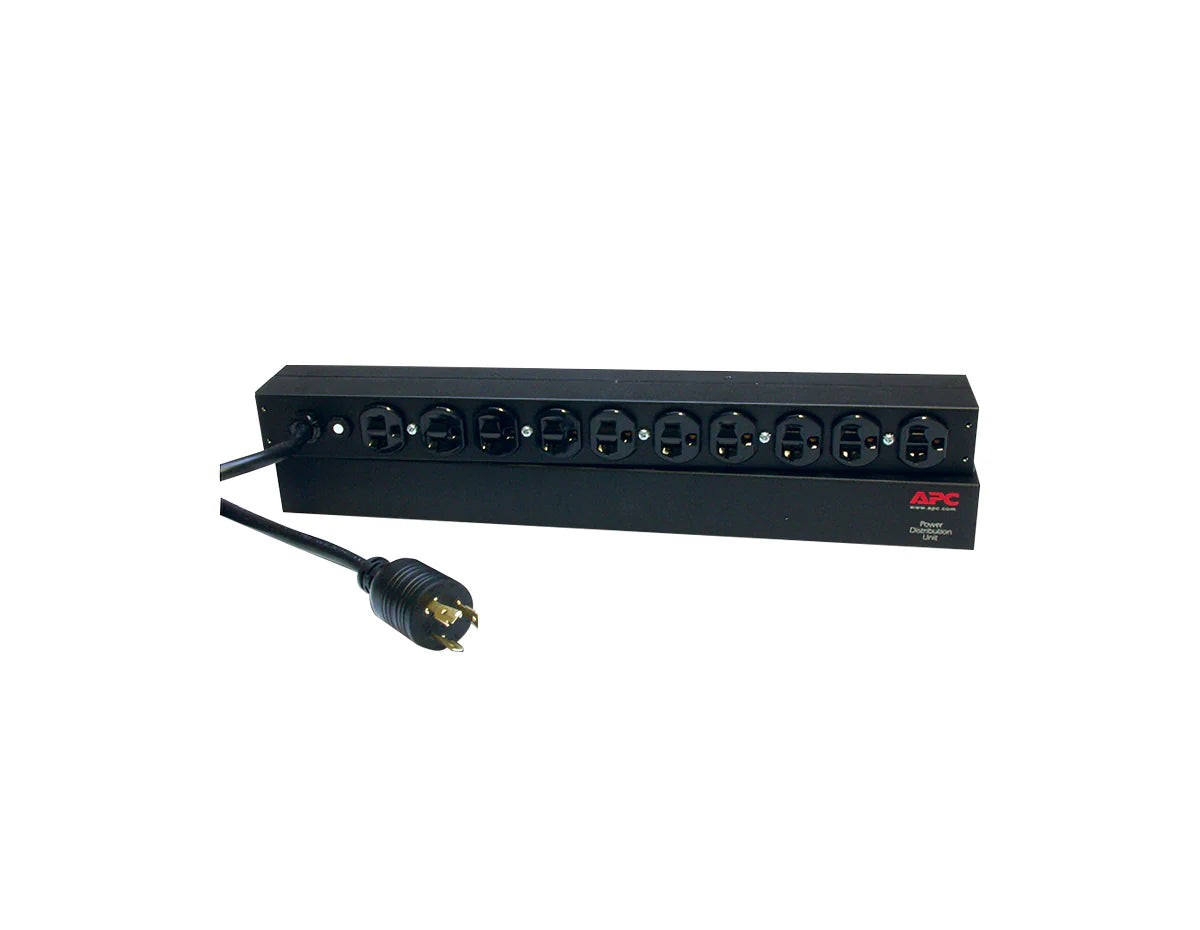

APC NetShelter Basic Rack PDU, 1U, 20A, 120V, (10) NEMA 5-20 Outlets, L5-20P Input (AP9564)

The APC AP9564 is a basic rack power distribution unit (PDU) designed for enterprise IT infrastructure and data centers. This 1U, 20A PDU delivers 1920 VA power capacity through (10) NEMA 5-20R outlets, providing reliable power distribution for connected devices.

The unit features a NEMA L5-20P input plug with a 12-ft (3.7m) cord and supports input and output voltages of 120V at 50/60 Hz. Designed for horizontal rack mounting, the PDU includes installation brackets and can be mounted in front or rear rack positions. It operates within a wide temperature range of -5°C to 45°C, making it suitable for diverse environments.

• Power Capacity: 20A input current with a 1920 VA load rating.
• Outlet Configuration: 10 NEMA 5-20R outlets.
• Input Plug: NEMA L5-20P plug with a 12-ft (3.7m) cord.
• PDU Type: Basic with horizontal rack-mount design.
• Mounting Mode: 1U rack-mounted, front or rear positioning.
• Environmental Tolerance: Operates between -5°C to 45°C and up to 10,000 ft altitude.
• Certifications: UL Listed, cUL Listed for safety compliance.
• Included Components: Installation guide and rack-mounting brackets.

The APC AP9564 provides essential power distribution with a space-saving design, ensuring efficient and reliable operation for IT and networking infrastructure. Its high-capacity support, certified safety, and easy installation features make it an excellent choice for enterprise environments.
