• APC Basic Rack PDU, 1U, 30A, 120V, 10 NEMA 5-20R outlets, Horizontal rack-mount, 12-ft cord, Durable build, UL compliant.


[/shortdesc]

[specifications] [/specifications]

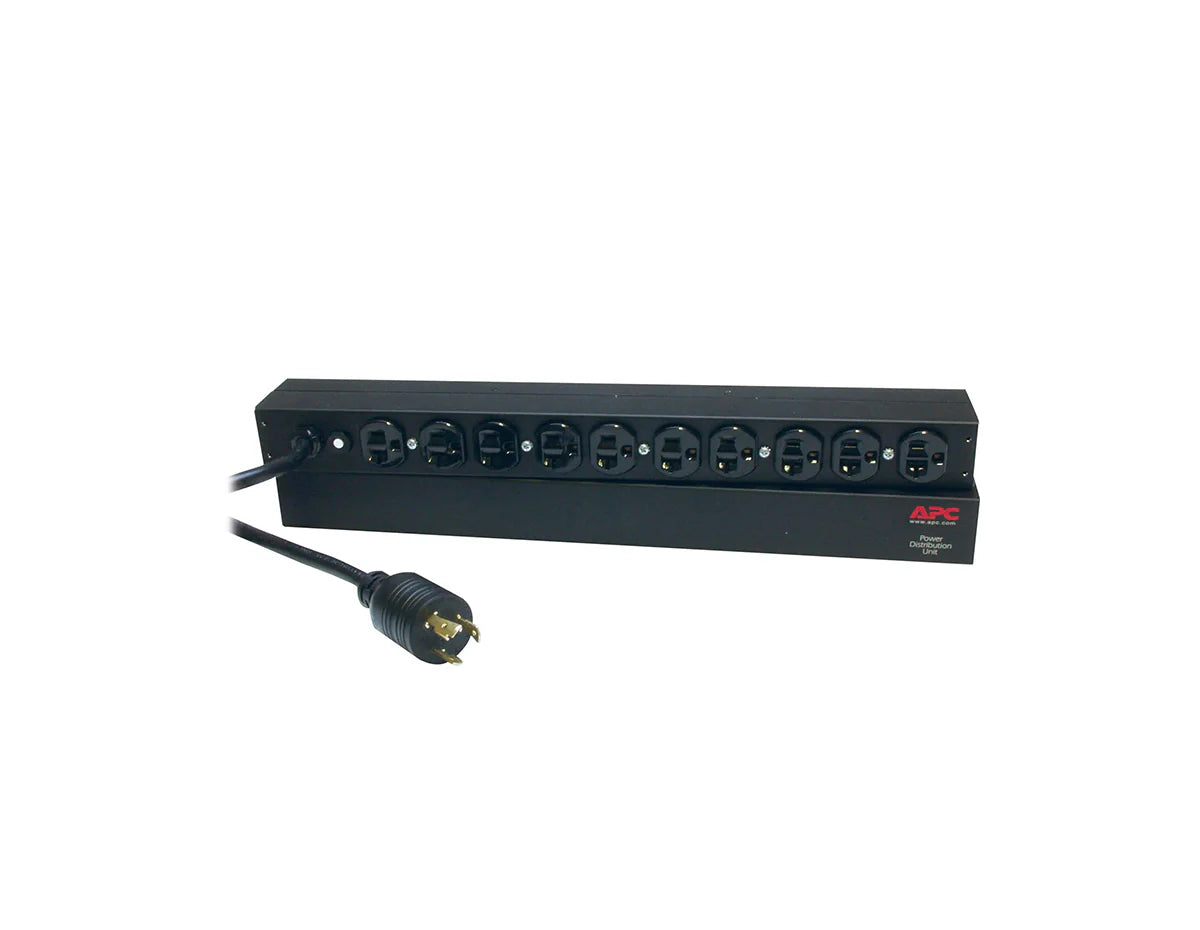

APC NetShelter Basic Rack PDU, 1U, 30A, 120V, (10) NEMA 5-20 Outlets (AP9560)

The APC AP9560 is a basic rack power distribution unit (PDU) designed to deliver efficient and reliable power distribution for enterprise IT and data center infrastructure. It supports 30A input current and features (10) NEMA 5-20R outlets, providing 2880 VA power capacity for connected devices.

Equipped with a NEMA L5-30P input plug and a 12-ft (3.7m) power cord, this 1U rack-mounted PDU operates at 120V with a 50/60 Hz input frequency. It includes mounting brackets and user documentation for quick and secure installation. The PDU is designed for horizontal mounting in both front and rear rack positions.

Built with durable materials, the AP9560 complies with UL and cUL certifications and supports operating temperatures between 5°F to 113°F (-15°C to 45°C) and altitudes up to 10,000 ft.

• Power Capacity: 30A input current with a 2880 VA load rating.
• Outlet Configuration: 10 NEMA 5-20R outlets.
• Input Plug: NEMA L5-30P plug with a 12-ft (3.7m) cord.
• PDU Type: Basic with horizontal rack-mount design.

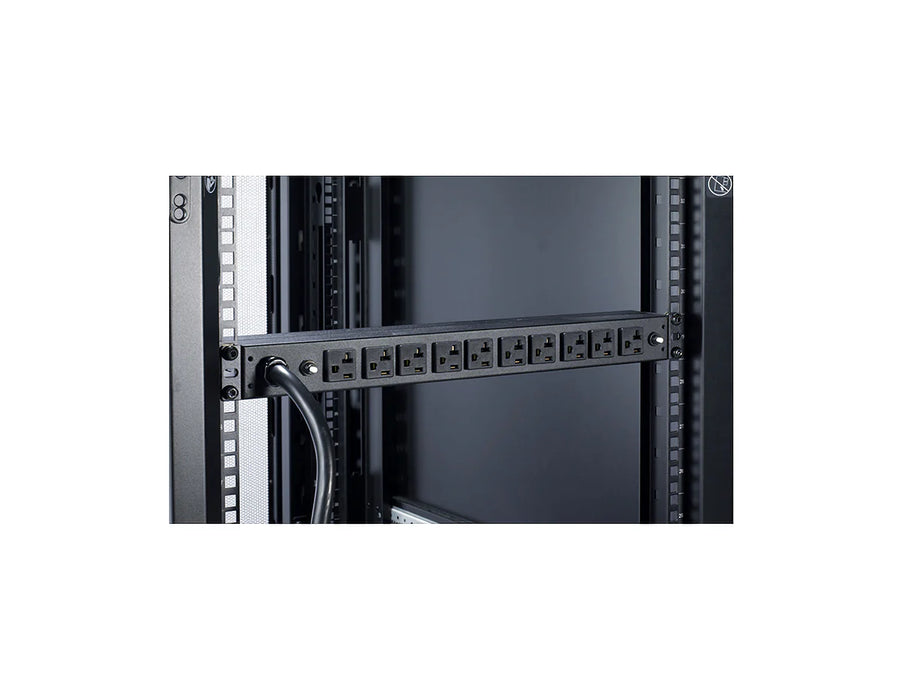

• Mounting Mode: 1U rack-mounted, front or rear placement.
• Environmental Tolerance: Operates between 5°F to 113°F (-15°C to 45°C) and up to 10,000 ft altitude.
• Certifications: UL, cUL, and compliant with safety standards.
• Included Components: Rack-mounting brackets and user manual.

The APC AP9560 provides essential power distribution for enterprise IT environments, offering reliable performance with high-capacity support and durable construction. Its space-efficient 1U design and certified safety compliance make it ideal for critical infrastructure.
