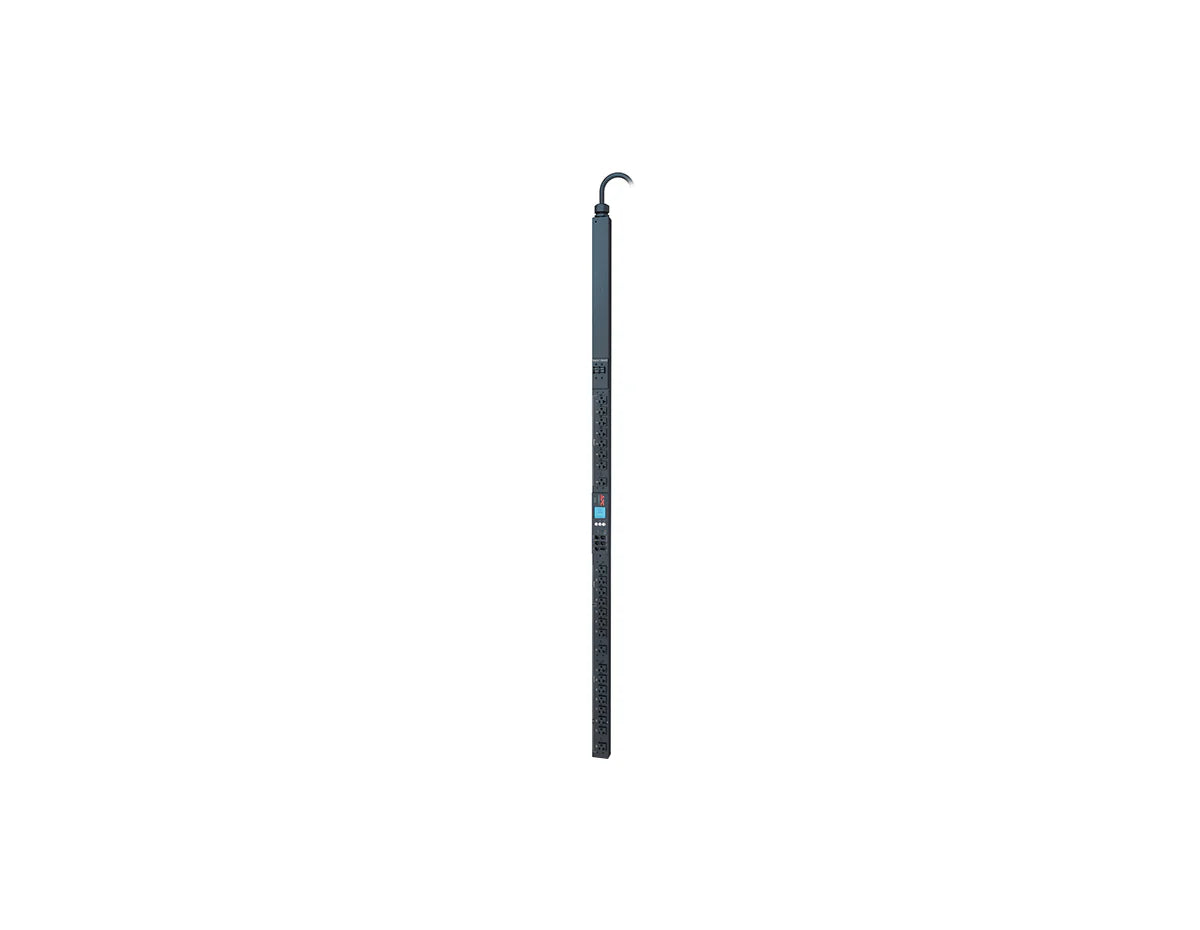

APC AP8932 - Switched Rack PDU 30A 0U 24 NEMA 5-20R
Clique ou role para ampliar
Toque ou belisque para ampliar
APC AP8932 - Switched Rack PDU 30A 0U 24 NEMA 5-20R
Clique ou role para ampliar
Toque ou belisque para ampliar
APC AP8932 - Switched Rack PDU 30A 0U 24 NEMA 5-20R
APC AP8932 - Switched Rack PDU 30A 0U 24 NEMA 5-20R

APC AP8932 - Switched Rack PDU 30A 0U 24 NEMA 5-20R

por APC
Desconto de 34%
R$ 29.400,00
R$ 19.260,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

30A Input, 0U Vertical, 24 NEMA 5-20R Outlets, Remote Switching, Active Load Monitoring

[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model AP8932
Product Type NetShelter Switched Rack PDU
Form Factor 0U Vertical
Dimensions (H x W x D) 70.5" x 2.2" x 1.8" (1791 x 55 x 46 mm)
Weight 17.31 lb (7.85 kg)
Color Black
Number of Rack Units 0U
Mounting Mode Rack-mounted (Vertical)
[/properties]

[specifications]

PDU Type Switched (2nd Generation)
Input Voltage 100–120 V
Output Voltage 100–120 V
Input Plug Type NEMA L5-30P
Input Frequency 50/60 Hz
Line Rated Current 24 A (Max 30 A)
Load Capacity 2880 VA
Outlets 24 × NEMA 5-20R
Communication Ports Web, SNMP, Telnet
Operating Temperature 23–140 °F (-5–60 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 5–95% non-condensing
Storage Humidity 5–95% non-condensing
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance cUL Listed, UL Listed, PSE, FCC Part 15 Class A, ICES-003, UL 60950-1, RoHS, REACh
Warranty 2 years repair or replace
[/specifications]

[accessories]

Installation Guide Included in the box
Rack Mounting Brackets Included in the box
Serial Configuration Cable Included in the box
Safety Guide Included in the box
[/accesories]

The APC AP8932 is a switched rack power distribution unit (PDU) engineered for data centers and enterprise IT environments. It delivers 30A input capacity across 24 NEMA 5-20R outlets in a 0U vertical form factor, providing efficient distribution while enabling remote power control and metering. Designed for uptime and operational reliability, it combines advanced outlet-level management with secure network-based access.

  • Remote Outlet Control: Power cycle or disable outlets remotely to manage equipment access.
  • Power Sequencing: Set startup delays to reduce inrush current and maintain stability.
  • Load Monitoring: Real-time current metering and user-defined alarms prevent overloads.
  • Environmental Monitoring: Sensor port supports temperature and humidity probes.
  • Secure Access: Web, SNMP, and Telnet interfaces ensure safe management integration.
  • Low Profile Design: 0U vertical mounting saves rack space for critical hardware.

The AP8932 integrates switched outlet technology that provides precise control over connected hardware. This feature allows IT managers to remotely reboot servers and network devices without on-site intervention, minimizing downtime and speeding recovery.

Its advanced load monitoring system measures current usage at the PDU level and issues warnings before overload conditions occur. This proactive design supports stable power distribution and prevents outages across mission-critical racks.

The inclusion of secure management protocols such as HTTPS, SNMP, and Telnet ensures compatibility with existing infrastructure, while support for APC’s centralized management platforms allows holistic power and capacity planning across facilities.

  • Enterprise data centers and colocation racks
  • Network closets and branch offices
  • Server and storage deployments
  • Managed hosting and cloud infrastructure

Q1: How is the AP8932 installed?
A: It is designed for vertical 0U mounting with included brackets and occupies no rack unit space.

Q2: What performance does it deliver?
A: The unit supports up to 30A input and provides 24 NEMA 5-20R outlets. Load capacity is 2880 VA. Runtime is not applicable since this is a PDU.

Q3: How can it be managed?
A: The AP8932 is accessible via secure Web, SNMP, or Telnet interfaces and integrates with APC centralized management tools such as InfraStruxure Central.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

30A Input, 0U Vertical, 24 NEMA 5-20R Outlets, Remote Switching, Active Load Monitoring

[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model AP8932
Product Type NetShelter Switched Rack PDU
Form Factor 0U Vertical
Dimensions (H x W x D) 70.5" x 2.2" x 1.8" (1791 x 55 x 46 mm)
Weight 17.31 lb (7.85 kg)
Color Black
Number of Rack Units 0U
Mounting Mode Rack-mounted (Vertical)
[/properties]

[specifications]

PDU Type Switched (2nd Generation)
Input Voltage 100–120 V
Output Voltage 100–120 V
Input Plug Type NEMA L5-30P
Input Frequency 50/60 Hz
Line Rated Current 24 A (Max 30 A)
Load Capacity 2880 VA
Outlets 24 × NEMA 5-20R
Communication Ports Web, SNMP, Telnet
Operating Temperature 23–140 °F (-5–60 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 5–95% non-condensing
Storage Humidity 5–95% non-condensing
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance cUL Listed, UL Listed, PSE, FCC Part 15 Class A, ICES-003, UL 60950-1, RoHS, REACh
Warranty 2 years repair or replace
[/specifications]

[accessories]

Installation Guide Included in the box
Rack Mounting Brackets Included in the box
Serial Configuration Cable Included in the box
Safety Guide Included in the box
[/accesories]
Overview

The APC AP8932 is a switched rack power distribution unit (PDU) engineered for data centers and enterprise IT environments. It delivers 30A input capacity across 24 NEMA 5-20R outlets in a 0U vertical form factor, providing efficient distribution while enabling remote power control and metering. Designed for uptime and operational reliability, it combines advanced outlet-level management with secure network-based access.

Key Features & Benefits
  • Remote Outlet Control: Power cycle or disable outlets remotely to manage equipment access.
  • Power Sequencing: Set startup delays to reduce inrush current and maintain stability.
  • Load Monitoring: Real-time current metering and user-defined alarms prevent overloads.
  • Environmental Monitoring: Sensor port supports temperature and humidity probes.
  • Secure Access: Web, SNMP, and Telnet interfaces ensure safe management integration.
  • Low Profile Design: 0U vertical mounting saves rack space for critical hardware.
Technical Deep Dive

The AP8932 integrates switched outlet technology that provides precise control over connected hardware. This feature allows IT managers to remotely reboot servers and network devices without on-site intervention, minimizing downtime and speeding recovery.

Its advanced load monitoring system measures current usage at the PDU level and issues warnings before overload conditions occur. This proactive design supports stable power distribution and prevents outages across mission-critical racks.

The inclusion of secure management protocols such as HTTPS, SNMP, and Telnet ensures compatibility with existing infrastructure, while support for APC’s centralized management platforms allows holistic power and capacity planning across facilities.

Ideal Applications
  • Enterprise data centers and colocation racks
  • Network closets and branch offices
  • Server and storage deployments
  • Managed hosting and cloud infrastructure
Frequently Asked Questions (FAQs)

Q1: How is the AP8932 installed?
A: It is designed for vertical 0U mounting with included brackets and occupies no rack unit space.

Q2: What performance does it deliver?
A: The unit supports up to 30A input and provides 24 NEMA 5-20R outlets. Load capacity is 2880 VA. Runtime is not applicable since this is a PDU.

Q3: How can it be managed?
A: The AP8932 is accessible via secure Web, SNMP, or Telnet interfaces and integrates with APC centralized management tools such as InfraStruxure Central.
