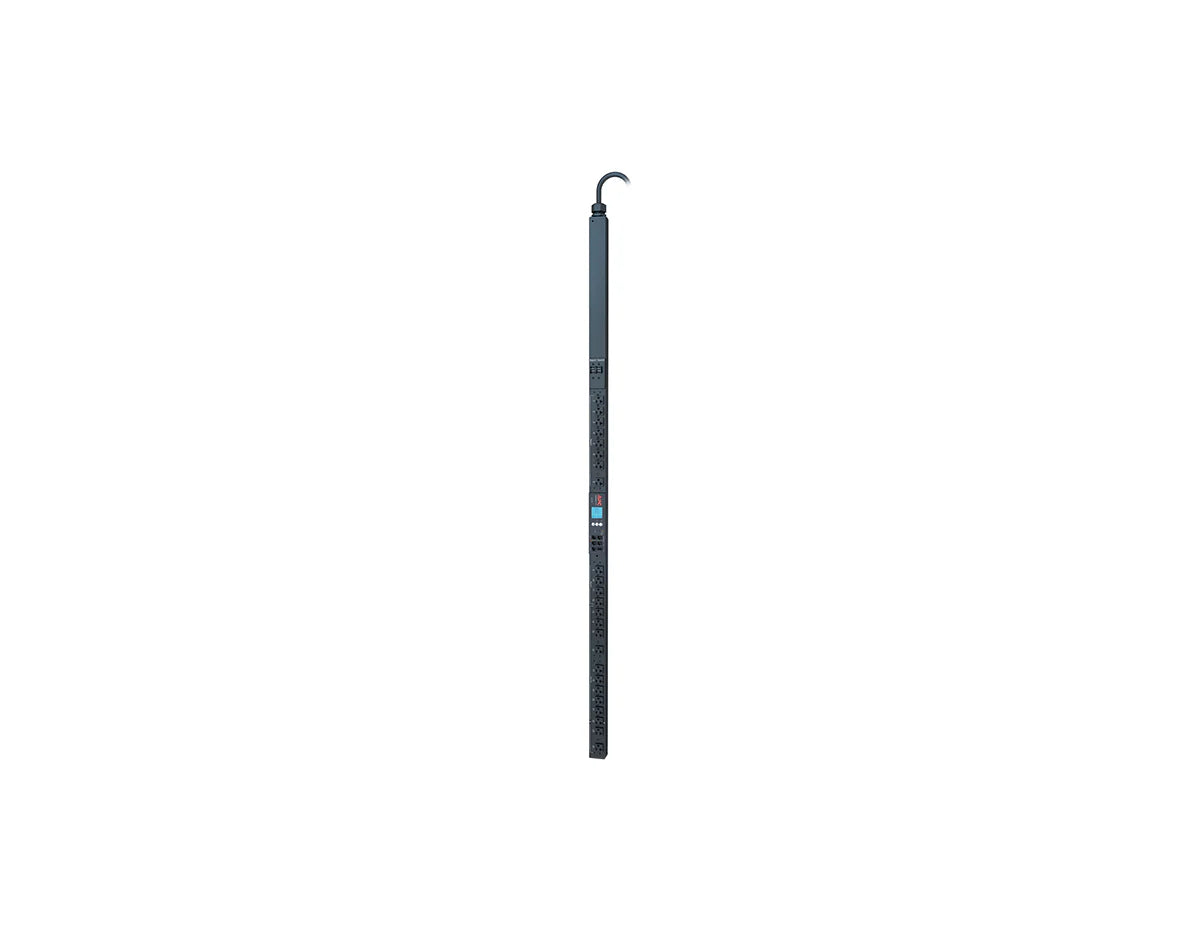

APC AP8930 - NetShelter Switched Rack PDU 0U 20A 120V
Clique ou role para ampliar
Toque ou belisque para ampliar
APC AP8930 - NetShelter Switched Rack PDU 0U 20A 120V
APC AP8930 - NetShelter Switched Rack PDU 0U 20A 120V

APC AP8930 - NetShelter Switched Rack PDU 0U 20A 120V

por APC
Desconto de 32%
R$ 26.460,00
R$ 17.940,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

20A / 120V Input, 24 NEMA 5-20R Outlets, 0U Vertical Rackmount, Remote Outlet Control & Monitoring

[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model AP8930
Product Type NetShelter Switched Rack PDU
Form Factor 0U Vertical
Dimensions (H x W x D) 70.5" x 2.2" x 1.8" (1791 x 55 x 46 mm)
Weight 14.37 lb (6.52 kg)
Color Black
Number of Rack Units 0U
Mounting Mode Rack-mounted (Vertical)
[/properties]

[specifications]

PDU Type Switched
Input Voltage 100–120 V
Output Voltage 120 V
Input Plug Type NEMA L5-20P
Input Frequency 50/60 Hz
Line Rated Current 16 A (Max 20 A)
Load Capacity 1920 VA
Outlets 24 × NEMA 5-20R
Communication Ports Web, SNMP, Telnet
Operating Temperature 23–140 °F (-5–60 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 5–95% non-condensing
Storage Humidity 5–95% non-condensing
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance cUL Listed, UL Listed, FCC Part 15 Class A, ICES-003, UL 60950-1, RoHS, REACh
Warranty 2 years repair or replace
[/specifications]

[accessories]

Installation Guide Included in the box
Rack Mounting Brackets Included in the box
Serial Configuration Cable Included in the box
Safety Guide Included in the box
[/accesories]

The APC AP8930 NetShelter Switched Rack PDU is engineered for IT and enterprise environments demanding precision power control. With 20A capacity, 24 outlets, and 0U vertical mounting, it provides reliable distribution while enabling advanced monitoring and remote outlet management to maximize uptime.

  • Remote Outlet Control: Power cycle devices or restrict usage directly from a secure interface.
  • Power Sequencing: Reduce inrush currents by defining startup and shutdown order.
  • Real-Time Metering: Continuous load visibility helps prevent overloads.
  • Environmental Monitoring: Sensor port supports temperature and humidity inputs.
  • Flexible Rack Integration: 0U vertical design conserves critical rack space.

At its foundation, the AP8930 offers switched outlet-level control. This allows administrators to remotely reboot locked systems, manage energy consumption, and enhance equipment security by limiting unauthorized access to outlets.

Its integrated metering delivers accurate current data, ensuring informed capacity planning and early detection of potential overload conditions. Power sequencing functionality is particularly valuable in data centers, as it staggers device startups to prevent circuit trips during recovery events.

Designed for interoperability, the unit supports access through Web, SNMP, or Telnet and integrates with APC management platforms like InfraStruxure Central. Combined with locking IEC outlets and low-profile breakers, it ensures robust and secure distribution for mission-critical IT loads.

  • Enterprise network closets
  • High-density data center racks
  • Server and storage deployments
  • Colocation facilities requiring outlet-level control

Q1: How is the AP8930 installed?
A: It is designed for 0U vertical mounting with included brackets, making it easy to attach to standard racks without occupying horizontal space.

Q2: What performance can I expect?
A: The PDU supports up to 20A input and delivers 120V with 24 NEMA 5-20R outlets. Load capacity reaches 1920 VA. Actual performance depends on connected equipment and operating environment.

Q3: How can it be managed?
A: The unit supports Web, SNMP, and Telnet management interfaces and integrates with APC platforms for centralized monitoring and control.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

20A / 120V Input, 24 NEMA 5-20R Outlets, 0U Vertical Rackmount, Remote Outlet Control & Monitoring

[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model AP8930
Product Type NetShelter Switched Rack PDU
Form Factor 0U Vertical
Dimensions (H x W x D) 70.5" x 2.2" x 1.8" (1791 x 55 x 46 mm)
Weight 14.37 lb (6.52 kg)
Color Black
Number of Rack Units 0U
Mounting Mode Rack-mounted (Vertical)
[/properties]

[specifications]

PDU Type Switched
Input Voltage 100–120 V
Output Voltage 120 V
Input Plug Type NEMA L5-20P
Input Frequency 50/60 Hz
Line Rated Current 16 A (Max 20 A)
Load Capacity 1920 VA
Outlets 24 × NEMA 5-20R
Communication Ports Web, SNMP, Telnet
Operating Temperature 23–140 °F (-5–60 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 5–95% non-condensing
Storage Humidity 5–95% non-condensing
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance cUL Listed, UL Listed, FCC Part 15 Class A, ICES-003, UL 60950-1, RoHS, REACh
Warranty 2 years repair or replace
[/specifications]

[accessories]

Installation Guide Included in the box
Rack Mounting Brackets Included in the box
Serial Configuration Cable Included in the box
Safety Guide Included in the box
[/accesories]
Overview

The APC AP8930 NetShelter Switched Rack PDU is engineered for IT and enterprise environments demanding precision power control. With 20A capacity, 24 outlets, and 0U vertical mounting, it provides reliable distribution while enabling advanced monitoring and remote outlet management to maximize uptime.

Key Features & Benefits
  • Remote Outlet Control: Power cycle devices or restrict usage directly from a secure interface.
  • Power Sequencing: Reduce inrush currents by defining startup and shutdown order.
  • Real-Time Metering: Continuous load visibility helps prevent overloads.
  • Environmental Monitoring: Sensor port supports temperature and humidity inputs.
  • Flexible Rack Integration: 0U vertical design conserves critical rack space.
Technical Deep Dive

At its foundation, the AP8930 offers switched outlet-level control. This allows administrators to remotely reboot locked systems, manage energy consumption, and enhance equipment security by limiting unauthorized access to outlets.

Its integrated metering delivers accurate current data, ensuring informed capacity planning and early detection of potential overload conditions. Power sequencing functionality is particularly valuable in data centers, as it staggers device startups to prevent circuit trips during recovery events.

Designed for interoperability, the unit supports access through Web, SNMP, or Telnet and integrates with APC management platforms like InfraStruxure Central. Combined with locking IEC outlets and low-profile breakers, it ensures robust and secure distribution for mission-critical IT loads.

Ideal Applications
  • Enterprise network closets
  • High-density data center racks
  • Server and storage deployments
  • Colocation facilities requiring outlet-level control
Frequently Asked Questions (FAQs)

Q1: How is the AP8930 installed?
A: It is designed for 0U vertical mounting with included brackets, making it easy to attach to standard racks without occupying horizontal space.

Q2: What performance can I expect?
A: The PDU supports up to 20A input and delivers 120V with 24 NEMA 5-20R outlets. Load capacity reaches 1920 VA. Actual performance depends on connected equipment and operating environment.

Q3: How can it be managed?
A: The unit supports Web, SNMP, and Telnet management interfaces and integrates with APC platforms for centralized monitoring and control.
