APC AP8868 - NetShelter Metered Rack PDU 10kW 0U Vertical
Clique ou role para ampliar
Toque ou belisque para ampliar
APC AP8868 - NetShelter Metered Rack PDU 10kW 0U Vertical
Clique ou role para ampliar
Toque ou belisque para ampliar
APC AP8868 - NetShelter Metered Rack PDU 10kW 0U Vertical
APC AP8868 - NetShelter Metered Rack PDU 10kW 0U Vertical

APC AP8868 - NetShelter Metered Rack PDU 10kW 0U Vertical

por APC
Desconto de 34%
R$ 33.840,00
R$ 22.272,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

10kW / 208V, 0U Vertical PDU, 36x C13 & 6x C19 Outlets, Remote Monitoring, User-Defined Alarms, Locking IEC Receptacles

[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model AP8868
Product Type NetShelter Metered Rack PDU
Form Factor 0U Vertical
Dimensions (H x W x D) 72.01" x 2.20" x 2.01" (1829 x 56 x 51 mm)
Weight 18.78 lb (8.52 kg)
Color Black
Number of Rack Units 0U
Mounting Mode Rack-mounted (Vertical, Side Mountable)
Cooling Passive
[/properties]

[specifications]

PDU Type Metered
Input Voltage 208 V (3 Phase)
Output Voltage 208 V
Input Plug Type CS8365
Input Frequency 50/60 Hz
Line Rated Current 35 A (Max 35 A)
Load Capacity 10,000 VA
Outlets 36 × IEC C13, 6 × IEC C19
Communication Ports Web, SNMP, CLI, Serial configuration
Operating Temperature 23–140 °F (-5–60 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 5–95% non-condensing
Storage Humidity 5–95% non-condensing
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance cUL Listed, UL Listed, VCCI Class A, FCC Part 15 Class A, ICES-003, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3
Warranty 2 years repair or replace
[/specifications]

[accessories]

Installation Guide Included in the box
Rack Mounting Brackets Included in the box
Serial Configuration Cable Included in the box
Safety Guide Included in the box
[/accesories]

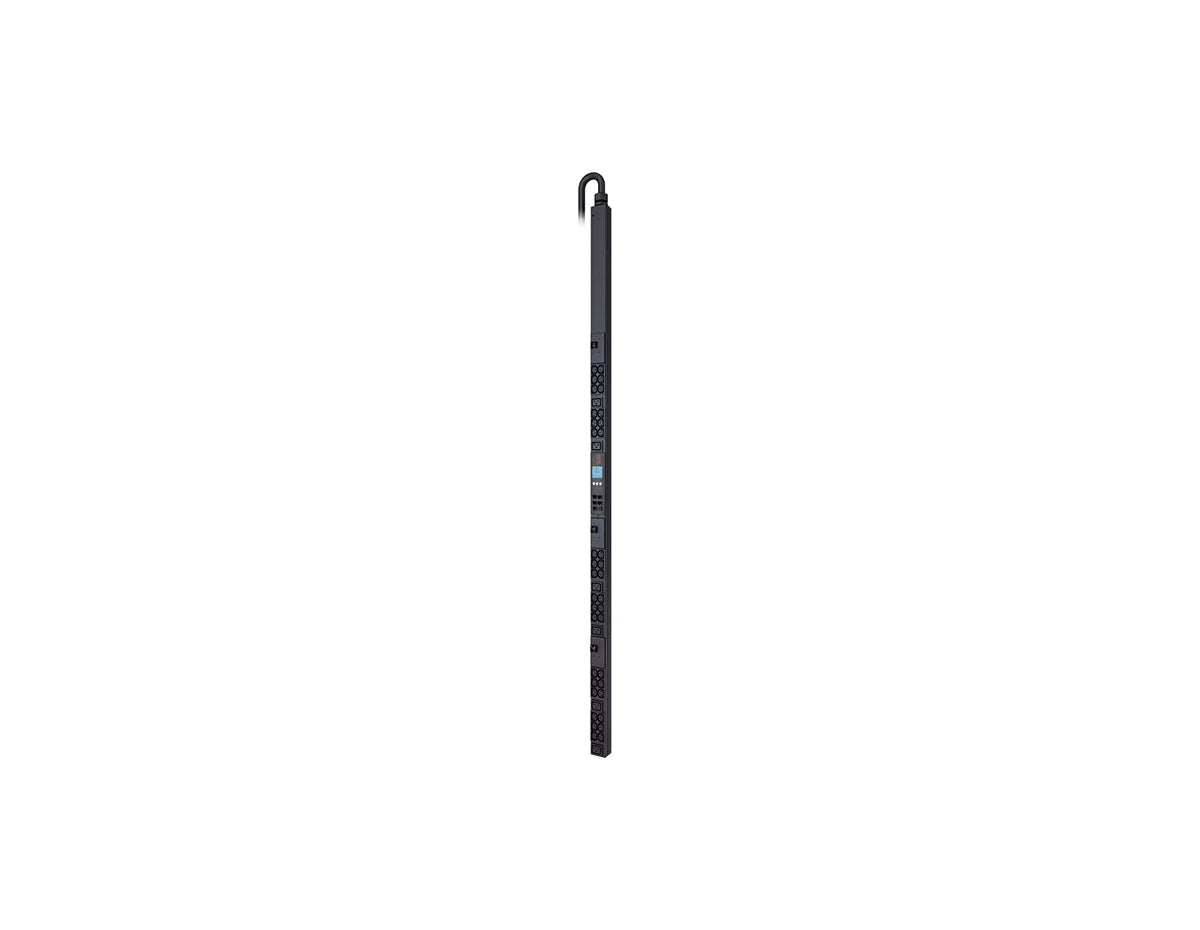

The APC AP8868 Metered Rack PDU is a high-density, 0U vertical power distribution solution engineered to deliver 10kW at 208V. With integrated metering, remote monitoring, and user-defined alarms, it ensures efficient power management in mission-critical data center environments. Designed for APC NetShelter enclosures, it installs without tools, saving valuable rack space.

  • 10kW Load Capacity: Provides reliable high-density power distribution for modern data centers.

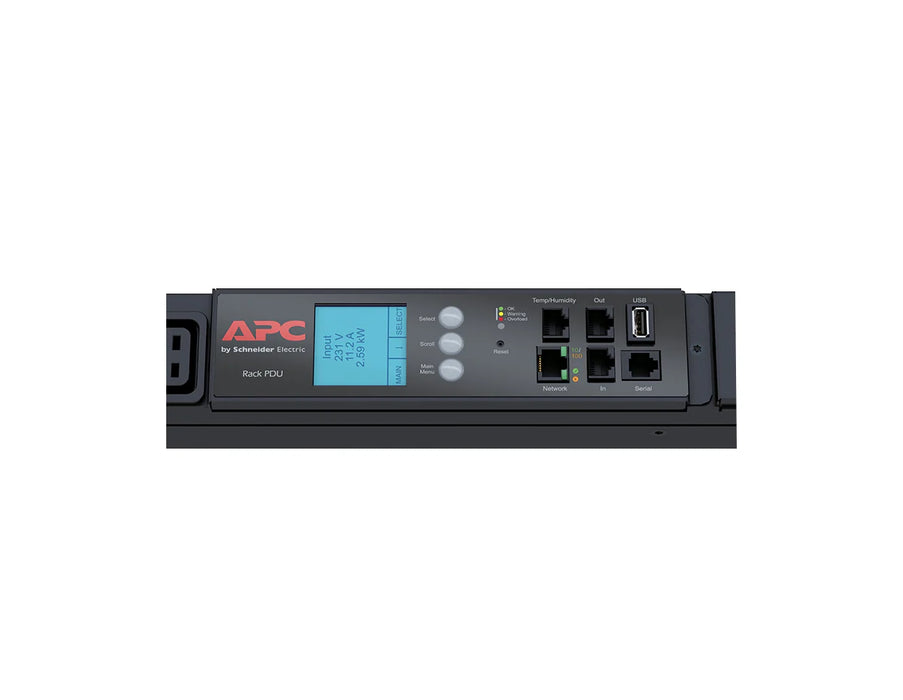

  • Remote Monitoring: Access via Web, SNMP, or CLI for proactive power management.
  • User-Defined Alarms: Prevent overloads with real-time threshold alerts.
  • Locking IEC Receptacles: Secures power cords, reducing accidental disconnections.
  • 0U Vertical Mount: Saves rack space and increases equipment capacity.
  • Environmental Monitoring: Supports temperature/humidity sensors for full rack insight.

The AP8868 leverages a 3-phase 208V input with a maximum line current of 35A, delivering consistent power across 36 C13 and 6 C19 outlets. By integrating real-time kW and kWh metering, it enables precise load balancing and energy efficiency tracking.

Its ultra-low-profile breakers and embedded memory enhance operational reliability by logging historical data, allowing IT teams to analyze consumption trends. The locking outlet design prevents load drops caused by accidental disconnections, a critical safeguard in high-uptime environments.

The environmental monitoring port extends visibility by integrating external sensors, giving administrators real-time awareness of temperature and humidity conditions in the rack.

  • Enterprise data centers with high-density racks
  • Colocation facilities requiring remote visibility
  • Server rooms and network closets
  • Industries with continuous uptime requirements such as finance, healthcare, and telecom

Q1: How is the AP8868 installed?
A: It mounts vertically (0U) in APC NetShelter racks without tools, preserving valuable horizontal rack space.

Q2: What power output does it provide?
A: The AP8868 delivers up to 10kW at 208V with 36x C13 and 6x C19 outlets. Runtime depends on connected load and input source capacity.

Q3: How can the unit be managed?
A: The PDU supports remote management through Web, SNMP, and CLI, with the option to integrate external environmental sensors.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

10kW / 208V, 0U Vertical PDU, 36x C13 & 6x C19 Outlets, Remote Monitoring, User-Defined Alarms, Locking IEC Receptacles

[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model AP8868
Product Type NetShelter Metered Rack PDU
Form Factor 0U Vertical
Dimensions (H x W x D) 72.01" x 2.20" x 2.01" (1829 x 56 x 51 mm)
Weight 18.78 lb (8.52 kg)
Color Black
Number of Rack Units 0U
Mounting Mode Rack-mounted (Vertical, Side Mountable)
Cooling Passive
[/properties]

[specifications]

PDU Type Metered
Input Voltage 208 V (3 Phase)
Output Voltage 208 V
Input Plug Type CS8365
Input Frequency 50/60 Hz
Line Rated Current 35 A (Max 35 A)
Load Capacity 10,000 VA
Outlets 36 × IEC C13, 6 × IEC C19
Communication Ports Web, SNMP, CLI, Serial configuration
Operating Temperature 23–140 °F (-5–60 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 5–95% non-condensing
Storage Humidity 5–95% non-condensing
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance cUL Listed, UL Listed, VCCI Class A, FCC Part 15 Class A, ICES-003, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3
Warranty 2 years repair or replace
[/specifications]

[accessories]

Installation Guide Included in the box
Rack Mounting Brackets Included in the box
Serial Configuration Cable Included in the box
Safety Guide Included in the box
[/accesories]
Overview

The APC AP8868 Metered Rack PDU is a high-density, 0U vertical power distribution solution engineered to deliver 10kW at 208V. With integrated metering, remote monitoring, and user-defined alarms, it ensures efficient power management in mission-critical data center environments. Designed for APC NetShelter enclosures, it installs without tools, saving valuable rack space.

Key Features & Benefits
  • 10kW Load Capacity: Provides reliable high-density power distribution for modern data centers.
  • Remote Monitoring: Access via Web, SNMP, or CLI for proactive power management.
  • User-Defined Alarms: Prevent overloads with real-time threshold alerts.
  • Locking IEC Receptacles: Secures power cords, reducing accidental disconnections.
  • 0U Vertical Mount: Saves rack space and increases equipment capacity.
  • Environmental Monitoring: Supports temperature/humidity sensors for full rack insight.
Technical Deep Dive

The AP8868 leverages a 3-phase 208V input with a maximum line current of 35A, delivering consistent power across 36 C13 and 6 C19 outlets. By integrating real-time kW and kWh metering, it enables precise load balancing and energy efficiency tracking.

Its ultra-low-profile breakers and embedded memory enhance operational reliability by logging historical data, allowing IT teams to analyze consumption trends. The locking outlet design prevents load drops caused by accidental disconnections, a critical safeguard in high-uptime environments.

The environmental monitoring port extends visibility by integrating external sensors, giving administrators real-time awareness of temperature and humidity conditions in the rack.

Ideal Applications
  • Enterprise data centers with high-density racks
  • Colocation facilities requiring remote visibility
  • Server rooms and network closets
  • Industries with continuous uptime requirements such as finance, healthcare, and telecom
Frequently Asked Questions (FAQs)

Q1: How is the AP8868 installed?
A: It mounts vertically (0U) in APC NetShelter racks without tools, preserving valuable horizontal rack space.

Q2: What power output does it provide?
A: The AP8868 delivers up to 10kW at 208V with 36x C13 and 6x C19 outlets. Runtime depends on connected load and input source capacity.

Q3: How can the unit be managed?
A: The PDU supports remote management through Web, SNMP, and CLI, with the option to integrate external environmental sensors.
